PE Electrical Distribution Box 420 * 420 * 540mm Dimension 16kgs Weight

China PE Electrical Distribution Box 420 * 420 * 540mm Dimension 16kgs Weight supplier
PE Electrical Distribution Box 420 * 420 * 540mm Dimension 16kgs Weight supplier PE Electrical Distribution Box 420 * 420 * 540mm Dimension 16kgs Weight supplier

Large Image :  PE Electrical Distribution Box 420 * 420 * 540mm Dimension 16kgs Weight

Product Details:

Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MK2

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Packaging Details: Packed by paper carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Material: PE New Material Rated Current: 125 Amp
IP Rating: IP66 Weather-protected Weight: 16kgs
Product Dimension: 420*420*540mm (L*W*H) Color: Orange / Black

Weather-protected Temporary Portable Power Distribution Box Orange



Application



This box may be fed directly from a generator, a panel or from a larger box and is able to provide temporary power in disaster relief situations to power lights, pumps, fans and tools.



Features & Benefits



  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion.
  • Circuit breakers are mounted under hinged lid for enhanced safety.
  • Weather-protective receptacle covers
  • Stackable and compact for easy storage and portability
  • Elevated base keeps receptacles above ground level



Markets Served



  • Convention Centers
  • Industrial
  • Emergency and Disaster Relief
  • Film maker
  • Outdoor construction



Specification





Input Output Circuit Breaker
1 * 125A / 415V supply inlet 1 * 63A / 415V socket outlet 1 * 4P 63A MCB
  1 * 32A / 415V socket outlet 1 * 4P 32A MCB
  3 * 32A / 230V socket outlets 3 * 2P 32A RCBO
  9 * 16A / 230V socket outlets 9 * 2P 16A RCBO
  • 1pc * 125A / 415V inlet (flush mounting plug)
  • 1pc * 63A / 415V socket outlet
  • 1pc * 32 amp / 415 volt socket outlet
  • 3pcs * 32A / 230V socket outlets
  • 9pcs * 16A / 230V socket outlets
  • 415V socket outlets are protected by Miniature Circuit Breakers
  • With 230V RCBO electronic type
  • All MCBs and RCBOs are installed inside the window of box
  • Size: 42*42*54cm (L*W*H)
  • Product weight: 16 kgs

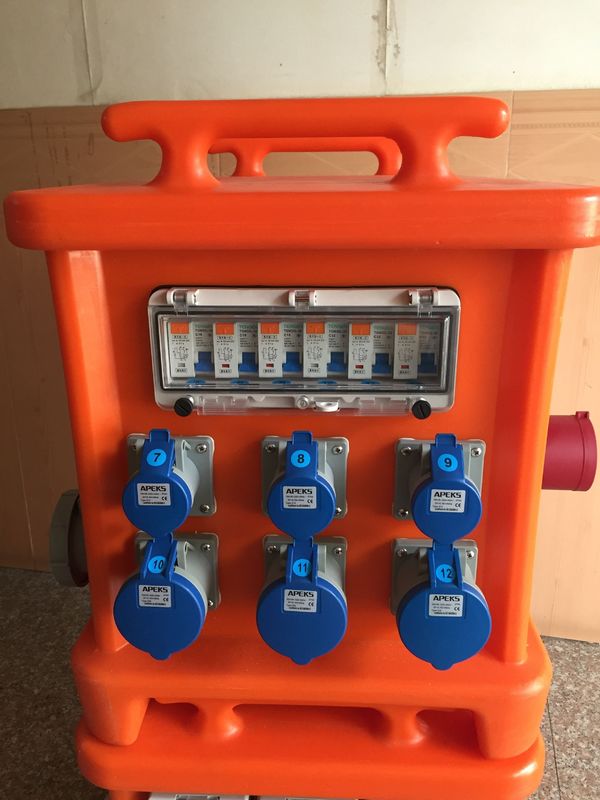

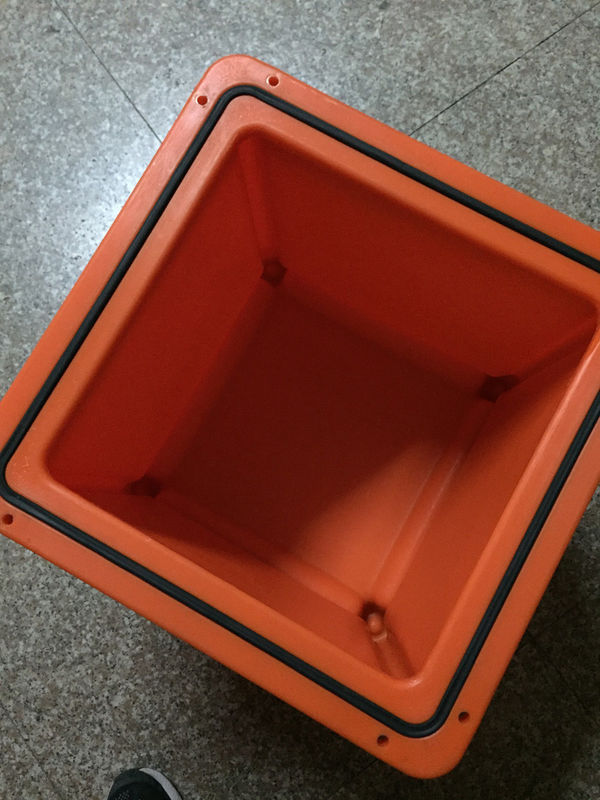

Product Pictures



PE Electrical Distribution Box 420 * 420 * 540mm Dimension 16kgs Weight
