Weather Protected Portable Distribution Box Orange PE Shell Material

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: PE Polyethylene Color: Yellow
Dimension: 370*340*330mm Weight: 12kgs
Protection Grade: IP66 Dust Proof And Waterproof Customize: All Switch, Socket, MCB, RCD, RCBO Can Be Customized
High Light:

power distribution box

,

industrial socket box


Product Description

MP2 Waterproof 24 ways Portable Distribution Box Yellow



Application



This box can be fed directly from a generator or from a larger box and is able to provide temporary power in disaster relief situations. Applications include powering lights, pumps, fans and tools.



Features & Benefits



  • Heavy-duty molded PE enclosure is fully insulated and resistant to shock, impact and corrosion.
  • Breakers are mounted under hinged lid for enhanced safety.
  • Stackable and compact for easy storage and portability.
  • Elevated base keeps receptacles above ground level.​



Markets Served



  • Live Events
  • Convention Centers
  • Industrial
  • Emergency/Disaster Relief
  • First-aid Tent



Dimension



37 x 34 x 33 cm (Length x Width x Height)



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  2 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
 3 meters 5*10mm2 cable  2 * 32A / 415V 5 pins IP67  CEE panel mounted socket  2 * 3P 32A MCB
   2 * 16A / 415V 5 pins IP67  CEE panel mounted socket  2 * 1P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE panel mounted socket  2 * 3P 16A MCB
     2 * 1P 16A MCB

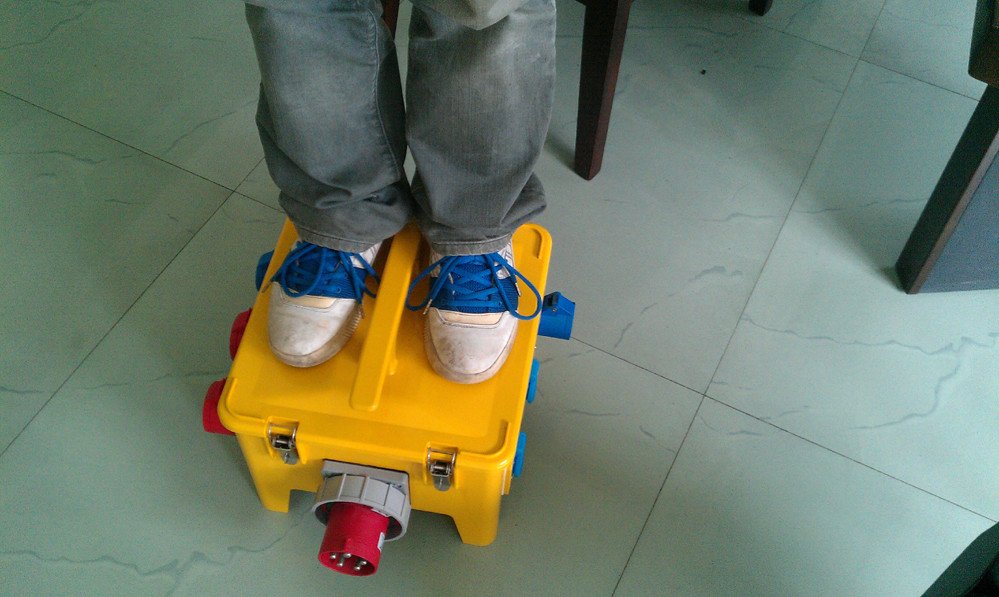

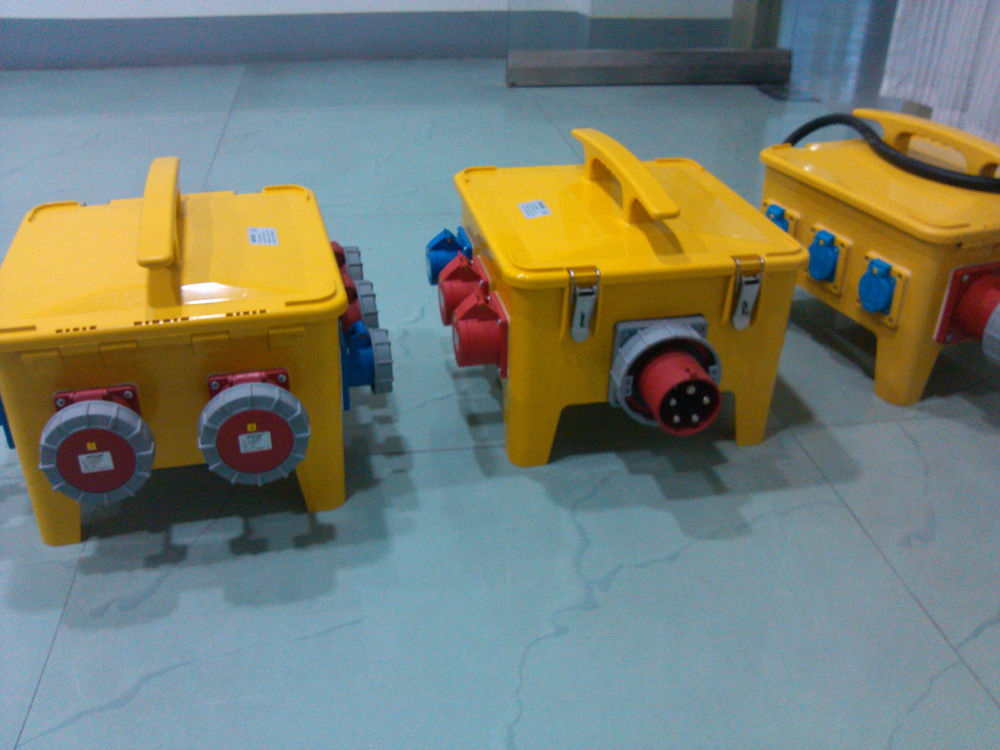

Product Pictures



Weather Protected Portable Distribution Box Orange PE Shell Material 0
