| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP12 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Rated Current: | 63A | Rated Voltage: | 250V |
|---|---|---|---|
| Weight: | 10KGS | Product Dimension: | 30*28.7*23 CM |
| Color: | Black Or Yellow | ||
| High Light: | portable power board,portable electrical distribution box |
||
MP12 Series 12 way Waterproofing Moveable Temporary Power Distribution Box 50 amps 250 volts Power Distro Panel in Black
Rubber power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets. With incoming protection of MCB 32Amp 2p-C 6kA 2U (MAIN Power) and outgoing protection of 4 x RCBO 16A 1pN-C 6kA 30mA A class on the outgoing sockets.
Markets Served
| Input | Output | Circuit Breaker |
| 1 x 40A / 415V 5 pins CEE supply panel mounted plug | 1 x 40A / 415V 5 pins IP67 CEE panel mounted socket | 1 x 4P 40A 30mA Residual Circuit Breaker |
| 2 x 32A / 415V 5 pins IP67 CEE panel mounted socket | 1 x 3P 40A Miniature Circuit Breaker | |
| 3 x 16A / 415V 5 pins IP67 CEE panel mounted socket | 2 x 3P 32A Miniature Circuit Breaker | |
| 1 x 16A / 415V 3 pins IP67 CEE panel mounted socket | 4 x 3P 16A Miniature Circuit Breaker | |
| 4 x 16A / 230V SCHUKO socket outlets | 4 x 1P 16A Miniature Circuit Breaker |

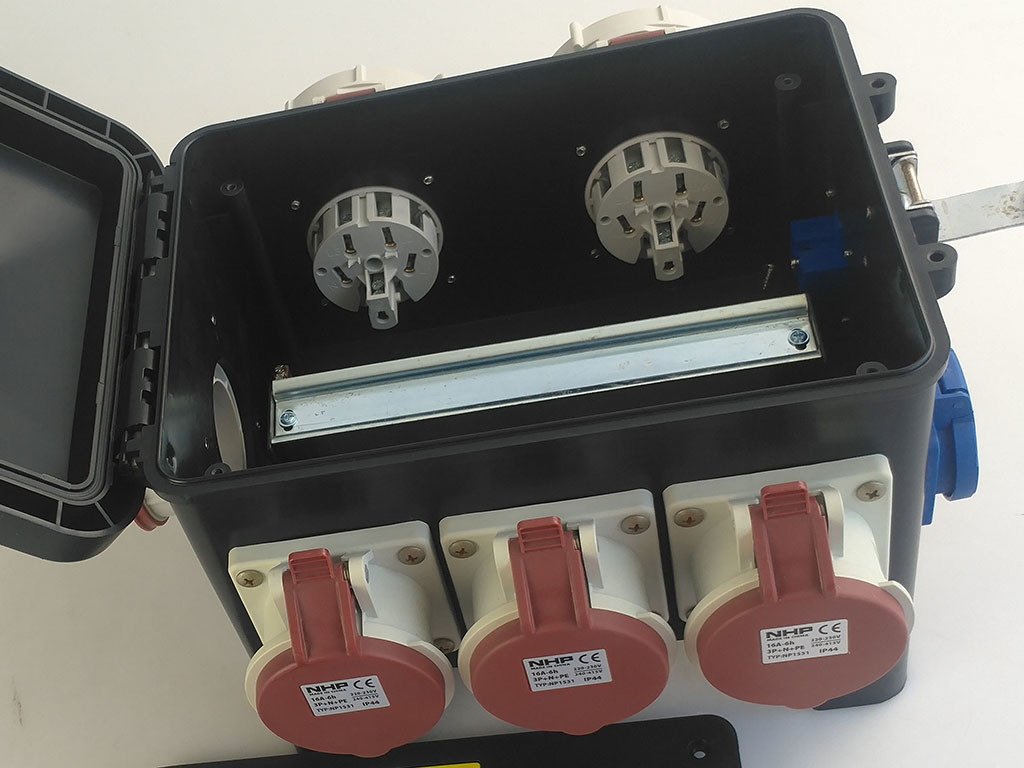

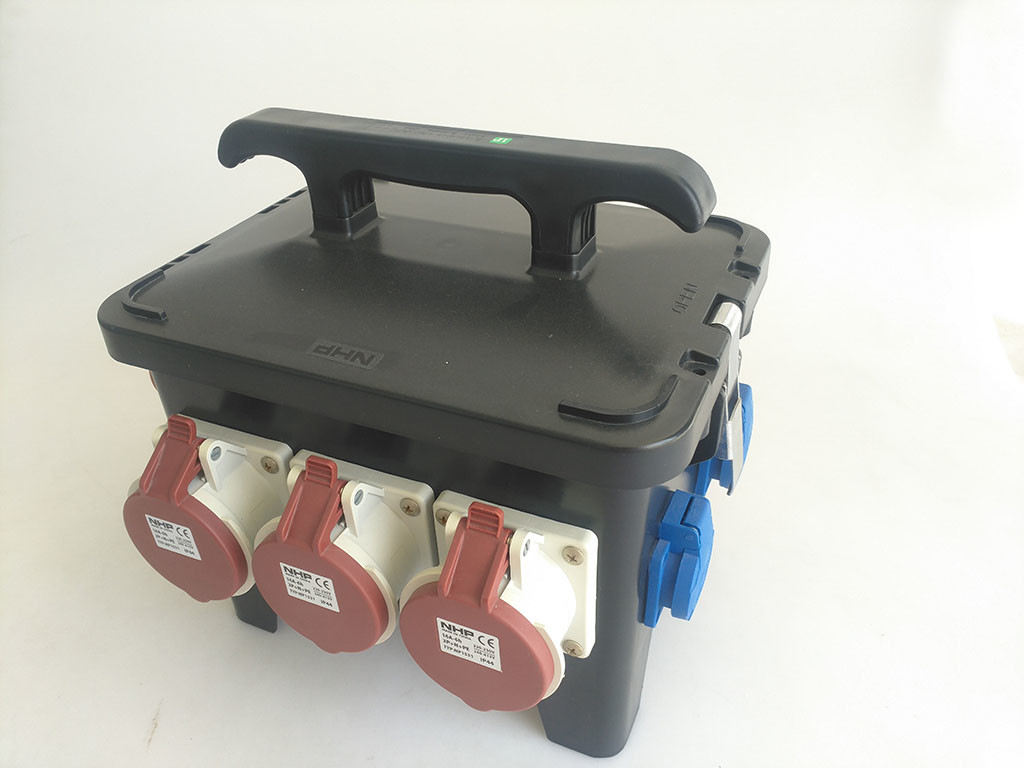

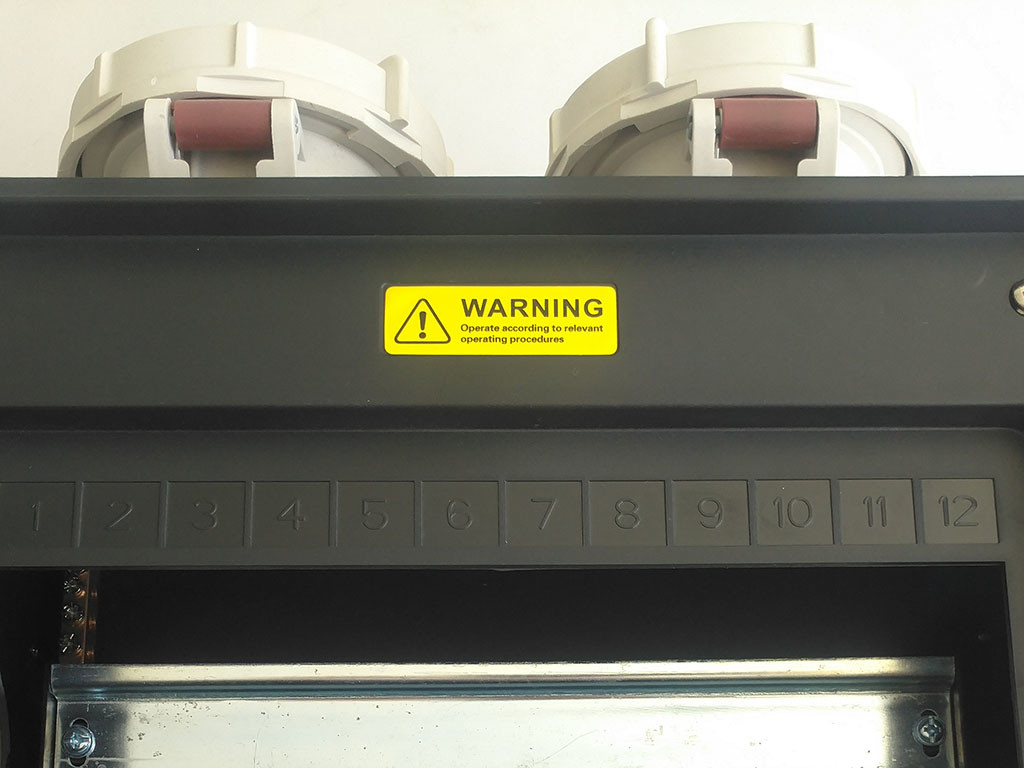

Product Pictures
