Durable Stage Lighting Power Distribution , 200A / 400A Construction Spider Box

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene PE Poles: 24 Ways
Dimension: 37*34*33cm Net Weight: 13.5kgs
IP Grade: IP66 Waterproofing Color: Yellow
High Light:

power spider box

,

event power distribution


Product Description

24 Pole IP66 Weather-protected Customized Lightweight Moveable Enclosure with Overcurrent Protection



Application



The enclosure is custom built from PE Material. 100A, 200A, 400A and special configurations are available upon request.



Features & Benefits



  • Rainproof for outdoor use
  • Feed thru feature allows multiple boxes to be placed along one feed
  • High quality thermoplastic material;
  • Available component preset as requested;



Markets Served



  • plant maintenance
  • events
  • remote work areas
  • work trailer



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  1 * 63A / 415V 5 pins IP67  CEE panel mounted Receptacles  1 * 4P 63A 30mA RCD
 8.5 meters 5*10mm2 cable  3 * 32A / 415V 5 pins IP67  CEE panel mounted Receptacles  3 * 3P 32A MCB
   2 * 16A / 415V 5 pins IP67  CEE panel mounted Receptacles  2 * 1P 32A MCB
   3 * 16A / 415V 3 pins IP67  CEE panel mounted Receptacles  3 * 3P 16A MCB
     2 * 1P 16A MCB



Product Pictures

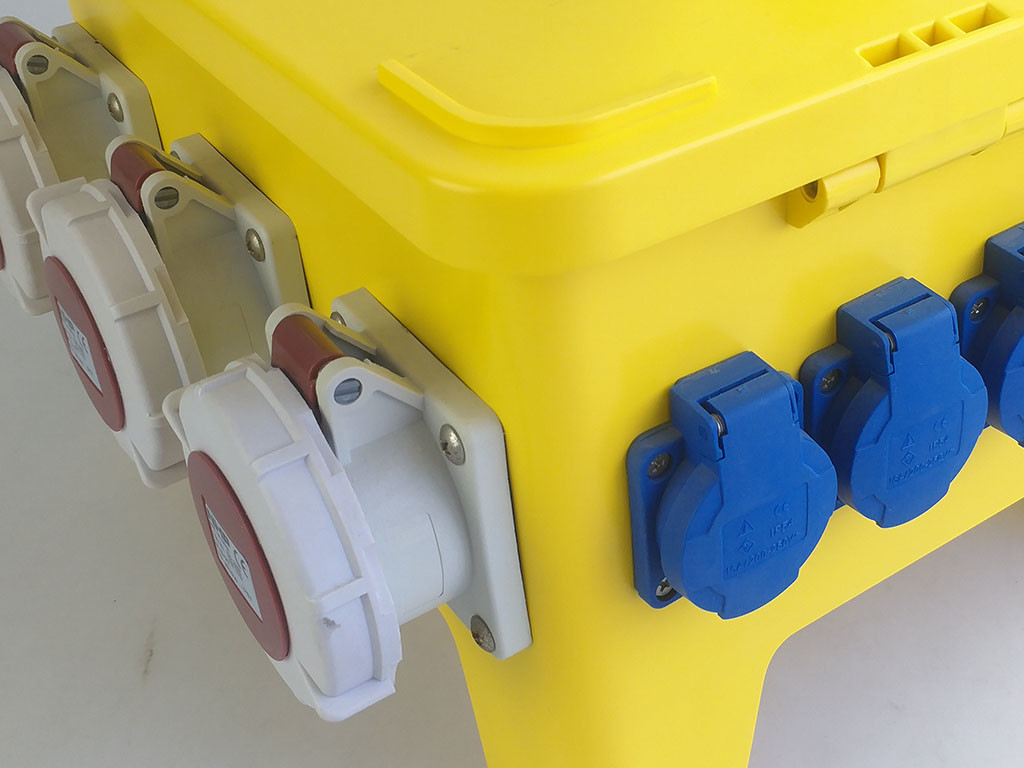

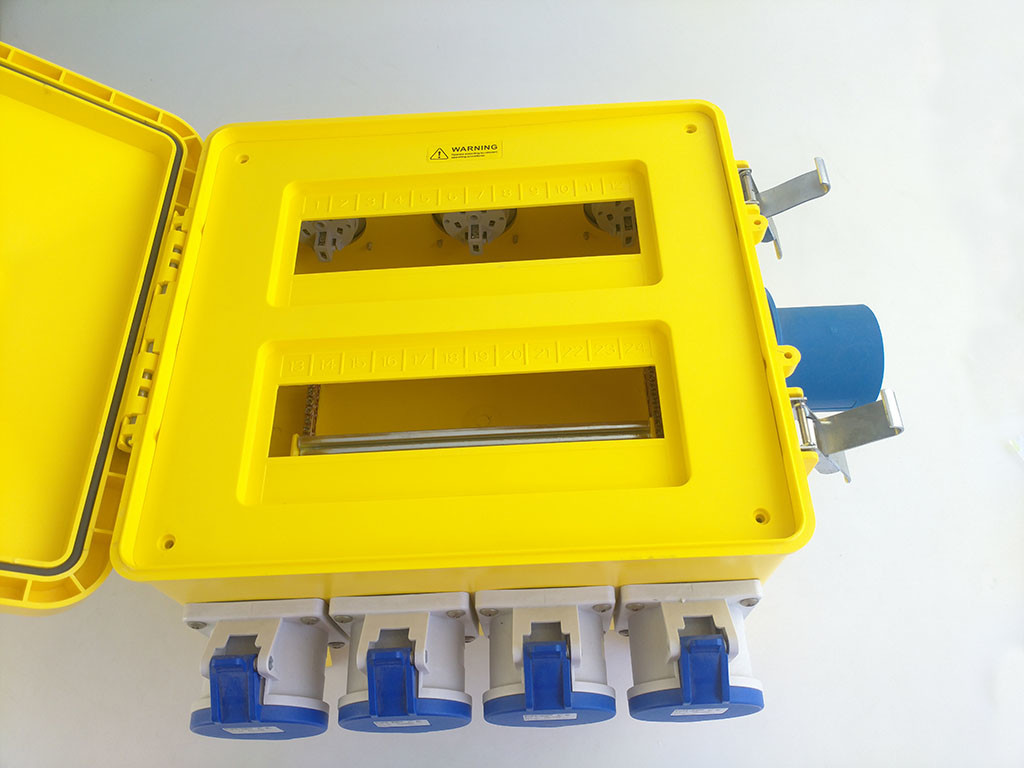

Durable Stage Lighting Power Distribution , 200A / 400A Construction Spider Box 0

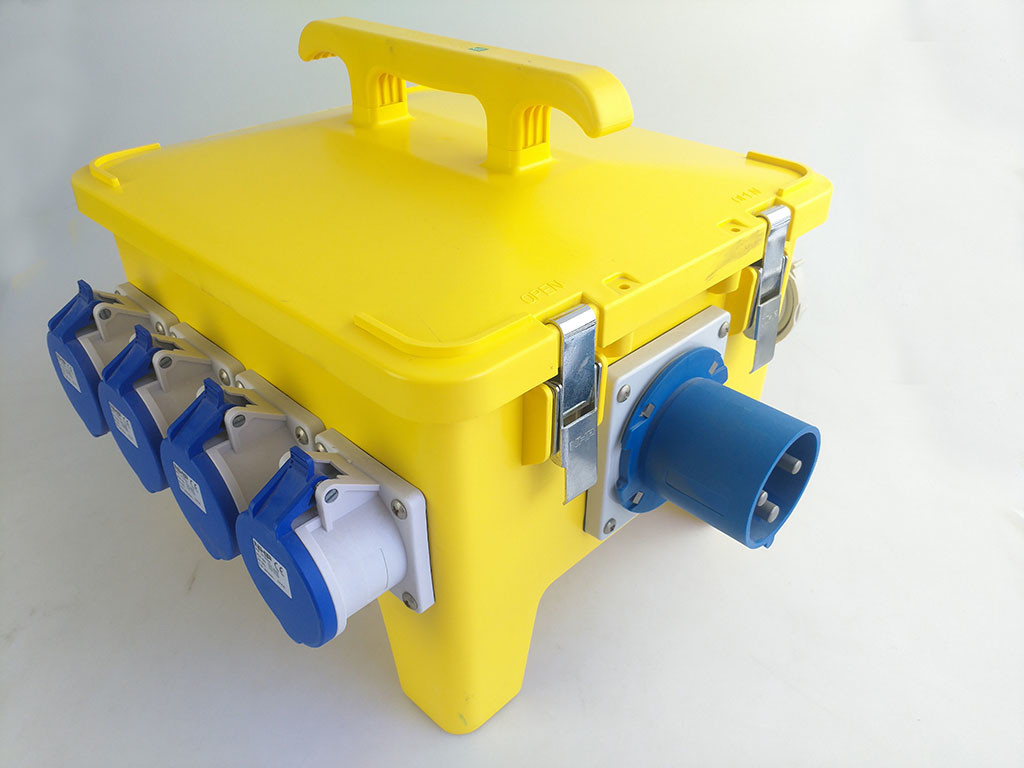

Durable Stage Lighting Power Distribution , 200A / 400A Construction Spider Box 1
