| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP24 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | Polyethylene PE | Poles: | 24 Ways |
|---|---|---|---|
| Dimension: | 37*34*33cm | Net Weight: | 13.5kgs |
| IP Grade: | IP66 Waterproofing | Color: | Yellow |
| High Light: | electric spider box,event power distribution |
||
24Ways IP 66 Rain resistant PE Industrial with Industrial Plugs and Sockets Black or Yellow Load Master
These power distribution centers are protected by a GFCI module giving the user open neutral and reverse phasing protection. They are IEC listed for outdoor use and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electricalsafety as well as meeting current OSHA standards.
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply plug | 2 * 63A / 415V 5 pins IP67 CEE panel mounted socket | 1 * 4P 63A 30mA RCD |
| 4.5 meters 5*10mm2 cable | 2 * 32A / 415V 5 pins IP67 CEE panel mounted socket | 2 * 3P 32A MCB |
| 4 * 16A / 415V 5 pins IP67 CEE panel mounted socket | 4 * 1P 32A MCB | |
| 1 * 16A / 415V 3 pins IP67 CEE panel mounted socket | 1 * 3P 16A MCB | |
| 1 * 1P 16A MCB |

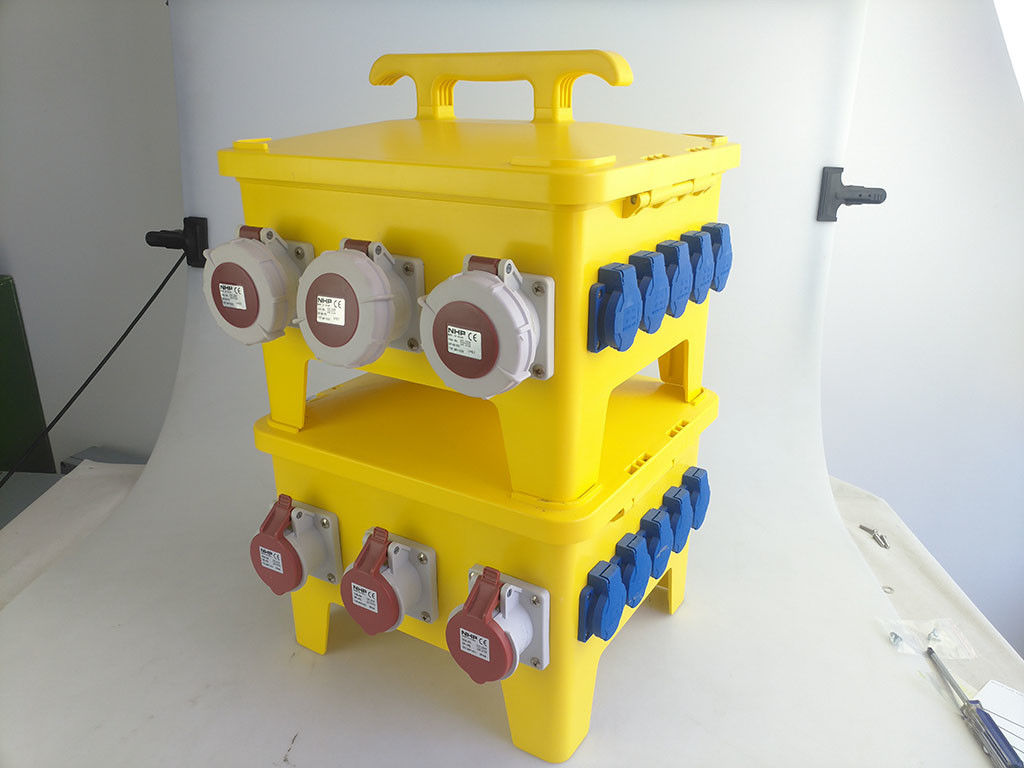

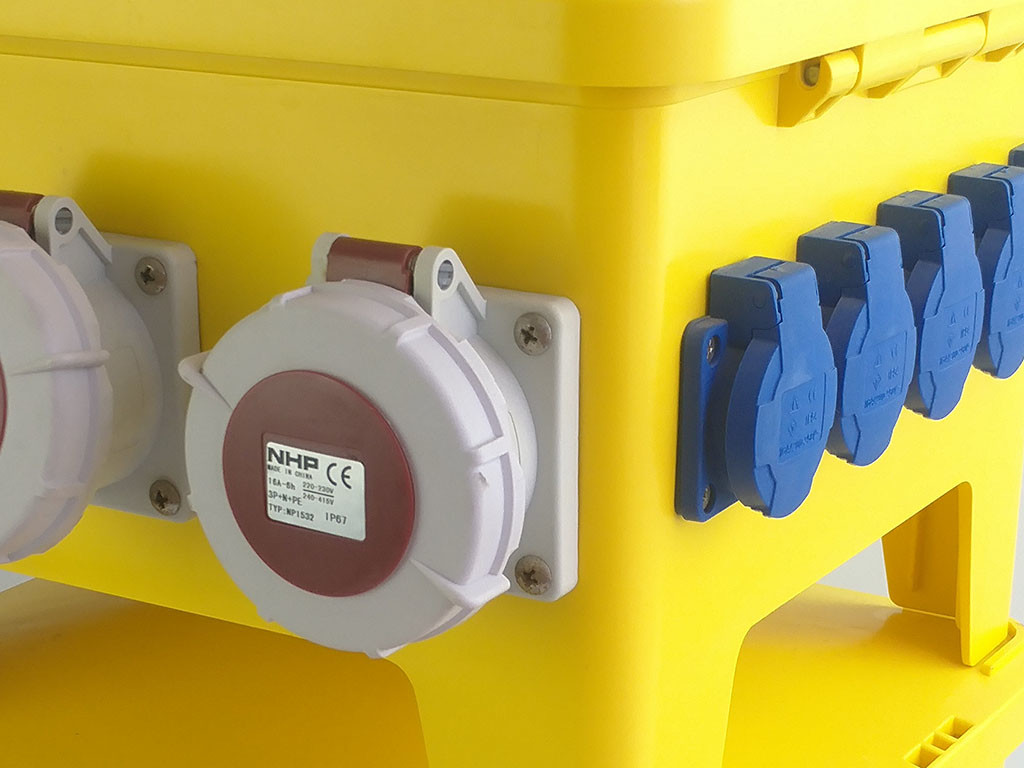

Product Pictures
