Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box

China Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box supplier
Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box supplier Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box supplier Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box supplier

Large Image :  Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box

Product Details:

Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36

Payment & Shipping Terms:

Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Contact Now
Detailed Product Description
Material: PE Dimension: 370*340*330mm
Rated Voltage: 220-230V / 240-415V Rated Current: 125 Amps
Protection Degree: IP66 Waterproof Weight: 15.5kgs

36 Ways IP 66 Water Protection Portable Distribution Box Yellow Distribution System with Industrial Sockets and Plugs



Application



The ultimate solution for portable power distribution on construction sites, mine sites and major events. The Box will ensure the safety of your workers with all outlets being protected by multiple circuit breakers and RCD’s.



Features & Benefits



  • Lifting DIN rails: We can withdraw the DIN rail and install the circuit breaker and other articles on the DIN rail and then send the device into the Power distribution box which provides a large smooth wiring space significantly for easy the insertion as well as connection of large cables.
  • The product weighs approximately 1/4 the weight of an iron box and can be easily installed or moved,The product is free from corrosion, carries superior insulation.
  • long life of 10 year plus
  • Made out of premium corrosion resistant metal that range from heavy gauge Aluminum to Stainless Steel.



Markets Served



  • Residential
  • Construction site
  • camping
  • sport



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5 pins IP67  CEE flush mouted socket  1 * 4P63A 30mA RCD
 4 meters 5*16mm2 cable  1 * 32A / 415V 5 pins IP67  CEE flush mouted socket  1 * 3P 63A MCB
   2 * 16A / 415V 5 pins IP67  CEE flush mouted socket  1 * 3P32A MCB
   2 * 16A / 415V 3 pins IP67  CEE flush mouted socket  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P16A MCB

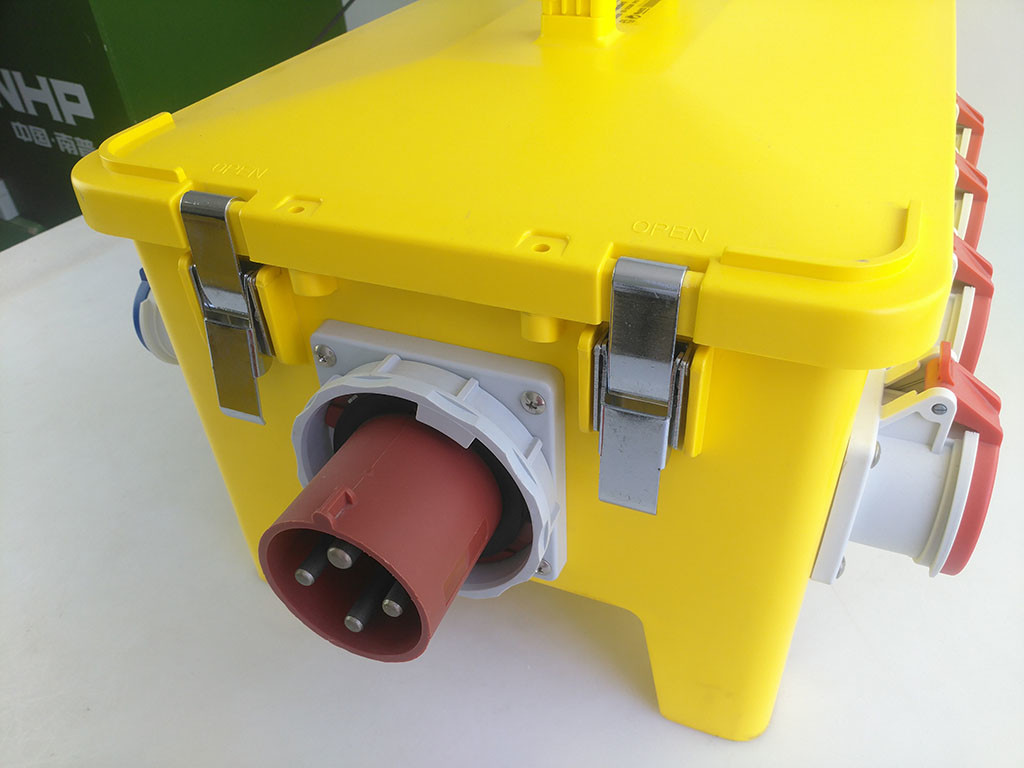

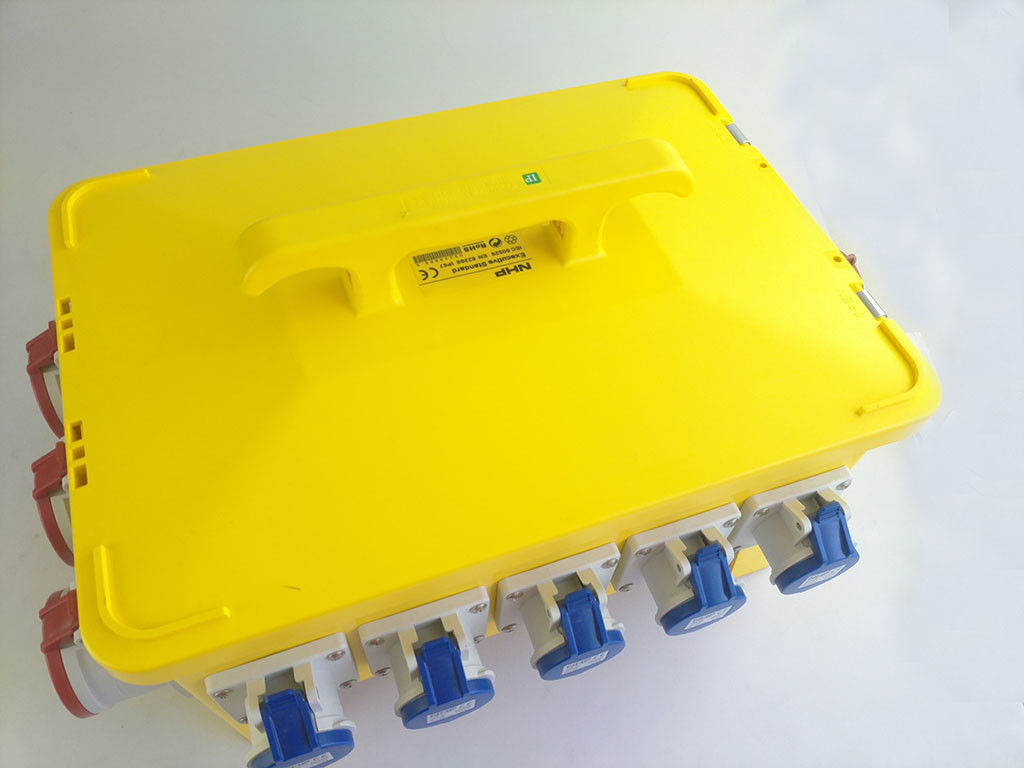

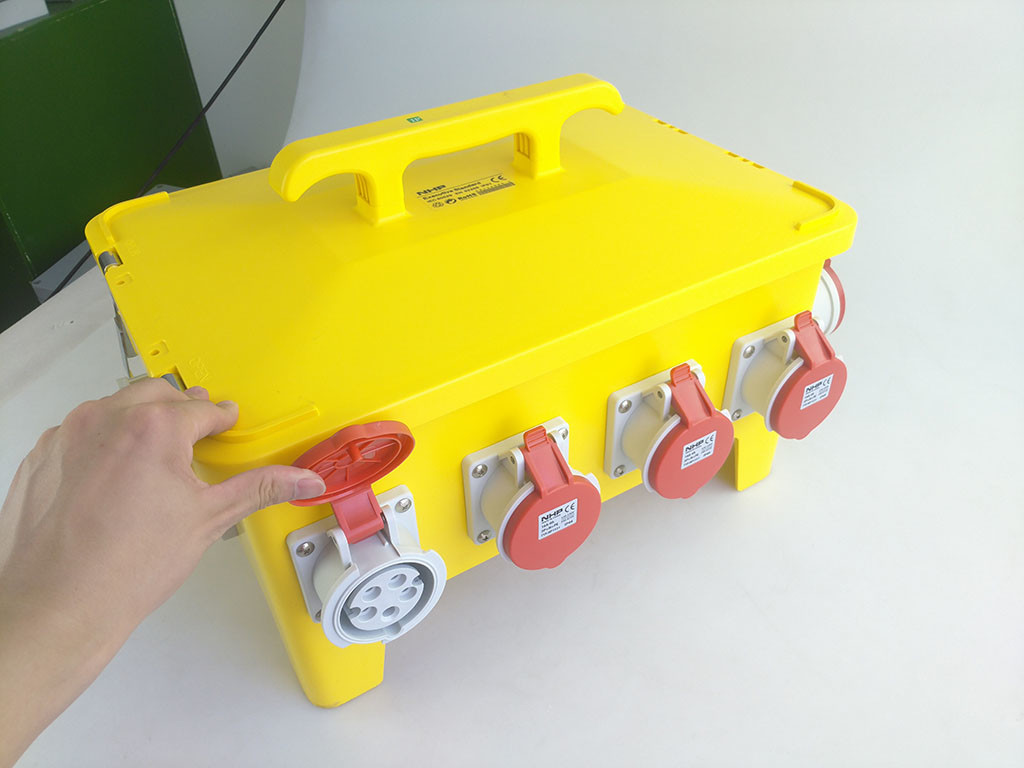

Product Pictures



Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box

Mobile Temp Power Spider Box , IEC60529 220 - 230V 3 Phase Distribution Box
