| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1237 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Receptacle | Poles: | 3P |
|---|---|---|---|
| Voltage & Current: | 230Volt 63Amps | Protection Type: | IP44 Weather-protected |
| Hertz: | 50-60 Hz | Color: | Blue |
| High Light: | industrial type socket,industrial power socket outlet |
||

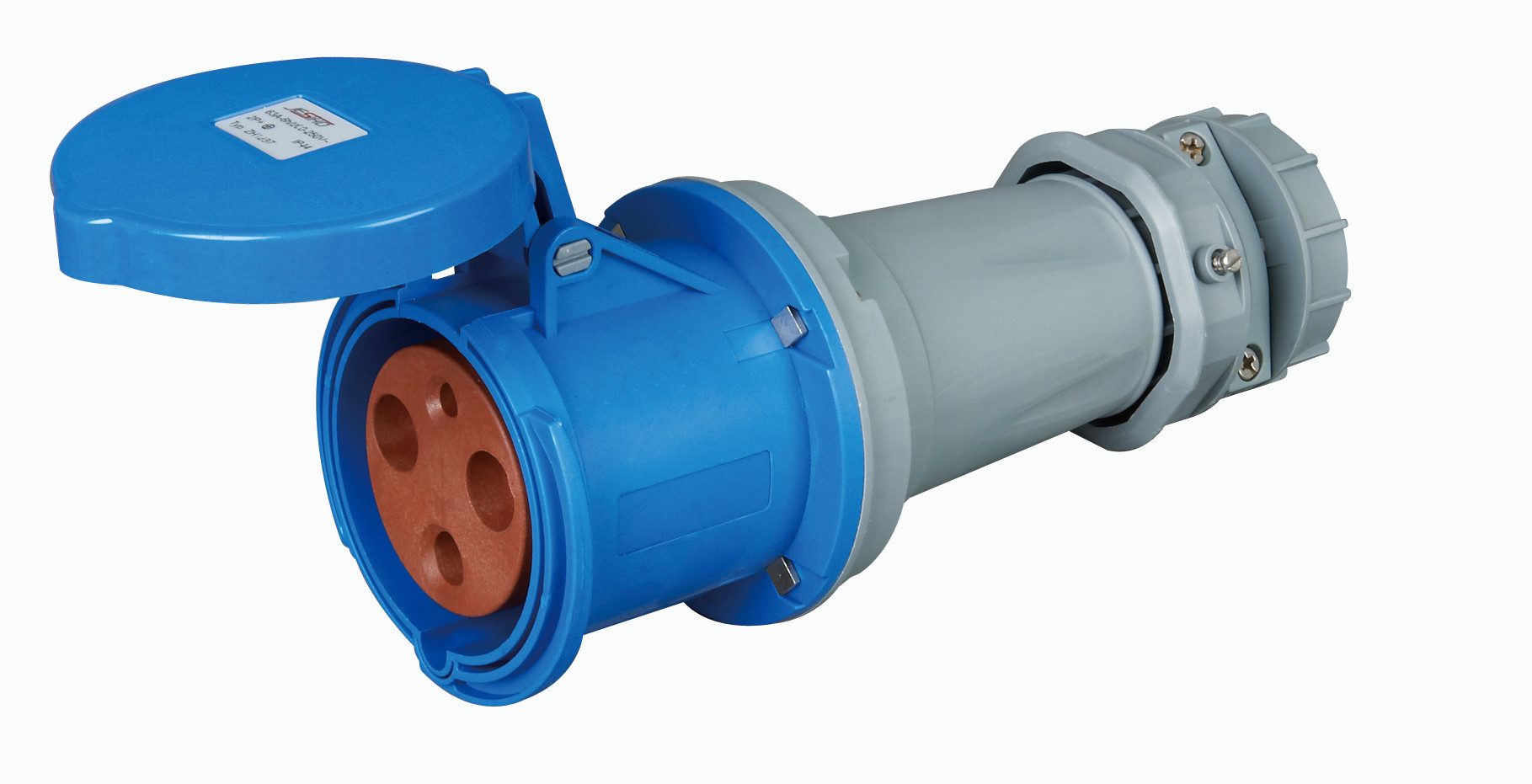

3P 63A IP44 Weather-resistance Industrial Receptacles with Blue Cover Industrial Socket Outlet part no. 1237
Description:
The various positions are referenced from the view of the open side of a socket; the 6 o'clock (180°) position is at the same angle as the major keyway, and is oriented downwards. The major keyway is a projection on the plug casing that aligns with a notch on the socket. The ground pin has a larger diameter than the other pins, preventing the wrong type of plug being inserted in a socket.
Part no. 1237
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230 V50a.60Hz |
400 V50a.60Hz |
500 V50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1236 | 1237 | 1238 | 5 | 714 | |||
| 4 | 1239 | 1240 | 1241 | 1242 | 5 | 744 | |||
| 5 | 1243 | 1244 | 1245 | 5 | 785 |
| Current | Poles | a | b | c | d | e | f | g | |
| 63A | 3 | 257 | 112.5 | 85 | 77.4 | 34 | 108 | 92 | |
| 4 | 257 | 112.5 | 85 | 77.4 | 34 | 108 | 92 | ||
| 5 | 257 | 112.5 | 85 | 77.4 | 34 | 108 | 92 | ||
| Conductor cross-sectional area (mm²) Min To Max 10-16 | |||||||||
