| Type: | Straight | Poles: | 4P |
|---|---|---|---|
| Current & Voltage: | 16A 400V | IP Rating: | IP44 Weather Protect |
| Color: | Red | Weight: | 155g |
| High Light: | plug and socket connectors,iec 60309 plugs and sockets |
||

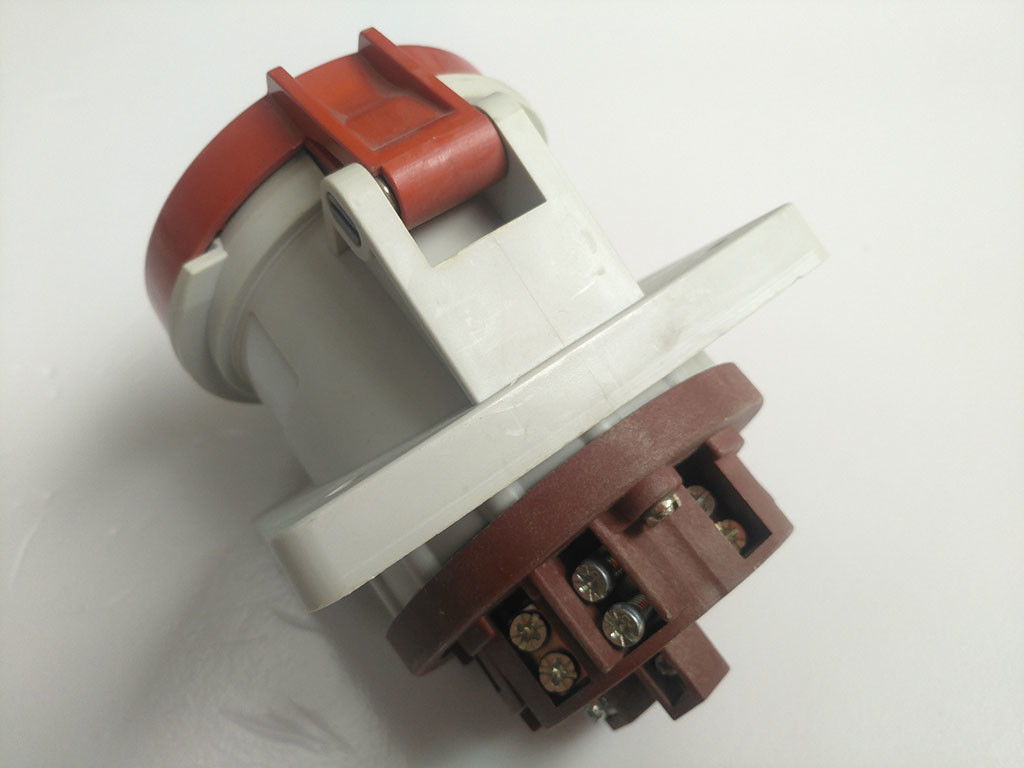

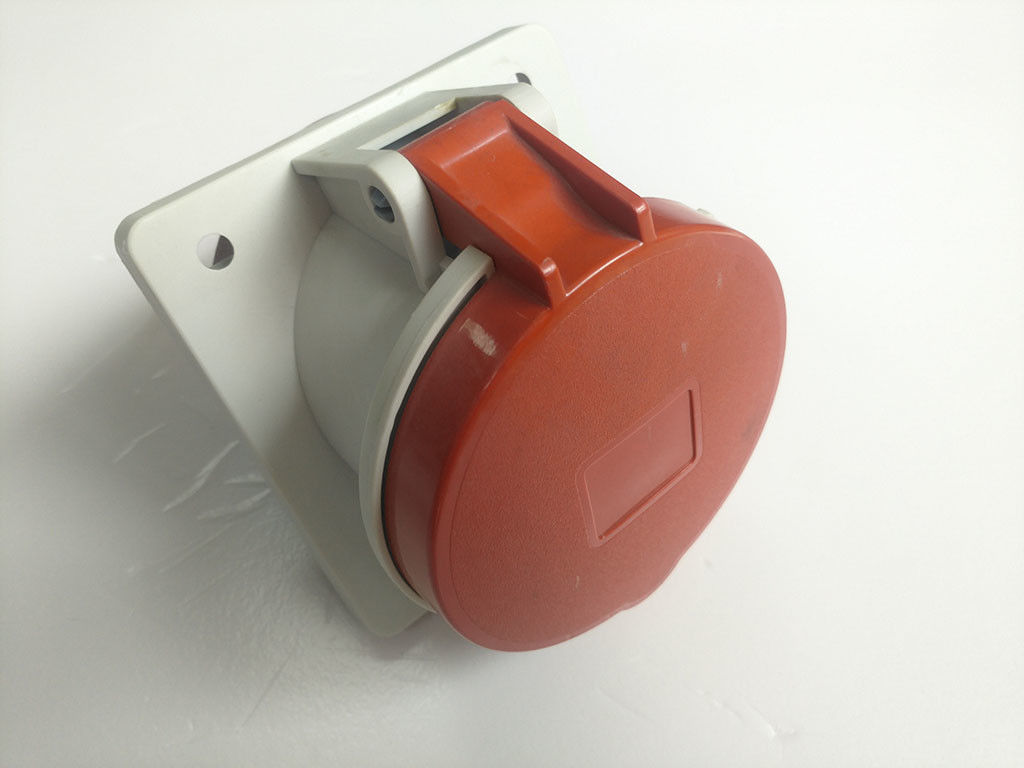

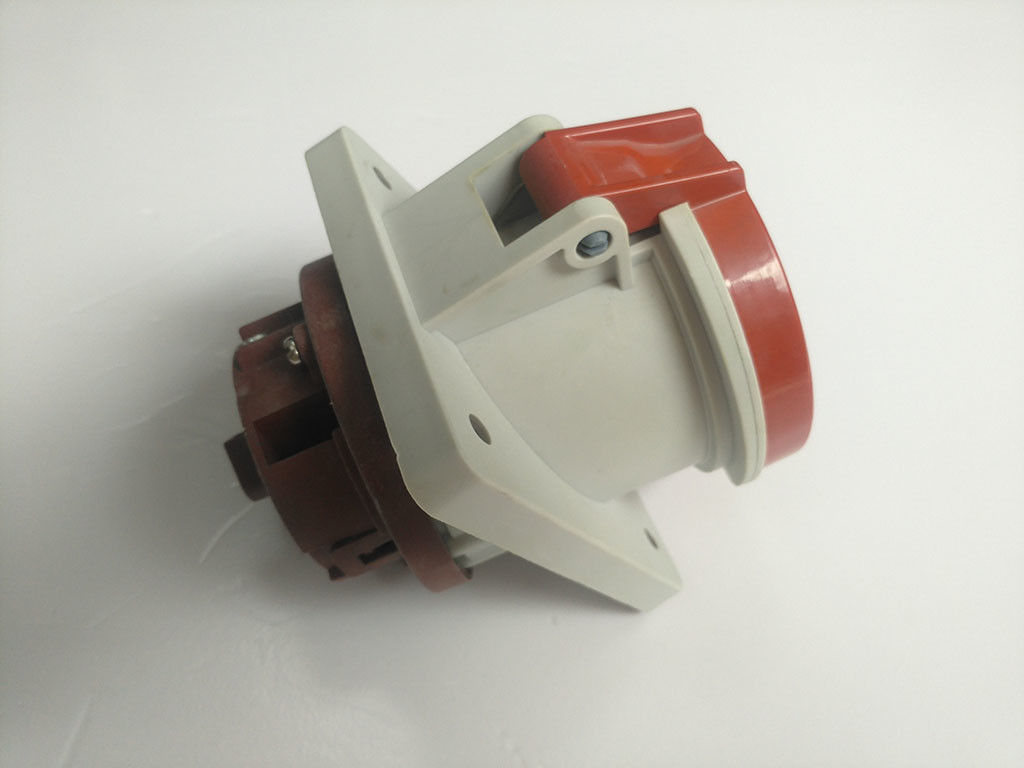

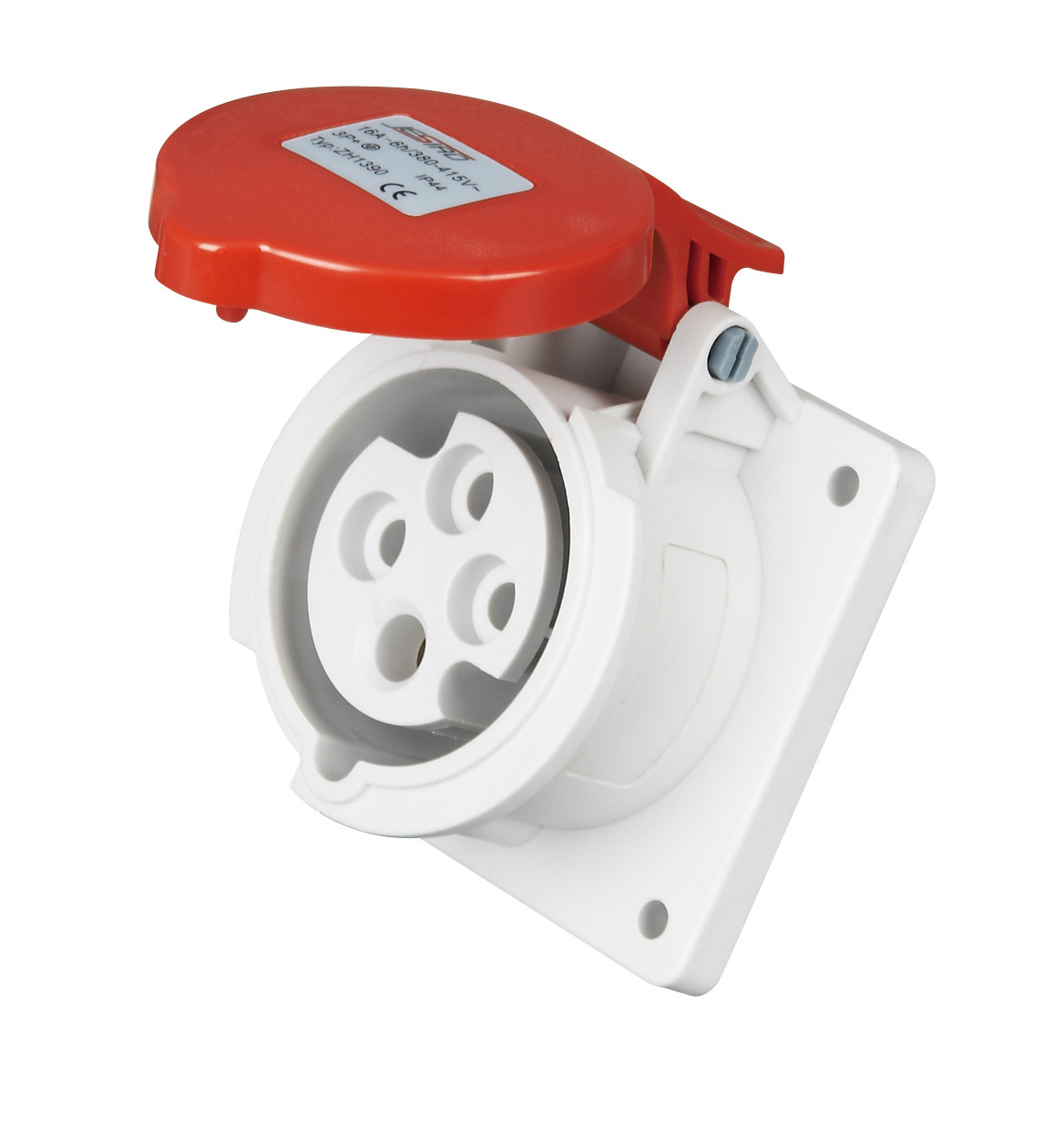

4P 16A IP44 Watertight Panel Mounted Industrial Receptacle Straight with Cover part no. 1390
Description:
These standards govern appliances with rated operating voltage not exceeding 690V, 500 Hz and rated current not exceeding 125A, and are mainly designed for application in the manufacturing and service industry, on building sites and similar uses.
The main purpose of the standards is to prevent accidental or deliberate mismating of plugs and connections which are not compatible in terms of voltage, current, frequency, polarity and type of use, which might therefore cause personal harm as well as damage to the electric appliances which they connect.
Part no. 1390
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 1628/1365 | 1629/1366 | 1367 | 3054 | 3055 | 10 | 134 | |
| 4 | 1388 | 1389 | 1390 | 1391 | 1392 | 1393 | 10 | 155 | |
| 5 | 1384 | 1386 | 1385 | 3057 | 13059 | 3060 | 10 | 179 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | h1 | k | i | |
| 16A | 3 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 68 | 1 | 28 | 50 | |
| 4 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 77 | 5 | 28 | 54 | ||
| 5 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 85 | 9 | 28 | 57 | ||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 | ||||||||||||||
