| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 514 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Poles: | 4P | Current: | 16AMPS |
|---|---|---|---|
| Voltage: | 400Volts | Earth Position: | 6 H |
| Protection Grade: | IP44 Weatherproof | Contact: | Standard |
| High Light: | three phase plugs and sockets,industrial 3 phase plug and socket |
||

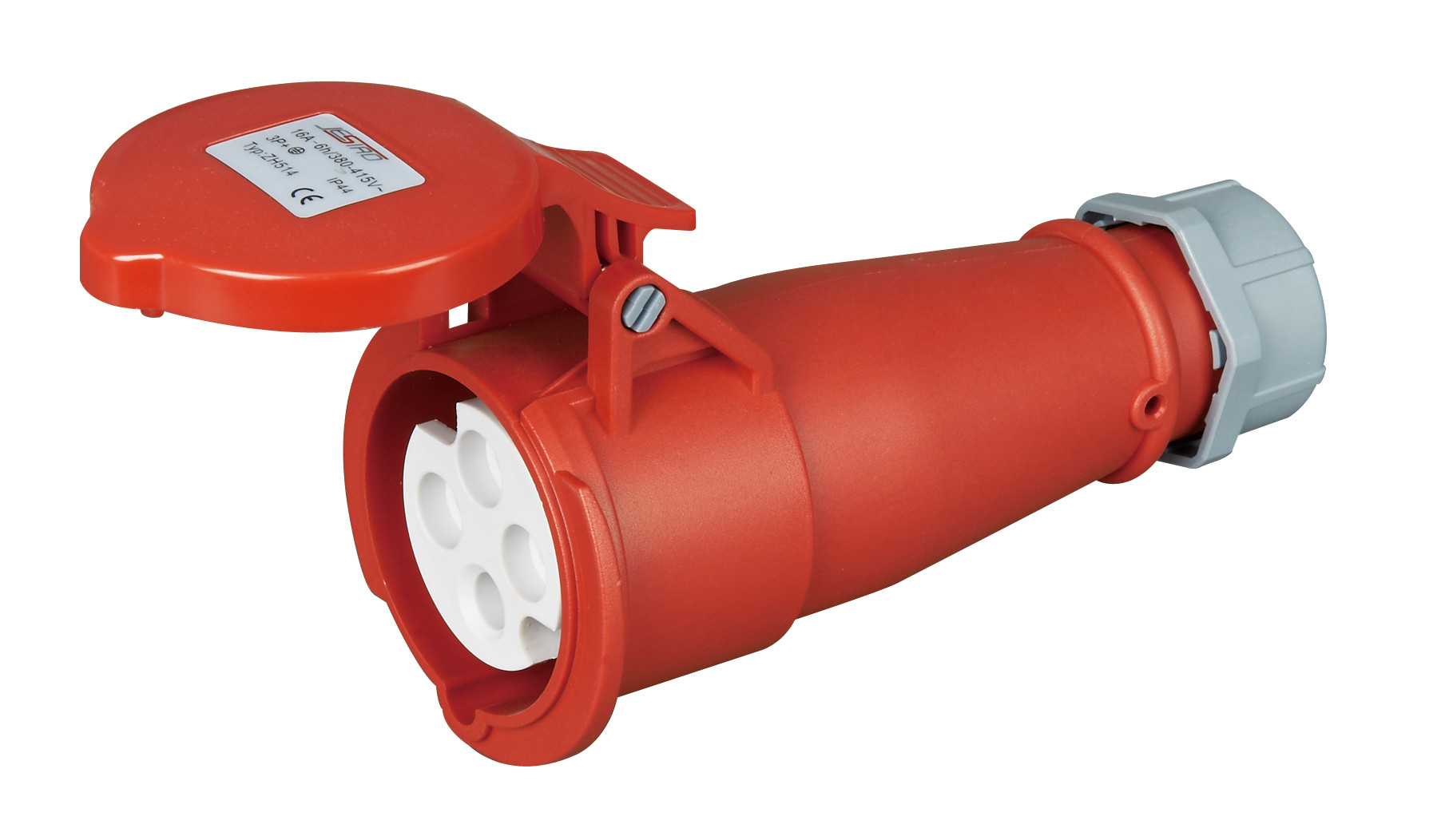

4P 16A IP44 Rain Resistance Red Industrial Connector with Cover 3rd Generation Industrial Plugs and Sockets part no. 514
Features:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 509 | 510 | 511 | 2441 | 2517 | 10 | 178 | |
| 4 | 512 | 513 | 514 | 515 | 516 | 517 | 10 | 201 | |
| 5 | 518 | 519 | 5 | 2026 | 2193 | 2495 | 10 | 237 |
| Current | Poles | a | b | c | d | e | f | g | |
| 16A | 3 | 155 | 80.6 | 51.3 | 49.5 | 86 | 34.7 | 57 | |
| 4 | 156.5 | 82.3 | 51.3 | 55.7 | 90 | 37 | 61.2 | ||
| 5 | 161.7 | 88 | 50.8 | 63 | 97 | 37 | 69 | ||
| Conductor cross-sectional area (mm²) Min To Max 1.5-2.5 | |||||||||
