Screwless 3 Phase Industrial Socket Connector , Sturdy Design 63 Amp Socket

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1241
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Description: Connector Voltage & Current: 400 Volt And 63 Amp
Pins: 4 Pins Hertz: 50 - 60 Hz
Earth Position: 6h Protection Type: IP44 Rain-protected
High Light:

waterproof electrical plugs and sockets

,

iec 60309 plugs and sockets


Product Description

4P 63A IP44 Water Resistant Red Screwless Connector 3rd Generation Industrial Socket China Manufacturer part no. 1241









Description:



Customers can avail from our wide array of 3 Phase Industrial Connector that is made in accordance with the industry defined quality norms. These connectors are made available in multiple design and size options to fulfill the varied requirements of the customers. Apart from this, the offered product is available with us at industry leading prices within committed period of time.



Features:



Smooth finishing
Sturdy design
Long life



Specifications:



Phase: Three phase
Current: 63 A
Material: Plastic + Brass

Part no. 1241





Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
63A 3 1236 1237 1238       5 714
4 1239 1240 1241 1242     5 744
5 1243 1244 1245       5 785



Current Poles a b c d e f g
63A 3 257 112.5 85 77.4 34 108 92
4 257 112.5 85 77.4 34 108 92
5 257 112.5 85 77.4 34 108 92
Conductor cross-sectional area (mm²) Min To Max 10-16



Picture:

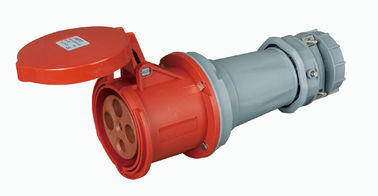

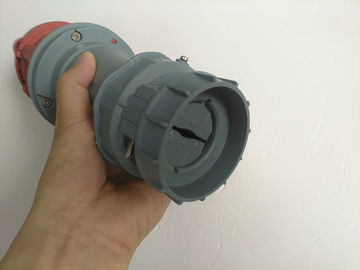

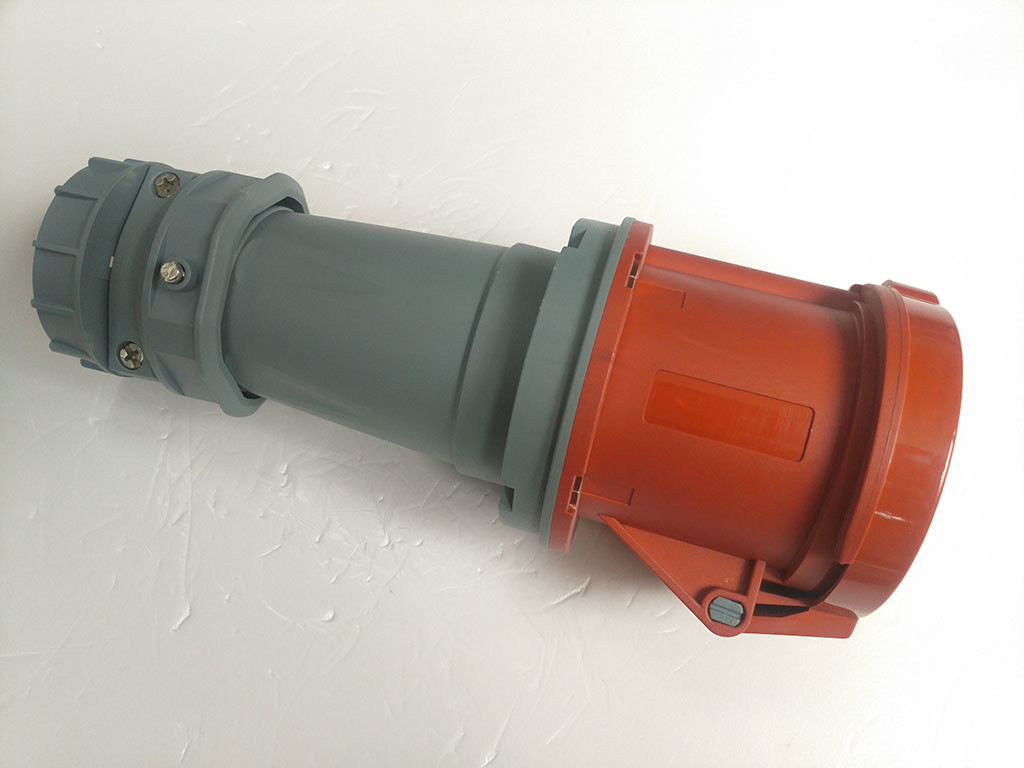

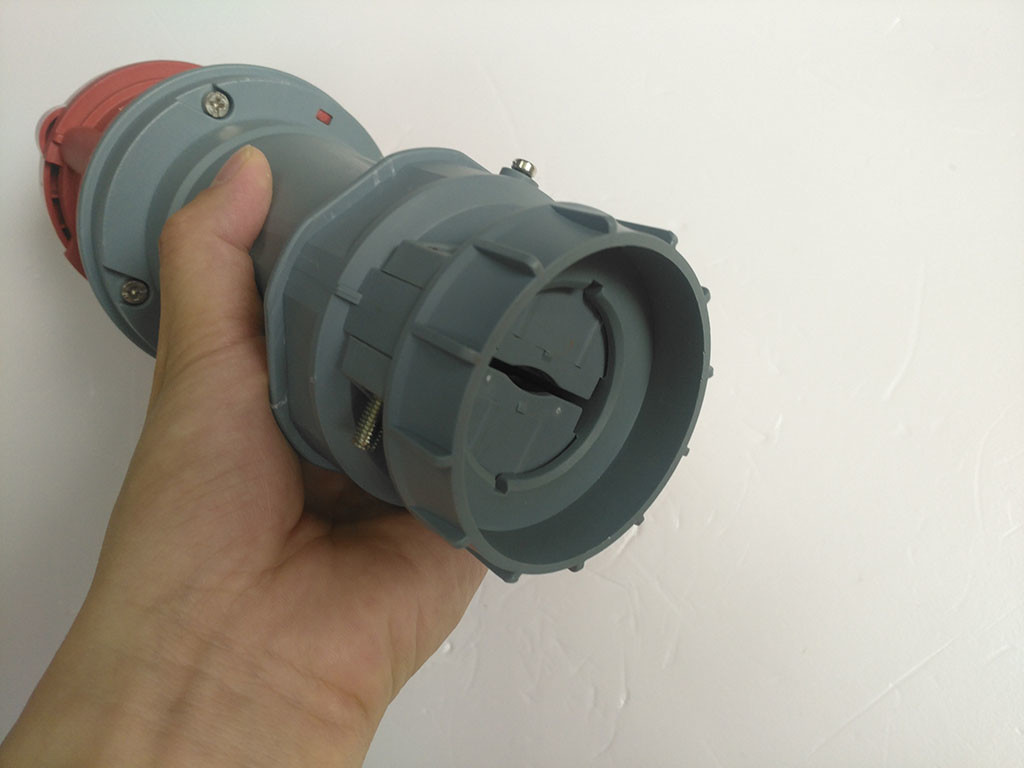

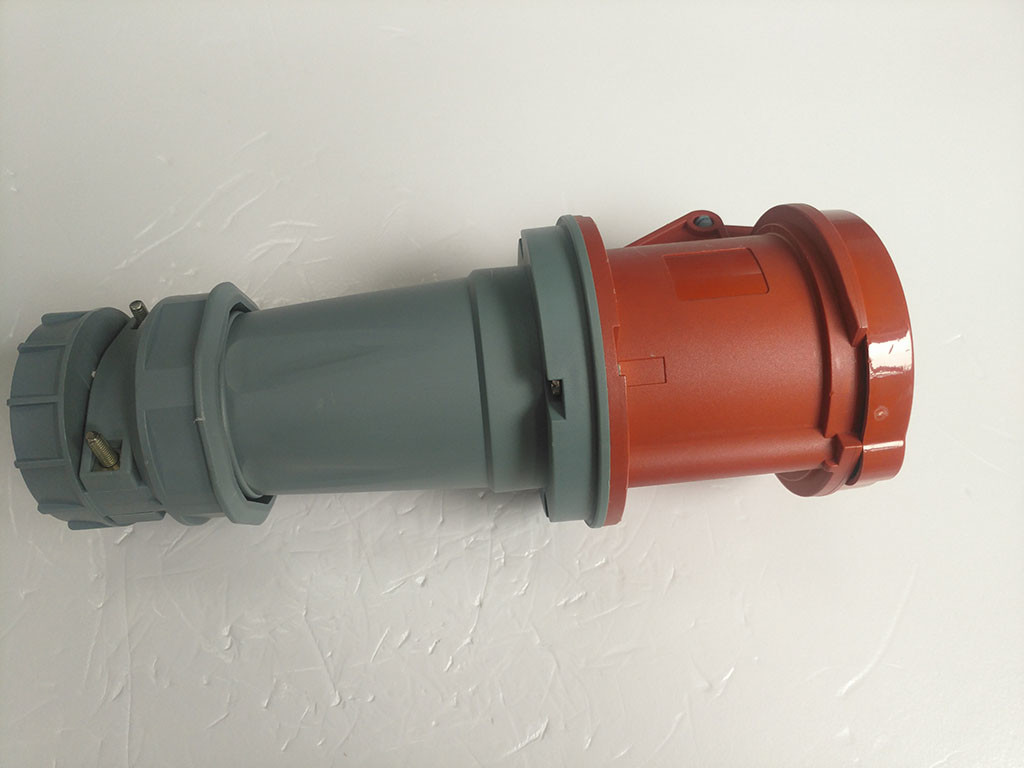

Screwless 3 Phase Industrial Socket Connector , Sturdy Design 63 Amp Socket 0
