Reliable Waterproof Electrical Plugs And Sockets Outstanding Resistance

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1124
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Name: Industrial Sockets Poles & Ampere: 4 Poles 63 Amps
Rated Voltage: 400 Volts Earthing Position: 6 Hour
IP Rating: IP67 Weatherproof Type: Straight
High Light:

waterproof electrical plugs and sockets

,

iec 60309 plugs and sockets


Product Description

4P 63A IP67 Weather-protected Panel Mounted Red Receptacle Straight Third Generation Industrial Sockets part no. 1124



Description:



For years HYPER has been offering a wide range of high-quality industrial plugs and sockets complying with EN 60309-1 and 60309-2 European standards, gaining a leading position in the domestic and export markets.



HYPER's industrial plugs and sockets are reliable, robust, easy to wire and provide outstanding resistance to weathering and to chemicals. All of which assures safe operation, even in the most adverse environmental conditions.

Part no. 1124





Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
400-
440V
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

4P

3h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
63A 3 1263 1264 1265         5 560
4 1122 1123 1124   1125     5 600
5 1127 1127 1128         5 665

Current Poles a b c d e f g. g.1 h i k l
63A 3 107 100 84 85 77 6.5 12 2 113 118 55 88
4 107 100 84 85 77 6.5 12 2 113 118 55 88
5 107 100 84 85 77 6.5 12 2 113 118 55 88
Conductor cross-sectional area(mm²)Min To Max 10-16


Product Dimension:

Reliable Waterproof Electrical Plugs And Sockets Outstanding Resistance 0

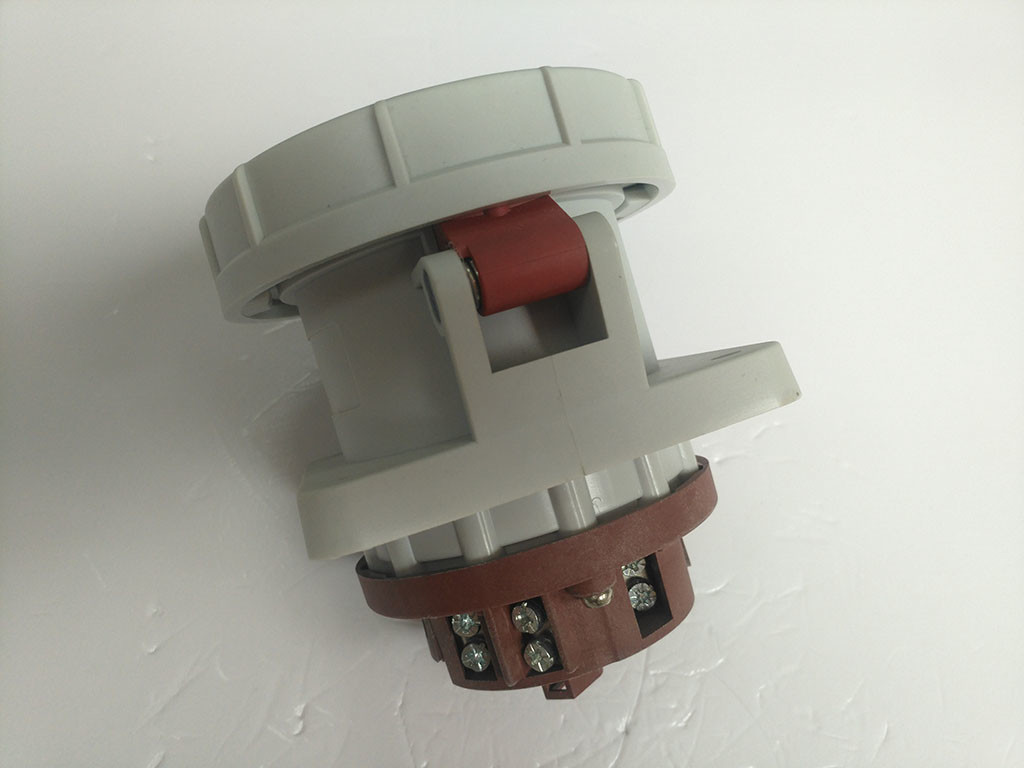

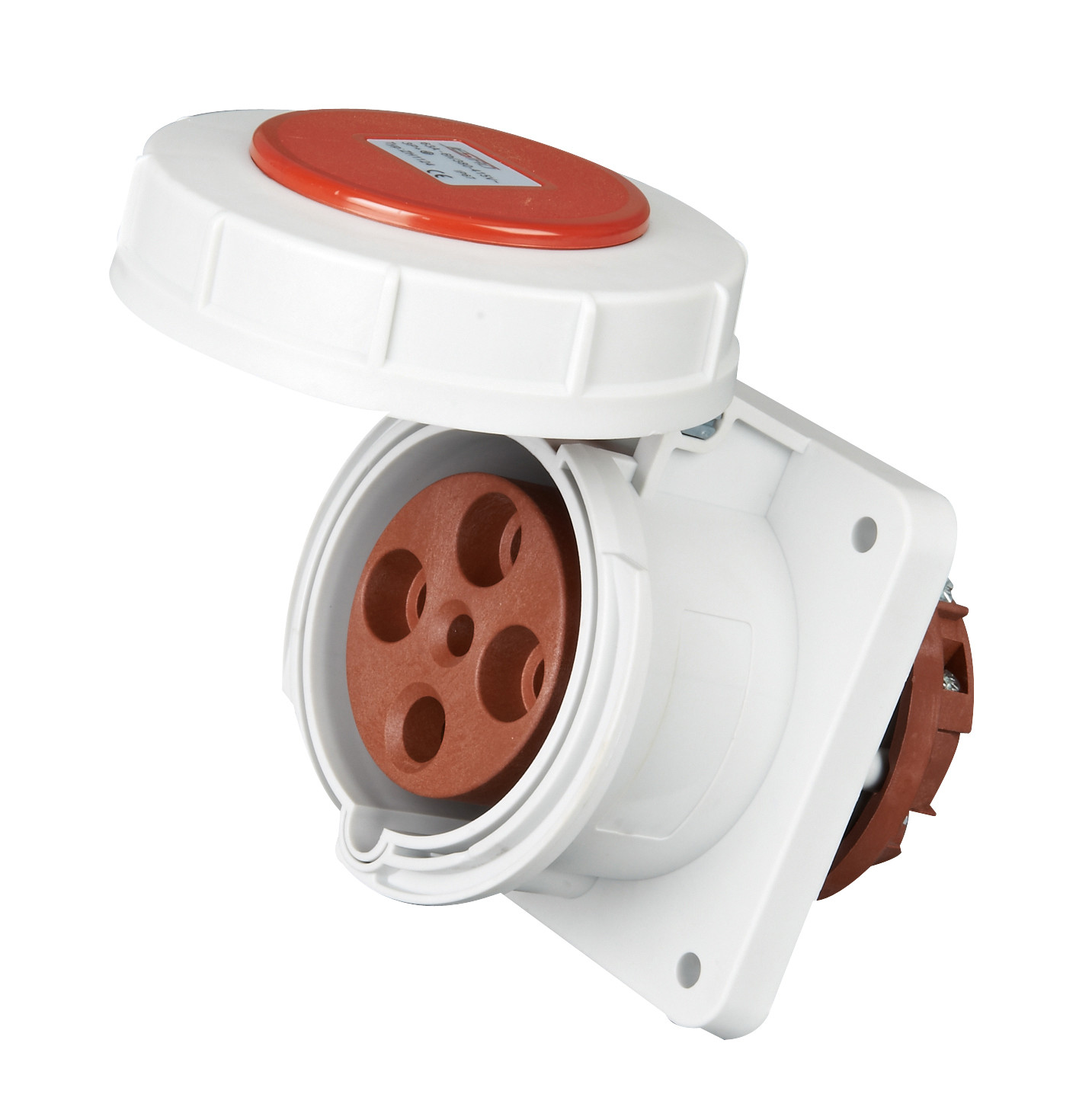

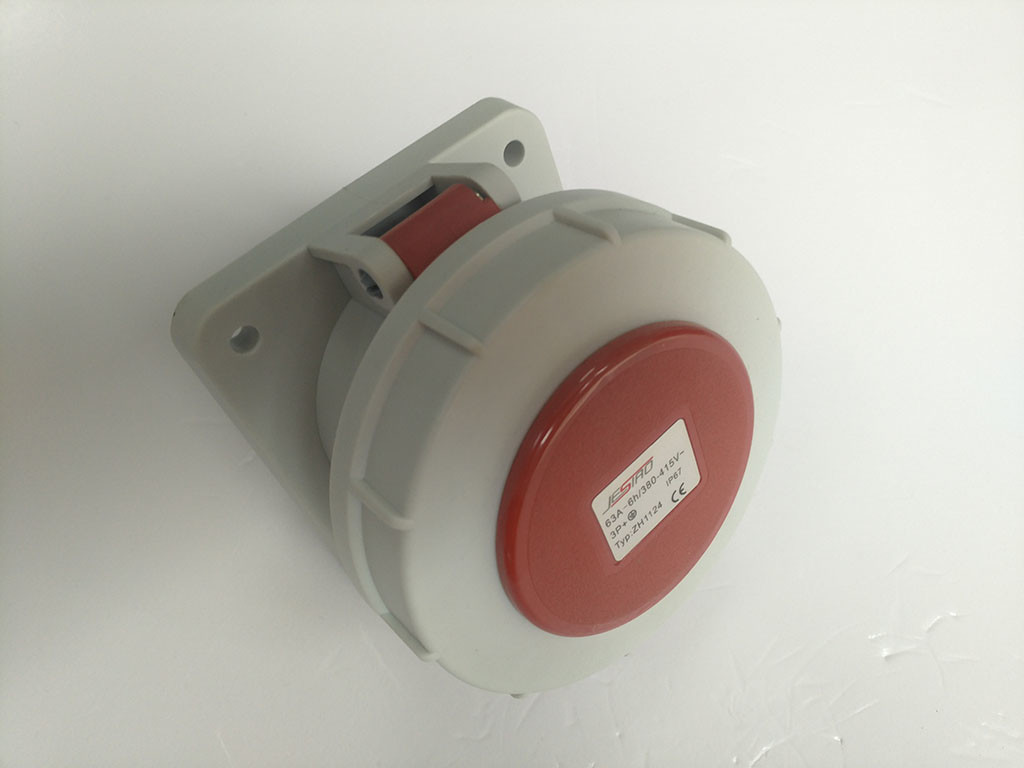

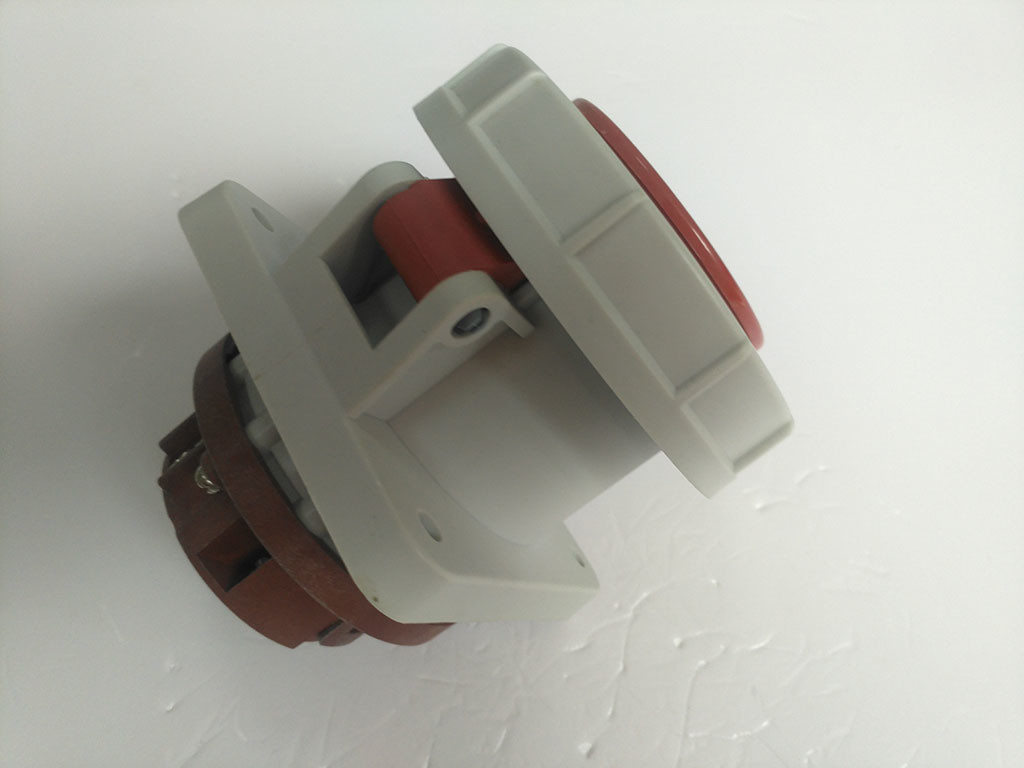

Picture:



Reliable Waterproof Electrical Plugs And Sockets Outstanding Resistance 1
