Weatherable 4 Pin 3 Phase Plug , Red 4 Pin Waterproof Electrical Connectors

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 357
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Type: Inclination Poles & Current: 4 Poles 63amp
Voltage & Frequency: 400 Volt 50-60 Hz Earth Position: 6 Hour
Protection Grade: IP67 Water Proof Color: Red
High Light:

waterproof plug and socket

,

waterproof plug and socket cable connector


Product Description

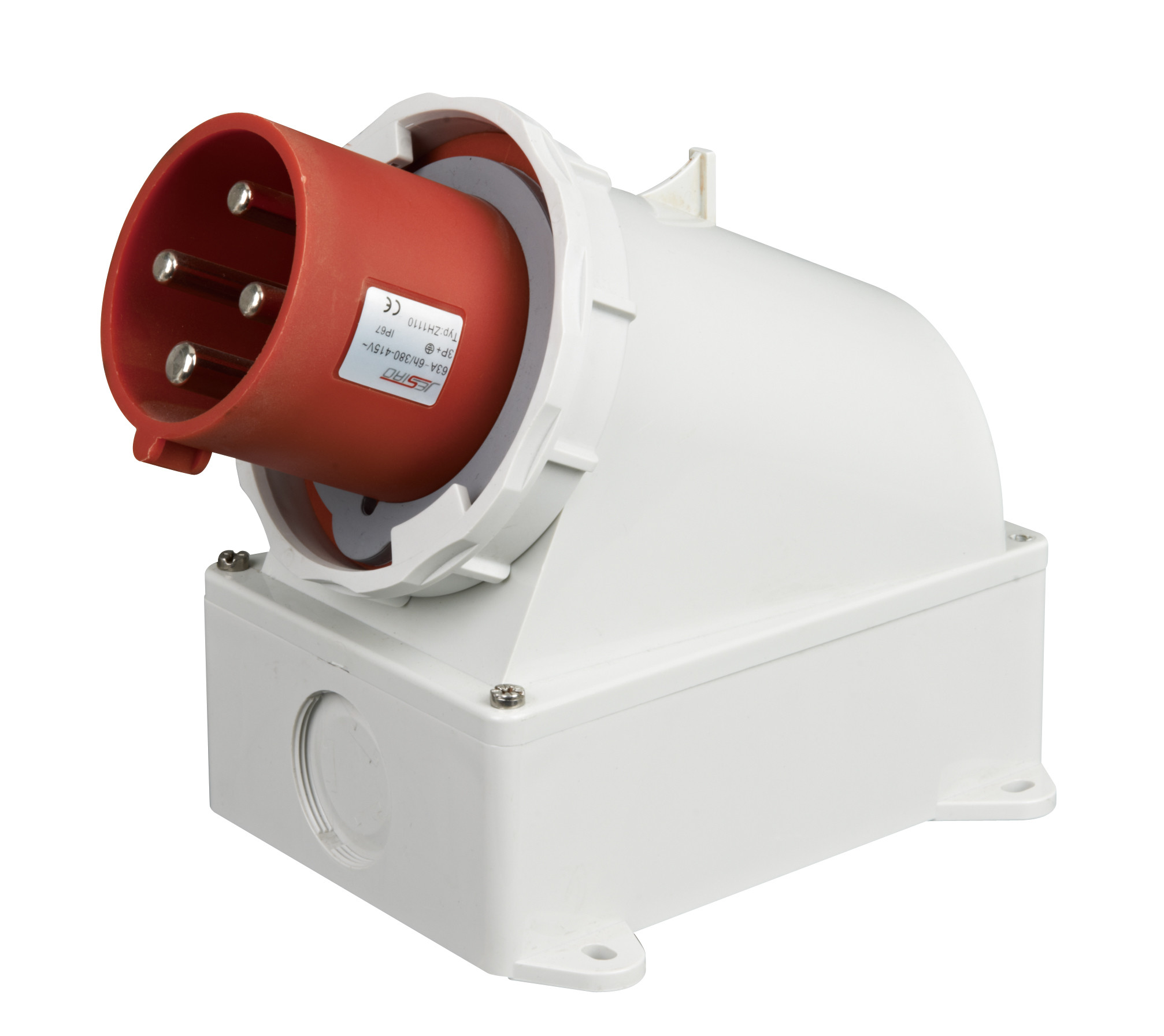

4P 63A IP67 Weather Protection Red Industrial Inlet Panel Mounted Inclination Industrial Plugs part no. 357



Features:



  • with rubberised grip area
  • frame terminals
  • SoftCONTACT
  • with highly heat resistant contact carrier



Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight
3P 4P 5P
4h 4h 4h
3P 4P 5P
6h 9h 9h
3P 4P 5P
9h 6h 6h
3P 4P 5P
7h 7h 7h
3P 4P 5P
10h 10h 10h
3P 4P 5P
2h 2h 2h
PCS/BOX G/PC
63A 3 1216 1107 1217       5 475
4 355 356 357 358     5 558
5 359 360 361       5 591

Current Poles a b c d e f g h m m*
63A 3 133.3 107.8 136 171.3 180.1 219.4 6 5 40 can use 1PC M40CABLE GLAND
4 133.3 107.8 136 171.3 180.1 219.4 6 5 40
5 133.3 107.8 136 171.3 180.1 219.4 6 5 40
Conductor cross-sectional area(mm²)Min To Max 10-16


Product Dimension:

Weatherable 4 Pin 3 Phase Plug , Red 4 Pin Waterproof Electrical Connectors 0
