| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 3583 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Type: | Panel Mounted | Poles & Current: | 4 Pins 63amps |
|---|---|---|---|
| Voltage: | 400 Volts | Hertz: | 50-60 Hz |
| Protection Grade: | IP67 Watertight | Contact: | Standard |
| High Light: | industrial power plugs sockets,waterproof plug and socket cable connector |
||

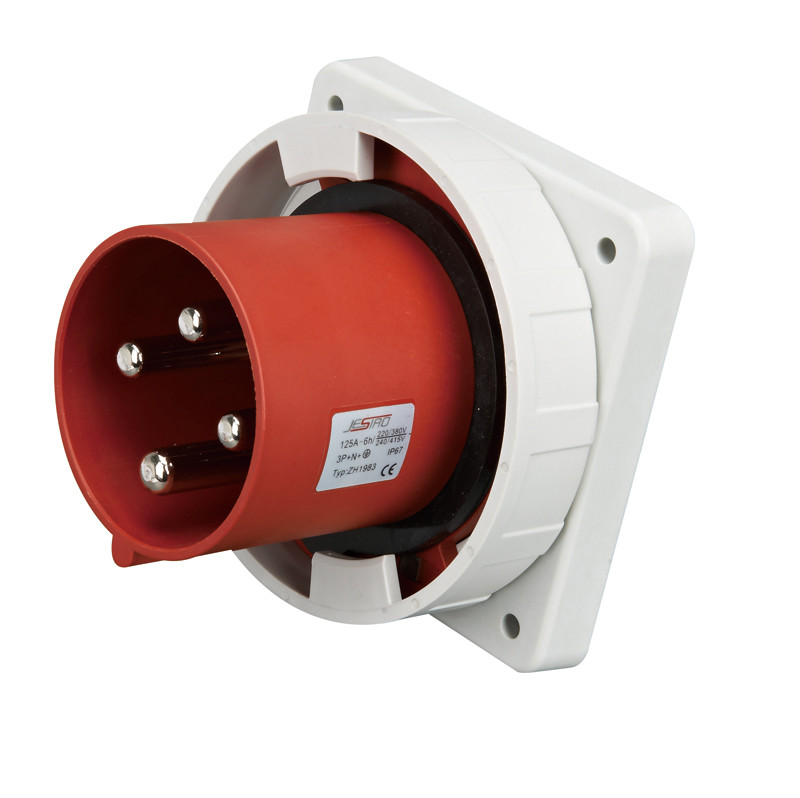

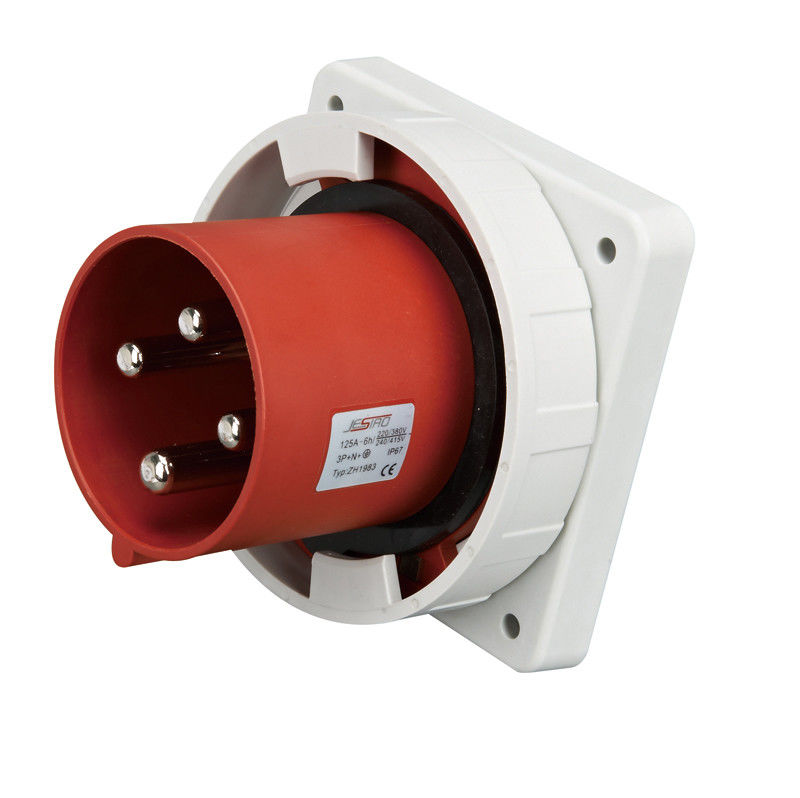

4P 63A IP67 Weatherproof Panel Mount Red Industrial Inlet Straight Waterproof Plug Socket part no. 3583
Applications:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 125A | 3 | 3665 | 5 | 890 | |||||
| 4 | 3413 | 3583 | 3600 | 5 | 1005 | ||||
| 5 | 1983 | 5 | 1130 |
| Current | Poles | a | b | c | d | e | f | g | g.1 | l | s | ||||
| 125A | 3 | 130 | 130 | 112 | 104 | 104 | 6.5 | 18 | 2 | 95 | 132 | ||||
| 4 | 130 | 130 | 112 | 104 | 104 | 6.5 | 18 | 2 | 95 | 132 | |||||
| 5 | 130 | 130 | 112 | 104 | 104 | 6.5 | 18 | 2 | 95 | 132 | |||||
| Conductor cross-sectional area(mm²)Min To Max 25-35 | |||||||||||||||
