Rugged Design Industrial Plug Sockets 125 Amps 400 Volts High Input

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1457
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Name: Receptacle Poles: 4P
Current And Voltage: 125 Amps 400 Volts Frequency: 50-60Hz
Protection Type: IP67 Rainproof Connection Technology: Screwless - SafeCONTACT
High Light:

plug and socket connectors

,

iec 60309 plugs and sockets


Product Description

4P 125A IP67 Weather Resistance Panel Mount Red Receptacle Straight Industrial Socket China Manufacturer part no. 1457



Description:



We have marked a unique position in the domain by offering a wide gamut of 125 Amp Industrial Socket to our respected customers. The offered products are designed using high-grade materials and innovative technology. Additionally, these products are durable in nature and presented to the customers in many technical specifications at very reasonable rates within the committed period of time.



Features:



  • Robust construction
  • High strength
  • Rugged design



Specifications:



  • Current(A): 125 A
  • Voltage(V AC): 110, 230, 400, 500
  • Pole: 4 P
  • Part no. 1457





Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
400-440V 500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

4P

3h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
125A 3   3380           5 1076
4 1455 1456 1457   1458     5 1126
5 1459 1460 1461   3283     5 1175

Current Poles a b c d e f g. g.1 h i k l
125A 3 130 130 124 104 104 6.5 18 2 122 135 43 95
4 130 130 124 104 104 6.5 18 2 122 135 43 95
5 130 130 124 104 104 6.5 18 2 122 135 43 95
Conductor cross-sectional area(mm²)Min To Max 25-35


Product Dimension:

Rugged Design Industrial Plug Sockets 125 Amps 400 Volts High Input 0

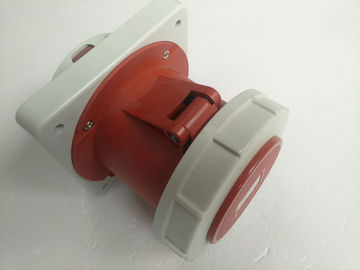

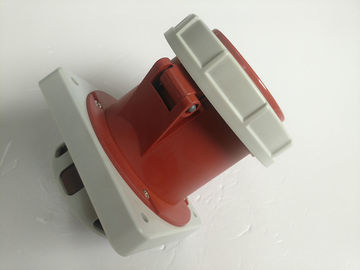

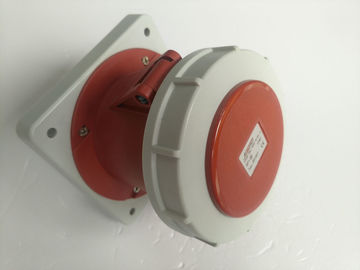

Picture:



Rugged Design Industrial Plug Sockets 125 Amps 400 Volts High Input 1
