DIN VDE 0623 Industrial Wall Socket , Weather Protected Heavy Duty Plug Sockets

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 75261
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Current: 200A Poles: 4P
Voltage: 400V Earth Position: 6h
Frequency: 50/60 Hz Protection Type: IP67 Weather-protected
High Light:

industrial power connectors

,

heavy duty plug sockets


Product Description

4P 200A IP67 Water Resistant High Ampere Wall Mounted Inlet High Current Plugs And Sockets Franged part no. 75261



Description:



  • screw terminals
  • seawater resistant products are available on request



Part no. 75261





Technique Parameter:



Technical information
Ampere 200 A
Poles
4 p
Voltage
400 V
Earth position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type
IP 67


Product Dimension:



DIN VDE 0623 Industrial Wall Socket , Weather Protected Heavy Duty Plug Sockets 0

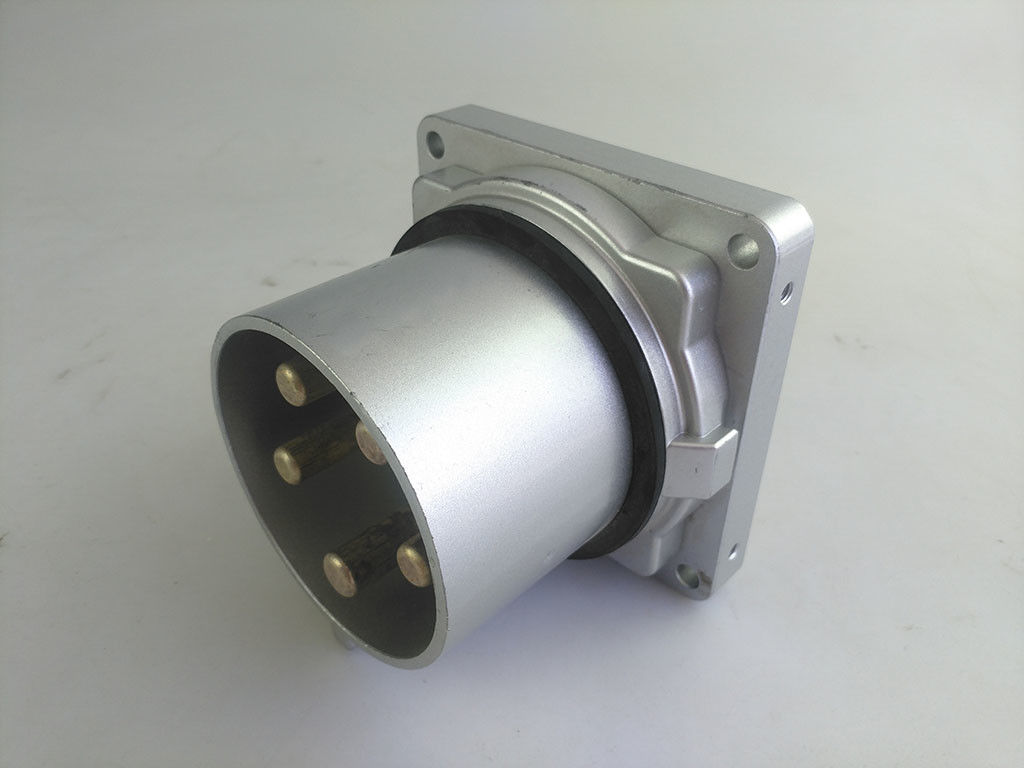

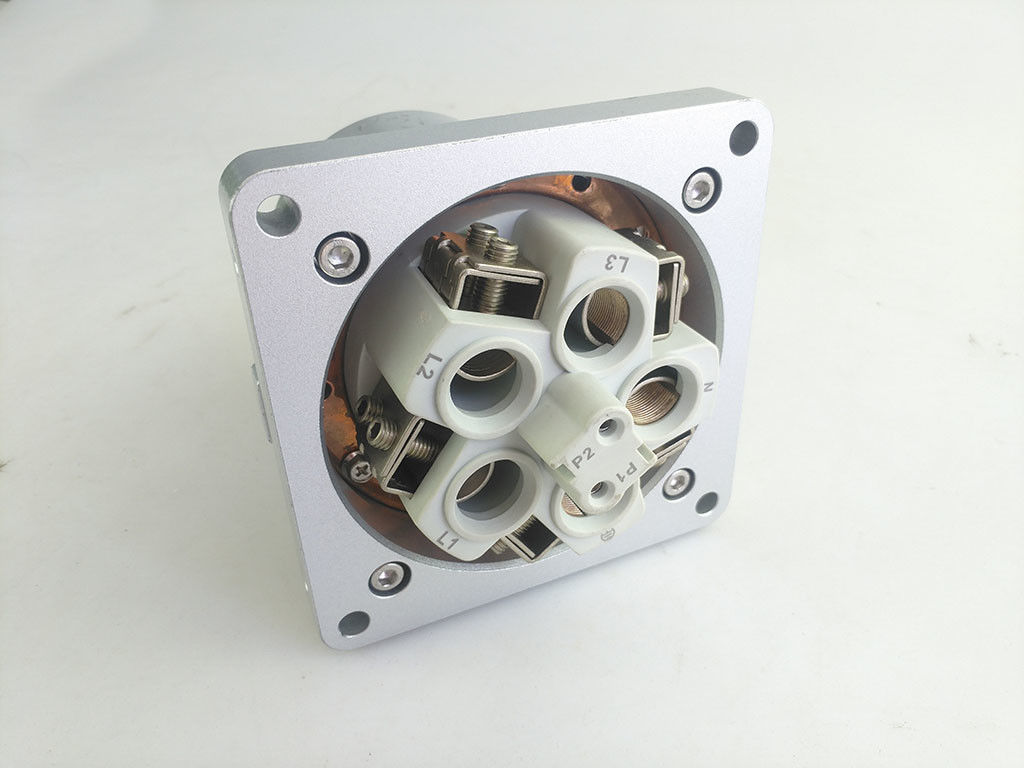

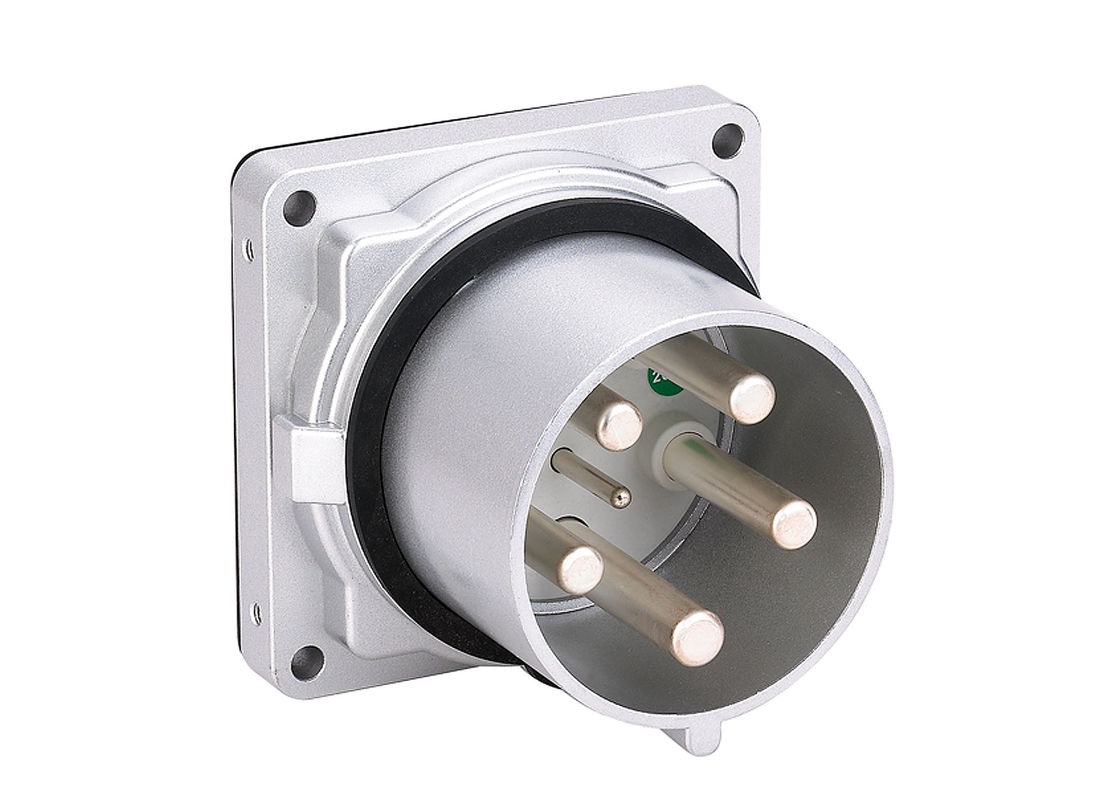

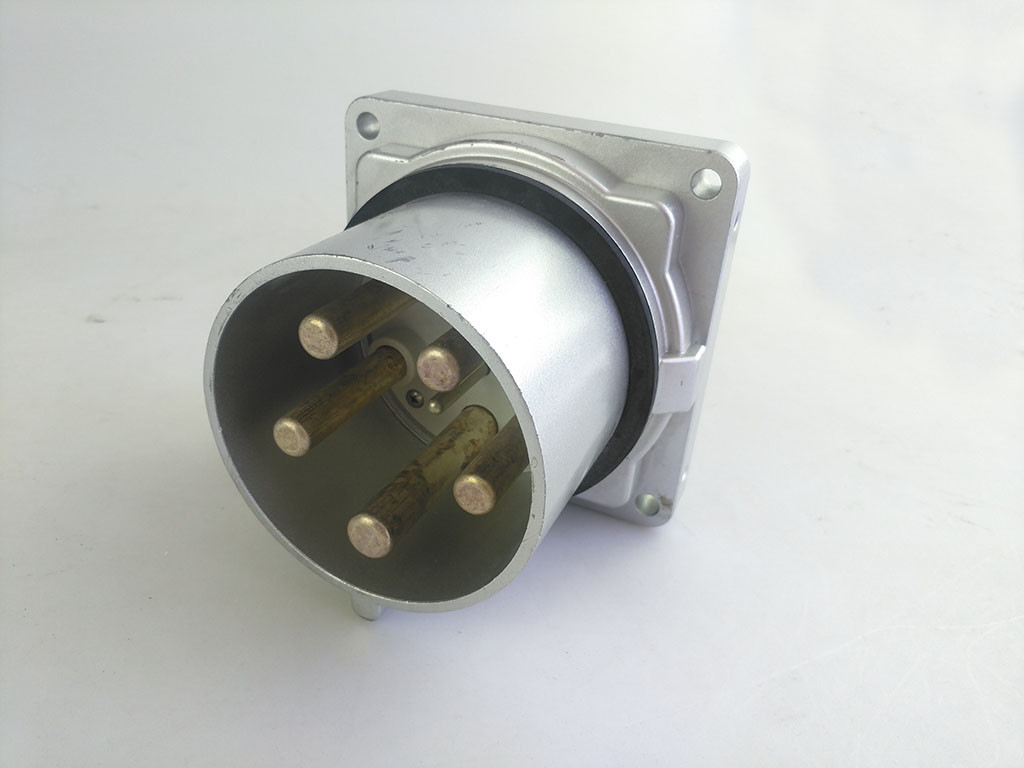

Picture:



DIN VDE 0623 Industrial Wall Socket , Weather Protected Heavy Duty Plug Sockets 1
