Rainproof 12 Ways Temporary Power Distribution Box 30 * 28.7 * 23CM Size

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP12
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
IP Grade: IP66 Water Resistance Rated Current: 63amp
Rated Voltage: 250volts Color: Black
Weight: 10KGS Dimension: 30*28.7*23CM
High Light:

generator distribution box

,

portable electrical distribution box


Product Description

MP12 Series Rainproof Mobile Power Distribution Box 12 ways Yellow PowerHOUSE 63 A 250 Volt



Application



The Mobile Power Distribution Box is a portable, flexible, rugged, and reliable power distribution center designed to withstand harsh jobsite conditions.


It is an economical solution for electrical hook up on the worksite.



Markets Served



  • Convention Centers
  • events
  • marinas
  • Live Events





Specification

Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply panel mounted plug  1 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 63A MCB
   2 * 16A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE panel mounted socket  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



  • All electrical components like MCB, RCD, RCBO, industrial plugs, industrial sockets can be customized.



Product Pictures

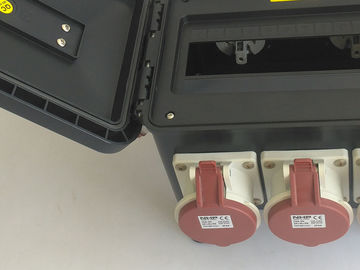

Rainproof 12 Ways Temporary Power Distribution Box 30 * 28.7 * 23CM Size 0

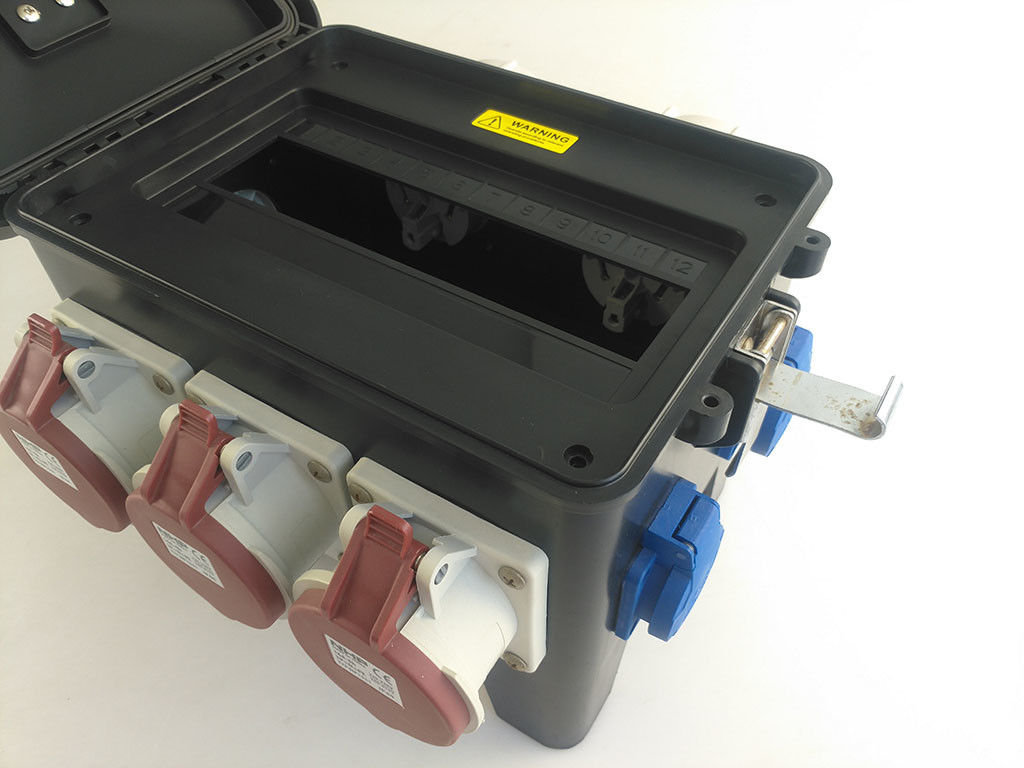

Rainproof 12 Ways Temporary Power Distribution Box 30 * 28.7 * 23CM Size 1
