Red 63a 3 Phase Socket , 400 Volts 4 Pins Industrial Power Socket Outlet

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1248
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Pins: 4 Pins Current & Voltage: 63 Amps 400 Volts
Protection Type: IP44 Rain Resistant Earth Position: 6 H
Color: Red Contact: Standard
High Light:

plug and socket connectors

,

iec 60309 plugs and sockets


Product Description

4P 63A IP44 Rain Protected Panel Mounted Red Industrial Socket Straight Receptacle with Cover part no. 1248



Main Features:


1. Safety:
The best material is our basic requirement.
Use the high-end and suitable raw material we think. Each plastic part need pass at least 10 procedures before assembly. Each procedure make the plastic more safety.



2. Durable:
Decades of years later, they are still in good condition.
100% stability, the rate of abnormal for the copper pin less than 1/10,000. After insertion and extraction testing by IEC standard, still shining just like brand new.



3. Simple:
Simplicity, is hidden complexity.
Simply is not simple. The terminal block with big space for wiring. 16A-63A use the soft contact technology with superior mechanical properties and electrical properties. 125A use torsion spring contact to reduce friction force which design can automatically self-cleaning when insert and pull the devices.


Part no. 1248





Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
63A 3 1260 1261 1262       5 523
4 1246 1247 1248 1249     5 562
5 1250 1251 1252       5 629

Current Poles a b c d e f g. g.1 h h1 k i
63A 3 107 100 80 85 77 6 12 2 103 - 55 88
4 107 100 80 85 77 6 12 2 113 - 55 88
5 107 100 80 85 77 6 12 2 113 - 55 88
Conductor cross-sectional area(mm²)Min To Max 10-16



Picture:

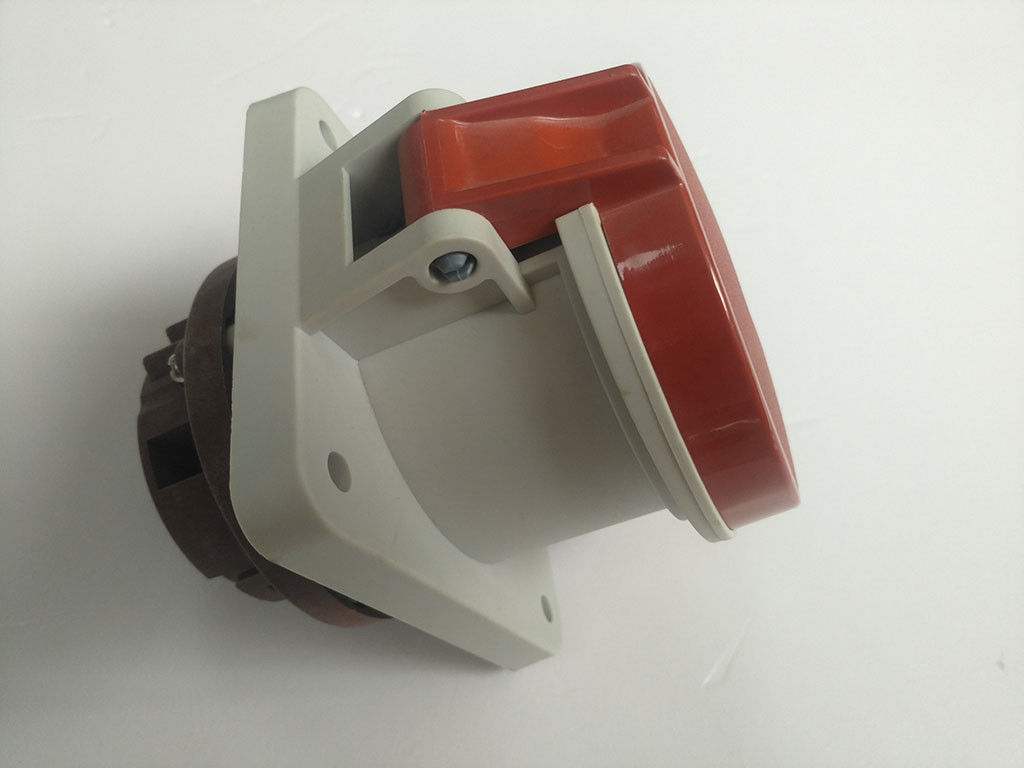

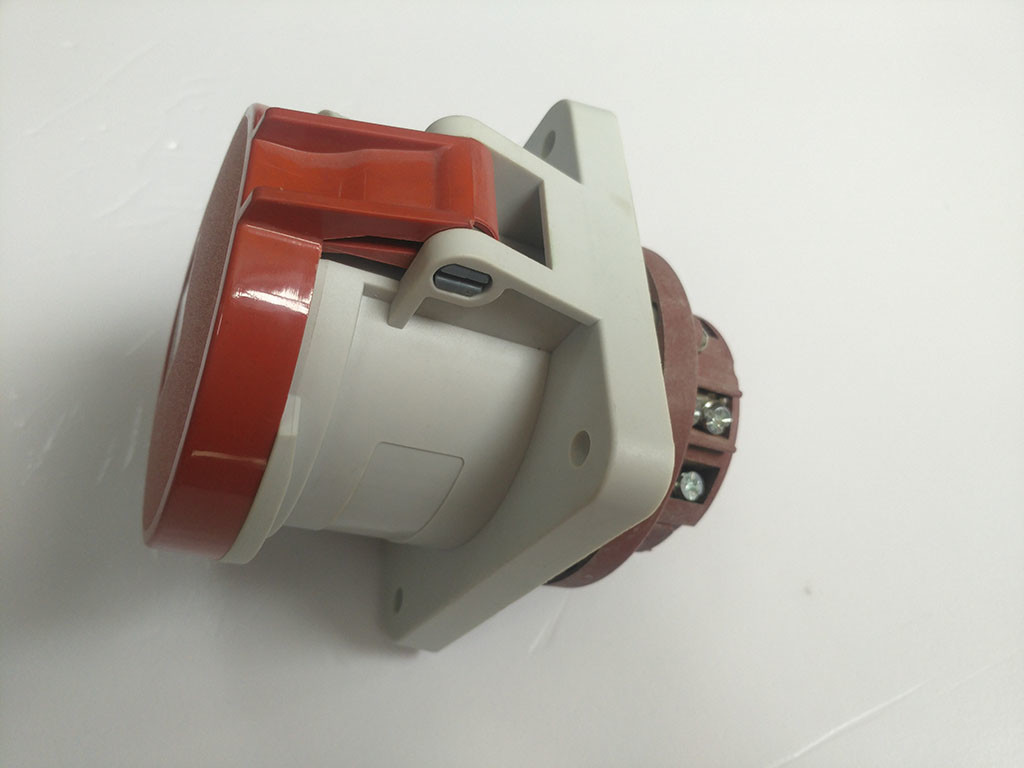

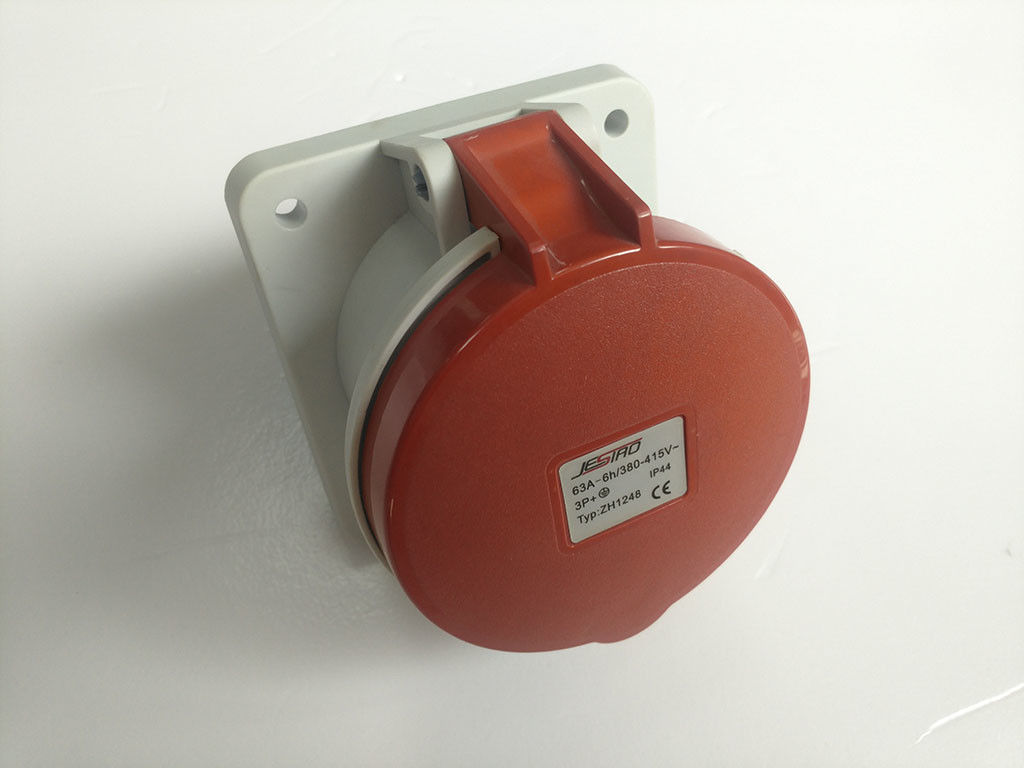

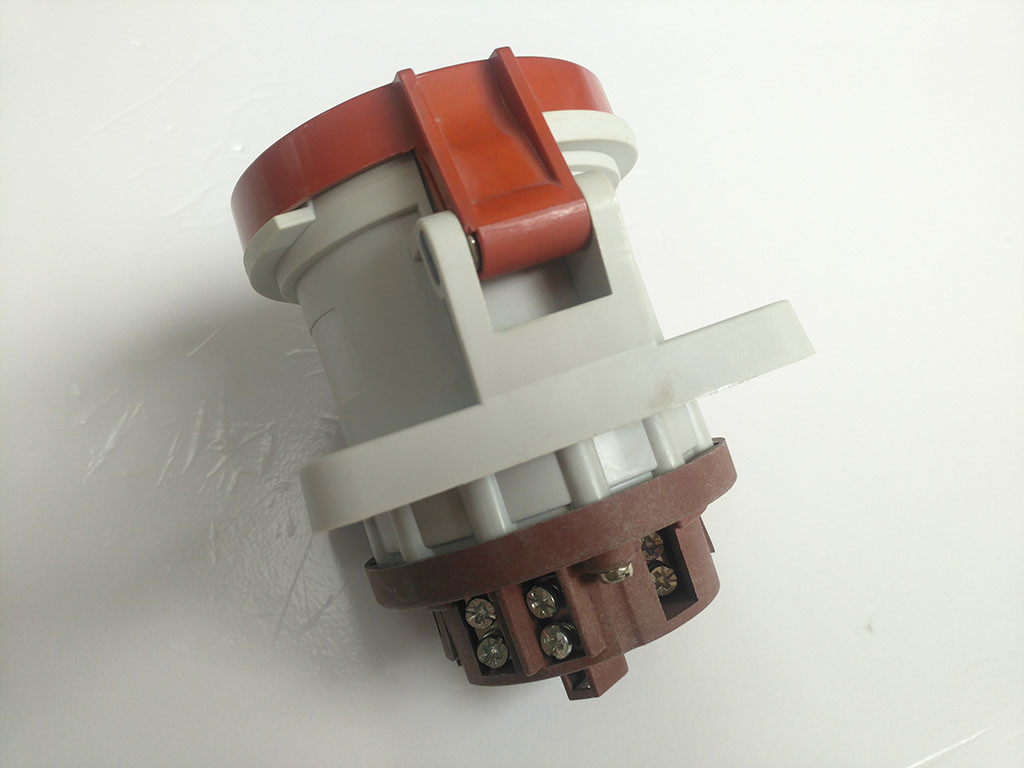

Red 63a 3 Phase Socket , 400 Volts 4 Pins Industrial Power Socket Outlet 0
