products

Safety Portable Power Distribution Center , Heavy Duty Rubber Generator Spider Box

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Heavy-duty Rubber Poles: 36 Ways
Rated Voltage: 380 V Rated Current: 125 A
IP Rating: IP 66 Color: Black
High Light:

power distribution box

,

industrial socket box


Product Description

36Poles IP66 Waterproof Safety Mobile Power Distribution Box Black Distrobox with Overcurrent Protection



Application



HYPER’s power distribution centers are perfect for temporary use in industrial and commercial maintenance and repair stations (construction, entertainment, amusement sites, trade shows, convention halls) where portable power is needed.



Features & Benefits



  • The hinged cover which opens to one side as 180 degree like the door for easy connection work.
  • The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal, Relay and Sensor , Communication and joint Box etc.
  • double insulated enclosures
  • The industrial power distribution box can be customized to suit specific customer requirements.



Markets Served



  • Hotel
  • Construction site
  • Shipbuilding
  • Generator Rental and Entertainment



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5 pins IP67  CEE Receptacles  1 * 4P 63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE Receptacles  1 * 3P 63A MCB
   2 * 16A / 415V 5 pins IP67  CEE Receptacles  1 * 3P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE Receptacles  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



Product Pictures

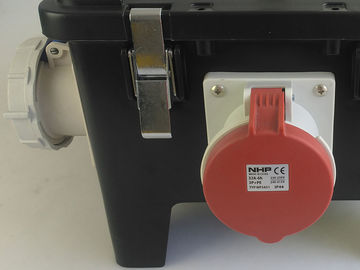

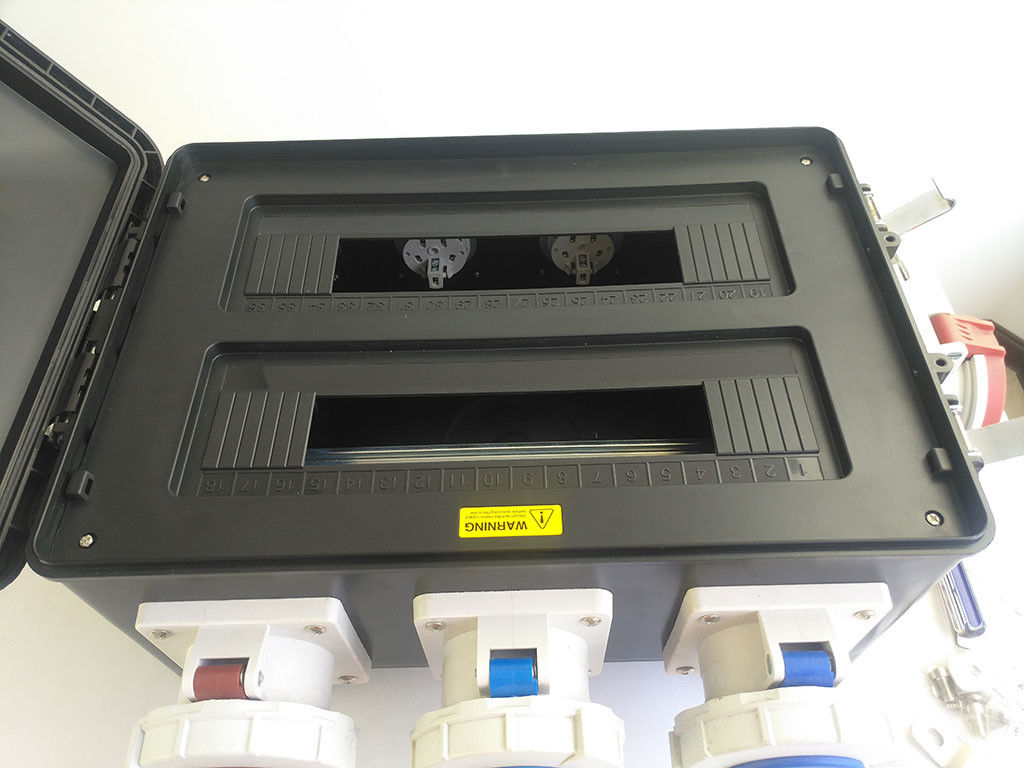

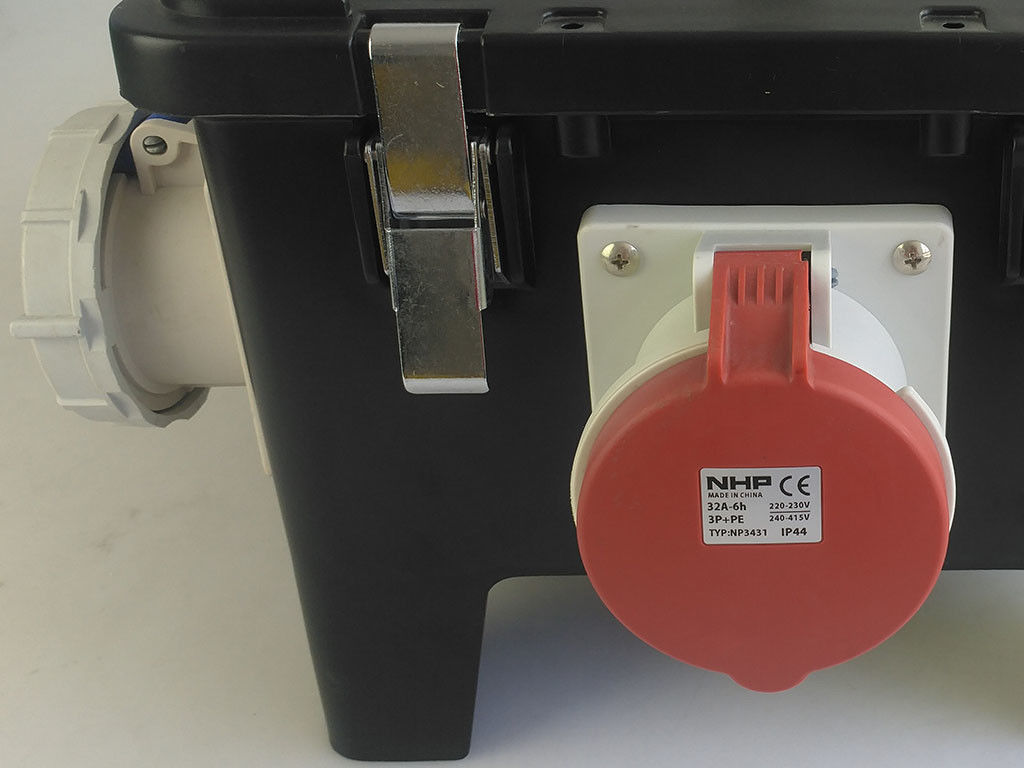

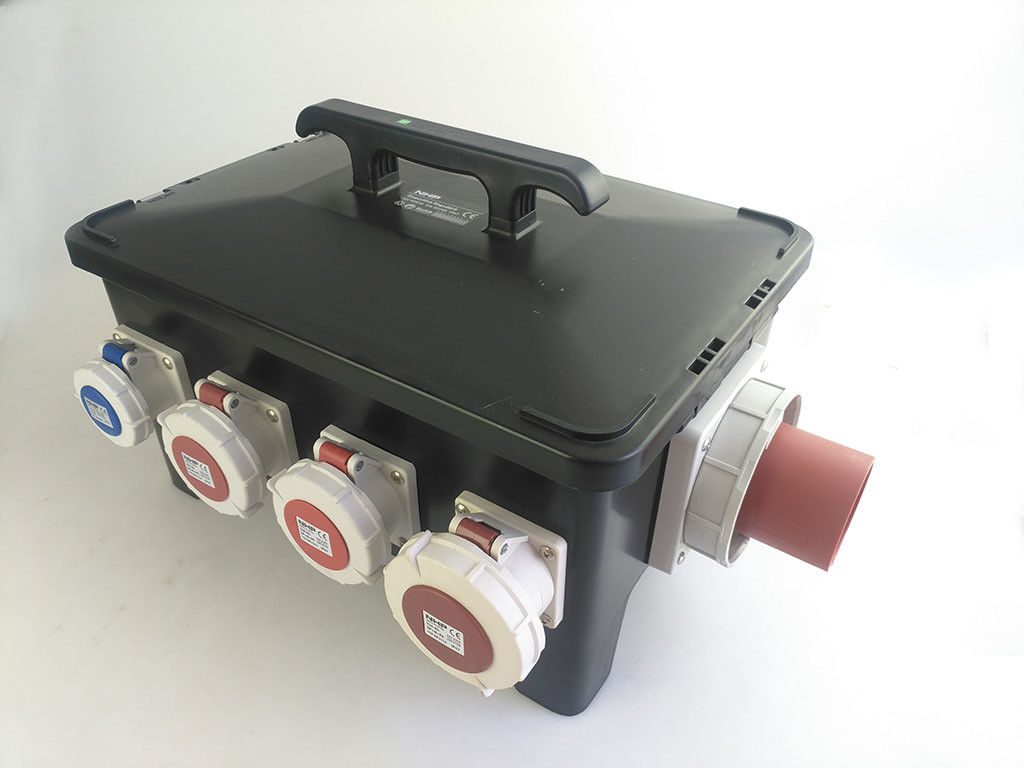

Safety Portable Power Distribution Center , Heavy Duty Rubber Generator Spider Box 0

Safety Portable Power Distribution Center , Heavy Duty Rubber Generator Spider Box 1
