| Place of Origin: | China |
|---|---|
| Brand Name: | Syntax |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | UT1 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Packed by paper carton |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets/month |
| Material: | PC (Polycarbonate Resin, The Best Material Of Plastic) | Poles: | 24 Ways |
|---|---|---|---|
| Dimension: | 300*300*180mm | IP Protection Rate: | IP67 Waterproof |
| Color: | Electric Grey (RAL 7035) | Thickness: | 6mm |
| High Light: | combination distribution board,combinable enclosure,modular enclosure system |
||

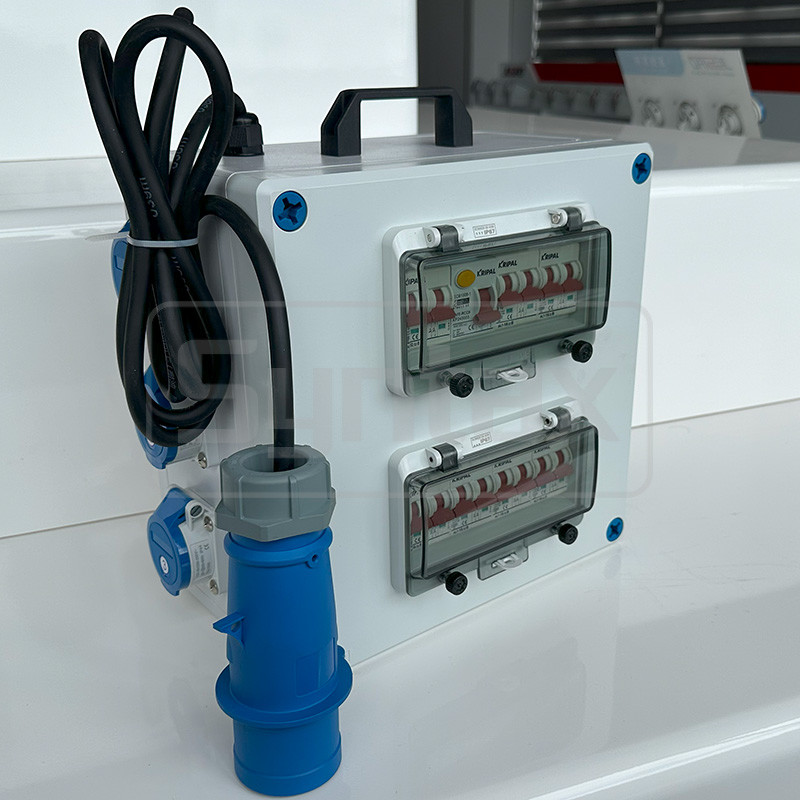

Syntax UT1 Ultra Thick Combination Distribution Box 32A Single Phase With Combinable System up to 250A
Technical Parameters:
|
Drawing:
Dimension Drawing of Empty Box:
Special Features of the boards:
● Thickness up to 6mm.
● The boards are combinable to get “unlimited” space for assembly.
Basic Features:
● Design based on EN 60439-3, IEC 60529.
● Water resistant design, IP rating up to IP67.
● Color: Electric Grey (RAL 7035). Other colors can be customized.
● Material: PC (Polycarbonate Resin, the best material of plastic).
Connection to the electrical network:
● Electric circuit / final circuit.
● Circuit breaker up to 250 A.
● Switch disconnector up to 250 A.
● Fuse switch disconnector up to 250 A.
● Bus-mounted fuse base up to 63 A.
● Cable connection from top / from bottom.
● Connection: conductors from copper / aluminum.
Specification:
● Quick assembly/dismantling.
● Safe connections.
● Reusability of all components.
● Unbreakable, halogen-free and aging-resistant solid rubber housing.
● Easy handling of distribution boxes and of the entire system.
● 24 Months Warranty on all Parts and Manufacturing Defects.
● Plugs and sockets are fitted with carriage bolts and lock nuts (to prevent violations).
Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!
Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.
The UT series combinable distribution boxes are primarily designed and manufactured for the assembly of distribution boards up to 250A. The combinable system makes unlimited space for certain projects that needs fully insulation plastic boards.
This series boxes have ultra strong body caused by the 6mm thickness. Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.
Overload protection by circuit-breakers like MCB, RCD, RCCB, and RCBO to make sure the safety of the workforce and equipment.
This single phase 32 Amp portable socket box outdoors is specially bespoke by the customer that main switch by MCB+RCD (equals to a RCBO), single phase sockets with small flange by 2 poles MCBs.
These units can be built to your individual specification, please call or email us with your requirements.
Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.
Applications:
• Tunnel construction
• Drilling rigs
• Gravel pits
• Marine
• Railway
• Military
• Industry
• Construction site
• Event technology
• Strip mining
• Chemistry
• Airports
• Quarries
• Container terminals and crane connections in harbors
• For versatile power supply at large-scale indoor and outdoor events
• Power supply for market places
Customized Solutions:
If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.
