36 Way Power Spider Box , High Density 125 Amps Portable Power Distribution

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene Poles: 36 Pole
Voltage: 220 / 240 Volts Current: 125 Amps
Protection Degree: IP66 Water Resistant Product Weight: 15.5 Kgs
High Light:

construction spider box

,

stage power distribution box


Product Description

36way IP66 Weather Protection High-density PE Pagoda Enclosure Black Power Distro Panel with Overcurrent Protection



Application



HYPER is focused on the customer’s needs. All The portable power distribution boxes are Industrial Plugs and Sockets equipped and the enclosure is insulated (NOT METAL) to protect against personal electric shock.



Features & Benefits



  • Groundbreaking Anti-Nuisance Tripping Design
  • The industrial power distribution box can be customized to suit specific customer requirements.
  • Shorter installation times with the new, user-friendly external fixing.
  • The Product has passed waterproof and dustproof carried out under rigid quality standards.



Markets Served



  • Electrical Distribution
  • Live Events
  • Fairs
  • Sporting Events



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5pins IP67  CEE flush mouted socket  1 * 4P 63A 30mA RCD
 1 meters 5*10mm2 cable  1 * 32A / 415V 5 pins IP67  CEE flush mouted socket  1 * 3P 63A MCB
   2 * 16A / 415V 5pins IP67  CEE flush mouted socket  1 * 3P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE flush mouted socket  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB

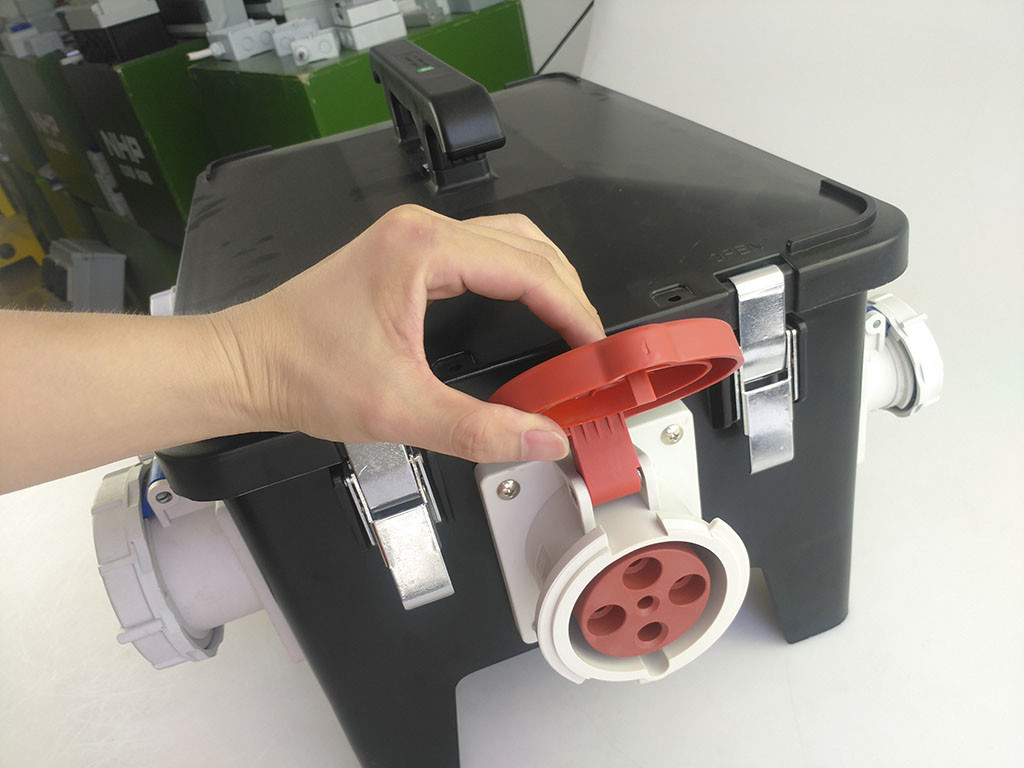

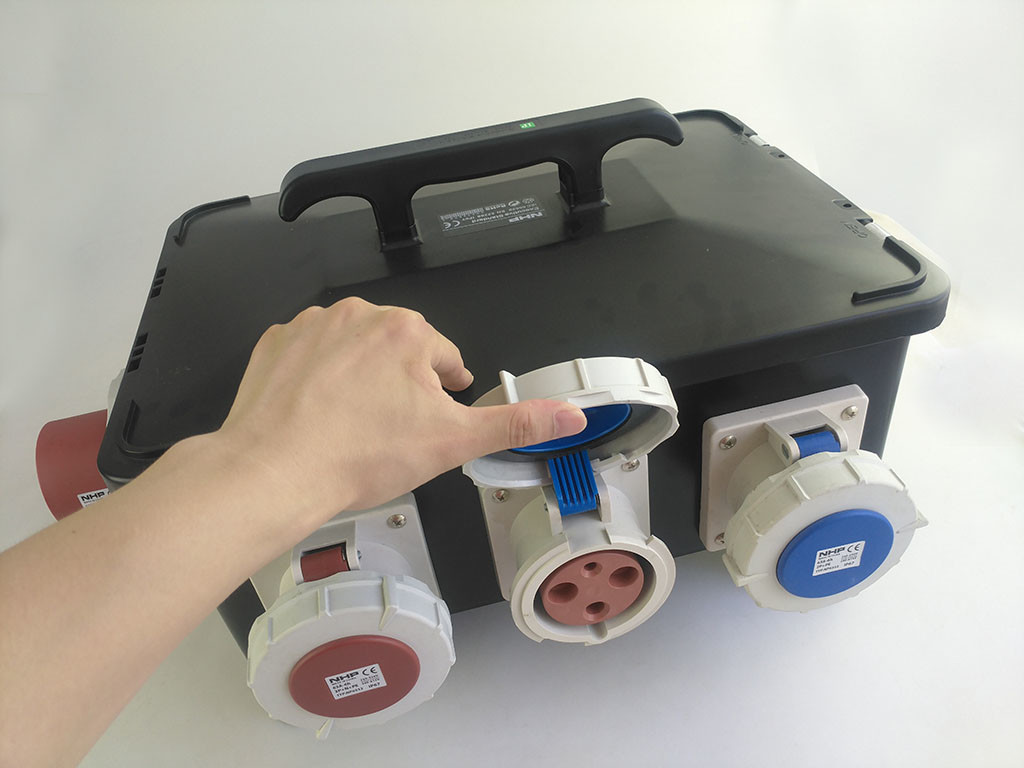

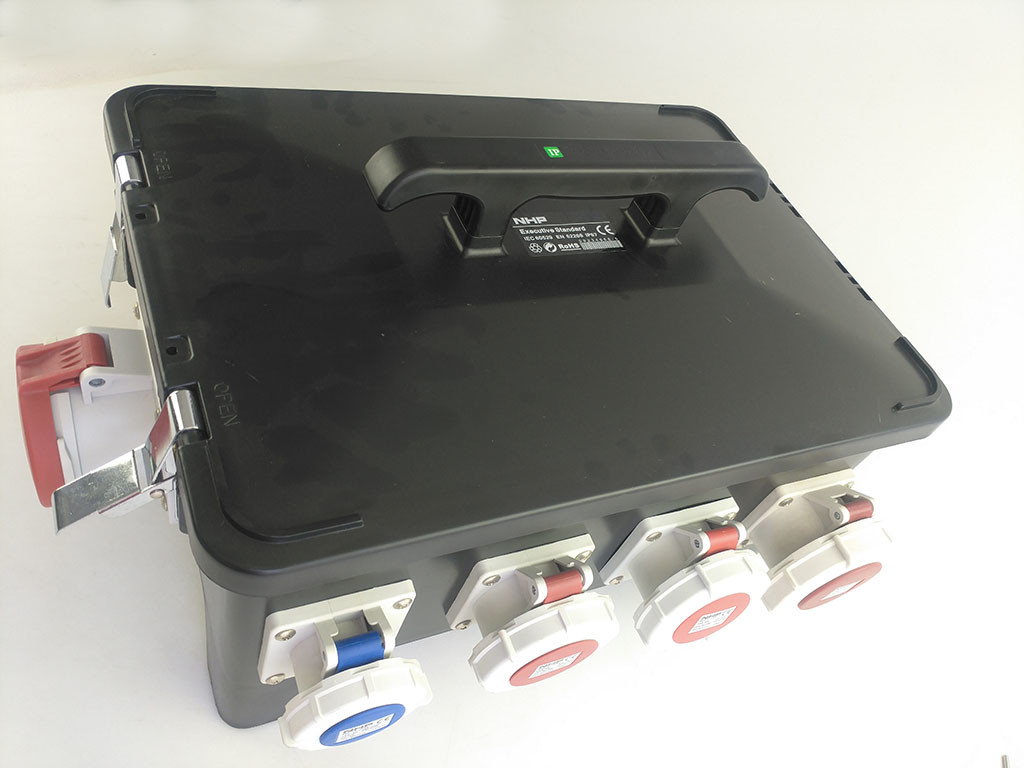

Product Pictures



36 Way Power Spider Box , High Density 125 Amps Portable Power Distribution 0

36 Way Power Spider Box , High Density 125 Amps Portable Power Distribution 1
