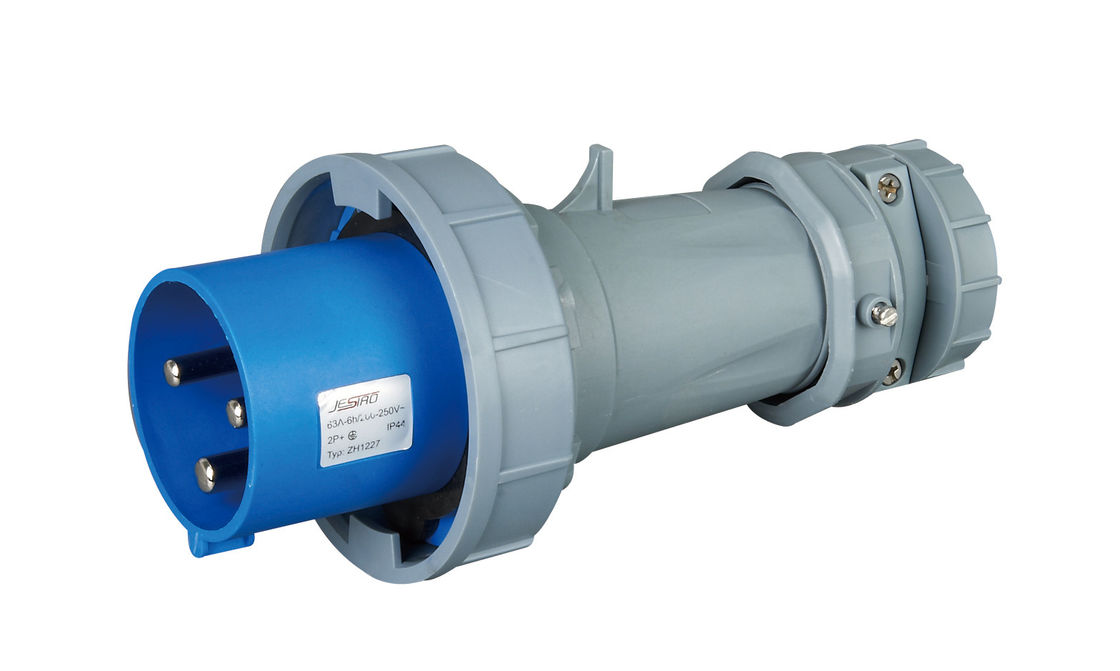

IP67 Water Tight 3P 3 Phase Plug , IEC 60309 2 Industrial Three Phase Power Plug

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1571
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Material: PA (Nylon) Poles & Current: 3P 63Amps
Voltage: 230V Earth Position: 6h
Waterproof Grade: IP67 Waterproofing Color: Blue
High Light:

three phase plugs and sockets

,

industrial 3 phase plug and socket


Product Description

3P 63A IP67 Water Tight Industrial Plug Blue 3rd Generation Industrial Plugs part no. 1571



Description:


The yellow 2P+E 16 A version carrying 115 V is used extensively on the London Underground railway system to power temporary usage of heavy-duty fans; it is also frequently used by tradesmen within the UK, built into a portable transformer box that is powered from a standard 13 A 240 V mains supply, to run heavy-duty power-tools designed to operate at 115 V.


Part no. 1571



Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
400-440V 500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

4P

3h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
63A 3 1570 1571 1572         5 708
4 1108 1109 1110   1111     5 750
5 1112 1113 1114   2958     5 806



Current Poles a b c d e f g
63A 3 238.9 179.5 51.1 69.5 113 75.5 36.5
4 238.9 179.5 51.1 69.5 113 75.5 36.5
5 238.9 179.5 51.1 69.5 113 75.5 36.5
Conductor cross-sectional area (mm²) Min To Max 10-16
