| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1485 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Sockets | Poles: | 5 P |
|---|---|---|---|
| Current & Voltage: | 16Amp 400Volt | Frequency: | 50/60 Hz |
| IP Rating: | IP67 Weather Resistance | Product Weight: | 197 G/PC |
| High Light: | industrial power plugs sockets,waterproof plug and socket cable connector |
||

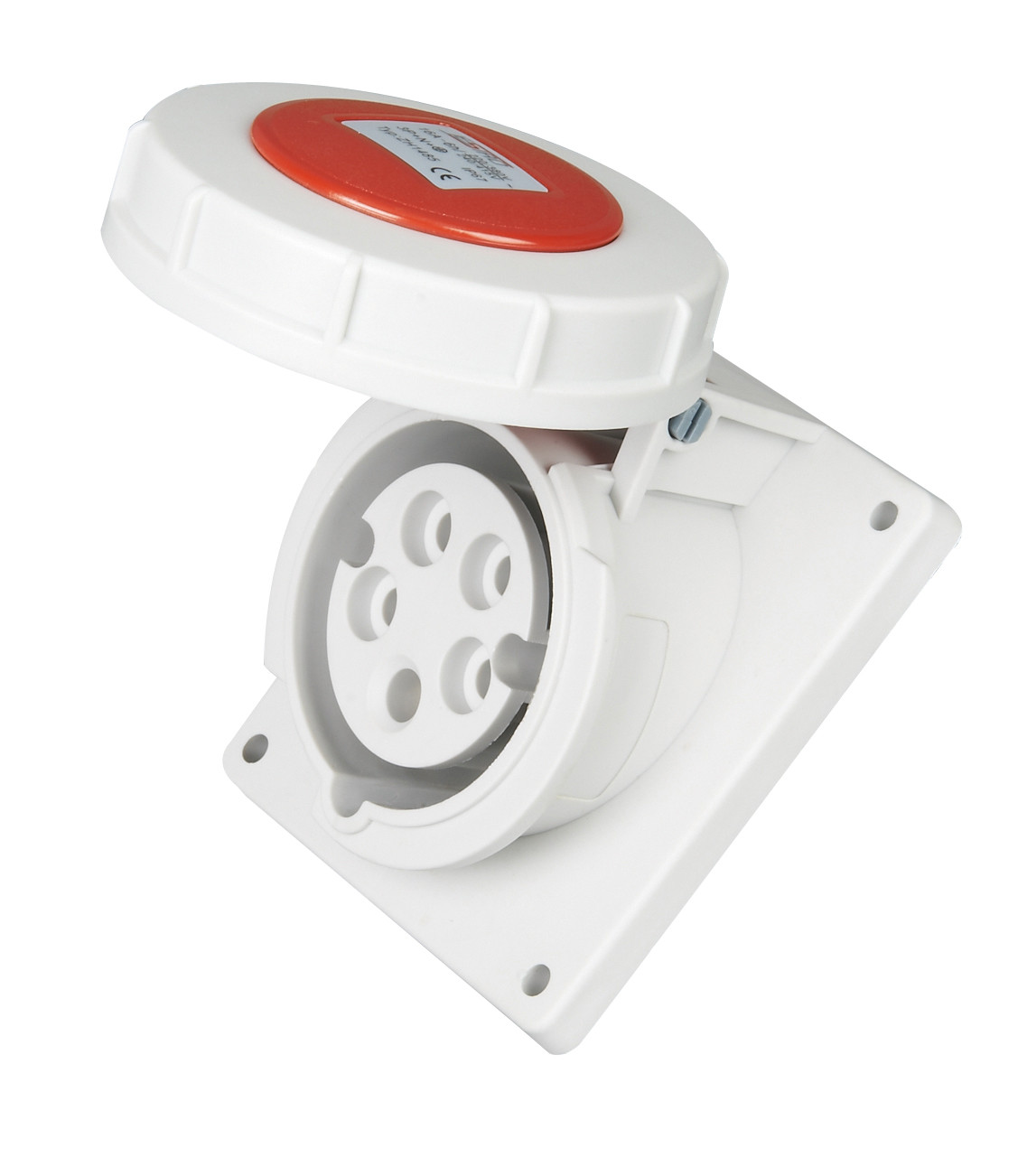

5P 16A IP67 Rain Protection Panel Mounted Receptacle with Cover Inclination 3rd Generation Sockets part no. 1485
Description:
Plugs conforming to high standards of quality for every day tasks to critical conditions. Available as splash-proof (IP44) and water tight (IP67). The Watertight series is available in many different voltages and frequencies combination making it easy to find just the right plug for you application.
Part no. 1485
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 1474 | 1475 | 1476 | 10 | 148 | ||||
| 4 | 1477 | 1478 | 1479 | 1480 | 1481 | 1482 | 10 | 193 | ||
| 5 | 1483 | 1484 | 1485 | 10 | 197 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l1 | α | |
| 16A | 3 | 73.5 | 64 | 52 | 60 | 52 | 5.3 | 7 | 2 | 84 | 78 | 41 | 55 | 65 | 20° | |
| 4 | 100 | 92 | 59 | 85 | 77 | 5.3 | 8 | 2 | 103 | 85 | 41 | 70 | 80 | 20° | ||
| 5 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 405 | 96 | 41 | 70 | 80 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 | ||||||||||||||||
