| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MK2 |
| Minimum Order Quantity: | 10 sets |

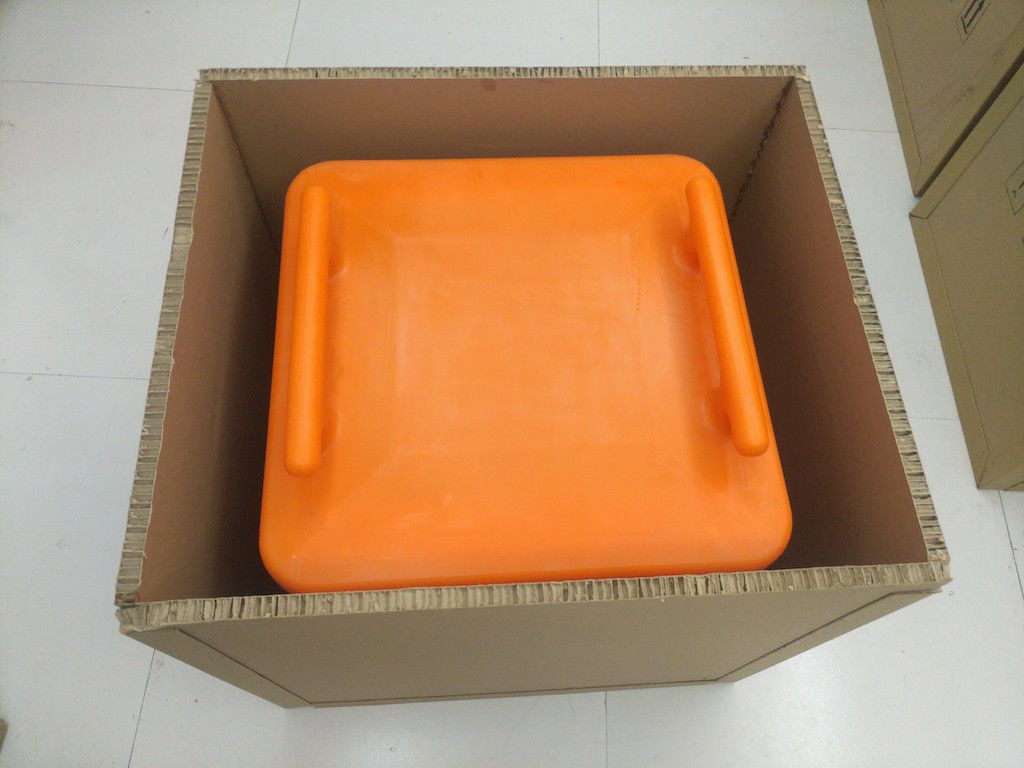

| Packaging Details: | Packed by paper carton with wooden pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 units / month |
| Material: | PE Strong Plastic | Rated Current: | 125AMPS |
|---|---|---|---|
| Rated Voltage: | 380-415V | Protection Grade: | IP66 Waterproof |
| Overcurrent Protection: | By MCB And RCBO | Color: | Orange Or Black |
| Windows: | Availalbe | Dimension: | 42*42*54cm (L*W*H) |
MK2 Multi Ways Powerhouse Portable Distribution Boxes With Disconnect And Overcurrent Protection Provided By MCB RCBO
Description
Our MK2 Portable Distribution Boxes are designed for outdoor working, we can connect the generator or other power supply with the inlet or extension cable of the box, and connect the electrical devices to the output sockets. We use MCB, RCD, RCBO to protect the circuit. The box is waterproof and very safe for outdoor working even raining day.
Application
Our boxes are excellent for ourdoor working like:
Specification
| Input | Output | Circuit Breaker |
| 1 * 5P 125A / 415V inlet | 1 * 5P 63A / 415V outlet socket | 1 * 63A MCB |
| 1 * 5P 32A / 415V outlet socket | 1 * 32A MCB | |
| 3 * 3P 32A / 230V outlet sockets | 3 * 32A electronic RCBO | |
| 9 * 3P 16A / 230V outlet sockets | 9 * 16A electronic RCBO |

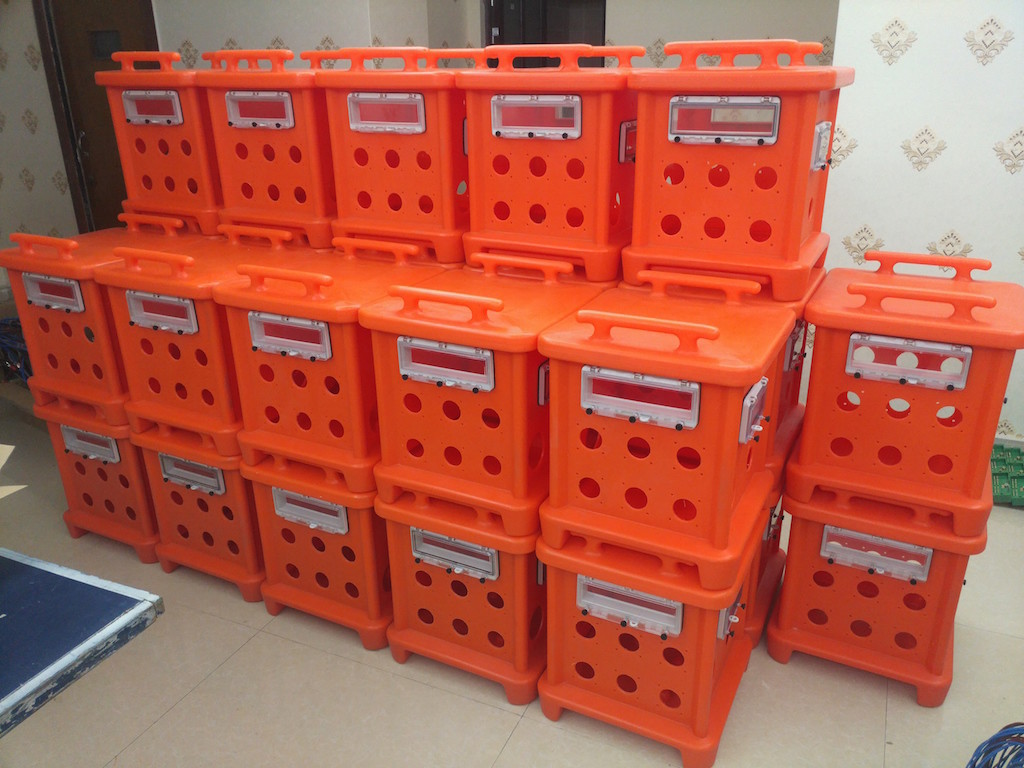

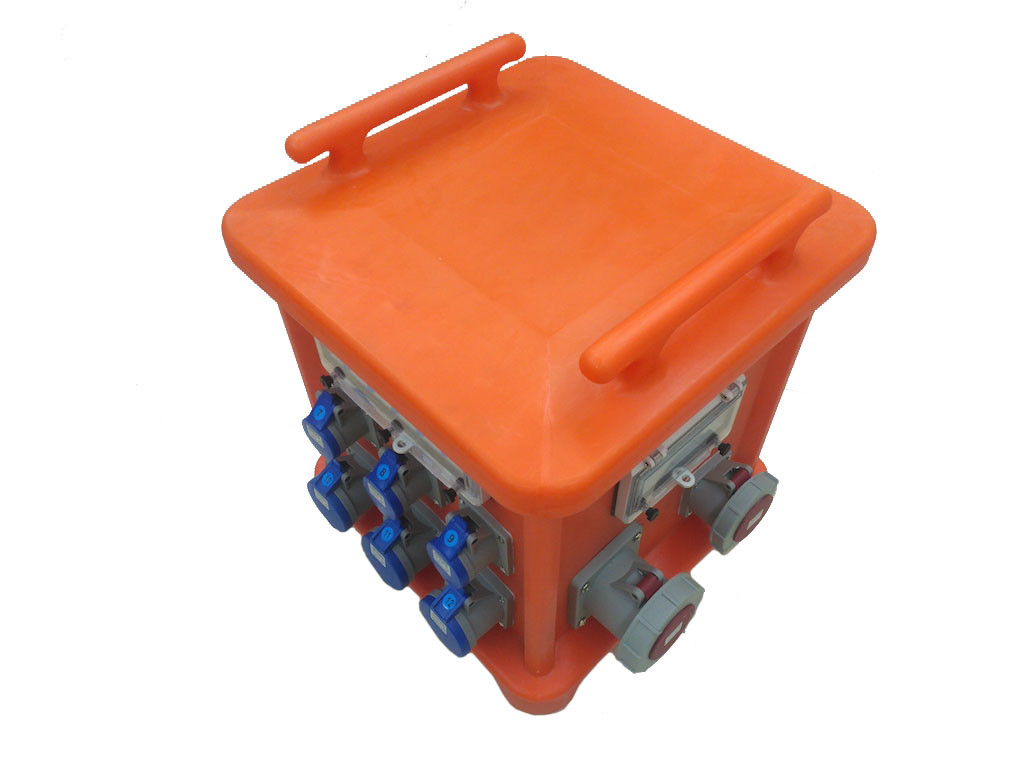

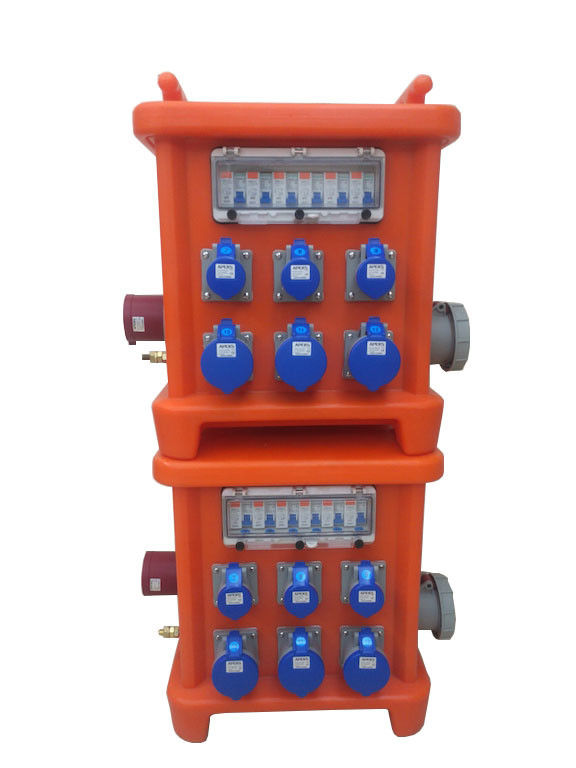

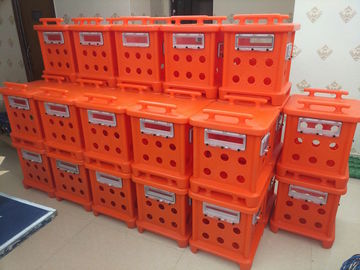

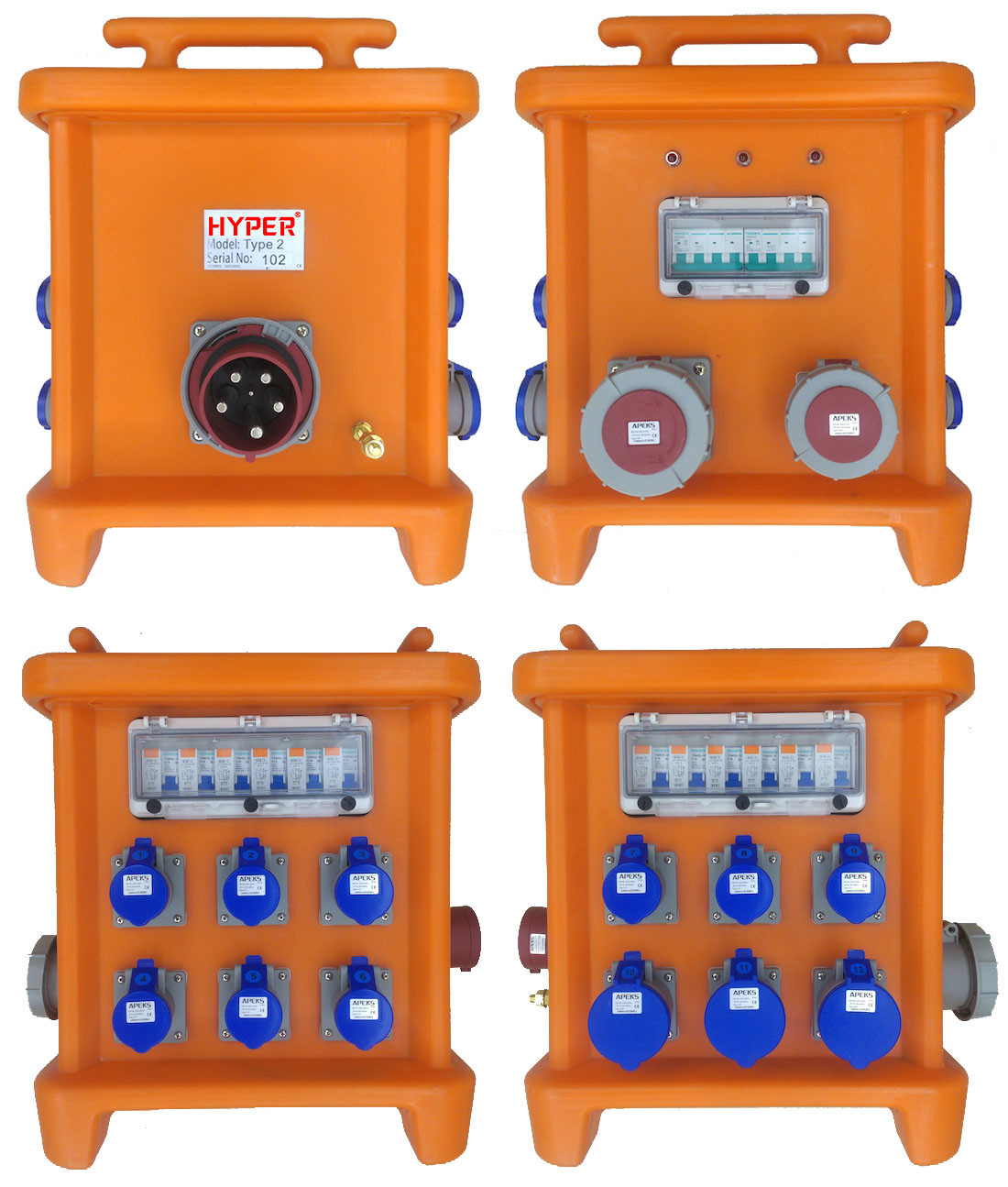

Product Pictures
