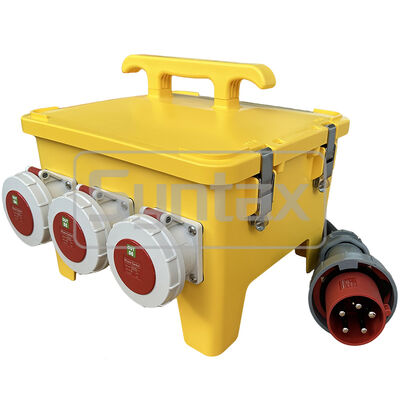

Syntax MP24 IP67 Waterproof Portable Power Distribution Box 63A/5P with 1.0m Rubber Cable Residual Protected

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: UL
Model Number: MP24
Minimum Order Quantity: 1 set
Packaging Details: Packed by paper carton
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 3000 sets/month
Detail Information
Material: PC (Polycarbonate Resin, The Best Material Of Plastic) Poles: 24 Ways
Dimension: 370*340*330mm IP Protection Rate: IP67 Waterproof
Color: Yellow
Highlight:

portable spider box

,

3 phase 63A power distribution box

,

63amp power distribution boxes


Product Description

Syntax MP24 IP67 Waterproof Portable Power Distribution Boards
63A/5P with 1.0m Rubber Cable Residual Protected 37×34×33CM
Professional-grade portable power distribution board designed for demanding industrial applications with IP67 waterproof rating and comprehensive safety protection.
Technical Specifications
Attribute Value
Box Model MP24 Portable Distribution Box IP67
Color Black
Dimensions 370×340×330mm

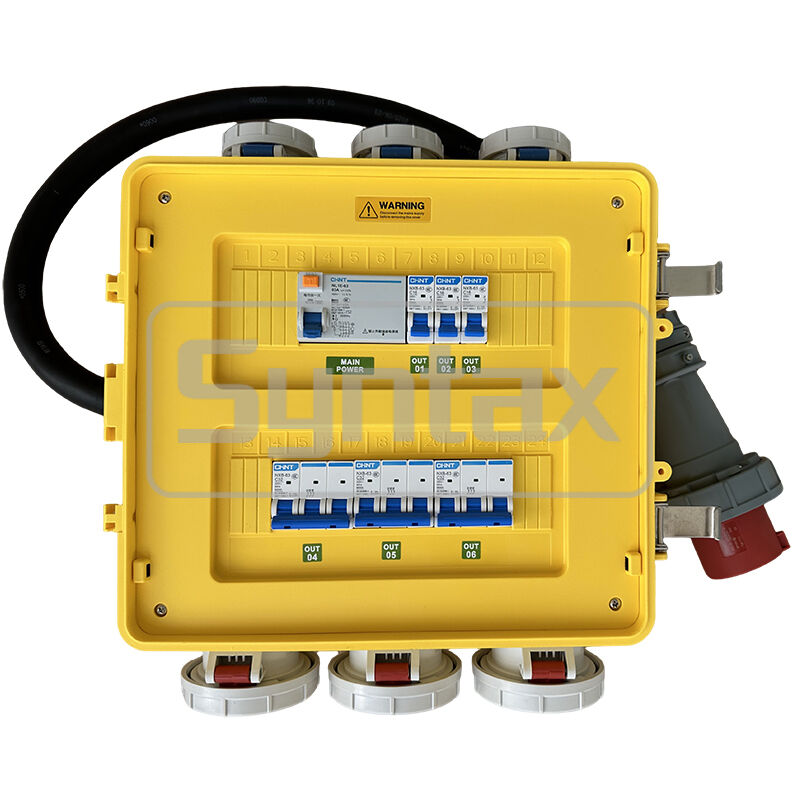

Incoming Plug

Main Switch

1 × 5P 63A 400V IP67 Plug with 1.0m 5×16mm² Flexible Rubber Cable,

protected by 1 × 4P 63A 30mA RCCB

Outgoing Sockets 1-3

Breaker

3 × 5P 32A 400V IP67 Panel Mounted Sockets,

protected by 3 × 3P 32A MCBs

Outgoing Sockets 4-6

Breaker

3 × 3P 16A 220V IP44 Panel Mounted Sockets,

protected by 3 × 1P 16A MCBs

Component Brands

Distribution Box by Syntax;

Industrial Plugs & Sockets by PowerSyntax;

Breakers by CHINT

Product Drawings

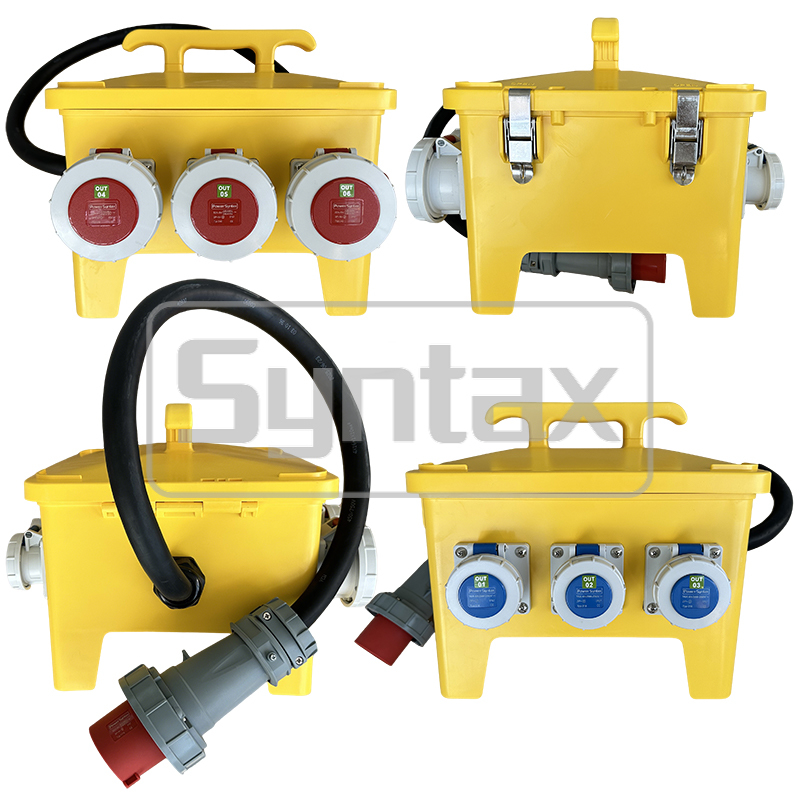

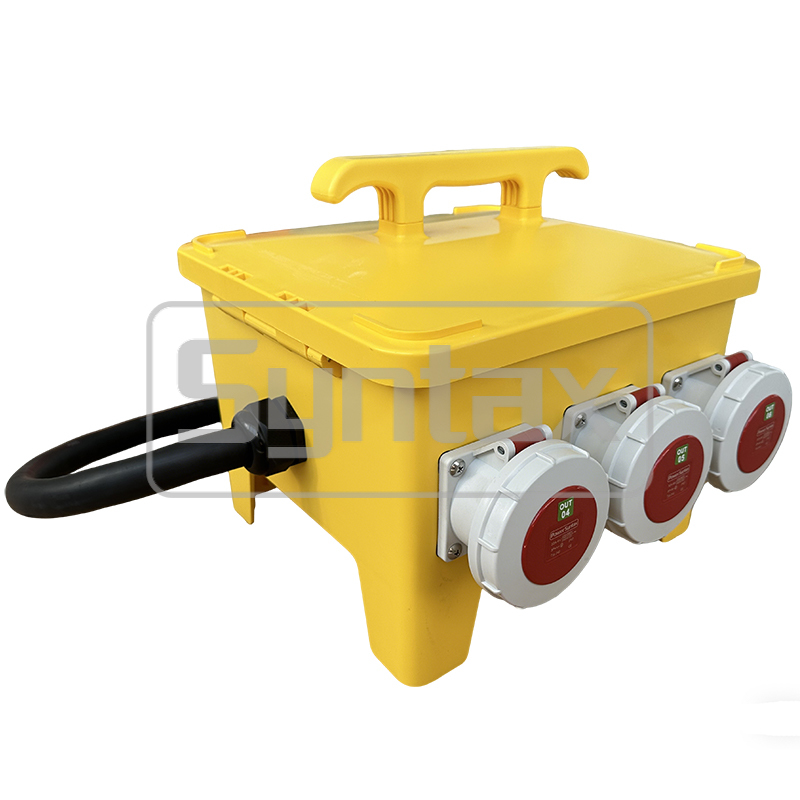

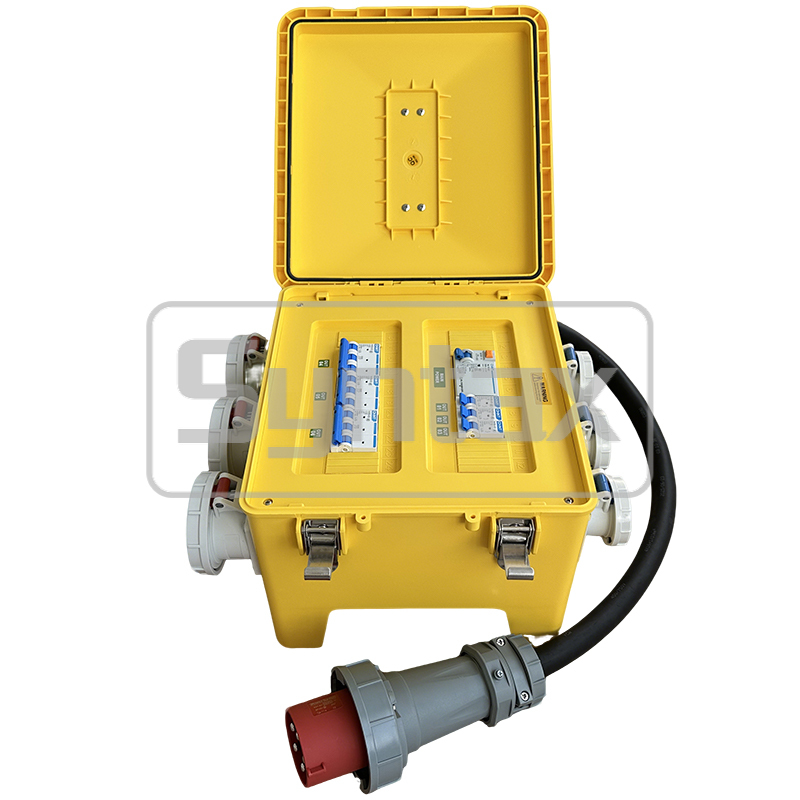

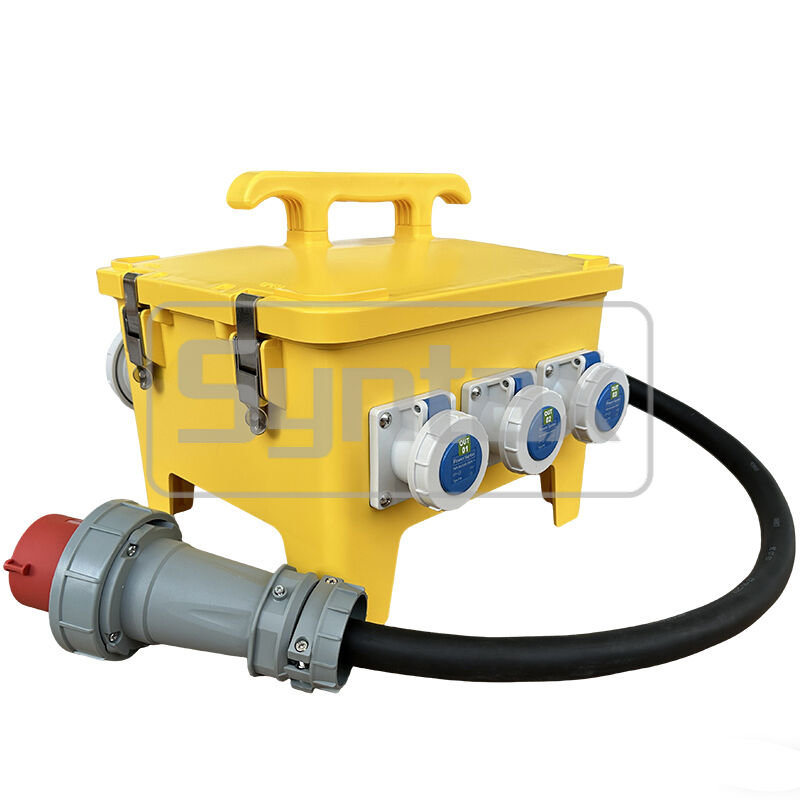

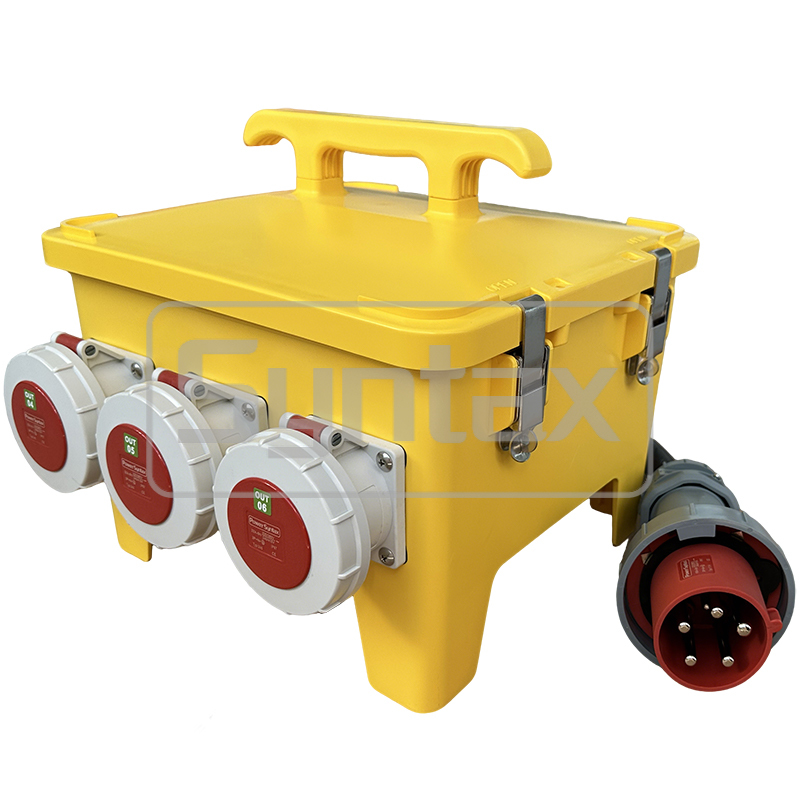

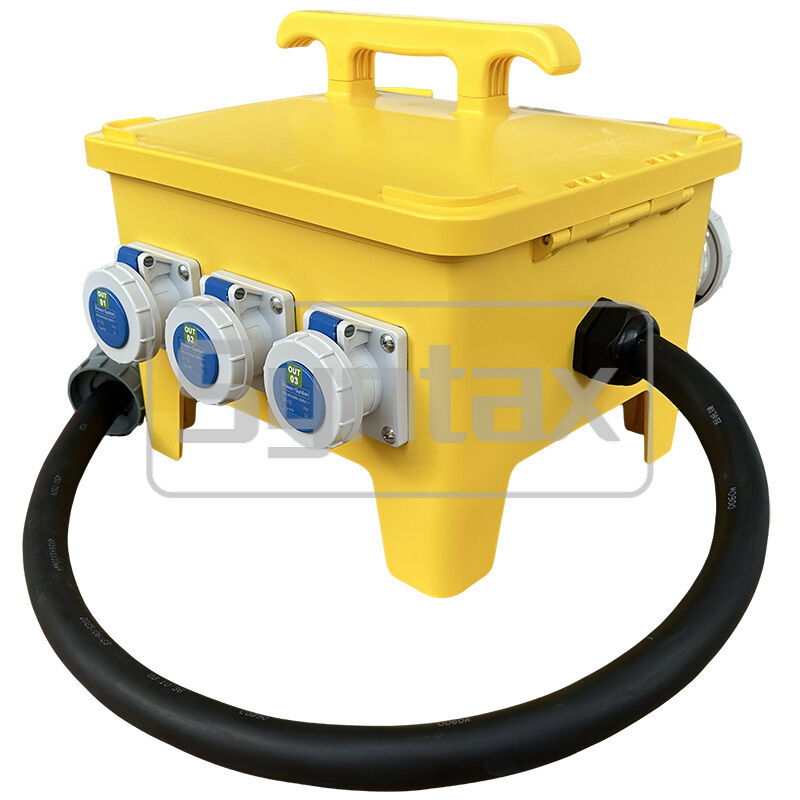

Syntax MP24 IP67 Waterproof Portable Power Distribution Box 63A/5P with 1.0m Rubber Cable Residual Protected 0 Syntax MP24 IP67 Waterproof Portable Power Distribution Box 63A/5P with 1.0m Rubber Cable Residual Protected 1
Key Features & Benefits
  • Designed to EN 60439-4 and IEC 60529 standards
  • Waterproof and shockproof design with IP67 rating
  • Available in Yellow or Black colors
  • Constructed from premium PC (Polycarbonate Resin) material
  • Stackable design for easy storage and daisy chaining
  • Operating temperature range: -20℃ to +75℃
  • Compact dimensions: 370mm × 340mm × 330mm
Product Advantages
  • Quick assembly and dismantling
  • Safe and reliable connections
  • Reusable components for cost efficiency
  • Suitable for indoor and outdoor applications
  • Robust construction for industrial use
  • Easy handling with integrated stacking feet
  • 24-month warranty on all parts and manufacturing defects
Product Overview

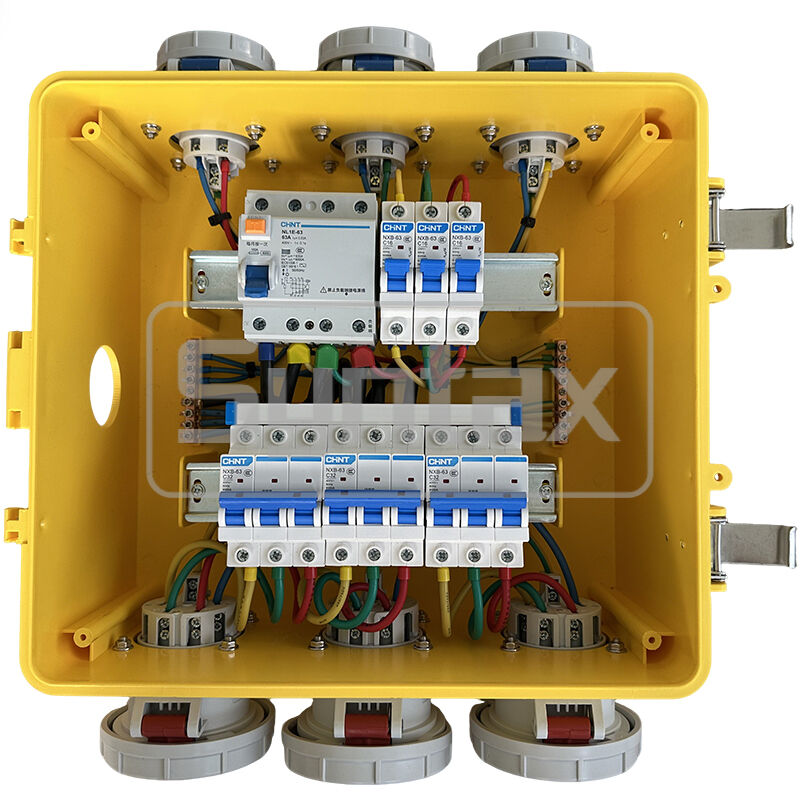

This CEE standard portable power distribution board for use at Live Events, Sporting Events, Film & TV, is rating 63 AMP, 400VAC, IP67 Waterproof. The incoming is a 63A/5P 400V IP67 Plug with 1.0 meters flexible 5x16mm2 rubber cable, with the protection of a 4P 63A 30mA RCD. The outgoing sockets 1-3 are 3 nos 32A/5P 400v IP67 panel mounted sockets protected by 3 nos 3P 32A MCBs, and the outgoing sockets 4-6 are 3 nos 16A/3P 220v IP67 sockets protected by 3 nos 1P 16A MCBs. All the Industrial Plugs and Sockets are made by famous brand PowerSyntax; while the breakers by reputed brand CHINT. The boxes is made in PC and IP67 Waterproof, which is perfect for the events especially for stage. We can bespoke power distribution boxes built to order.
Industrial Applications
Tunnel Construction
Drilling Rigs
Marine Applications
Railway Systems
Military Operations
Industrial Plants
Construction Sites
Event Technology
Airports
Quarries
Container Terminals
Large-scale Events
Custom Solutions
We offer OEM and ODM services for custom power distribution boxes built to your specific requirements when standard solutions don't meet application needs.
