| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP24 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | PE Polyethylene | Color: | Black |
|---|---|---|---|
| Dimension: | 370*340*330mm | Resistance: | Shock, Impact And Corrosion |
| Protection Grade: | IP66 Waterproof | Design: | Customized Design Is Available |
| Highlight: | power distribution box,temporary power boxes spider |
||

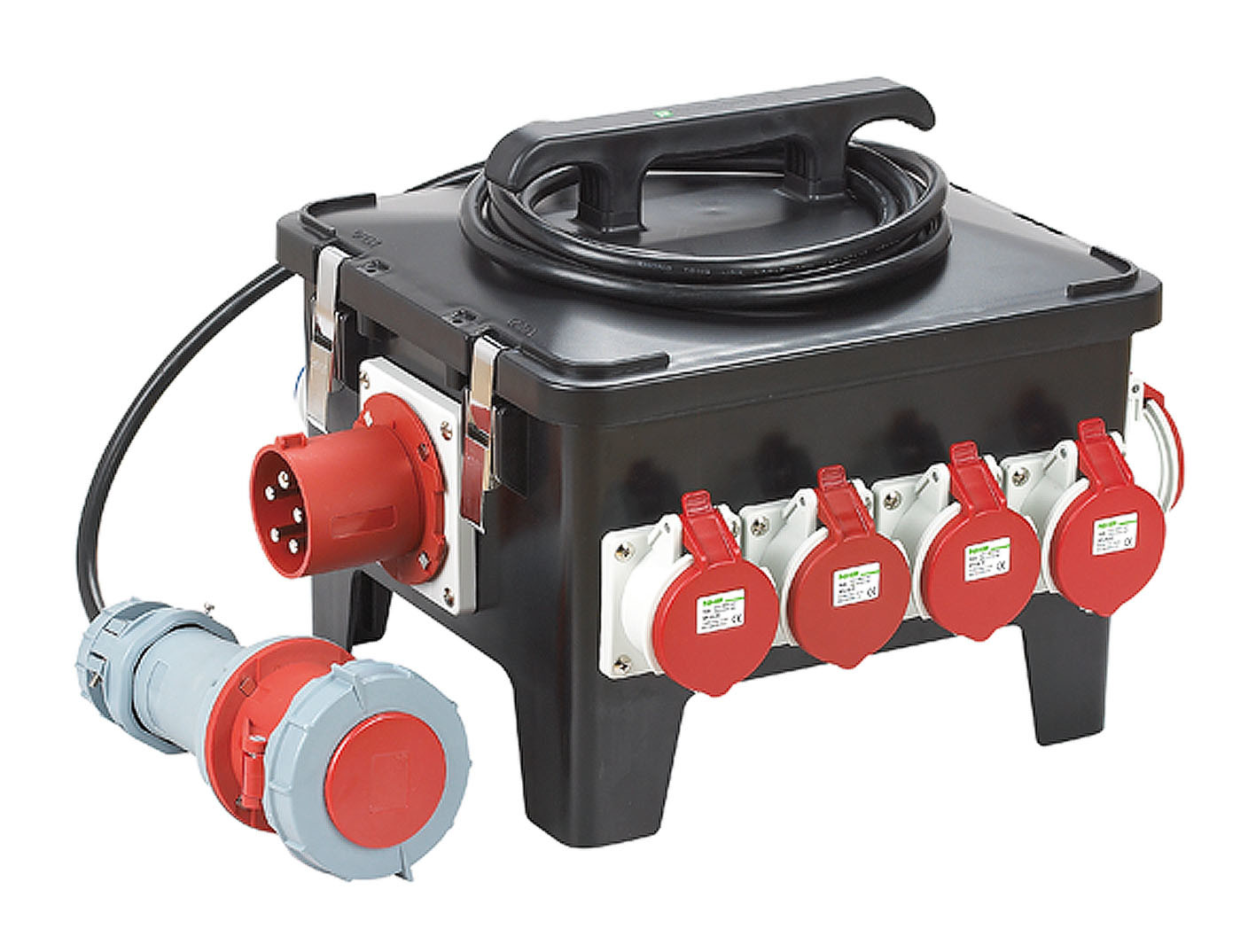

MP24 IP65 Waterproof Distro Box Easy Moving with Assembled Industrial Plug and Socket and Protected by RCD
Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery motors, tools and more. Fed directly from a power source, the portable power distribution box distributes up to 600 Amps of 3 Phase power into (4) circuits. Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Provides a main disconnect and overcurrent protection for portable power distribution systems. The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes.
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply inlet | 2 * 32A / 415V 5 pins IP67 CEE industrial panel mounted socket | 1 * 4P 63A 30mA RCD |
| 3 * 16A / 415V 5 pins IP67 CEE industrial panel mounted socket | 2 * 3P 32A MCB | |
| 3 * 16A / 415V 3 pins IP67 CEE industrial panel mounted socket | 3 * 3P 16A MCB | |
| 3 * 1P 16A MCB | ||

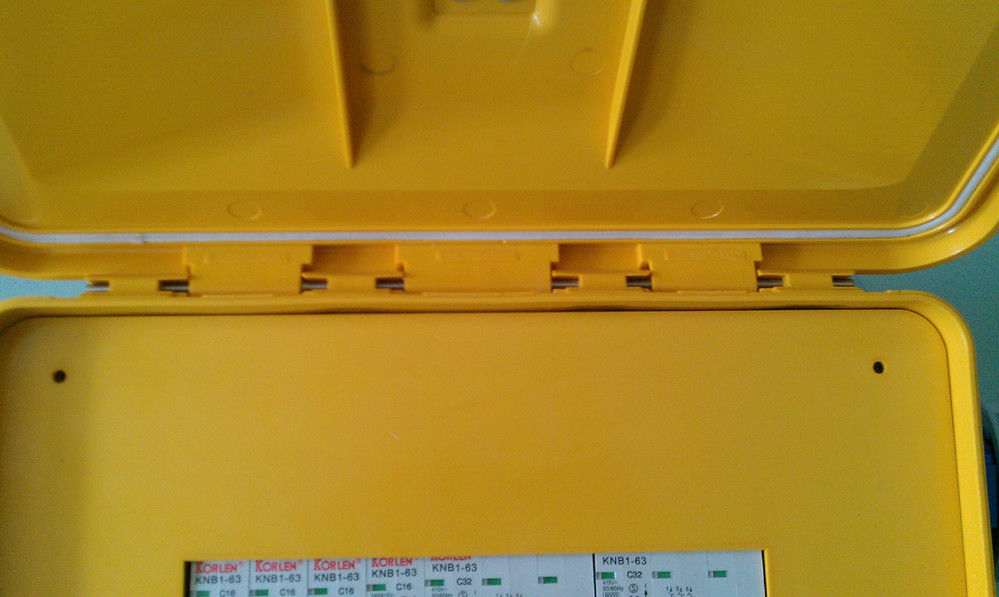

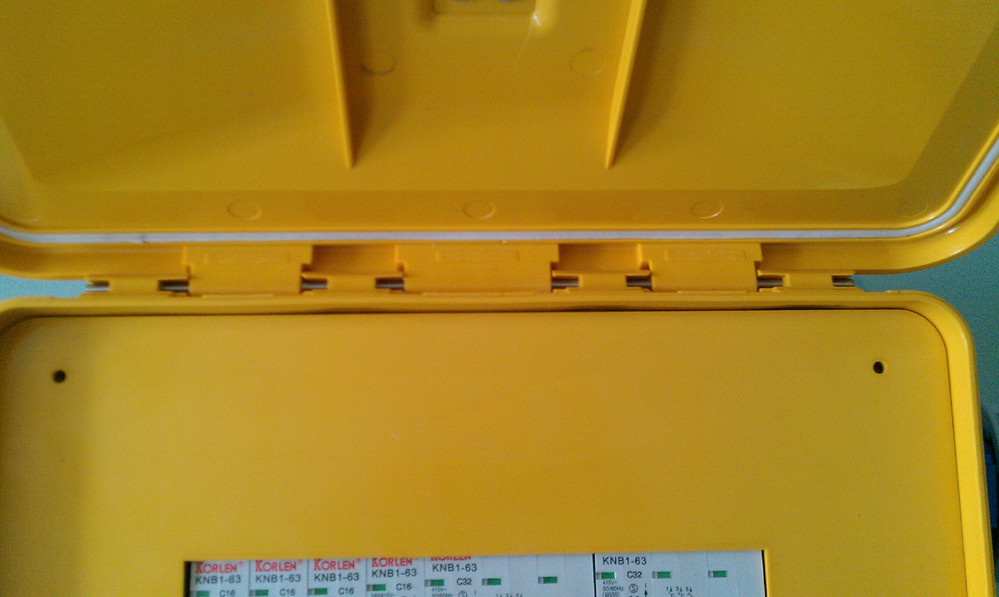

Product Pictures
