| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1231 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Pins & Current: | 4P 63A | Voltage: | 400V |
|---|---|---|---|
| Protection Type: | IP44 Rain Protected | Earthing Point: | 6h |
| Color: | Red | Connection Technology: | Screwless - SafeCONTACT |
| Highlight: | industrial power plugs sockets,waterproof plug and socket |
||

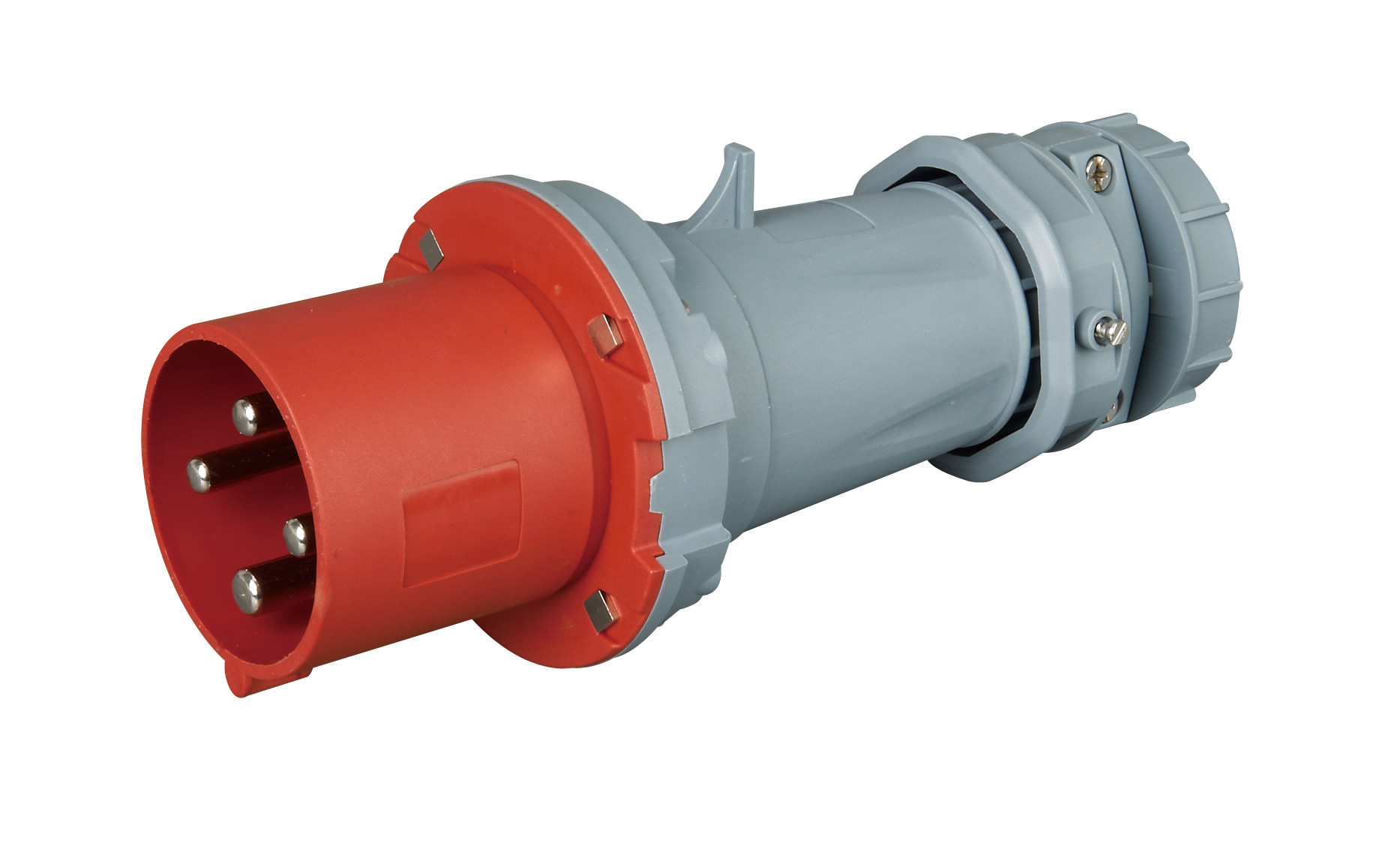

4P 63A IP44 Weather-protected Third Generation Screwless Red Industrial Plugs 400V 50-60Hz part no. 1231
Features:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1226 | 1227 | 1228 | 5 | 607 | |||
| 4 | 1229 | 1230 | 1231 | 1232 | 5 | 652 | |||
| 5 | 1233 | 1234 | 1235 | 5 | 705 |
| Current | Poles | a | b | c | d | e | f | g | |
| 63A | 3 | 238.9 | 179.4 | 66 | 100.1 | 75.5 | 36.5 | 69.5 | |
| 4 | 238.9 | 179.4 | 66 | 100.1 | 75.5 | 36.5 | 69.5 | ||
| 5 | 238.9 | 179.4 | 66 | 100.1 | 75.5 | 36.5 | 69.5 | ||
| Conductor cross-sectional area (mm²) Min To Max 10-16 | |||||||||
