220 - 250 V 2 Pin Waterproof Connector Plug , 16A Waterproof Electrical Plugs

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 10838
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Type: SCHUKO Plug Poles: 2P
Ampere: 16 Amps Rated Voltage: 230 Volts
Material: PA Color: Blue
Highlight:

industrial power plugs sockets

,

waterproof plug and socket


Product Description

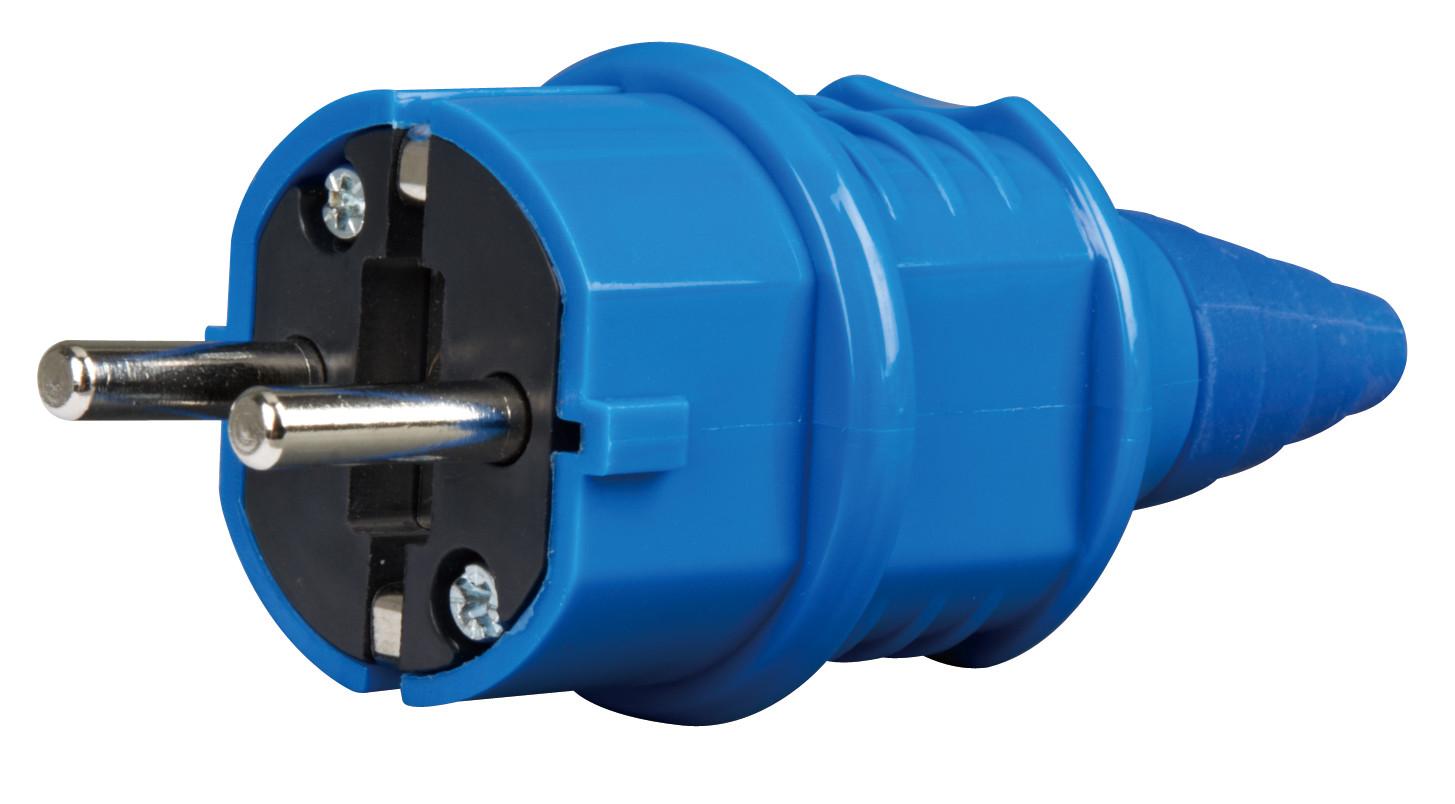

2 Pins 16A 230V SCHUKO Plug Blue German Plug With Earthing part no. 10838



  • Schuko Plug
  • Frequency: 50/60 Hz
  • Nominal Voltage: 220 V~250 V
  • Rated Current(a): 16 A
  • Part no. 10838



Technique Parameter:



Color Current Poles Voltage Order Number Package Unit Weight a b c d e
PCS/BOX G/PC
Gray 16 2 230 10749 20 47 105 42 19 41 19
Black 16 2 230 10754 20 47 105 42 19 41 19
Orange 16 2 230 10837 20 47 105 42 19 41 19
Blue 16 2 230 10838 20 47 105 42 19 41 19
Red 16 2 230 10839 20 47 105 42 19 41 19
Yellow 16 2 230 10840 20 47 105 42 19 41 19
Green 16 2 230 10841 20 47 105 42 19 41 19
Conductor cross-sectional area (mm²) Min To Max 1.5-2.5


Product Dimension:

220 - 250 V 2 Pin Waterproof Connector Plug , 16A Waterproof Electrical Plugs 0
