| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 143 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Type: | Bevel | Poles: | 5pole |
|---|---|---|---|
| Ampere: | 125Amps | Rated Voltage: | 400Volts |
| Earth Position: | 6 H | IP Rating: | IP67 |
| High Light: | industrial power plugs sockets,waterproof plug and socket |
||

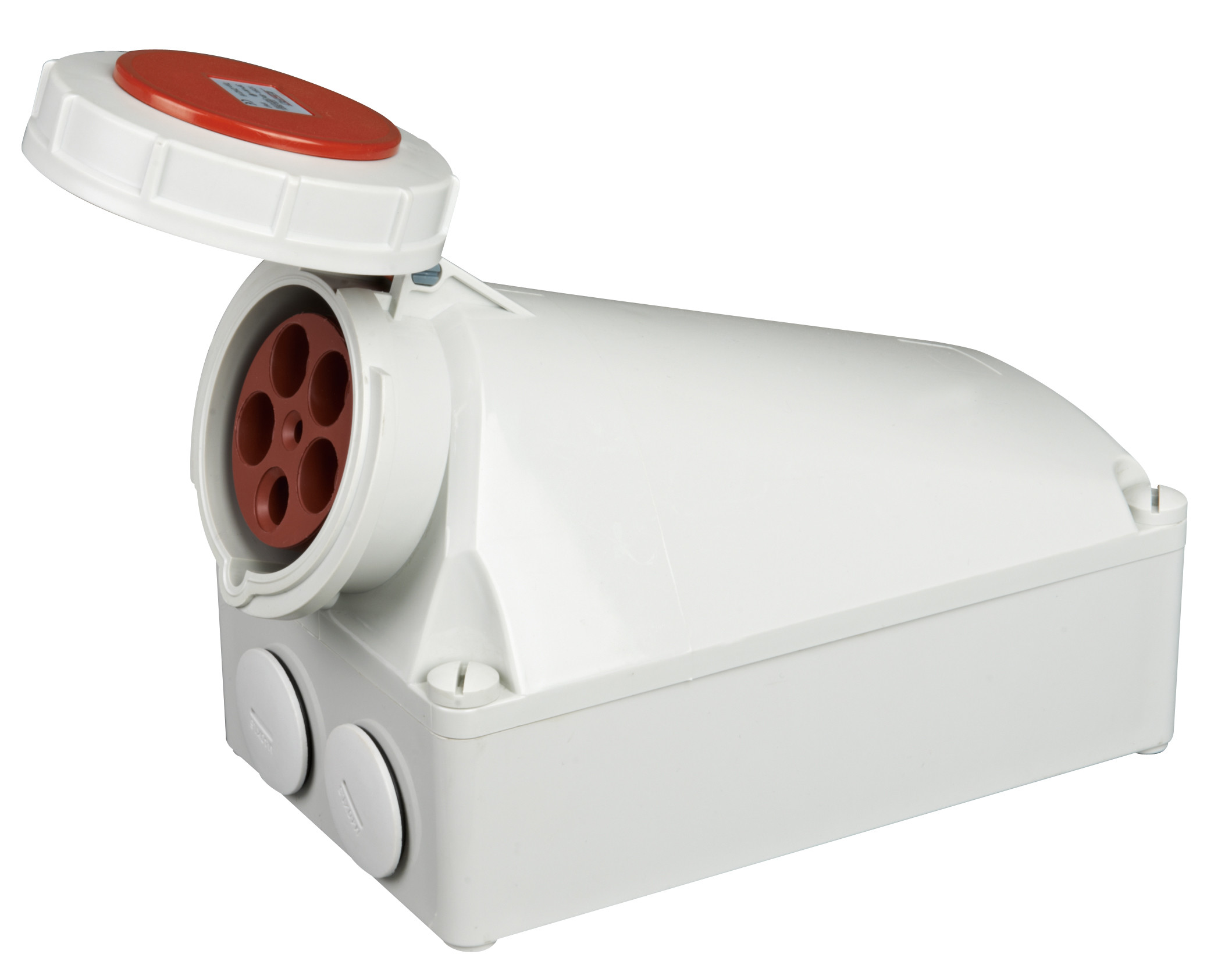

5P 125A IP67 Water Protected Wall Mounted Bevel Receptacle with Cover New Generation Industrial Socket part no. 143
Description:
The enclosure has a hinged door for easy installation and maintenance. The plug is connected with a vertical movement. (The outlet is in the bottom of the product)
The 16 – 32A products have knock-outs cable entries. 22mm knock-out upwards and metric threaded M25 downwards. The 63A products have two 32mm knock-outs (one up and one down)
Part no. 143
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h | 3P 4P 5P6h 9h 9h | 3P 4P 5P9h 6h 6h | 4P3h | 3P 4P 5P7h 7h 7h | 3P 4P 5P10h 10h 10h | 3P 4P 5P2h 2h 2h | PCS/BOX | G/PC | ||
| 125A | 3 | 138 | 1 | 1840 | ||||||
| 4 | 139 | 1 | 1970 | |||||||
| 5 | 143 | 1 | 2100 |
| Current | Poles | a | b | c | d | e | e1 | f | g. | h | M | m* | |
| 125A | 3 | 262 | 160 | 202 | 240 | 140 | 140 | 8.1 | 8 | 140 | 50 | can use 2PC M40 CABLE GLAND |
|
| 4 | 262 | 160 | 202 | 240 | 140 | 140 | 8.1 | 8 | 140 | 50 | |||
| 5 | 262 | 160 | 202 | 240 | 140 | 140 | 8.1 | 8 | 140 | 50 | |||
| Conductor cross-sectional area(mm²)Min To Max 25-35 | |||||||||||||
Product Dimension:
