| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MK2 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | HDPE | Max. Poles: | 48 Ways |
|---|---|---|---|
| Dimension: | 42*42*54cm | Thickness: | 7mm |
| IP Rating: | IP66 | Color: | Orange Or Black |
| Highlight: | IP66 Portable Power Distribution Board,7mm Portable Power Distribution Board,48 Ways Power Distribution Board |
||
MK2 Mobile Power Distribution Boards For Connecting Generator Electric Box Black Outdoor Distribution Boards
These EN60439-4, IEC60529, SAA listed panels range from 32-125A, including one of the industry’s only 10-position panels. Fully corrosion-resistant, our power panels can be custom-configured with a variety of breakers and connections. Most incorporate stainless steel cages that protect but do not interfere with ease of use. Other sizes available upon request.
If you have inquiries or need assistance with technical information, please email us for our Power Distribution Brochure, submit a worksheet for the specificaion and requirement or chat with us by WhatsApp or Wechat.
| Input | Output | Circuit Breaker |
| 1 * 125A 5 Pins Supply Inlet | 1 * 125amp 5 Pins CEE Outlet Socket, | 1 * 125A 4P MCB DZ47-125 |
| 12 * 32A 5 Pins Clipsal Outlet Socket | 3 * 32A 4P RCBO | |
| 3 * Signal Lamp | ||

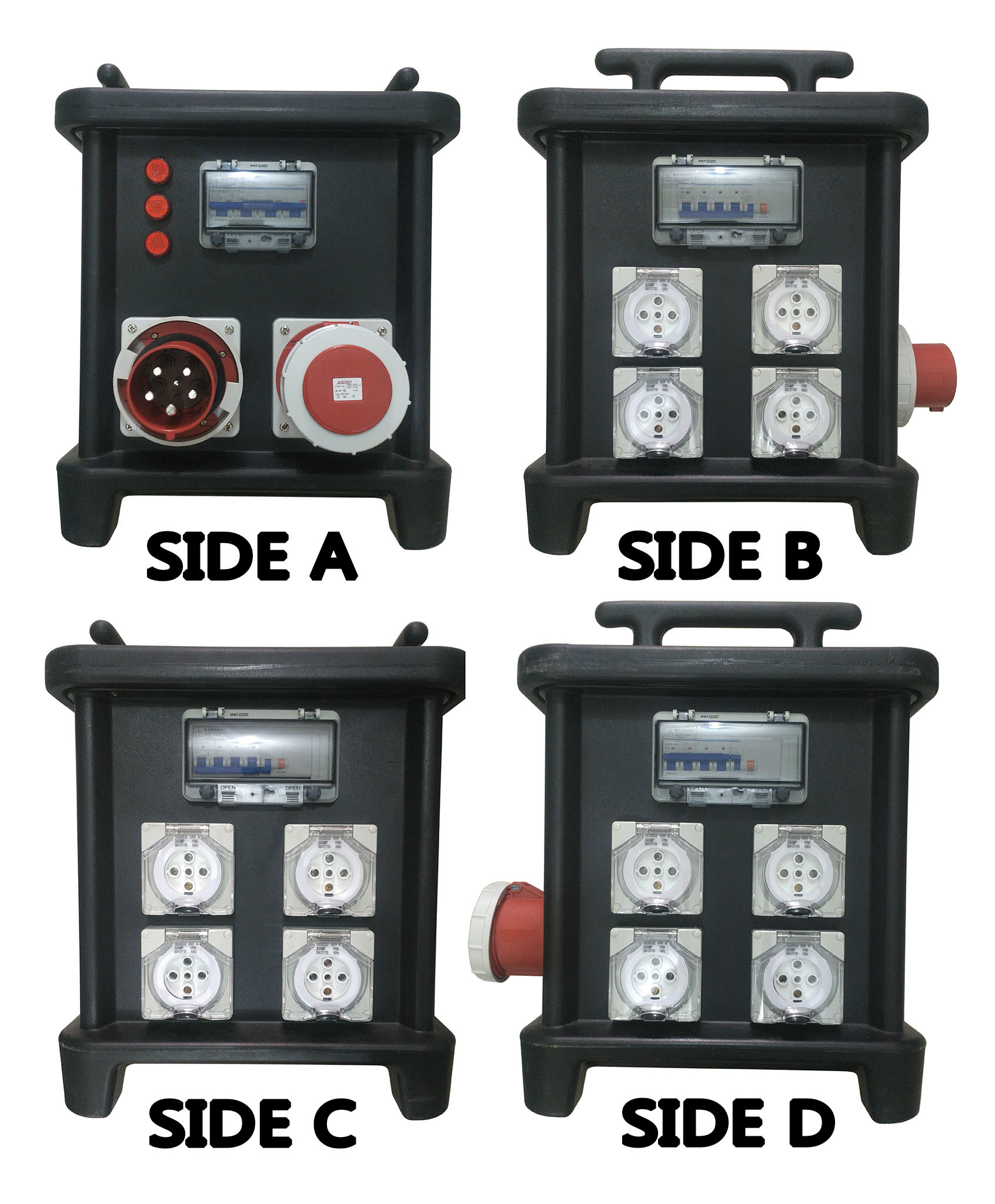

MK2 Black Box:
Side A: 1 * 125A 5 Pins CEE Supply Inlet, 1 * 125A 5 Pins CEE Outlet Socket, 1 * 125A 4P MCB, 3 * Signal Lamp
Side B: 4 * 32A 5 Pins Clipsal Outlet Socket, 1 * 32A 4P RCBO
Side C: 4 * 32A 5 Pins Clipsal Outlet Socket, 1 * 32A 4P RCBO
Side D: 4 * 32A 5 Pins Clipsal Outlet Socket, 1 * 32A 4P RCBO
