IP65 Waterproof PE Portable Socket Box With Industrial Plugs Sockets MCB RCD

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MK1
Minimum Order Quantity: 5 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material Of Body: HDPE Rated Operation Voltage: AC 230/400V, 440VDC
Rated Frequency: 50/60Hz Dimension: 420*420*430mm
Stackable: Can Be Stackable Color Of Box: Orange
High Light:

PE Portable Socket Box

,

IP65 Waterproof Portable Socket Box

,

MCB RCD Portable Socket Box


Product Description

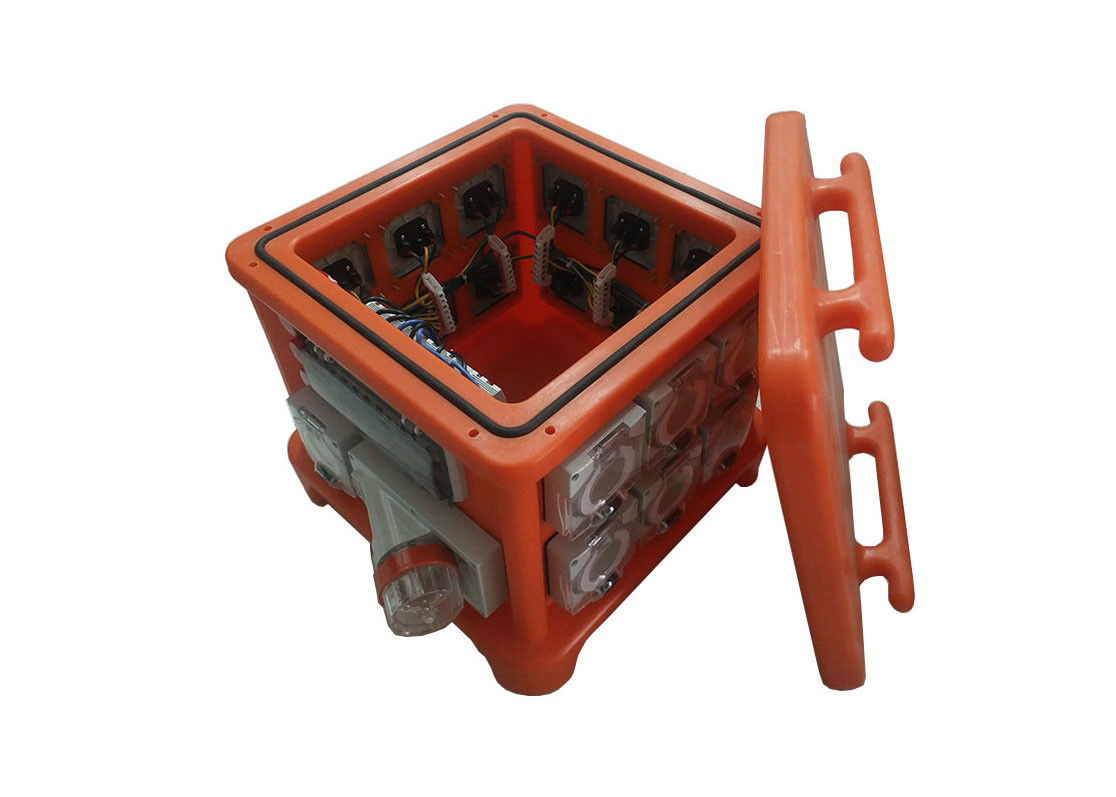

MK1 Industrial Portable Socket Box IP65 Waterproof PE Assembly With Industrial Plugs And Sockets MCB RCD



Application

Our Mobile thermoplastic distribution boxes are suitable for in- and outdoor areas. The boxes are available in different sizes and configurations, single phase or 3phase, 16Amp or 32Amp.



Features & Benefits

handy, robust distribution box made of shock-resistand polyamide
with carrying-handle made of high-grade steel
maximum rated current of 32A
8 modules under window
IP44 splashproof, ready wired for connection
for distributing electricity to powered equipment or lighting systems on



Markets Served

The Mobile thermoplastic distribution boxes are well suited for all applications. Especially in those areas that depend on high-quality, a robust enclosure and total reliability, such as in industry, trade, workshops, agriculture, household, public buildings, leisure, sport, marinas, camping, etc.



Specification

Input Output Circuit Breaker
 1 * 32A 2P+E IP44 APPLIANCE INLET  1 * 2P+E IP44 APPLIANCE OUTLET SOCKETS  1 * 16A 4P MCB
   4 X 16A 230V 2P+E IP44 SOCKETS  1 * 32A 30mA 2P RCBO



INPUT:
32A 230V 2P+E IP44 APPLIANCE INLET
PROTECTION: 32A 30mA 2P RCBO



OUTPUT:
1 X 32A 230V 2P+E IP44 SOCKET [ Through Socket ]
No Protection on Through Socket
4 X 16A 230V 2P+E IP44 SOCKETS
EACH PROTECTED BY 16A IP MCB TYPE C
