|Description:||Waterproof Socket Box||Material:||PC|
|Color:||Yellow (black Is Optional)||IP Rating:||IP67|
|Incoming:||5P 32A IP67 Inlet||Outgoing:||2*5P 16A Sockets +2*3P 32A Sockets + 3*3P 16A Sockets|
|Protection:||All Protected By ABB RCBO||Customize:||Accepted|
|Application:||Industrial, China State Grid, Concert, Entertainment, Indoor||Type:||Power Distribution System, Electrical Boxes, Portable|
Weather Resistant Portable Distribution Box,

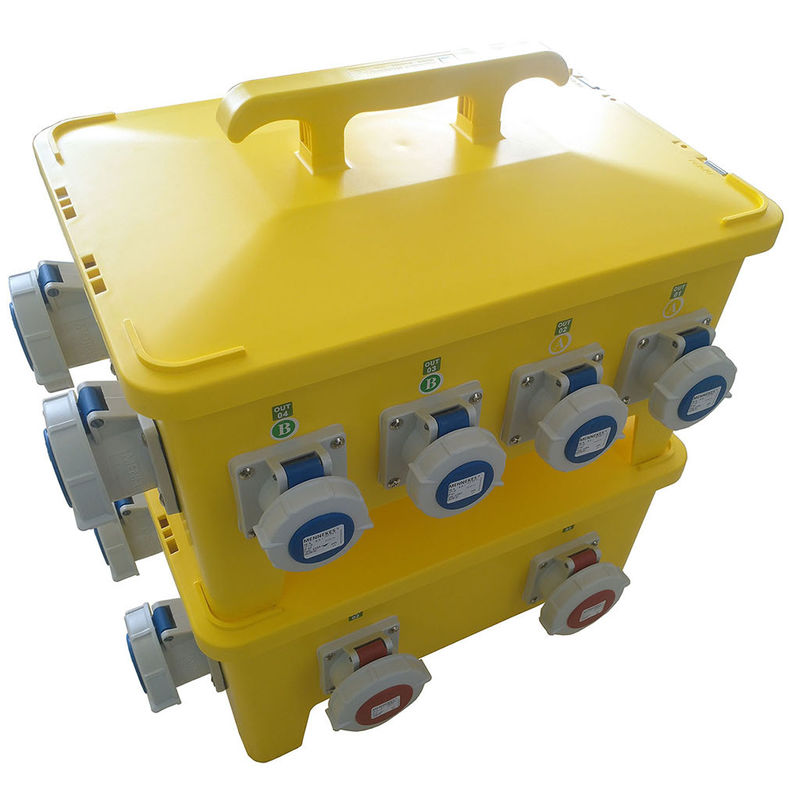

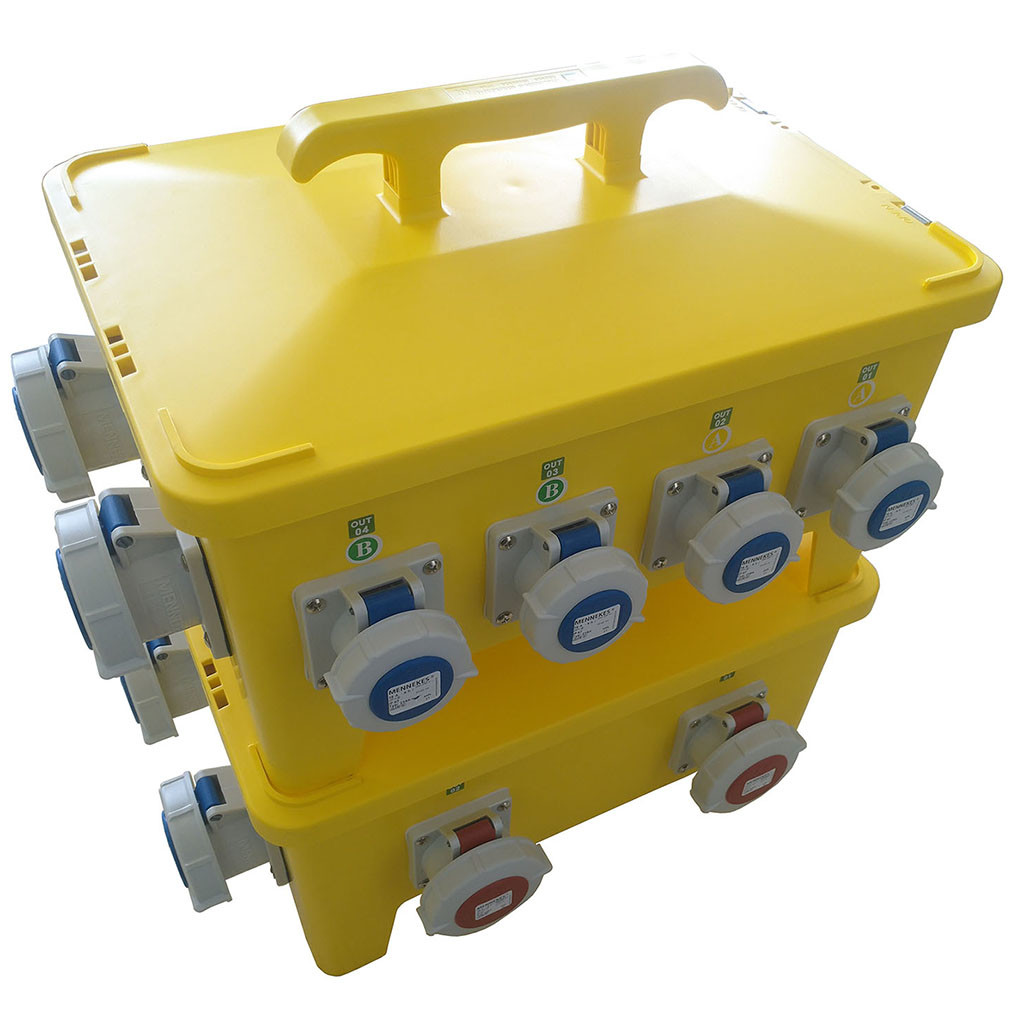

32A Stackable Portable Distribution Box,
IP67 Portable Distribution Box

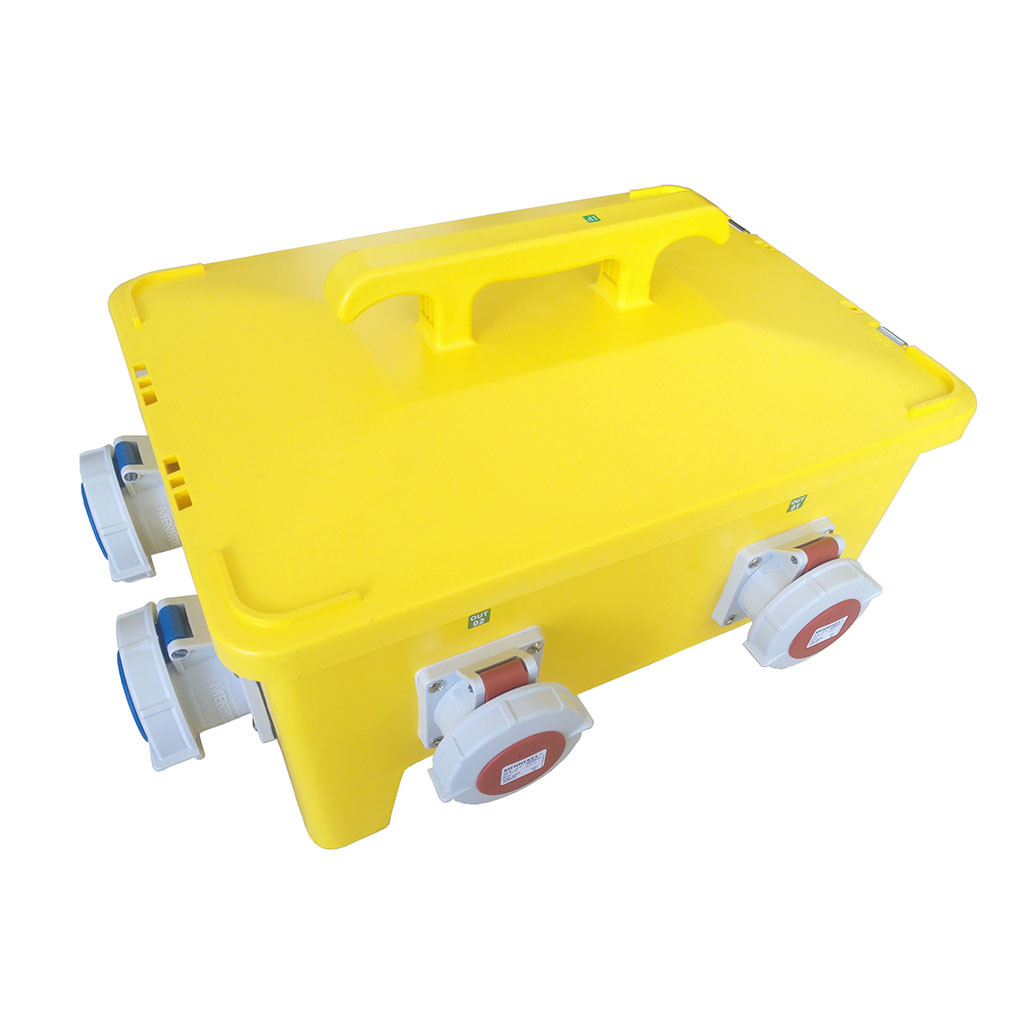

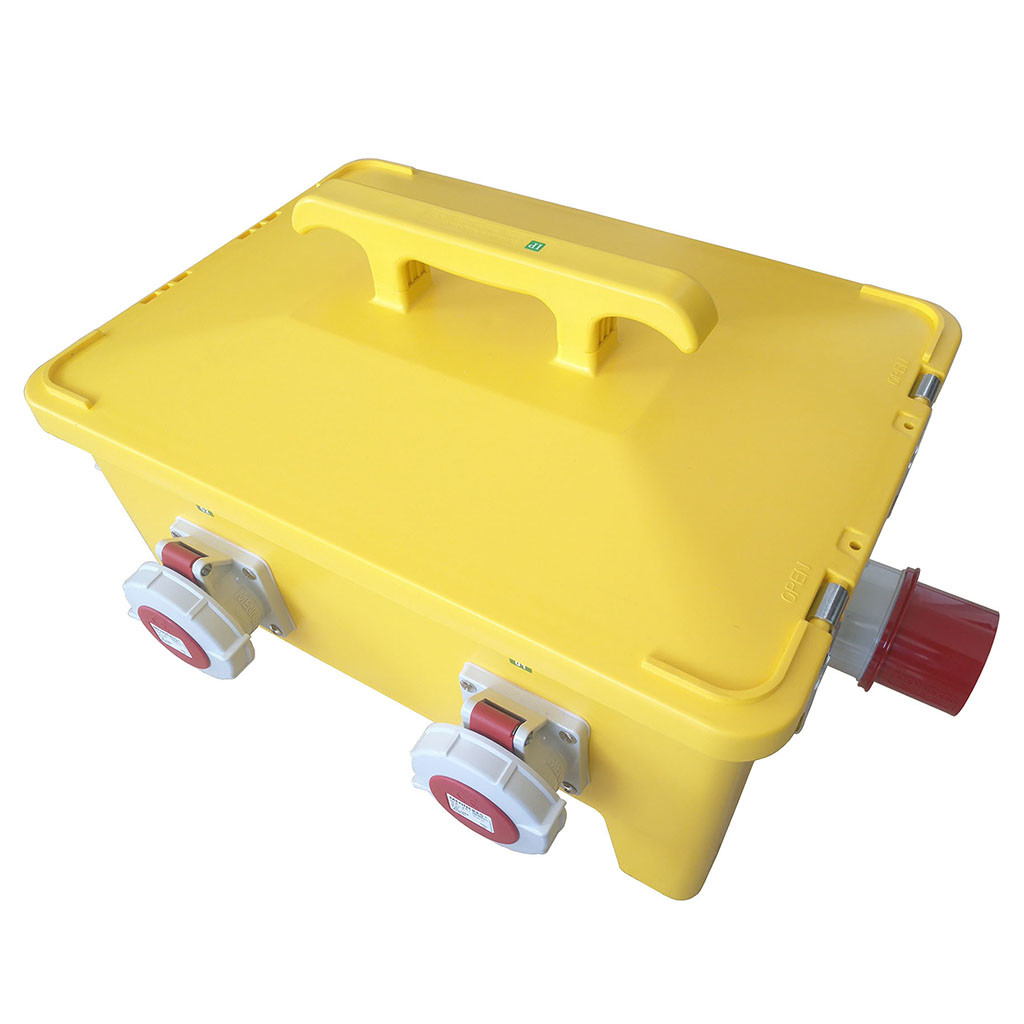

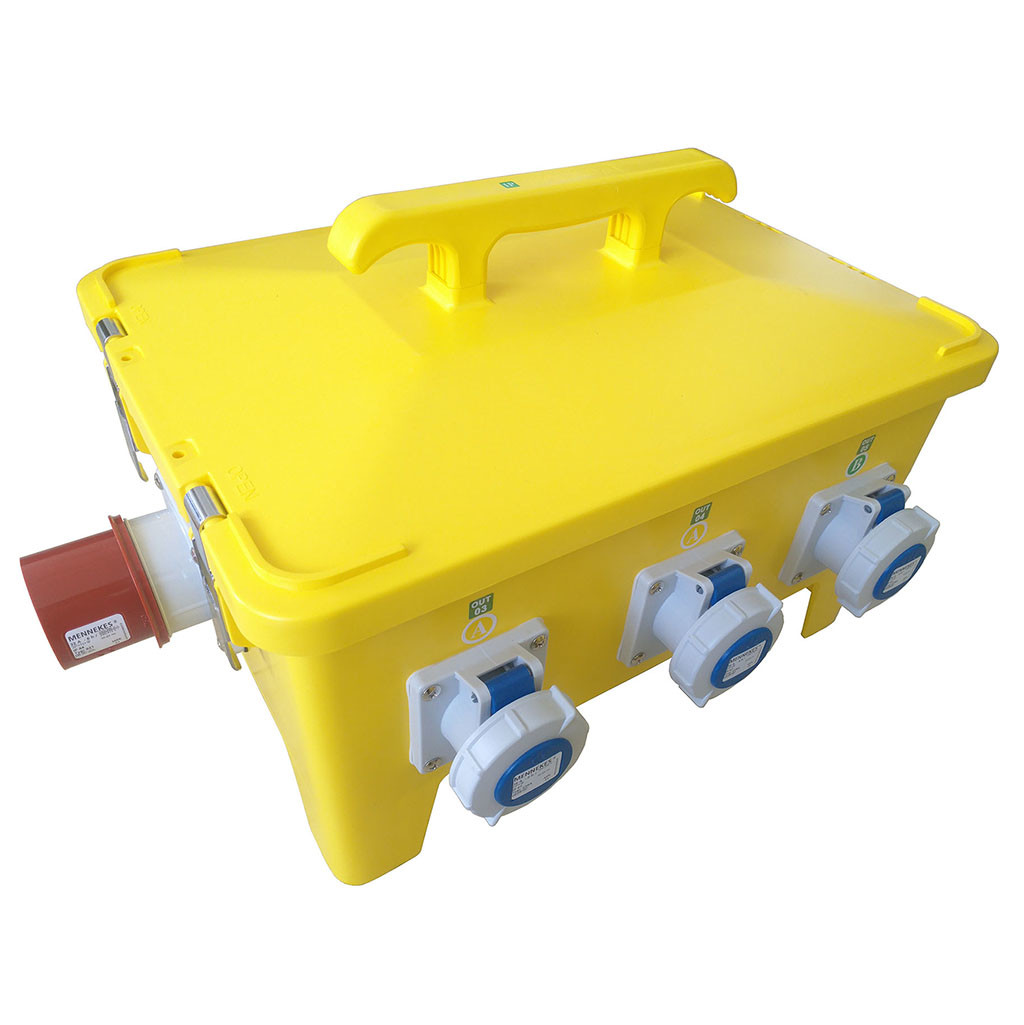

Weather Resistant Socket Box Yellow Heavy-duty 32A Portable Power Distribution Stackable With ABB RCBO MCB Protection
Utilised for Leister Welding Machines and RCBO Safety Boxes. Designed to provide safety against electrocution by detecting current leaks. In the presence of electronic malfunction, the RCBO will trip and prevent further current from entering the system, meaning a reduced risk of injury, electronic failure and fires. Particularly useful for larger electronic devices such as our welding machines.
Features & Benefits
The RCBO Unit should be plugged in either to the fixed supply or to the generator via its 2m lead. This unit should be mounted securely above ground level if possible. If not then it should be stood on the floor/ground in a position where it is unlikely to be damaged and firmly held down with sandbags or weights so that it cannot be knocked over.
The RCBO should be tested each day before work commences.
Connect the equipment to the power supply as above with the RCBO ON/OFF switch (behind clear plastic panel) to OFF. And press the test button on RCBO. The RCBO should trip out. If it doesn’t, check that there is power to the RCBO. If there is, the RCBO unit is faulty. It should not be used but returned to HYPER after service team immediately for inspection.
ANY QUERIES ABOUT THE CORRECT OR SAFE FUNCTIONING OF THE EQUIPMENT SHOULD BE REFERRED TO THE SUPPLIER.
1. Dimension of Empty Box: 478*340*330mm
2. Incoming: 5P 32A IP67 Inlet by Mennekes
3. Outgoing 1: 2*5P 16A Sockets by Mennekes
4. Outgoing 2: 2*3P 32A Sockets by Mennekes
5. Outgoing 3: 3*3P 16A Sockets by Mennekes

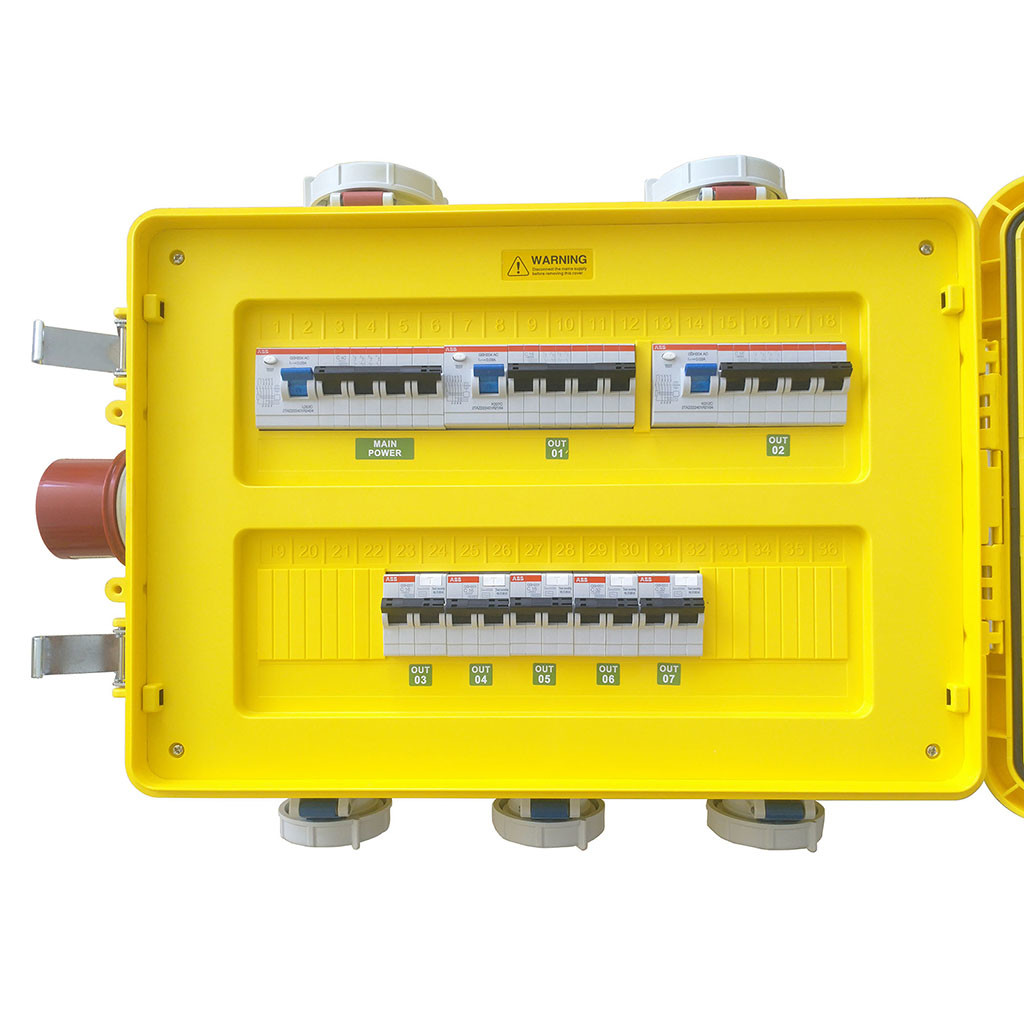

6. Protection 1: 2*4P 16A 30mA RCBO by ABB
7. Protection 2: 2*2P 32A 30mA RCBO by ABB
8. Protection 3: 3*2P 16A 30mA RCBO by ABB

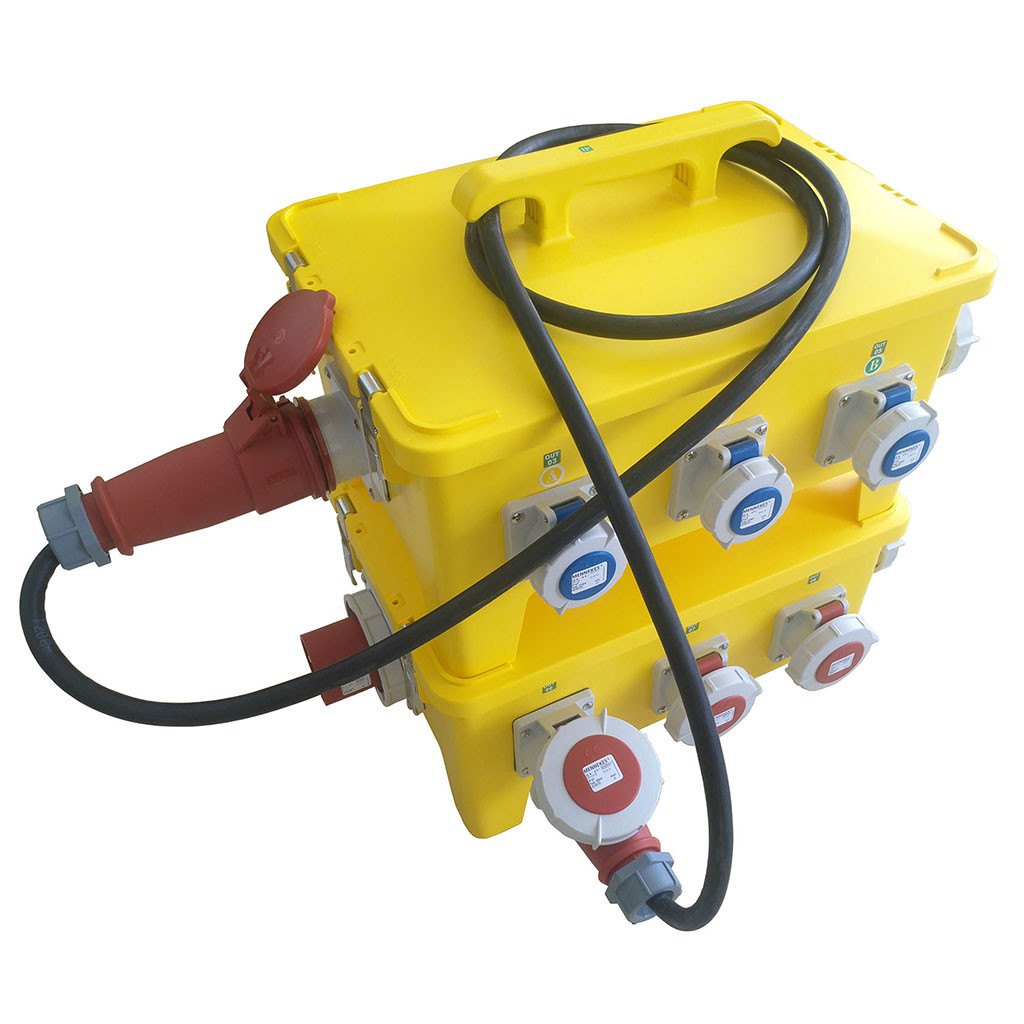

9. Extension Cable: 3 meters long 5*4.0mm2 with 5P 32A IP44 Plug and Connector by Mennekes
