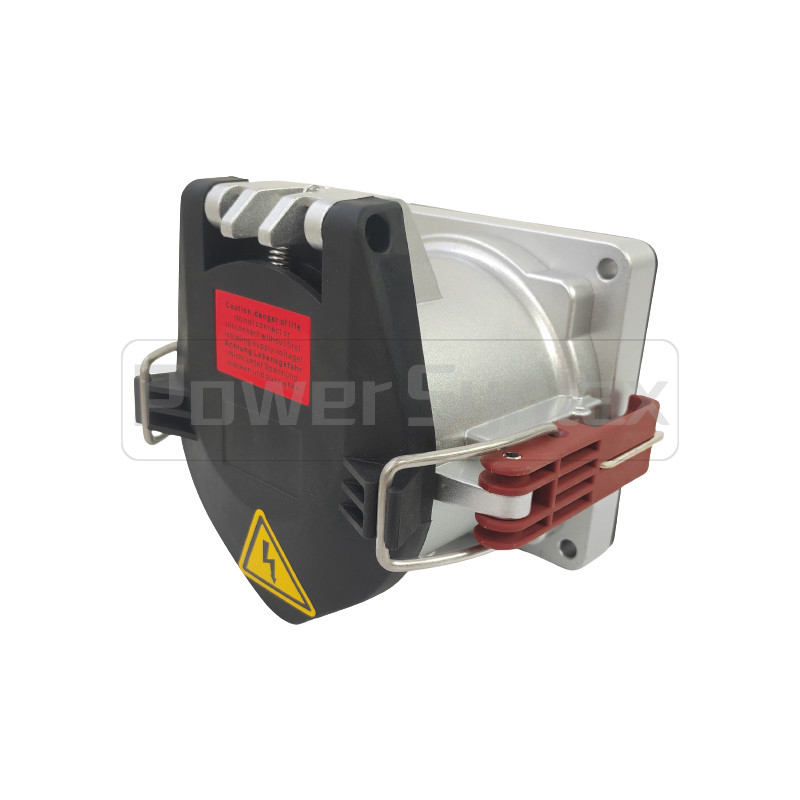

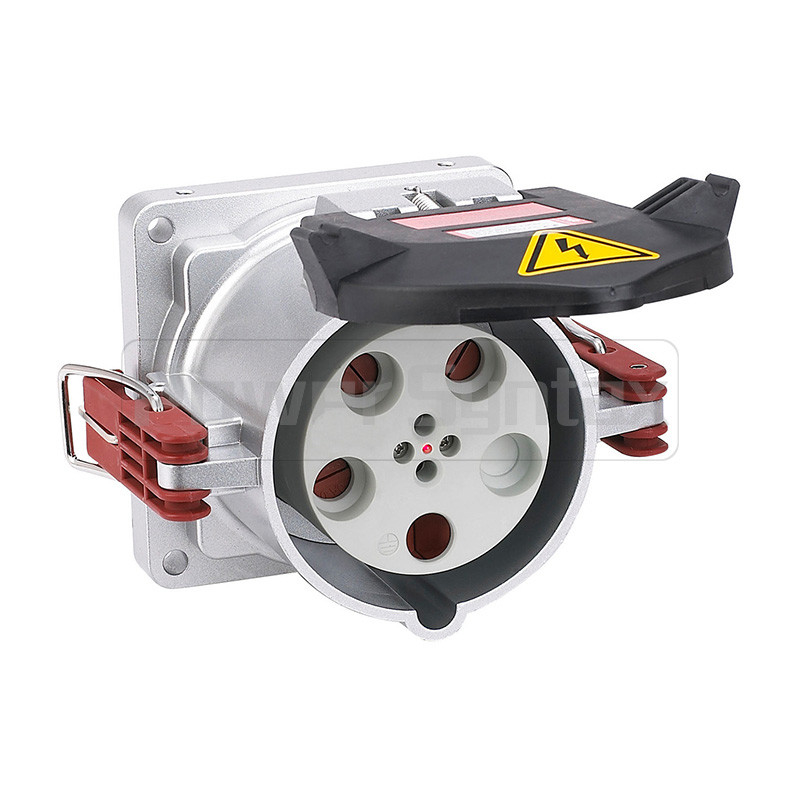

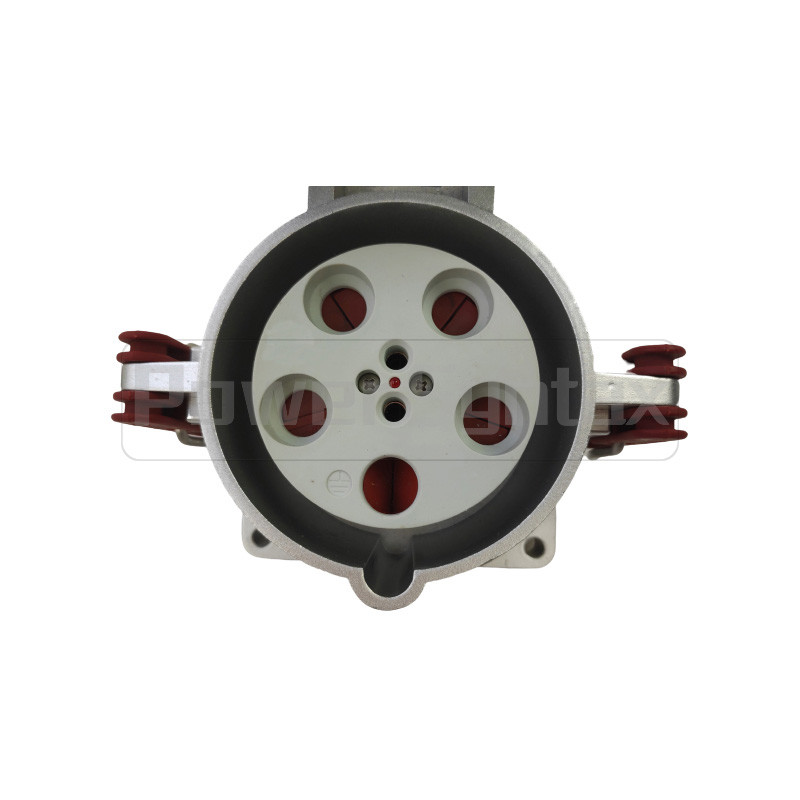

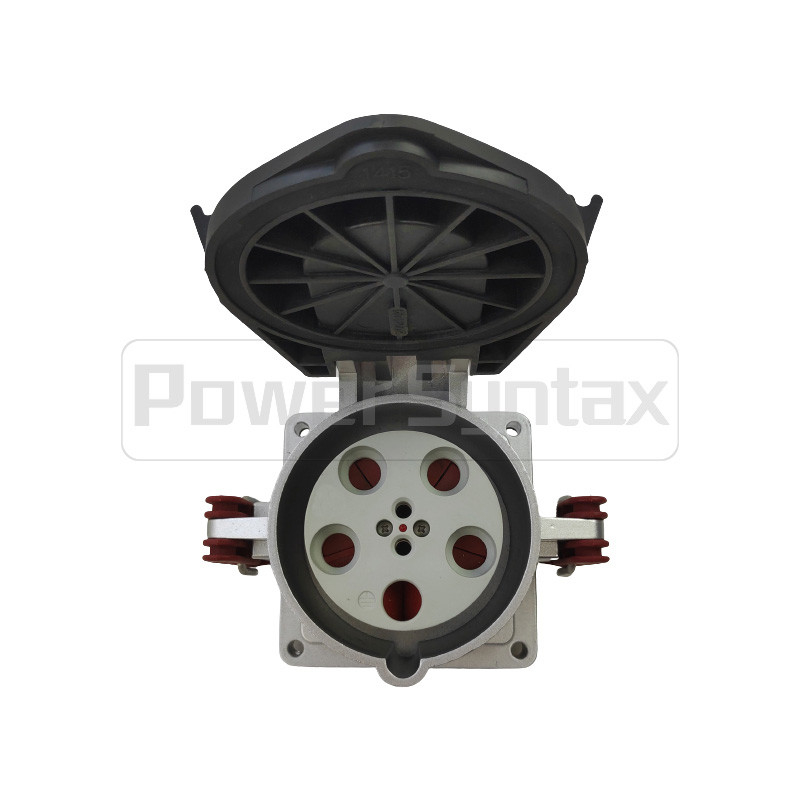

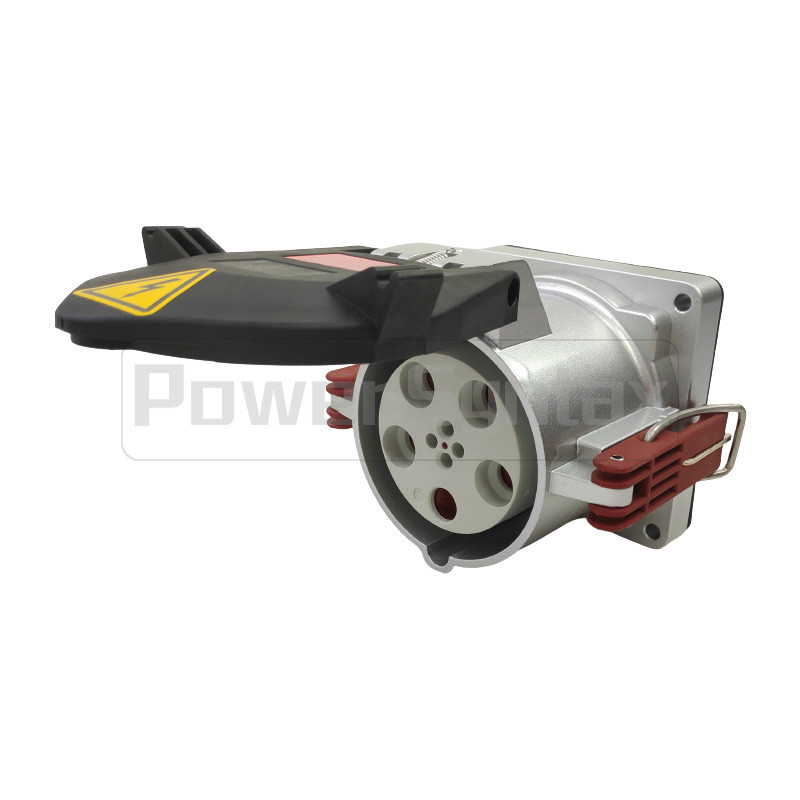

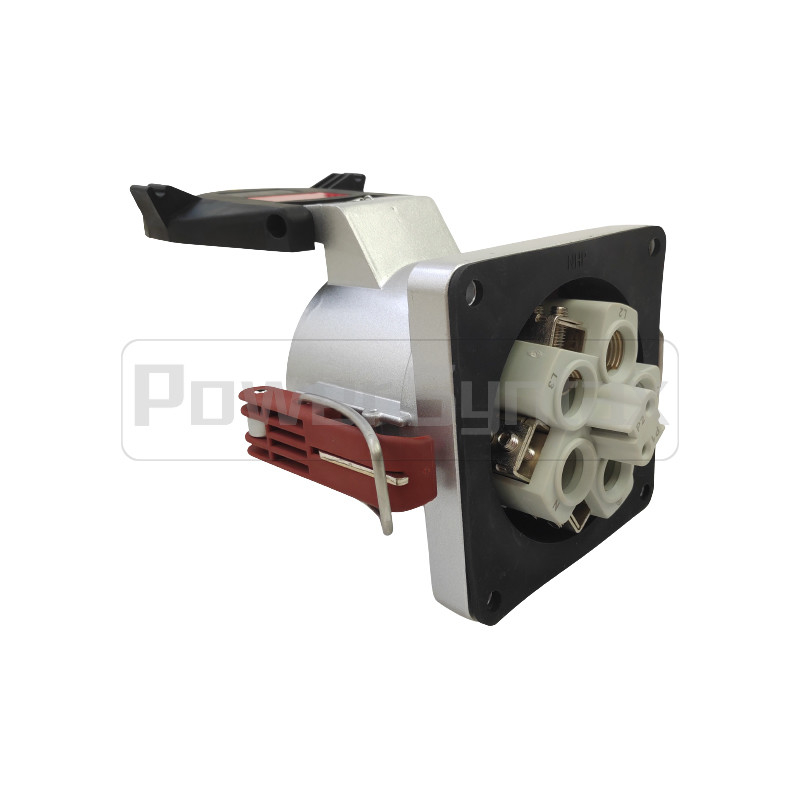

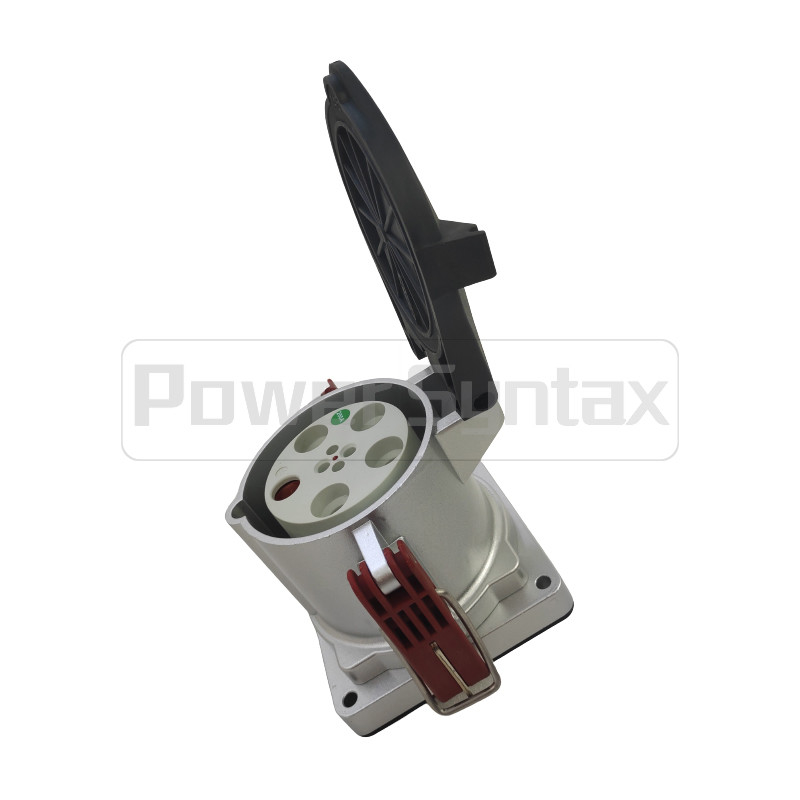

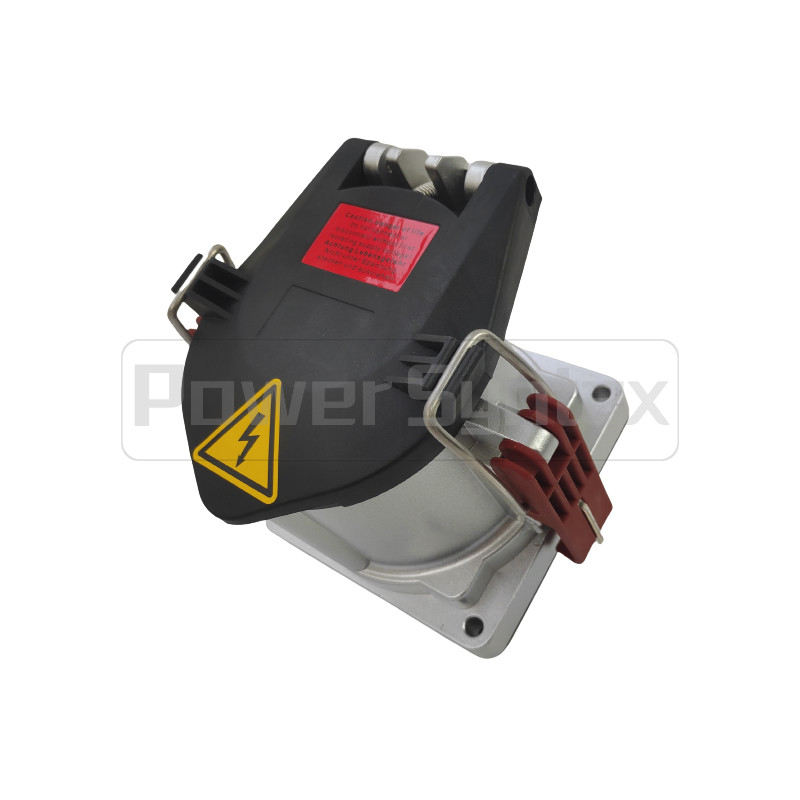

4P 160A IP67 380V High Current Industrial Sockets Part Heavy Duty No. 75241X

Basic Information
Place of Origin: China
Brand Name: PowerSyntax
Certification: CE
Model Number: 75241X
Minimum Order Quantity: 1PC
Packaging Details: Packed by strong paper cartons
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Detail Information
Plug / Socket: Socket (Panel Mounted Type) Mounting Type: Panel Mount
Pole Format: 4P = 3P+E Current Rating (Ampere): 160A
Protection Grade Of IP Rating: IP67
High Light:

Cast Aluminum High Current Plugs Sockets

,

75241 X High Current Plugs Sockets

,

IP67 380V High Current Plugs Sockets


Product Description

PowerSyntax 4P 160A IP67 380V Heavy Duty High Current Industrial Sockets Part No. 75241X



Technical Parameters:

Attribute Value
Brand / Manufacturer PowerSyntax
Manufacturer Part Number 75241X
Plug / Socket Socket (Panel Mounted Type)
Mounting Type Panel Mount
Pole Format 4P = 3P+E
Current Rating (Ampere) 160A
Voltage Rating 380V ~ 415V (customized up to 1000 V)
Protection Grade of IP Rating IP67
Protection Grade of Shock Resistance IK10
Ambient Temperature - 40 ℃ to + 100 ℃

Insulation Resistance

(Phase-phase and phase-earth)

> 500 MOhm
Comparative Tracking Index of the Insert > 600 CTI

Cable CSA (Cross-sectional Area)

Rigid Conductor EN 60228 Class 1+2

50 - 70 mm2

Pilot Cable CSA (Cross-sectional Area)

Conductor EN 60228 Class 1+2

1.5 - 4.0 mm2
Diameter of Cable Gland for Cable 45 - 66 mm
Clock Position 6 h
Frequency (Hertz) 50-60 Hz
Gender Female
Body Orientation Straight
Connection Technology Screw Terminal
Material of Plastic Housing Cast Aluminum
Material of Metal Contacts Silver Plated Brass
International Standard IEC 309-2, EN 60309-2, DIN VDE 0623 part 1
Other voltages and frequencies available on request.



Current Poles

230V

50a.60Hz

400V

50a.60Hz

500V

50a.60Hz

690V

50a.60Hz

1000V

50a.60Hz



4P 5P

9h 9h

4P 5P

6h 6h

4P 5P

7h 7h

4P 5P

5h 5h

4P 5P

1h 1h

160A 4P 75240X 75241X 75242X 75243X 75244X
  5P 75245X 75246X 75247X 75248X 75249X
200A 4P 75240 75241 75242 75243 75244
  5P 75245 75246 75247 75248 75249

Dimension Drawing:

4P 160A IP67 380V High Current Industrial Sockets Part Heavy Duty No. 75241X 0



Features and Benefits:

• Complete protection against contact and reliability in adverse environmental conditions due to protection class IP67 (dust-proof and waterproof).

• Standard built-in pilot contacts also ensure a secure energy supply. The pilot cable can be routed in the supply cable as a hybrid cable or separately in the housing.

• The cable connections are possible with and without ferrule.

• Fixed captive screws increase safety and enable quick and easy installation.

• Permanently installed finger contact protection protects against the risk of electric shock if the live parts are inadvertently touched and additionally prevents system failures due to the penetration of foreign particles.

• Extremely robust aluminum housing withstands loads of approx 2 tons and can therefore be used in the toughest and most adverse conditions.

• High reliability at temperatures from -40 °C to + 100 °C.

• Easy wiring with standard mounting tools and a user-friendly cable entry.



Heavy Duty Versions for Industry:

For many years, PowerSyntax has been a strong partner in the area of CEE plugs and socket devices up to 125 A. Now the well-known program has been extended to high-current plug and socket devices up to 400 A. As usual, highest priority is given to safety standards, quality and reliability. These plug and socket devices can be found in a variety of applications such as tunneling, shipbuilding, opencast mining or the mining industry, where they fully meet the customers‘ requirements.



The heavy duty range supplements the plugs and sockets currently covered by EN 60309-2, making available rated currents of 160A, 200A, 250A and 400A and rated voltages of up to 1000 V. The design is based on the following standards: IEC 309-1, EN 60309-1, DIN VDE 0623, part 1.





Connectors for challenging applications

In applications where high current connectors are used, the safety, quality and reliability are the top priorities for customers. In order to fulfill this task, all these properties were bundled into one product range. Thus, all customers receive a product with the highest

degree of performance.



Whether in tunnel construction, where extremely mechanical strength is required or railway applications where vibration-proof is of highest importance, the high current connectors are always the right choice.



The Contact System:

Silver plated contacts with a maximum contact surface and thus minimal power loss contribute to the reduction of energy costs. They also ensure high reliability in different environmental conditions, such as strong vibrations, high temperatures, heavy soiling, etc ... When worn, the contacts can be easily and quickly replaced using standard tools.



Robust Housing:

The connectors are designed for ambient temperatures from - 40 ℃ to + 100 ℃. This ensures full functionality at low and very high temperatures. This leads to significantly fewer plant failures (reduced risk of overheating) and reduced fire risk. Another important aspect for vaious industries, such as tunnel construction, construction sites, mines is the high robustness of the connectors. These can withstand loads of up to 2 tonnes.



IK Code:

The IK code is a coding system according to IEC/EN 50102 or IEC/EN 62262, which indicates the degree of protection by a housing against harmful external stresses. Each characteristic number of the IK code represent a stress relief value.



Finger Touch Protection:

Each socket is equipped with a finger touch protection in order to safeguard the user against electrical shocks in the event of unintentional contact with live parts.



IP67/IP55:

The connectors are IP67. They are dust-proof and suitable for temporary immersions under water. The connector units (high current metal socket boxes) are IP55, which means protected against dust and splashing water.

• Always reliable in adverse environmental conditions.

• Suitable for high humidity applications.

• Low maintenance (no dust/moisture penetration).

• High security ensured at all times.



Applications:

Connectors for every task

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places



Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.



Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

  • Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
  • Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
  • Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
  • Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
  • Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
  • Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
  • Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
