Syntax MZ12 Temporary Power Distribution Box IP67 Plastic 32A 308*238*277mm

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN60439-4, IEC60529, SAA
Model Number: MZ12
Minimum Order Quantity: 5 sets
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: PC (Polycarbonate Resin, The Best Material Of Plastic) Poles: 12 Ways
Dimension: 308*238*277mm IP Grade: IP67 Waterproofing
Color: Yellow / Black
High Light:

Syntax Temporary Power Distribution Box


308*238*277mm Power Distribution Box


Plastic Temporary Power Distribution Spider Box

Product Description

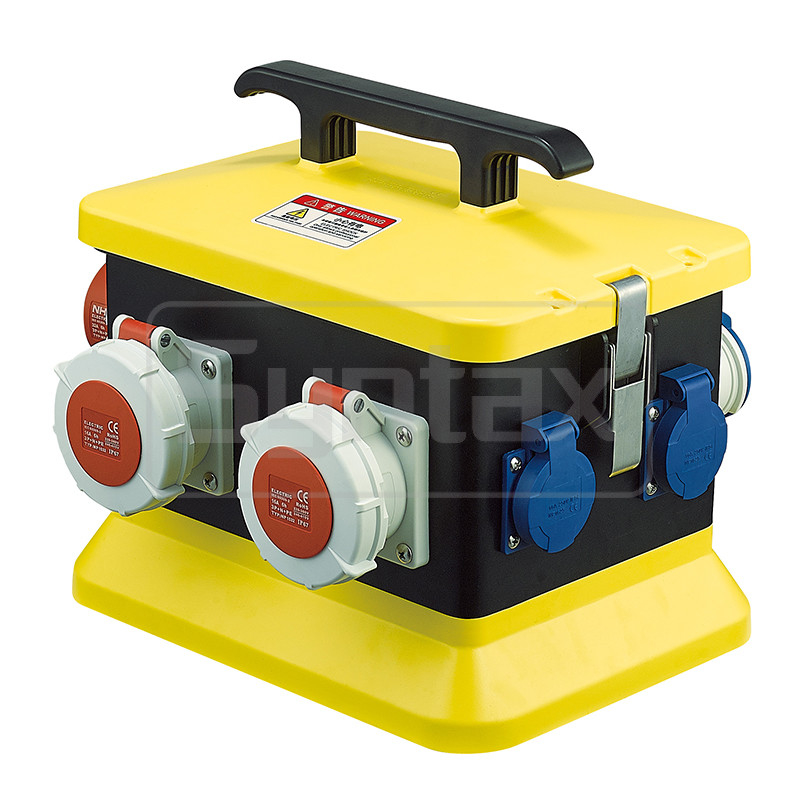

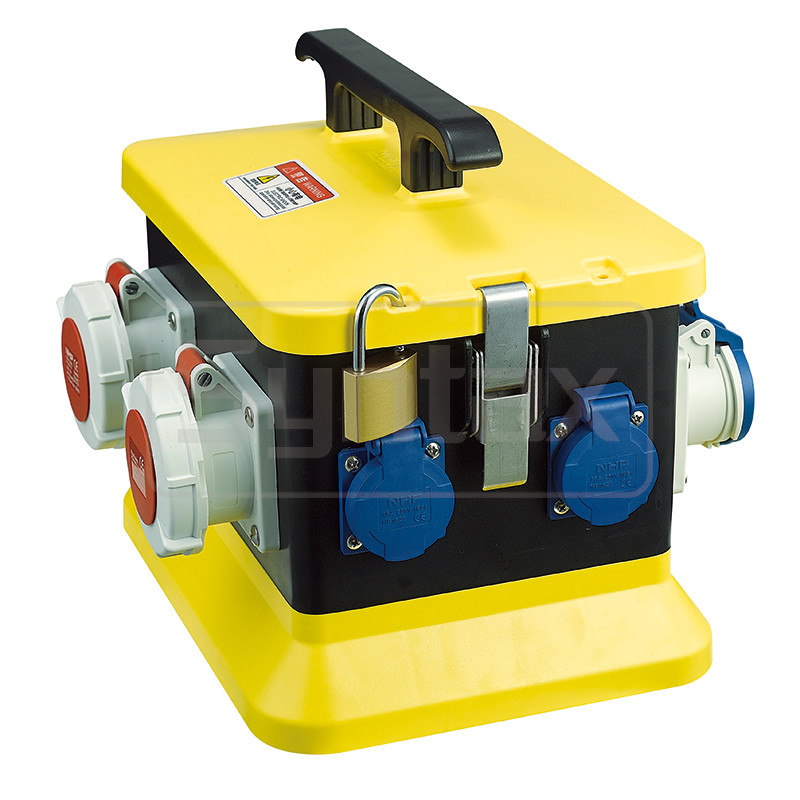

Syntax MZ Series MZ12 Yellow / Black Temporary Power Distribution Box IP67 Plastic Spider Box 32A 308*238*277mm



Design based on EN 60439-4, IEC 60529.

Waterproof and Shockproof design, IP rating up to IP67.

Color: Yellow / Black.

Material: PC (Polycarbonate Resin, the best material of plastic).

Stackable Design for easier storage and daisy chaining.

Operating Temperature:-20℃~+75℃.

Dimension: 308mm x 238mm x 277mm.



The MZ series IP67 Electric Portable Distribution Box is newly designed compact, portable model. For simple and safe electricity distribution indoors and outdoors for e.g. construction sites, light industry, events, etc.


Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.


Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.


Overload protection by circuit-breakers like MCB, RCD, RCCB, and RCBO to make sure the safety of the workforce and equipment. The MZ6 movable distribution box can maximum load 6P breakers for one side, the MZ8 portable socket box can maximum load 8P breakers for one side, and the MZ12 and MZ24 electric distribution board can maximum load 12P breakers and 24P breakers..


The box is compact size includes portable easy-to-carry top handle.


The design of the polycarbonate plastic distribution box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.


OEM and ODM services are available.


Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.


Recommended specification:

32A Three Phase Portable Distribution Box

- Incoming: 1 x 5P 32A IP44 Plug with 3 meters extension cable.

- Outgoing 1: 2 x 5P 32A IP67 Panel Mounted Sockets.

- Outgoing 2: 3 x 3P 16A IP67 Panel Mount Sockets.

- Outgoing 2: 2 x 2P+E 16A IP54 Schuko Sockets.

- Protection: 1 x 4P 32A 30mA RCD, 1 x 3P 63A MCBs, 5 x 1P 16A MCBs.


Dimension Drawing:

Syntax MZ12 Temporary Power Distribution Box IP67 Plastic 32A 308*238*277mm 0


Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

  • Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
  • Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
  • Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
  • Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
  • Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
  • Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
  • Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
