|Poles:||Specially Designed For Switches, Signal Lamps, Push Buttons, Panel Meters And Etc.||Dimension:||150mm*165mm*40mm|
|IP Grade:||IP67 Waterproof||Frame Color:||Electric Grey|
|Material:||PC (Polycarbonate Resin, A Kind Of Plastic)|
Clear Cover Waterproof Hinged Window,
Waterproof Hinged Window With Knurled Screws,
150*165*40mm Waterproof Hinged Window

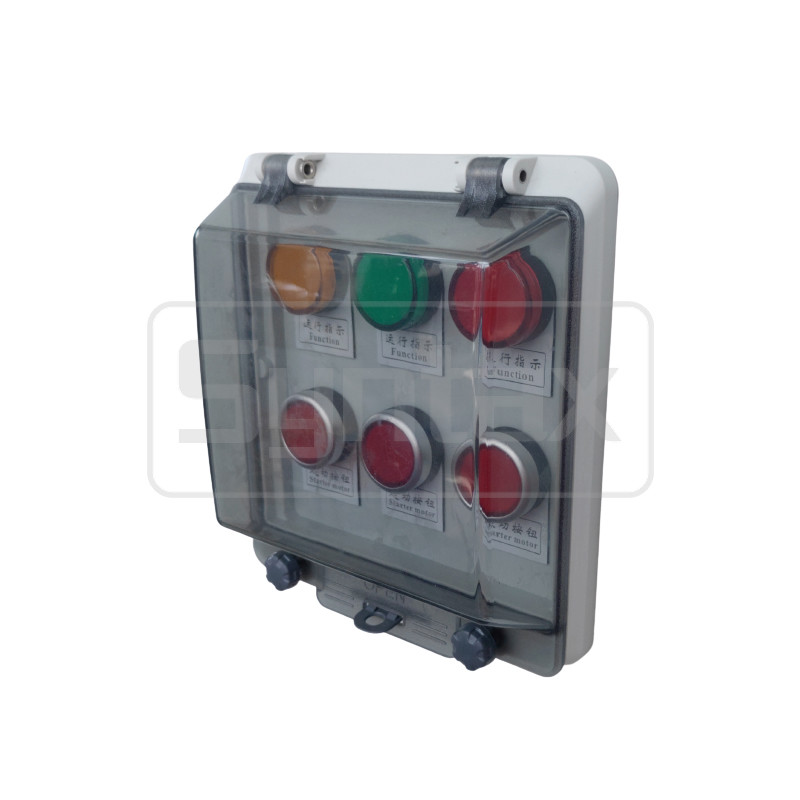

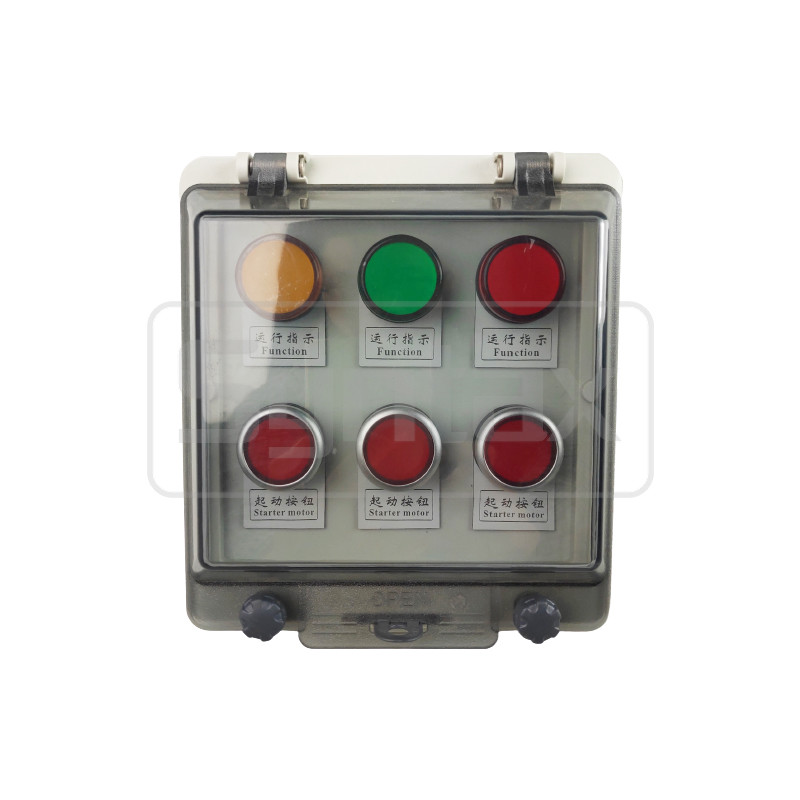

Syntax AW200B IP67 Waterproof Big Size Hinged Window for Push Buttons with Knurled Screws and Clear Cover 150*165*40mm
• Model No.: AW200B.
• Specially designed for switches, signal lamps, push buttons, panel meters and etc.
• Design based on EN 60309, IEC 60529.
• Water resistant design, IP rating up to IP67.
• Frame color: electric grey.
• Windows are spring-loaded and secured with thumb screws.
• With protective cover and knurled screws.
• Material: PC (Polycarbonate Resin, a kind of plastic).
• Temperature rating -25°C to +80°C.
• External Dimensions: 150*165*40mm.
The AW Series Polycarbonate IP67 Waterproof Hinged Window for enclosures from our trusted and reliable own brand Syntax. This range of hinged windows are an excellent addition of accessories for enclosures / distribution boxes / socket boxes, increasing visibility of internal electrical parts and components without coming into contact with them or opening the lid of the enclosure. This range of spring loaded inspection windows are ideal for troubleshooting on the go and can be secured via thumb screws for extra security. These inspection windows for enclosures are made using a durable polycarbonate and offer an IP rating of IP67, offering excellent protection from dust and liquids indoors and outdoors.
OEM and ODM services are available.
Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.
• Button switching elements
• Network Junction boxes
• Mechanical and automation
Dimension Drawings for the whole series windows:
