Syntax MP24 Temporary Site Power Distribution Units And Boards 32A Event For Mozambique Market

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 1 set
Packaging Details: Packed by paper carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/month
Detail Information
Material: PC (Polycarbonate Resin, The Best Material Of Plastic) Poles: 24 Ways
Dimension: 370*340*330mm IP Protection Rate: IP67 Waterproof
Color: Black
Highlight:

Syntax MP24 Power Distribution Units

,

32A Power Distribution Units

,

IP67 Waterproof Power Distribution Boards


Product Description

Syntax MP24 Temporary Site Power Distribution Units and Boards 32A Event Power Distribution Units For Mozambique Market



Technical Parameters:

Attribute Value
Box MP24 Portable Distribution Box IP67
Color Black
Dimension of Box 370*340*330mm

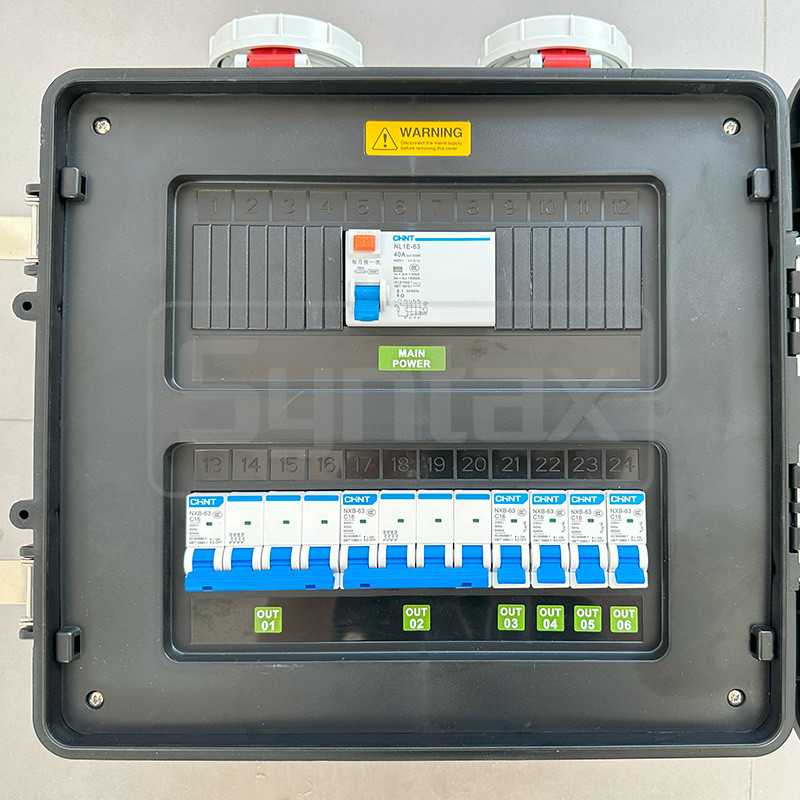

Incoming

Main Switch

1 x 5P 32A 400V IP67 Inlet,

protected by 1 x 4P 32A 30mA RCD.

Outgoing 1

Outgoing 1 Breaker

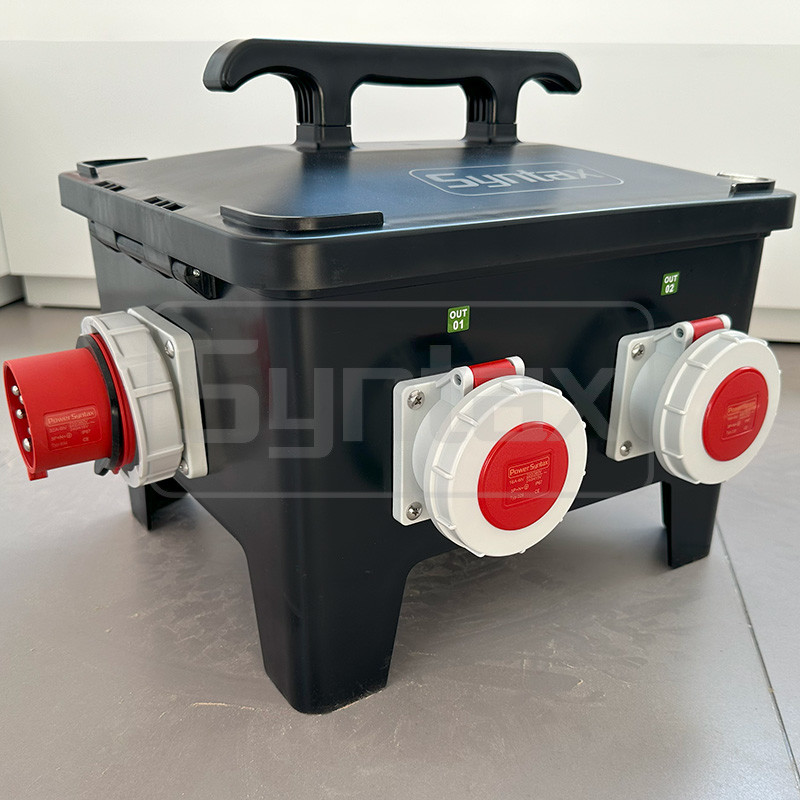

2 x 5P 16A 400V IP67 Panel Mounted Sockets,

protected by 2 x 3P 16A MCBs.

Outgoing 2

Outgoing 2 Breaker

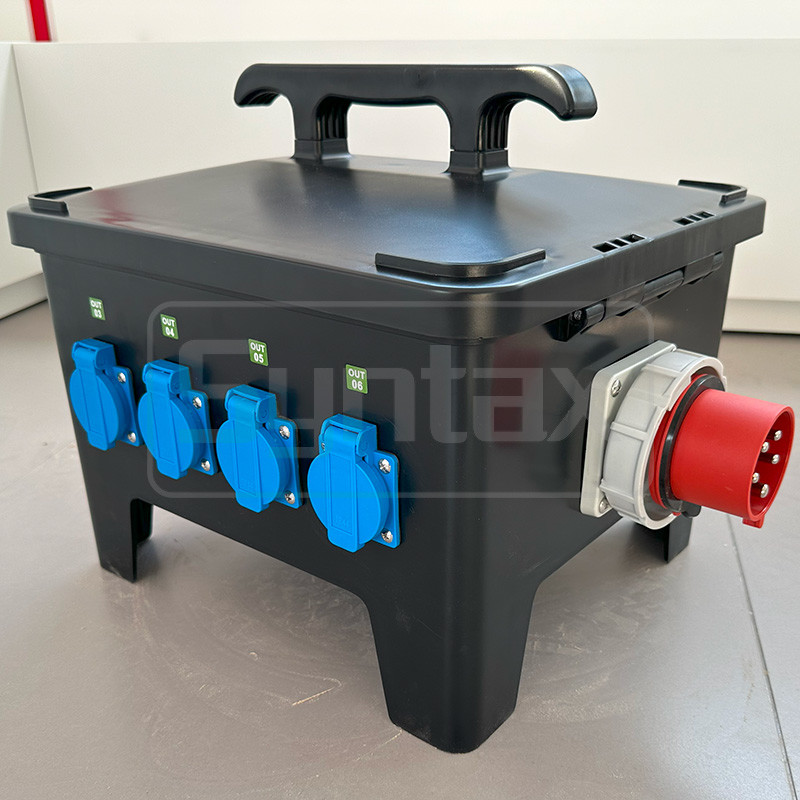

4 x 2P+E 16A 220V IP44 Schuko Sockets,

protected by 4 x 1P 16A MCBs.

Brands

Distribution Box by Syntax

Industrial Plugs & Sockets by PowerSyntax

Breakers by Chint



Drawing:

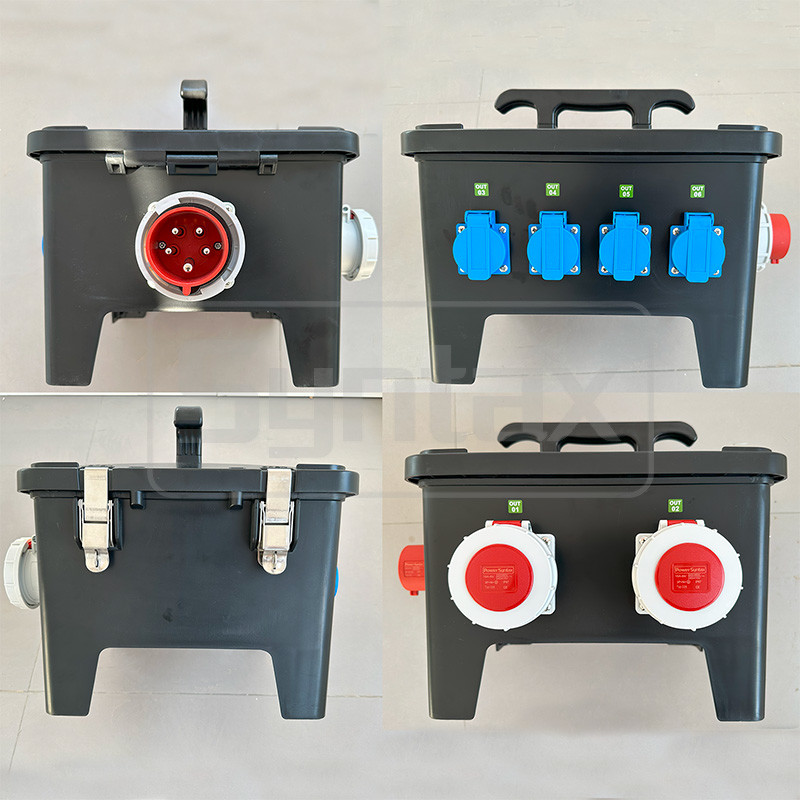

Syntax MP24 Temporary Site Power Distribution Units And Boards 32A Event For Mozambique Market 0



Dimension Drawing of Empty Box:

Syntax MP24 Temporary Site Power Distribution Units And Boards 32A Event For Mozambique Market 1



Features and Benefits:

Design based on EN 60439-4, IEC 60529.

Waterproof and Shockproof design, IP rating up to IP67.

Color: Yellow or Black.

Material: PC (Polycarbonate Resin, the best material of plastic).

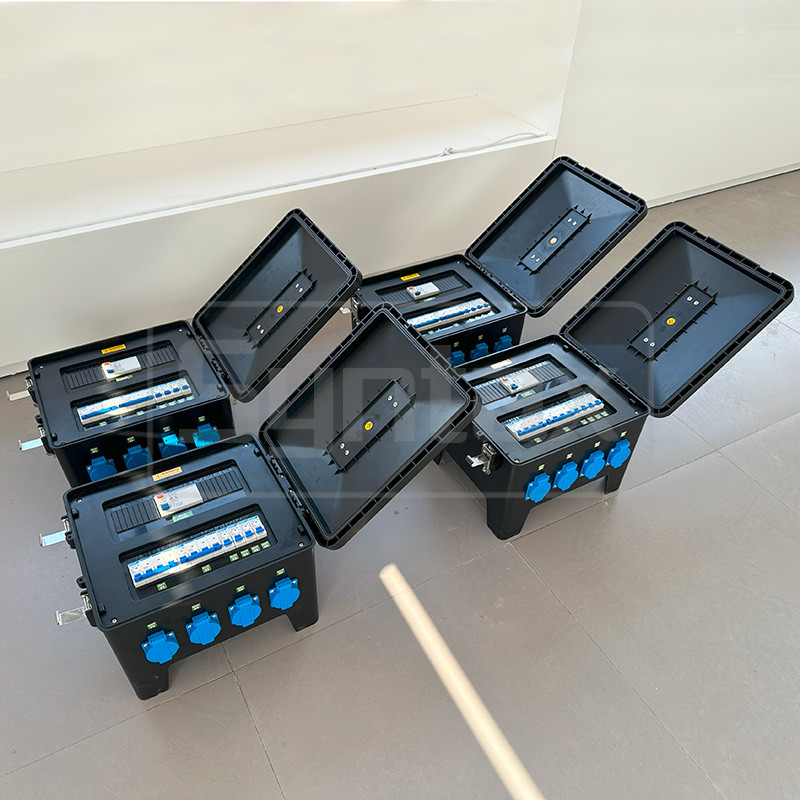

Stackable Design for easier storage and daisy chaining.

Operating Temperature:-20℃~+75℃.

Dimension: 370mm*340mm*330mm.



THE ADVANTAGES OF OUR DISTRIBUTION BOXES:

Quick assembly/dismantling

Safe connections

Re-usability of all components

Robust distributor

Easy handling of distribution boxes and of the entire system



Specification:

Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name.



Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.



We also provide distro components, cable components and protection.



This three phase 32 Amp portable maintenance box as per the pictures is required by a Mozambique customer for the temporary site. We can customize any reasonable specification for the special request of the end users. Just tell us the incoming plug and outgoing sockets, our engineers will work out the boxes for you.



The MP series IP67 Electrical Portable Boards are the classical design of the portable distribution boxes, the rated current can be maximum 63 Amp. The breakers can be maximum 12 poles.

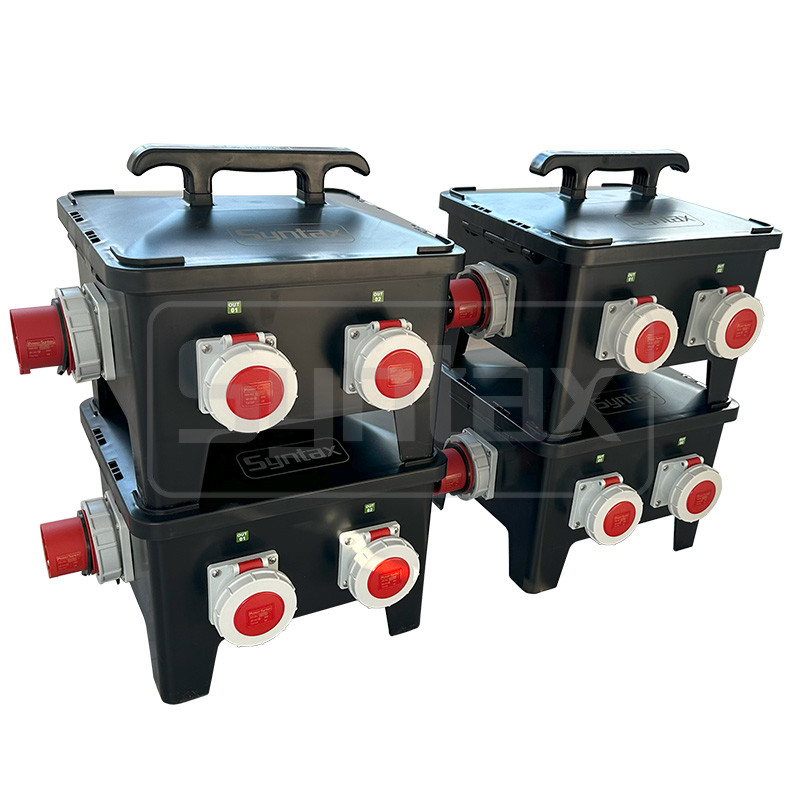

Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.

Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.



Overload protection by circuit-breakers like MCB, RCD, RCCB, and RCBO to make sure the safety of the workforce and equipment.

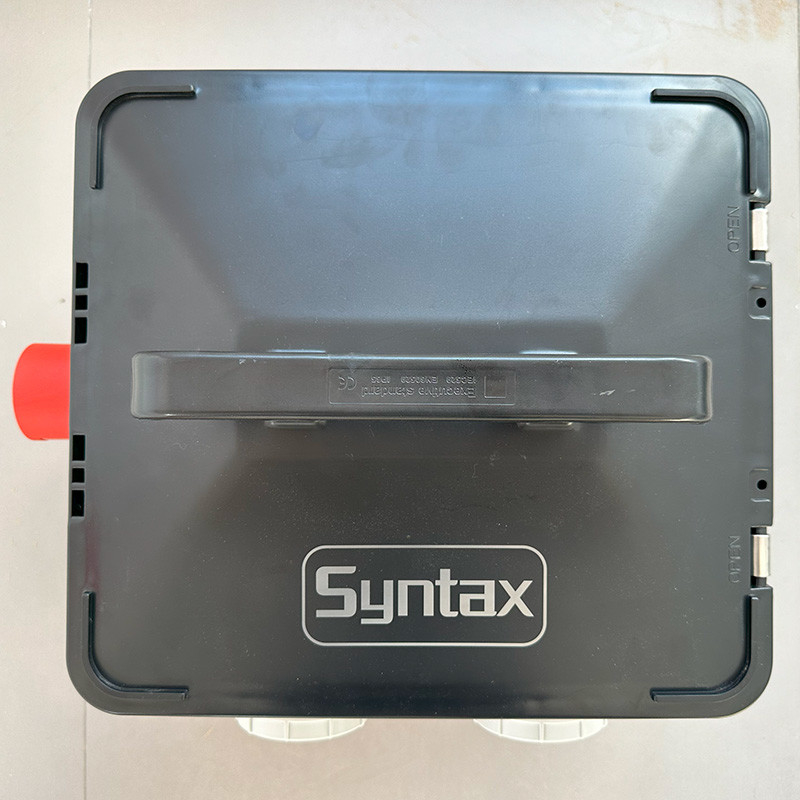

The box is compact size includes portable easy-to-carry top handle.



Plug these portable distribution boxes into a power source, such as a generator, to power equipment when electricity is not available. All have breakers protection to minimize the risk of electric shock. They're also known as spider boxes.

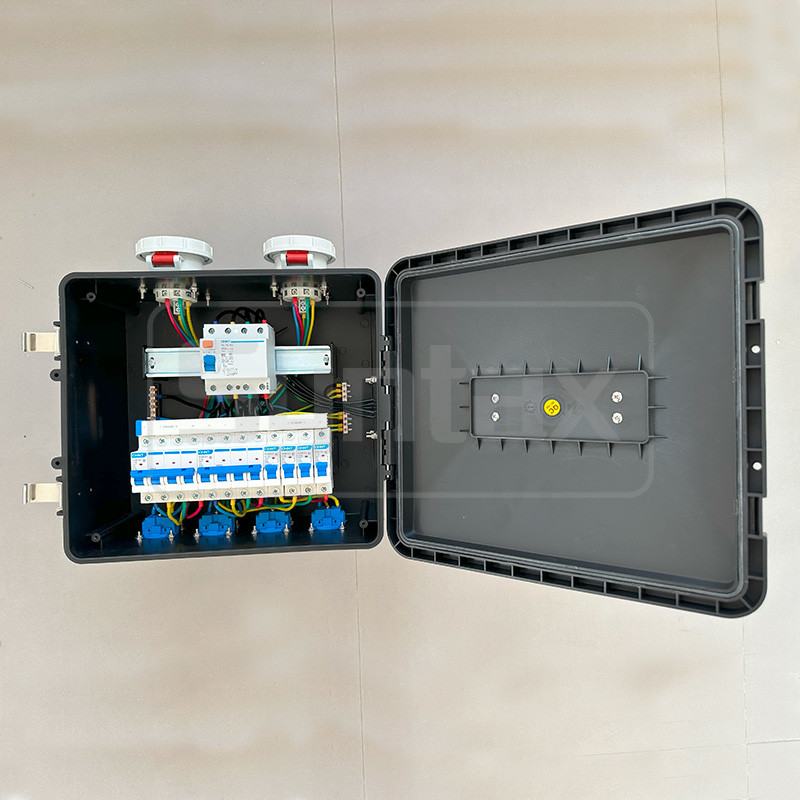

The design of the polycarbonate plastic distribution box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.



OEM and ODM services are available.



Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.



Applications:

Connectors for every task

• Tunnel construction

Drilling rigs

Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

Strip mining

• Chemistry

Airports

Quarries

Container terminals and crane connections in harbors

For versatile power supply at large-scale indoor and outdoor events

Power supply for market places



Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.



Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

  • Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
  • Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
  • Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
  • Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
  • Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
  • Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
  • Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
