| Place of Origin: | China |
|---|---|
| Brand Name: | Syntax |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP24 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Packed by paper carton |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets/month |
| Material: | PC (Polycarbonate Resin, The Best Material Of Plastic) | Poles: | 24 Ways |
|---|---|---|---|
| Dimension: | 370*340*330mm | IP Protection Rate: | IP67 Waterproof |
| Color: | Black | ||
| High Light: | three phase distribution box,5P 63A power board,Portable power distributor |
||

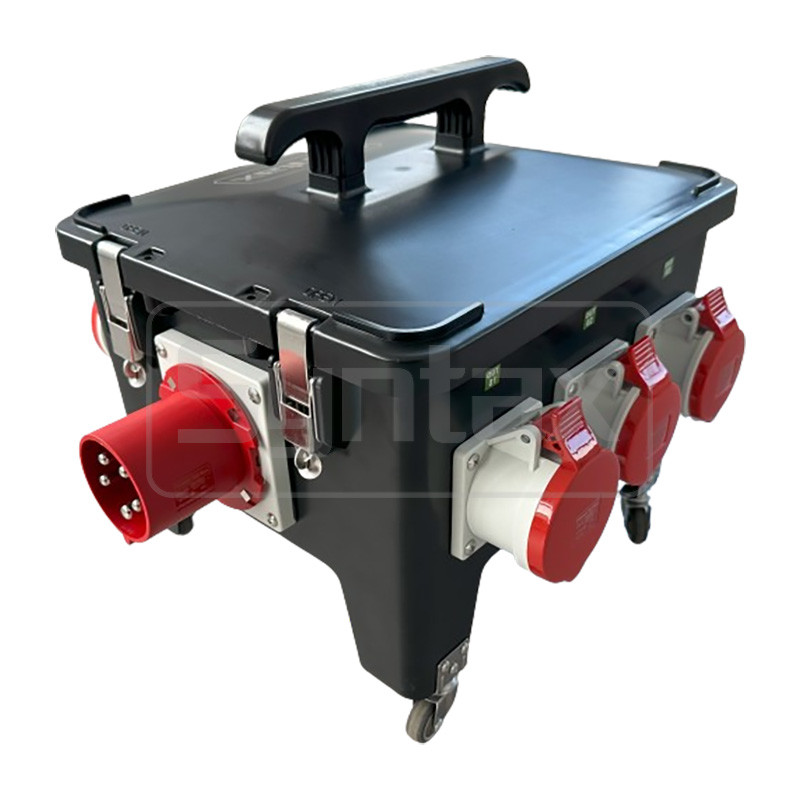

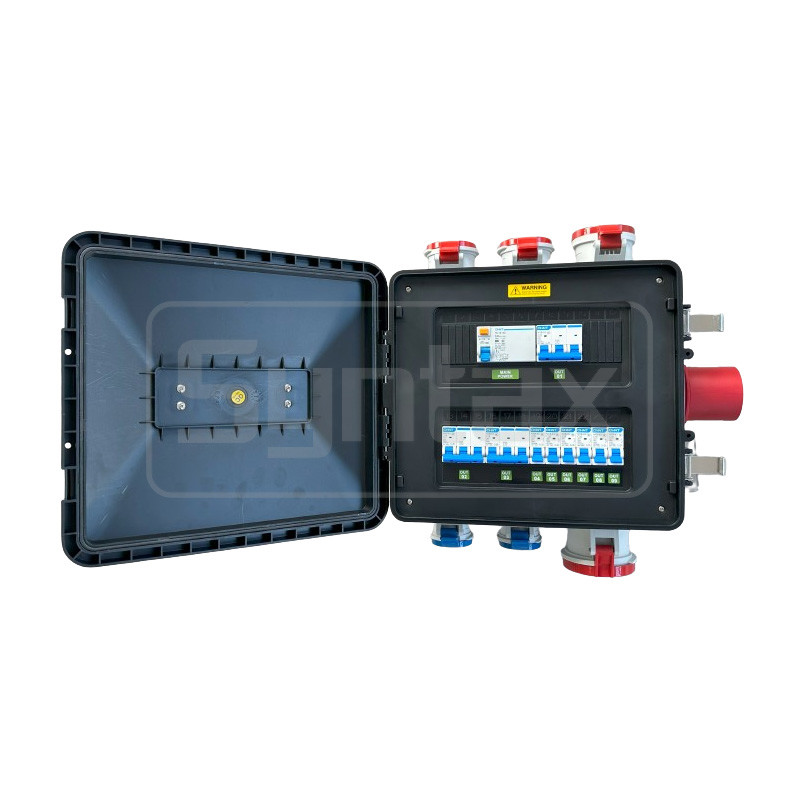

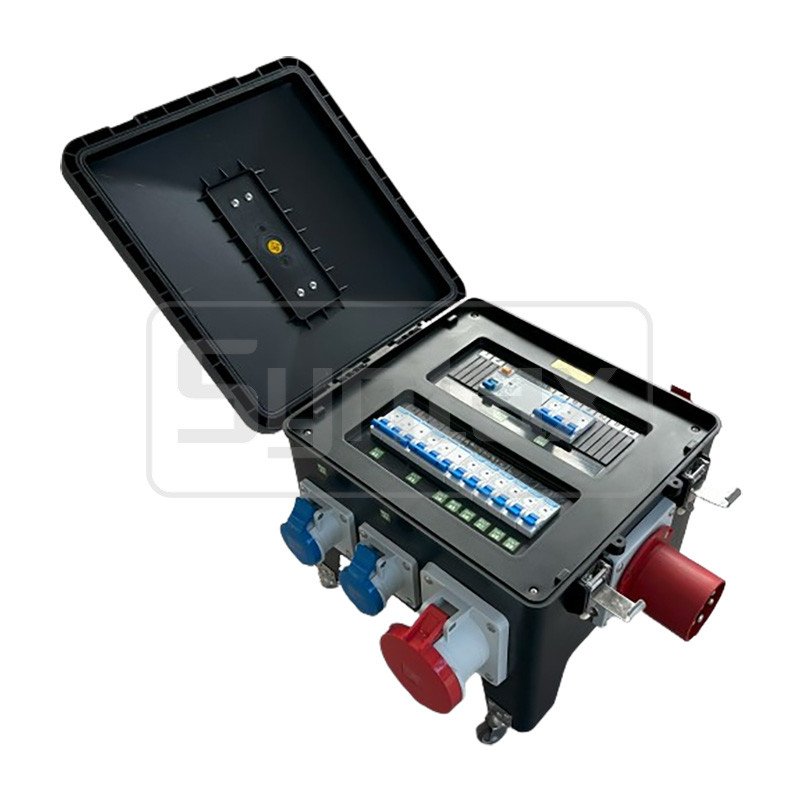

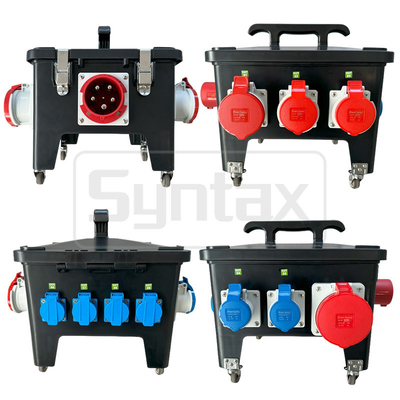

Syntax MP24 Portable Distribution Board 63A Three Phase with Residual PC Maintenance Box with Wheels for Indonesia
Technical Parameters:
| Attribute | Value |
| Box | MP24 Portable Distribution Box IP67 |
| Color | Black |
| Dimension of Box | 370*340*330mm |
|

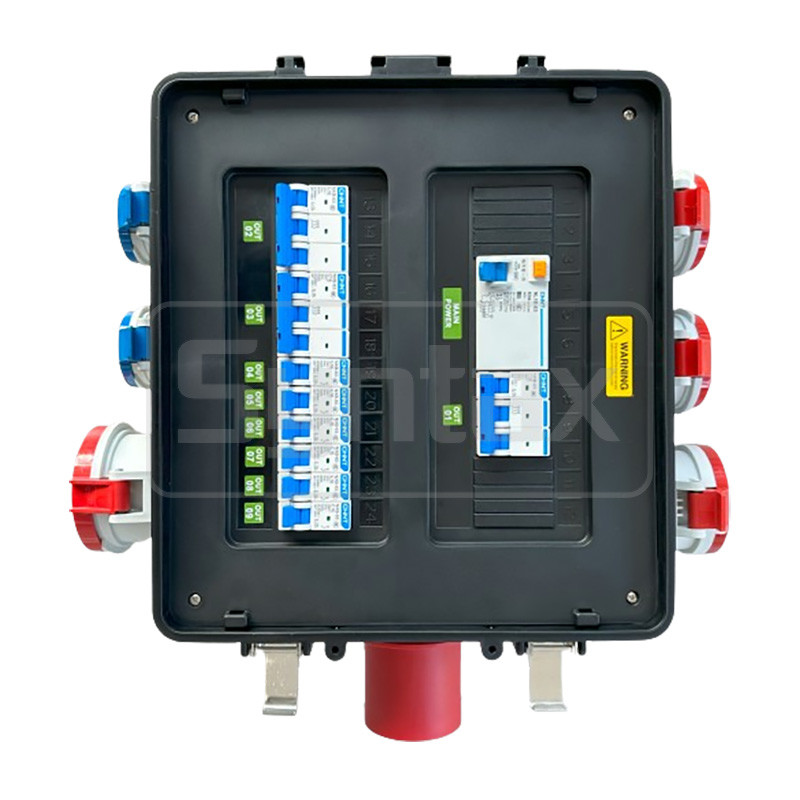

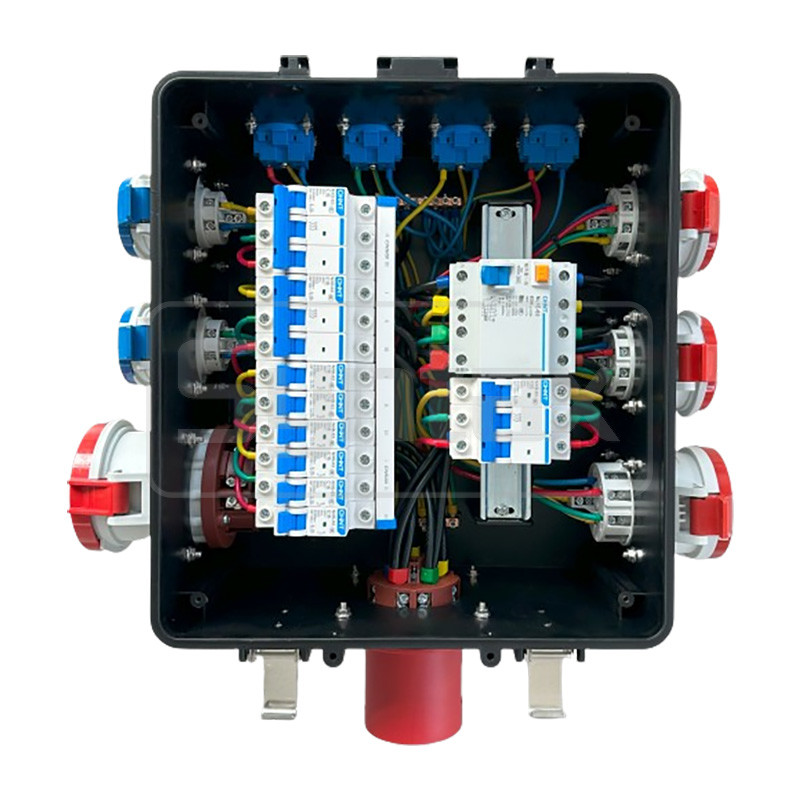

Incoming Main Switch |
1 x 5P 63A 400V IP44 Inlet, protected by 1 x 4P 63A 30mA RCD. |
|
Outgoing 1 Outgoing 1 Breaker |
1 x 5P 63A 400V IP44 Panel Mounted Sockets, no protection. |
|
Outgoing 2 Outgoing 2 Breaker |
1 x 5P 32A 400V IP44 Panel Mounted Sockets, protected by 1 x 3P 32A MCB. |
|
Outgoing 3 Outgoing 3 Breaker |
2 x 5P 16A 400V IP44 Panel Mounted Sockets, protected by 2 x 3P 16A MCB. |
|
Outgoing 4 Outgoing 4 Breaker |
2 x 3P 16A 220V IP44 Panel Mounted Sockets, protected by 2 x 1P 16A MCBs. |
|
Outgoing 5 Outgoing 5 Breaker |

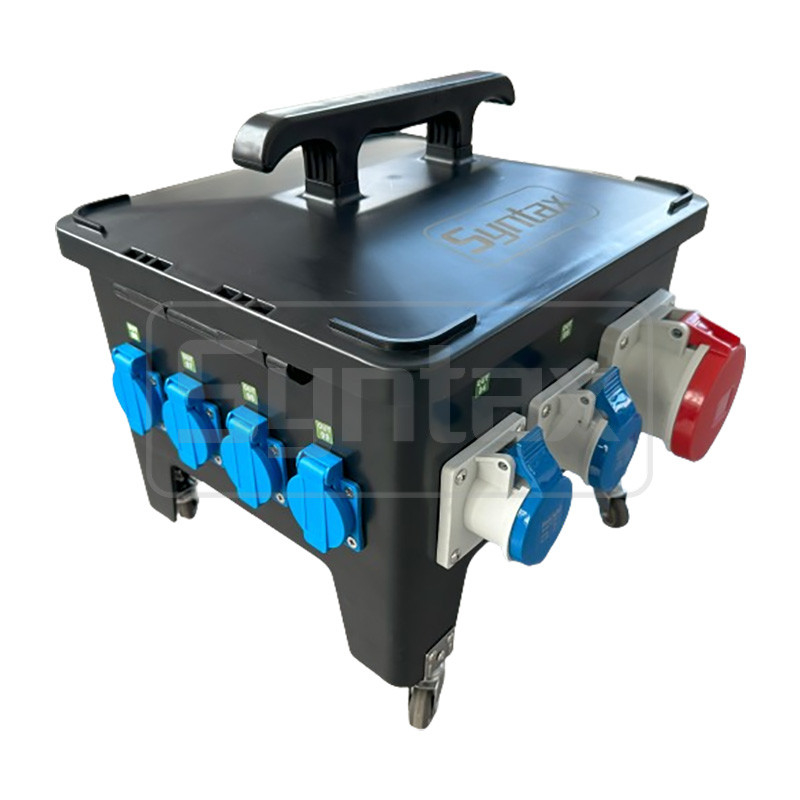

4 x 2P+E 16A 220V IP44 Schuko Sockets, protected by 4 x 1P 16A MCBs. |
| Brands |
Distribution Box by Syntax Industrial Plugs & Sockets by PowerSyntax Breakers by Chint |
Drawing:
Dimension Drawing of Empty Box:
Features and Benefits:
• Design based on EN 60439-4, IEC 60529.
• Waterproof and Shockproof design, IP rating up to IP67.
• Color: Yellow or Black.
• Material: PC (Polycarbonate Resin, the best material of plastic).
• Stackable Design for easier storage and daisy chaining.
• Operating Temperature:-20℃～+75℃.
• Dimension: 370mm*340mm*330mm.
The Advantages of our distribution boxes:
• Quick assembly/dismantling.
• Safe connections.
• Reliable in operation.
• Reusability of all components.
• Suitable for indoor or outdoor use.
• Robust distributor.
• Easy handling of distribution boxes and of the entire system.
• Integrated feet to facilitate stacking.
• 24 Months Warranty on all Parts and Manufacturing Defects.
Specification:
Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!
Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.
The MP series portable distribution boxes are built with robust, break- and impact-resistant plastic housing and ergonomically shaped carrying handle for convenient transport, the distributor wired ready for connection, also protective cover for fuses - ideal for industry and trade.
Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.
Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.
Power distributor with RCD personal protection switch 30mA for more safety - protects against possible electrical accidents.

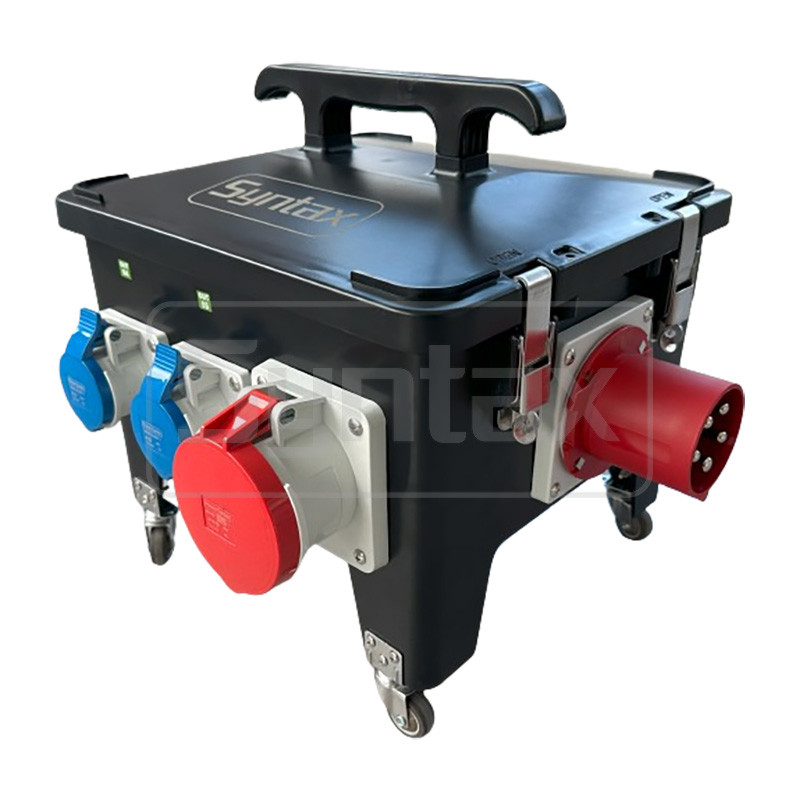

This three phase 63 Amp portable socket box outdoors is specially requested by the end user to install wheels on the legs of the box, which make it even more convenient for moving. These units can be built to your individual specification, please call or email us with your requirements.
Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.
Applications:
Connectors for every task
• Tunnel construction
• Drilling rigs
• Gravel pits
• Marine
• Railway
• Military
• Industry
• Construction site
• Event technology
• Strip mining
• Chemistry
• Airports
• Quarries
• Container terminals and crane connections in harbors
• For versatile power supply at large-scale indoor and outdoor events
• Power supply for market places
Customized Solutions:
If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.
Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
