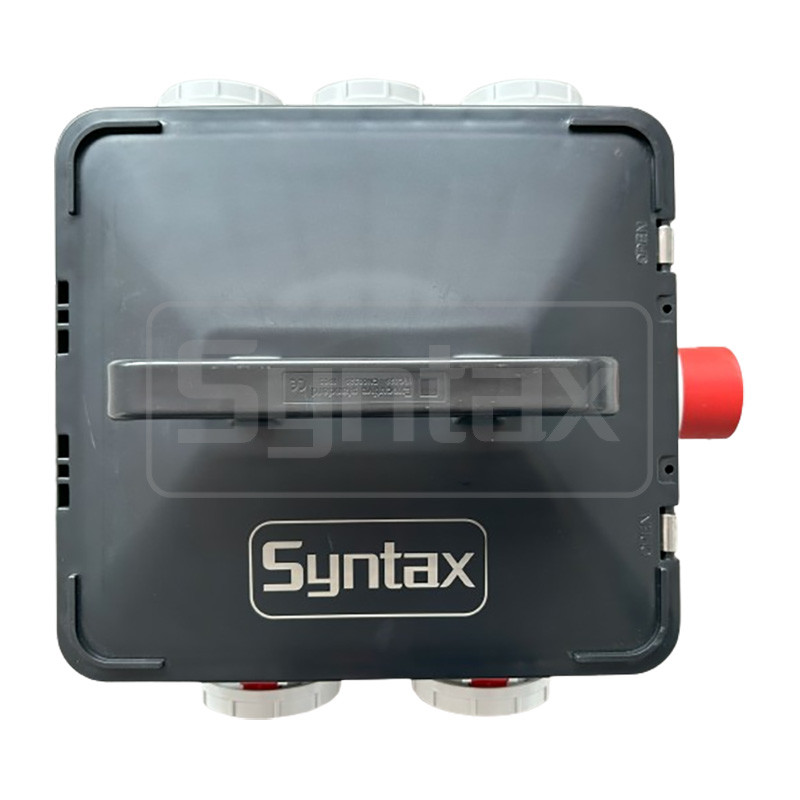

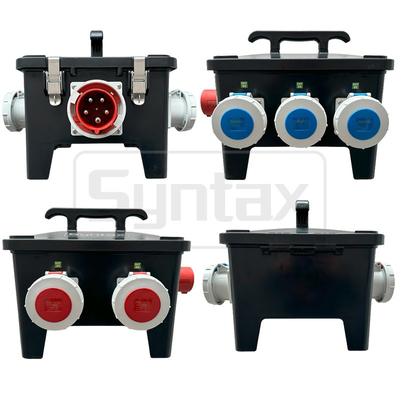

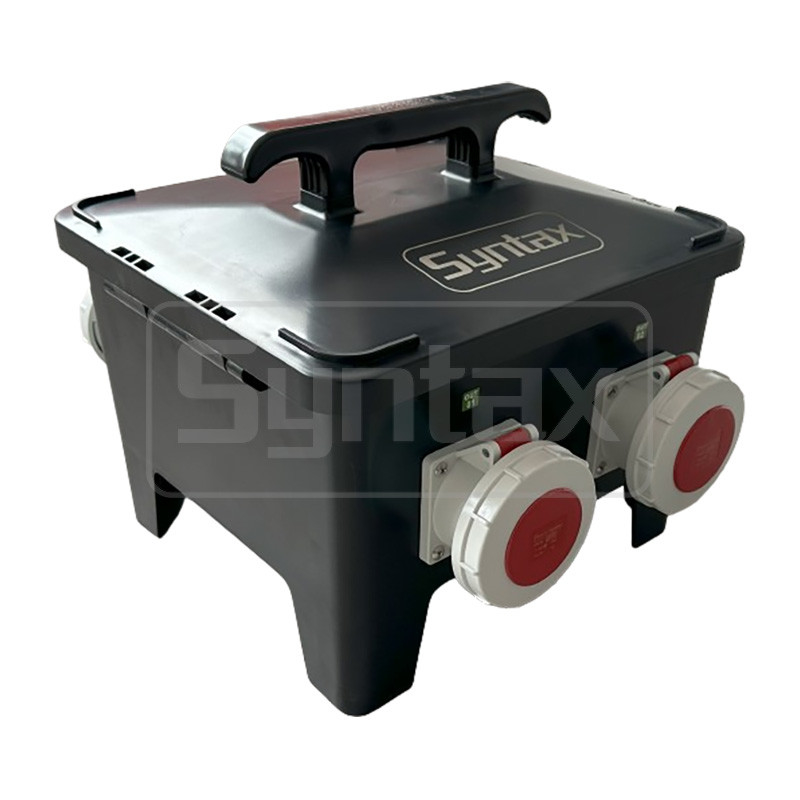

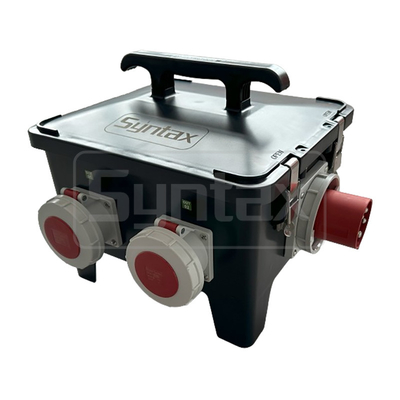

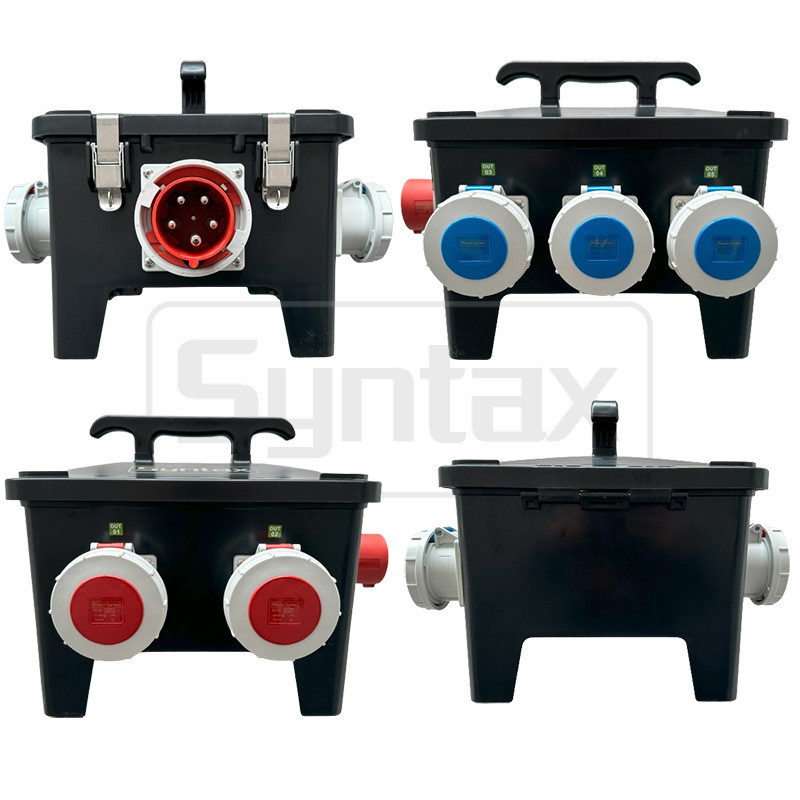

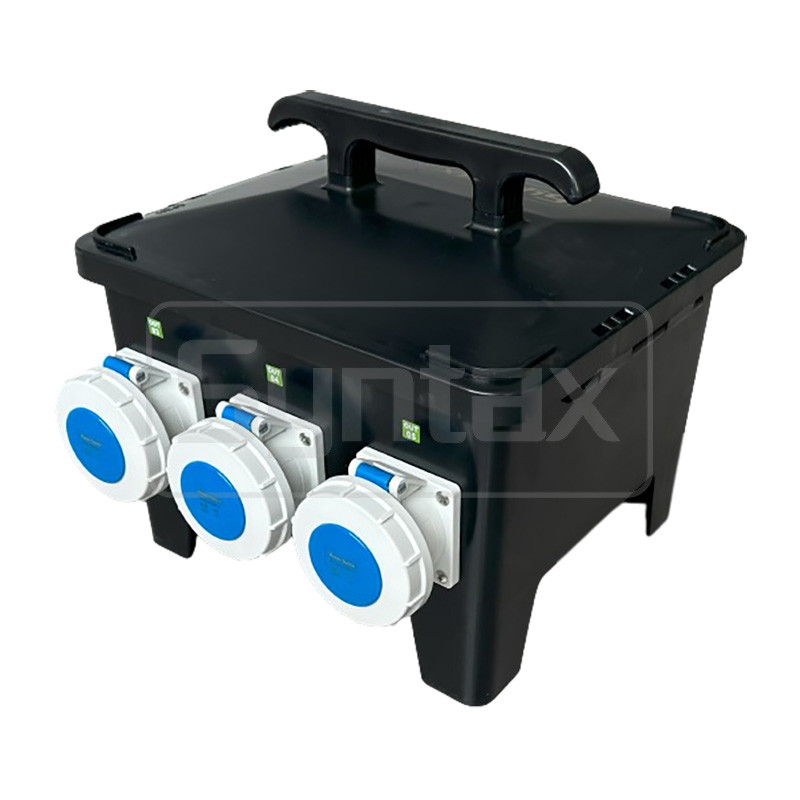

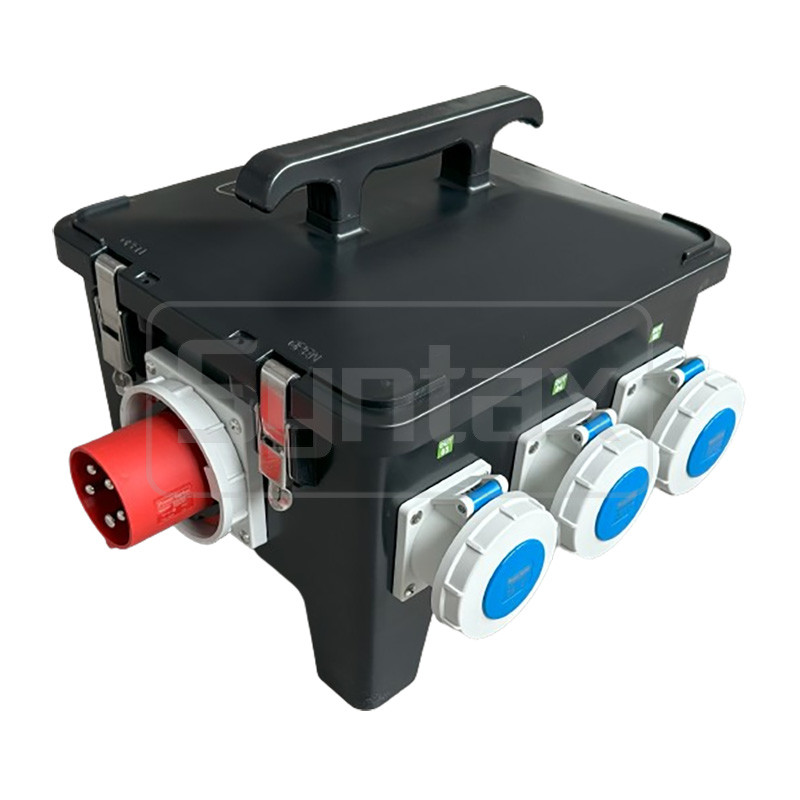

Syntax MP24 Portable Distribution Board 63AMP Three phase Power Distribution Unit IP67 Waterproof

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 1 set
Packaging Details: Packed by paper carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/month
Detail Information
Material: PC (Polycarbonate Resin, The Best Material Of Plastic) Poles: 24 Ways
Dimension: 370*340*330mm IP Protection Rate: IP67 Waterproof
Color: Black
High Light:

Safety Portable Power Distribution Box


Heavy Duty Spider Box


Power Distribution Box

Product Description

Syntax MP24 Portable Distribution Board 63AMP Three phase Power Distribution Unit IP67 Waterproof


Technical Parameters:

Attribute Value
Box MP24 Portable Distribution Box IP67
Color Black
Dimension of Box 370*340*330mm


Main Switch

1 x 5P 63A 400V IP67 Inlet,

protected by 1 x 4P 63A MCB.

Outgoing 1

Outgoing 1 Breaker

2 x 5P 32A IP44 Panel Mounted Sockets,

protected by 2 x 4P 32A 30mA RCBOs.

Outgoing 2

Outgoing 2 Breaker

3 x 3P 32A IP67 Panel Mounted Sockets,

protected by 3 x 1P+N 32A 30mA RCBOs.

An extension cable with plug and connector 5P 63A 400V IP67, 10 meters long, 5*10mm2.


Distribution Box by Syntax

Industrial Plugs & Sockets by PowerSyntax

Breakers by Chint

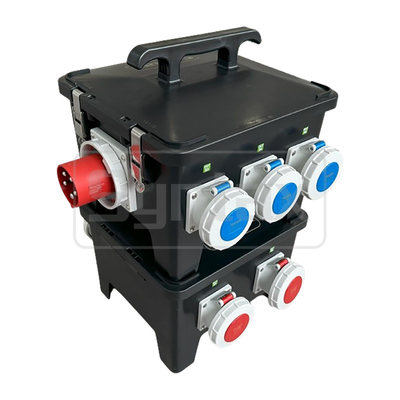

Syntax MP24 Portable Distribution Board 63AMP Three phase Power Distribution Unit IP67 Waterproof 0


Dimension Drawing of Empty Box:

Syntax MP24 Portable Distribution Board 63AMP Three phase Power Distribution Unit IP67 Waterproof 1


Features and Benefits:

• Design based on EN 60439-4, IEC 60529.

• Waterproof and Shockproof design, IP rating up to IP67.

• Color: Yellow or Black.

• Material: PC (Polycarbonate Resin, the best material of plastic).

• Stackable Design for easier storage and daisy chaining.

• Operating Temperature:-20℃~+75℃.

• Dimension: 370mm*340mm*330mm.


The Advantages of our distribution boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Reusability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• Integrated feet to facilitate stacking.

• 24 Months Warranty on all Parts and Manufacturing Defects.



Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!


Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.


The MP series IP67 Electrical Distribution Box is newly designed compact, portable model. For simple and safe electricity distribution indoors and outdoors for e.g. construction sites, light industry, events, etc.

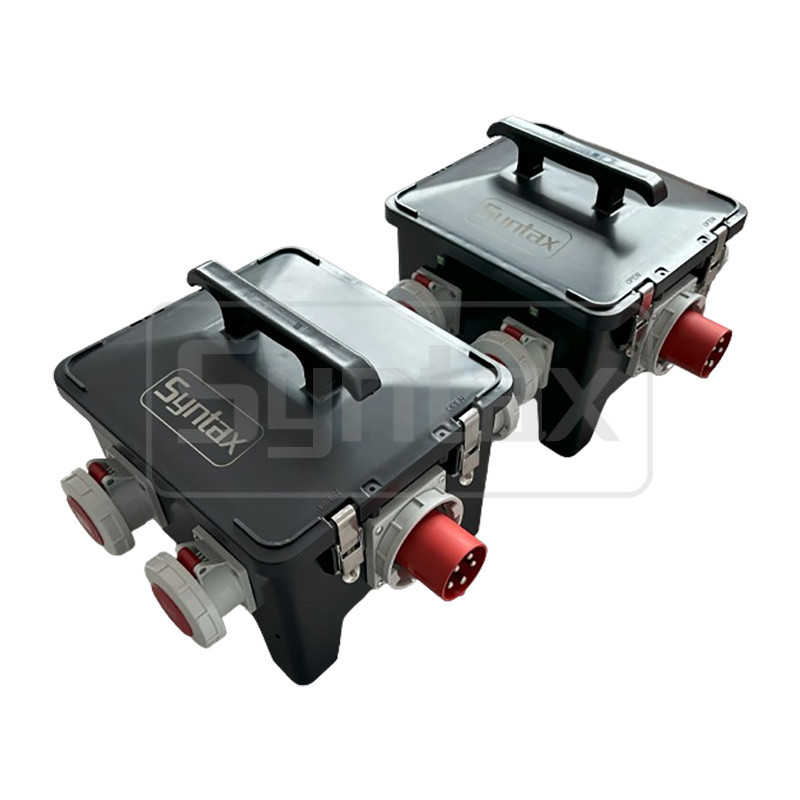

Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.

Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.


Overload protection by circuit-breakers like MCB, RCD, RCCB, and RCBO to make sure the safety of the workforce and equipment.


The box is compact size includes portable easy-to-carry top handle.


Plug these portable distribution boxes into a power source, such as a generator, to power equipment when electricity is not available. All have breakers’ protection to minimize the risk of electric shock. They're also known as spider boxes.


Our range of 63A power distribution units are ideal for those working within the events trade, with complex industrial equipment needing to be powered for multiple hours at a time. With all power distribution units adhering to the Titan Power standard, you can be safe in the knowledge that our products are of the highest quality combined with innovative technology for reliability, every time.


OEM and ODM services are available.


Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.



Connectors for every task

• Tunnel construction

Drilling rigs

Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

Strip mining

• Chemistry



Container terminals and crane connections in harbors

For versatile power supply at large-scale indoor and outdoor events

Power supply for market places


Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.


Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.

• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.

• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.

• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.

• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.

• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.

• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
