Syntax MD3 Three Phase 63A Power Distro Box HDPE IP67 With RCBO For Qatar Swimming Match 630x430x680mm

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN60439-4, IEC60529, SAA
Model Number: MD3
Minimum Order Quantity: 1 set
Packaging Details: Packed by paper carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/month
Detail Information
Material: HDPE / PE (polyethylene, A Kind Of Plastic) Dimension: 630x430x680mm
IP Protection Rate: IP67 Waterproof Color: Black
High Light:

power distribution box


industrial socket board


PE power box

Product Description

Syntax MD3 Three Phase 63A Power Distro Box HDPE IP67 With RCBO For Qatar Swimming Match 630x430x680mm
Technical Parameters:

Attribute Value

MD3 Portable Distribution Board IP67



Dimension of Box



Main Switch

1 x 5P 63A 400V IP67 Inlet,
Protected by 1 x 4P 63A MCB.

Outgoing 1
Outgoing 1 Breaker

3 x 5P 32A 400V IP67 Panel Mounted Sockets,
Protected by 3 x 4P 32A MCBs + 3 x 4P 40A 30mA RCDs.

Outgoing 2
Outgoing 2 Breaker

4 x 3P 32A 220V IP67 Panel Mounted Sockets,
protected by 4 x 1P+N 32A RCBOs.

Outgoing 3
Outgoing 3 Breaker

6 x 3P 16A 220V IP67 Panel Mounted Sockets,
protected by 6 x 1P+N 16A RCBOs.


Distribution Box by Syntax

Industrial Plugs & Sockets by PowerSyntax
Breakers by Schneider

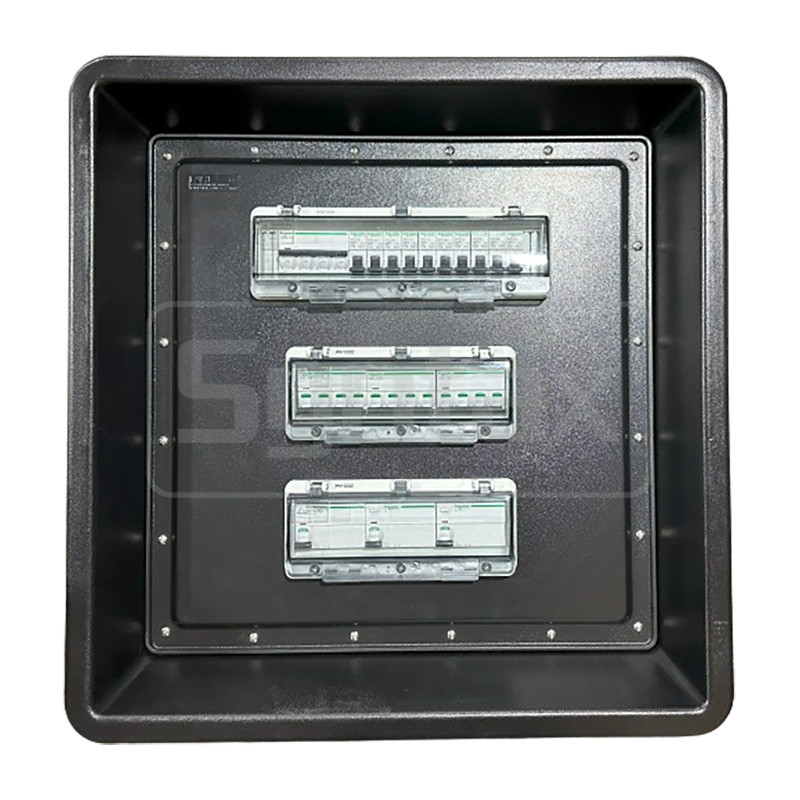

Syntax MD3 Three Phase 63A Power Distro Box HDPE IP67 With RCBO For Qatar Swimming Match 630x430x680mm 0


Dimension Drawing of Empty Box:
Syntax MD3 Three Phase 63A Power Distro Box HDPE IP67 With RCBO For Qatar Swimming Match 630x430x680mm 1
Features and Benefits:
• Design based on EN 60439-4, IEC 60529.
• Waterproof and Shockproof design, IP rating up to IP67.
• Color: Black, Orange and Yellow are available.
• Material: HDPE / PE (polyethylene, a kind of plastic).
• Stackable Design for easier storage and steady body.
• Operating Temperature:-20℃~+75℃.
• Dimension: 630mm x 430mm x 680mm.
The Advantages of Our Distribution Boxes:
• Quick assembly/dismantling.
• Safe connections.
• Reliable in operation.
• Reusability of all components.
• Suitable for indoor or outdoor use.
• Robust distributor.
• Easy handling of distribution boxes and of the entire system.
• Integrated feet to facilitate stacking.
• 24 Months Warranty on all Parts and Manufacturing Defects.
This three phase 63 Amp portable socket box outdoors is specially bespoke for World Aquatics Championships Doha 2024 in Qatar. Each outgoing single phase sockets are protected by RCBO, and each outgoing three phase sockets are protected by MCB+RCD according to the Qatar Safety Standard. The boxes is made in PE and IP67 Waterproof, which is perfect for the sports events especially for swimming match. We can bespoke power distribution boxes built to order.
Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!
Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.
The MD series IP67 Weather Protected 3 Phase Power Distribution Box from Syntax offers excellent electric power distributing and safety to work alongside your generator. The best value in market, our distribution boards offer the ultimate in portable power distribution.
The Syntax units offering excellent circuit protection using MCB, RCD, RCCB or RCBO breakers, you can be rest assured you and your workforce remain as safe as possible whilst using our equipment.
The design of the plastic CEE socket box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.
We can also use our IP67 waterproof lockable hinged windows to prevent the electrical devices like circuit breakers, signal lamps, push buttons and etc. from water, rain, and dust.
Remarks for the PE material: the PE material is heavy duty, hard, strong and tough. The box is hard to be crack, PE material has the closest performance as rubber material. Both of them are the hardest material of plastic.
• Tunnel construction
• Drilling rigs
• Gravel pits
• Marine
• Railway
• Military
• Industry
• Construction site
• Event technology
• Strip mining
• Chemistry
• Airports
• Quarries
• Container terminals and crane connections in harbors
• For versatile power supply at large-scale indoor and outdoor events
• Power supply for market places
Customized Solutions:
If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.
Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
