| Place of Origin: | China |
|---|---|
| Brand Name: | Syntax |
| Certification: | EN 60309, IEC 60529, SAA |
| Model Number: | DS163, DS164, DS323, DS324, DS403, DS404 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Packed by paper carton |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets/month |
| Material: | PC (Polycarbonate Resin, The Best Material Of Plastic) | Dimension: | 118*162*117 Mm |
|---|---|---|---|
| IP Protection Rate: | IP65 Waterproof | Color: | Electric Grey (customized Colors Are Available) |
| Brand Of Disconnector Switch: | Syntax | ||
| Highlight: | 16A electrical isolation switch,40A electrical isolation switch,32A enclosed disconnect switch |
||

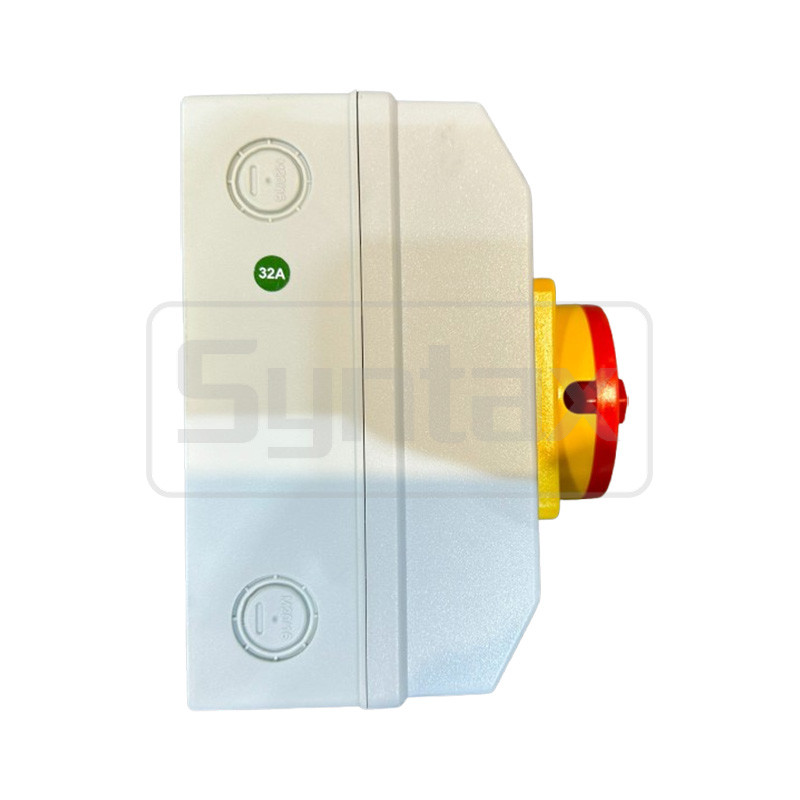

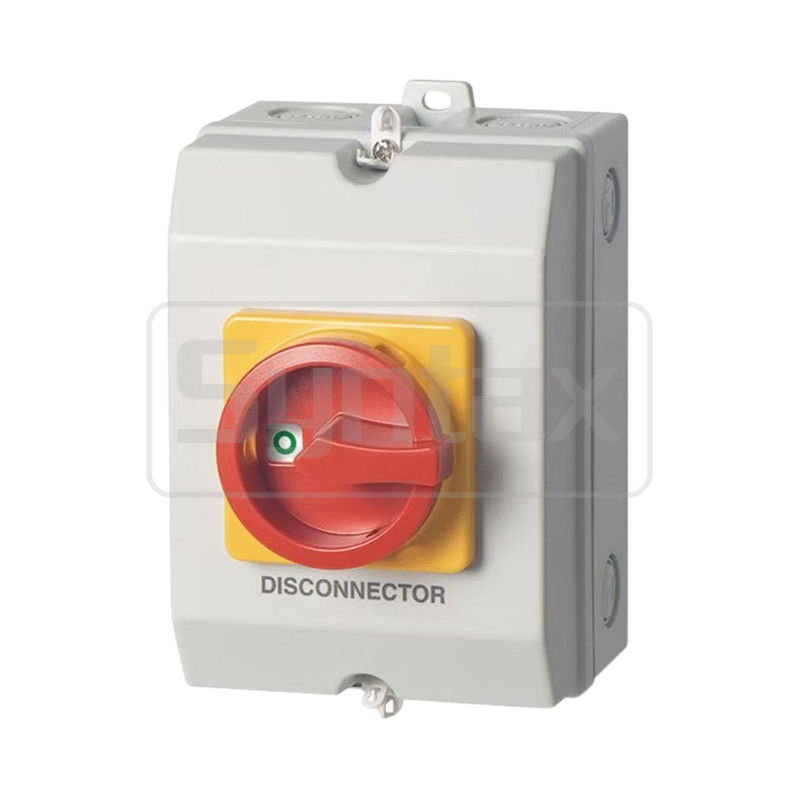

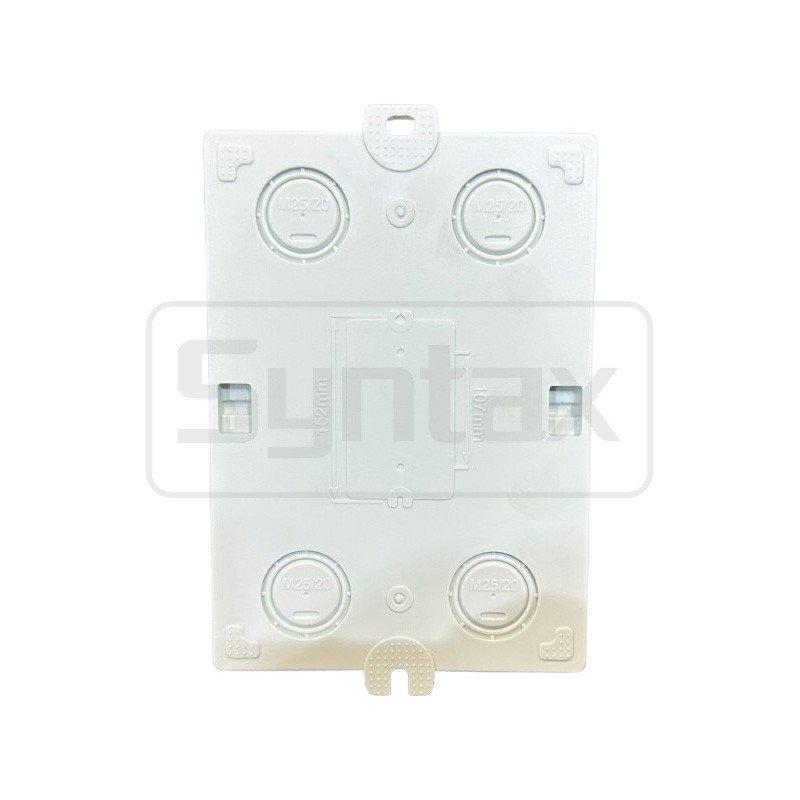

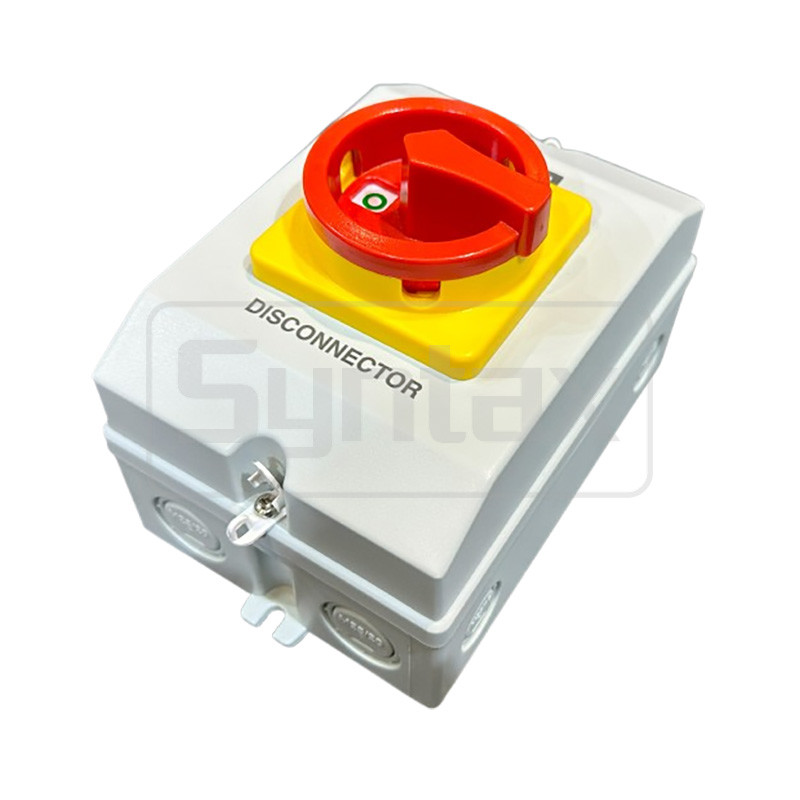

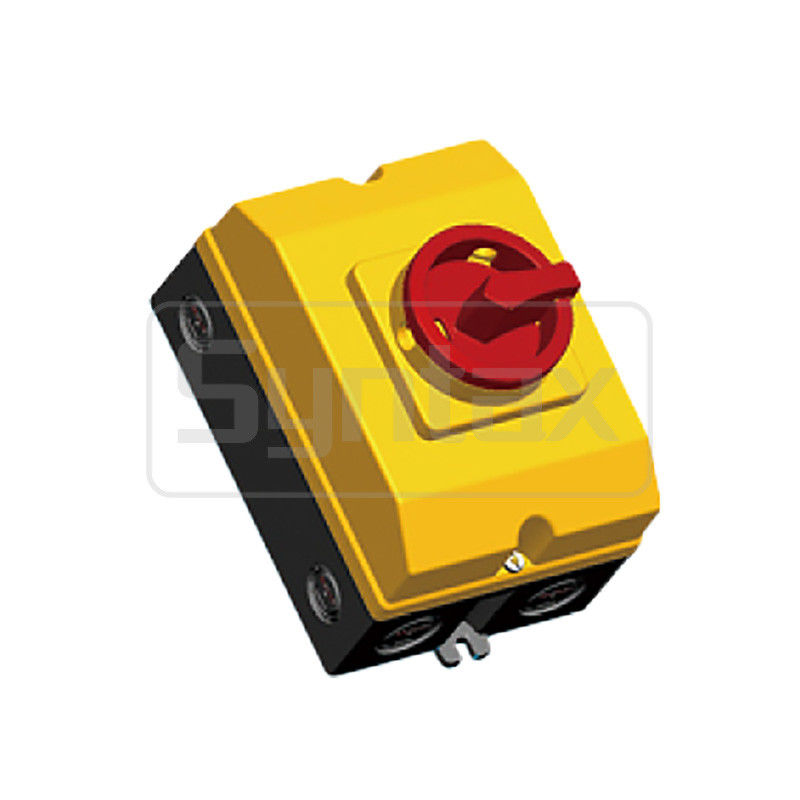

Syntax DS Series 16A 32A 40A Enclosed Disconnect Switch With Built-in Disconnect Switch
Technical Parameters:
| Attribute | Value |
| Box | DS Series Wall Mounted Distribution Box IP65 |
| Material | PC (Polycarbonate Resin) |
| Color | Electric Grey or Transparent Cover |
| Dimension of Box | 118*162*117mm |
| Disconnect Switch | ☐ 3P ☐ 4P ☐ 16A ☐ 20A ☐ 25A ☐ 32A ☐ 40A |
Dimension Drawing:
Features and Benefits:
• Design based on EN 60947-3, IEC 60947-3.
• Waterproof and Shockproof design, IP rating up to IP65.
• Color: Electric Grey or Transparent Cover. Other colors can be customized.
• Material: PC (Polycarbonate Resin, the best material of plastic).
• Wall Mounted or fixed a handle / a trolley on the box.
• Top and bottom gland plates
• Operating Temperature:-20℃～+75℃.
• Dimension: 118mm*162mm*117mm.
The Advantages of Our Distribution Boxes:
• Quick assembly/dismantling.
• Safe connections.
• Reliable in operation.
• Reusability of all components.
• Suitable for indoor or outdoor use.
• Robust distributor.
• Easy handling of distribution boxes and of the entire system.
• 24 Months Warranty on all Parts and Manufacturing Defects.
Specification:
The DS16, DS20, DS25, DS32 and DS40 Enclosure with disconnect switch is a 16 Amp, 20 Amp, 25 Amp, 32 Amp and 40 Amp TP&N (Triple pole and neutral) 'S' type Isolator switch. Mainly used in an electrical distribution or industrial environment, Isolator switches are used to disconnect the source of power when machine services or repairs are required. Rated AC23 on load switch disconnections.
Note: The disconnect switch is not intended for normal control of the circuit, but only for safety isolation.
Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!
Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.
Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.
Applications:
• Tunnel construction
• Drilling rigs
• Gravel pits
• Marine
• Railway
• Military
• Industry
• Construction site
• Event technology
• Strip mining
• Chemistry
• Airports
• Quarries
• Container terminals and crane connections in harbors
• For versatile power supply at large-scale indoor and outdoor events
• Power supply for market places
Customized Solutions:
If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.
Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
