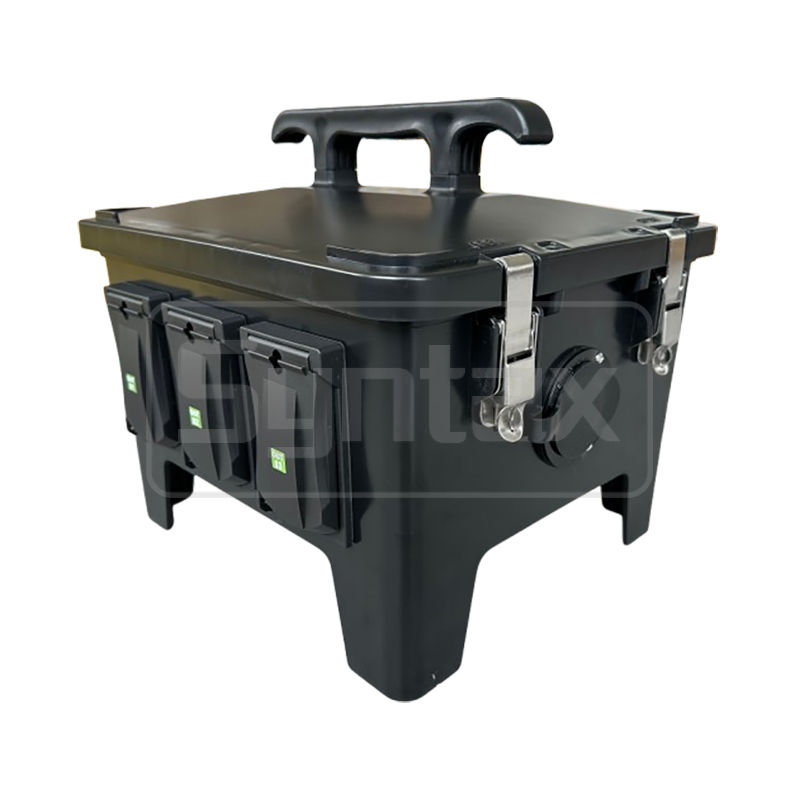

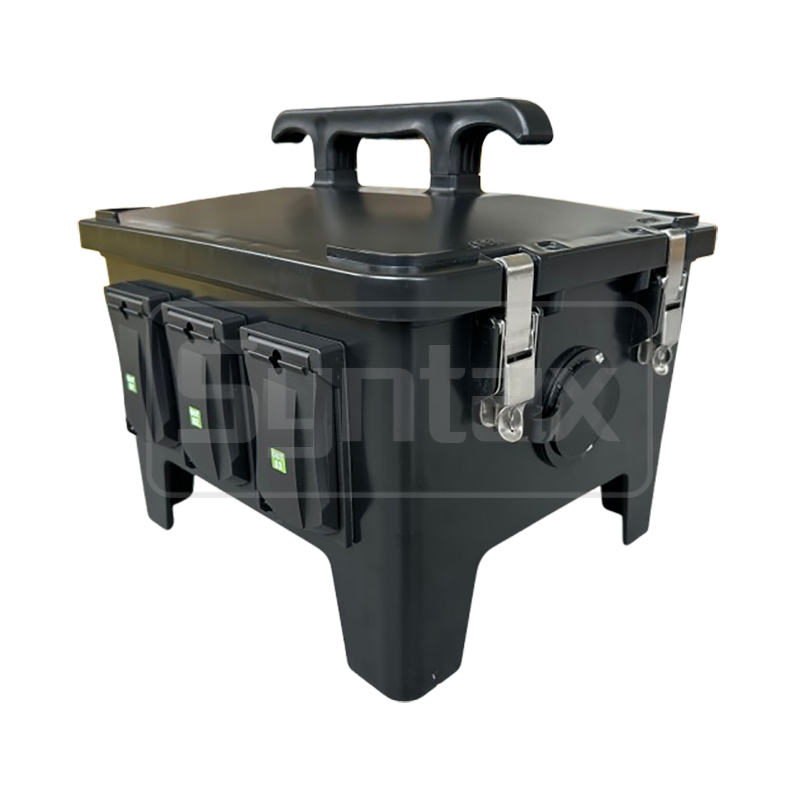

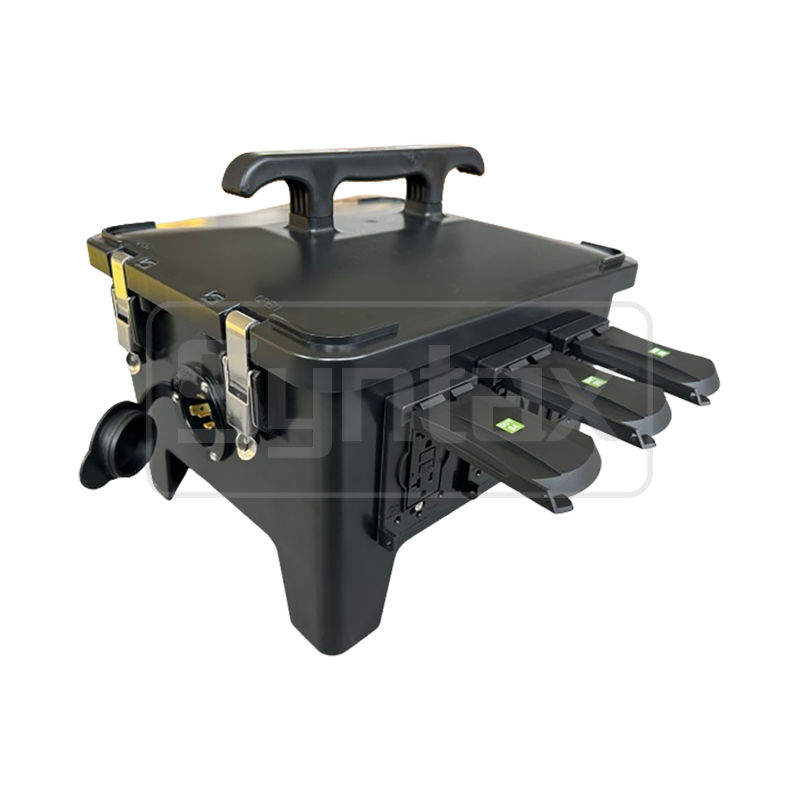

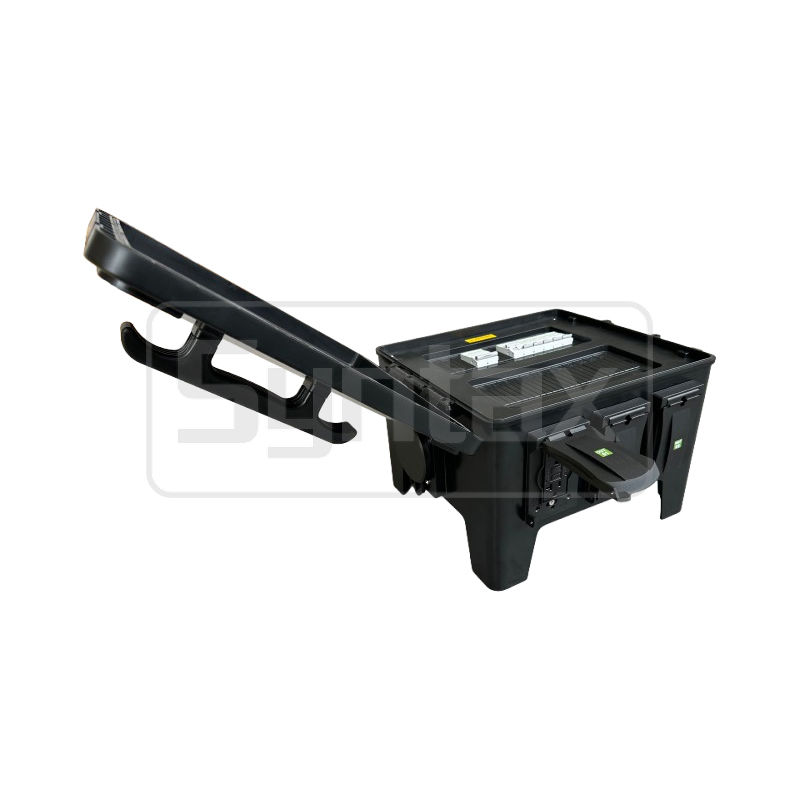

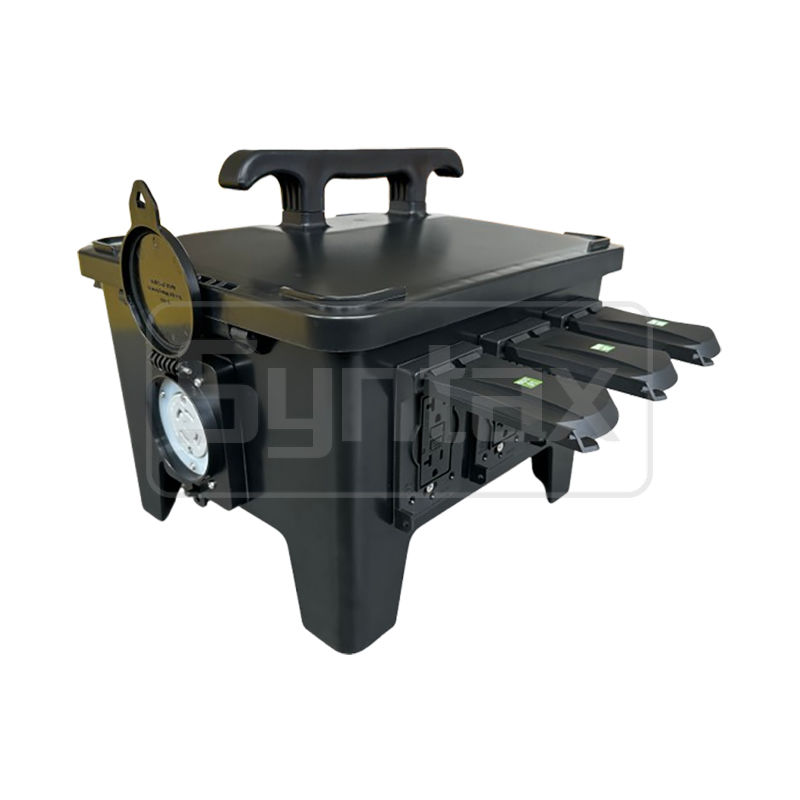

Syntax MP24 Waterproof Portable Power Distribution Unit 30A Single Phase 2-Pole 4 Wire UL/ETL Listed Receptacles

Syntax MP24 Waterproof Portable Power Distribution Unit 30A Single Phase 2-Pole 4 Wire UL/ETL Listed Receptacles

Technical Parameters:

Drawing:

Dimension Drawing of Empty Box:

Features and Benefits:

• Design based on EN 60439-4, IEC 60529.

• Waterproof and Shockproof design, IP rating up to IP67.

• Color: Yellow or Black.

• Material: PC (Polycarbonate Resin, the best material of plastic).

• Stackable Design for easier storage and daisy chaining.

• Operating Temperature:-20℃～+75℃.

• Dimension: 370mm*340mm*330mm.

The Advantages of our distribution boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Reusability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• Integrated feet to facilitate stacking.

• 24 Months Warranty on all Parts and Manufacturing Defects.

Specification:

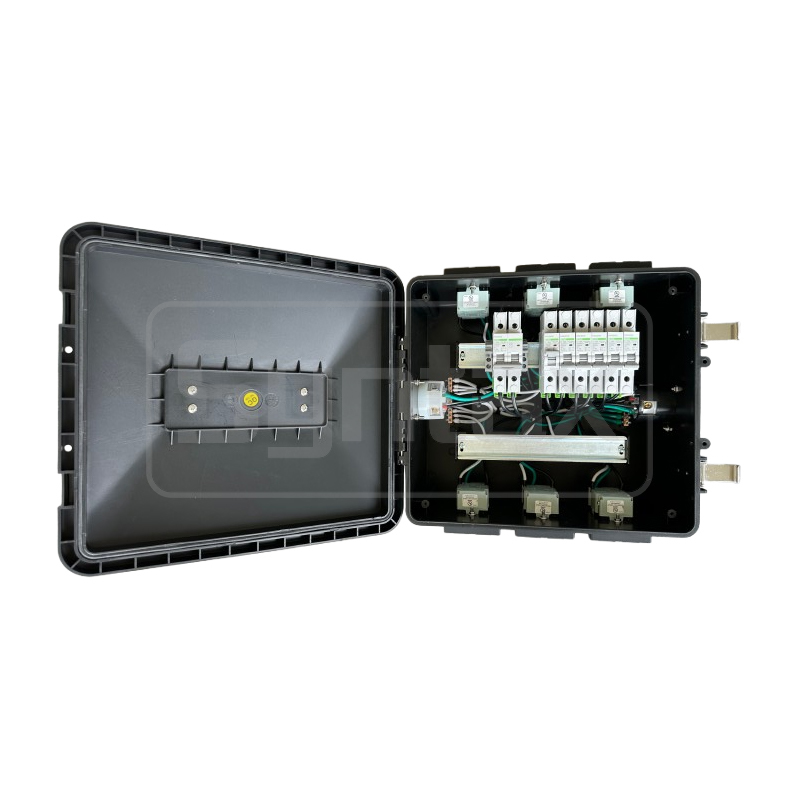

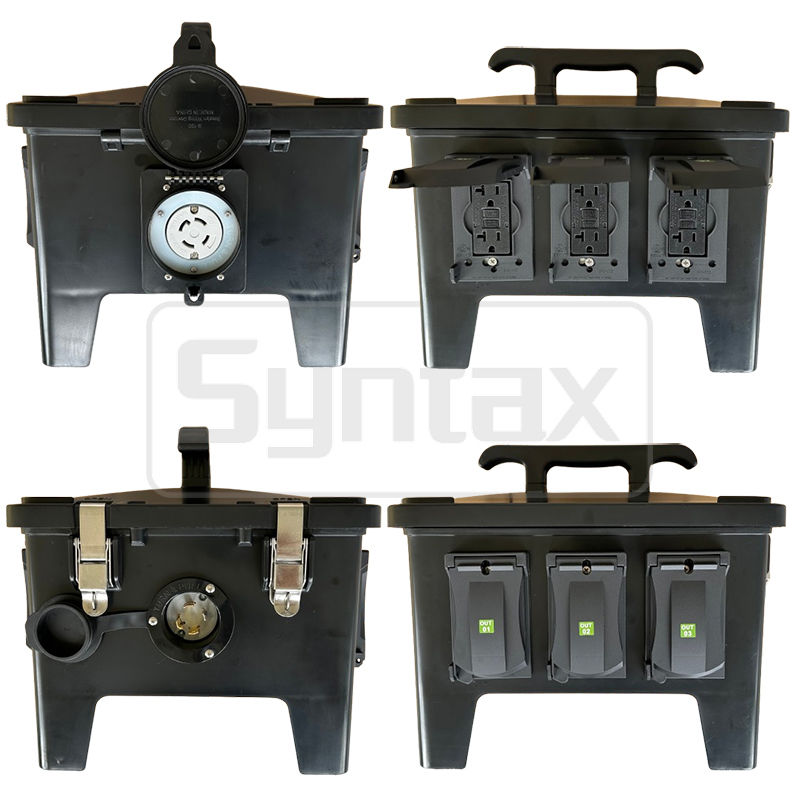

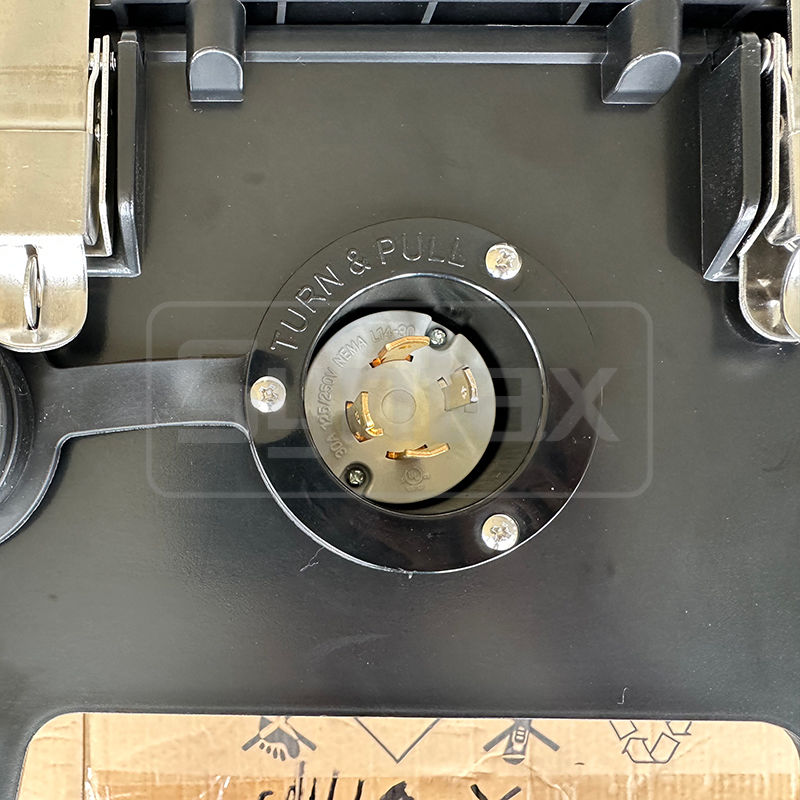

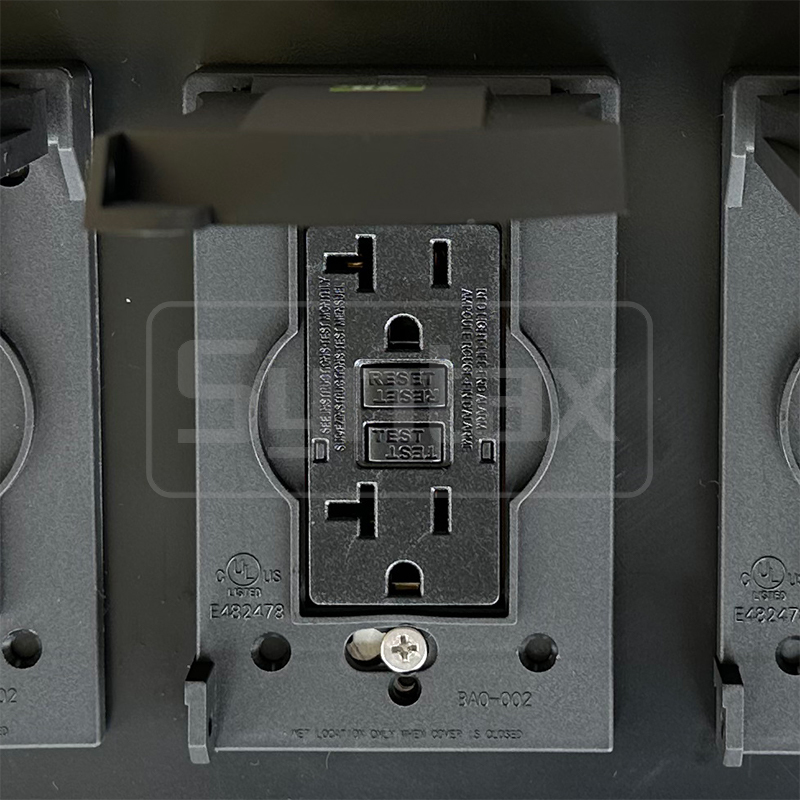

This US standard portable distro is rating 30AMP, 120/208VAC, 2P+N+G . The incoming (1) NEMA L14-30 30AMP 2P+N+G 125/250V Inlet is protected by (1) 2P 30A MCB UL listed. The outgoing sockets are (1) NEMA L14-30FO 30A 2P+N+G 125/250V loop through, and (6) NEMA 5-20R 20A 2P+G 125V Duplex GFCI with waterproof covers, protected by (6) x 1P 20A MCBs UL listed. All the inlet, receptacles and circuit breakers are UL/ETL listed. The boxes is made in PC and IP67 Waterproof, which is perfect for the events especially for stage. We can bespoke power distribution boxes built to order.

Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!

Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.

The MP series IP67 Electrical Distribution Box is newly designed compact, portable model. For simple and safe electricity distribution indoors and outdoors for e.g. construction sites, light industry, events, etc.

Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.

Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.

Overload protection by circuit-breakers like MCB, RCD, RCCB, and RCBO to make sure the safety of the workforce and equipment.

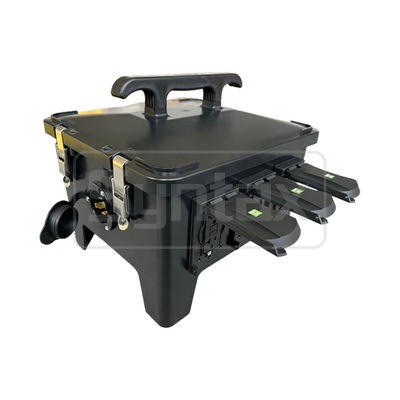

The box is compact size includes portable easy-to-carry top handle.

Plug these portable distribution boxes into a power source, such as a generator, to power equipment when electricity is not available. All have breakers’ protection to minimize the risk of electric shock. They're also known as spider boxes.

Our range of 63A power distribution units are ideal for those working within the events trade, with complex industrial equipment needing to be powered for multiple hours at a time. With all power distribution units adhering to the Titan Power standard, you can be safe in the knowledge that our products are of the highest quality combined with innovative technology for reliability, every time.

OEM and ODM services are available.

Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.

Applications:

Connectors for every task

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.

• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.

• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.

• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.

• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.

• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.

• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
