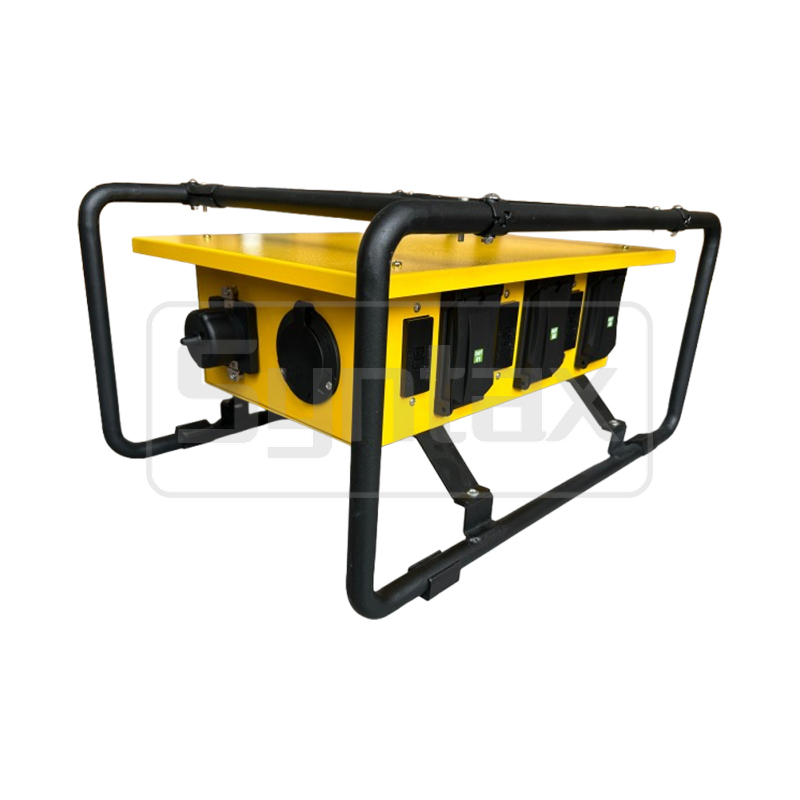

Syntax 50A Temporary Power Distribution Box 6-Straight Blade Outdoor Rated GFCI 20A UL listed

Syntax 50A Temporary Power Distribution Box 6-Straight Blade Outdoor Rated GFCI 20A UL listed

Technical Parameters:

Drawing:

Features and Benefits:

• Design based on UL listed plugs, Sockets and circuit breakers.

• Rainproof, rust-proof, dust-proof, sun-proof, anti-corrosion.

• Color: Yellow panel with black frame.

• Material: Steel sheet.

• Dimension of Panel: 450 x 800 x 270 mm / 17.7”L x 31.5”W x 10.6”H.

• Dimension of Frame: 450 x 800 x 270 mm / 640 x 1000 x 450 mm / 25.2”L x 39.4”W x 17.7”H.

The Advantages of Our Distribution Boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Reusability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• 24 Months Warranty on all Parts and Manufacturing Defects.

Specification:

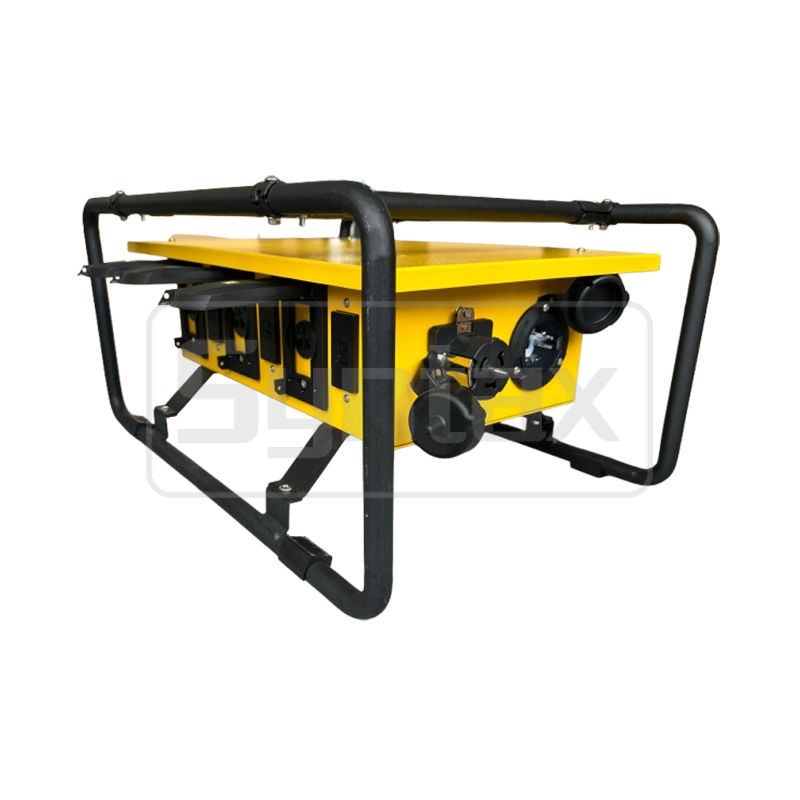

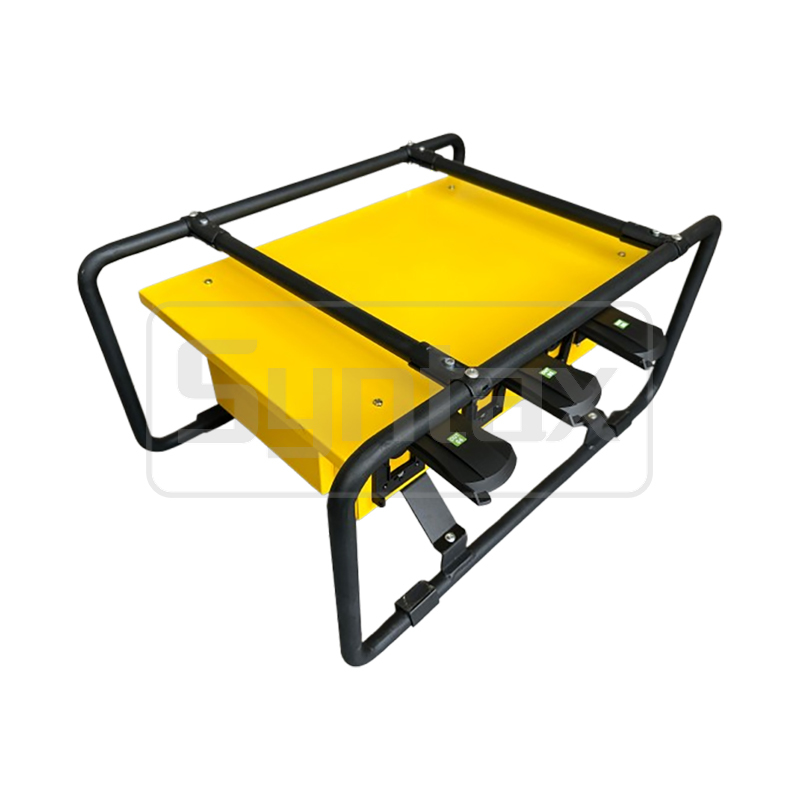

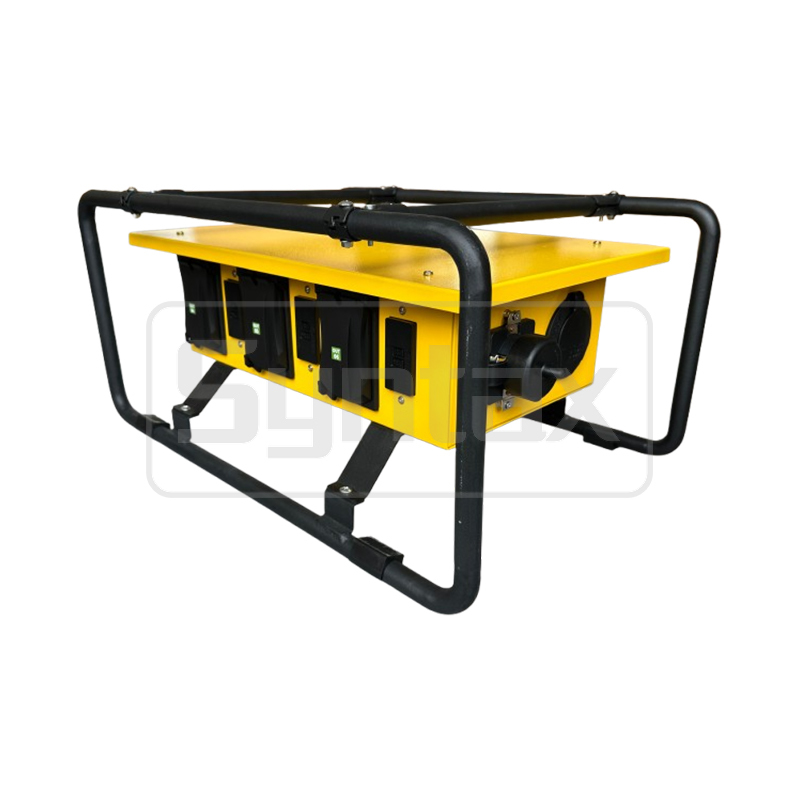

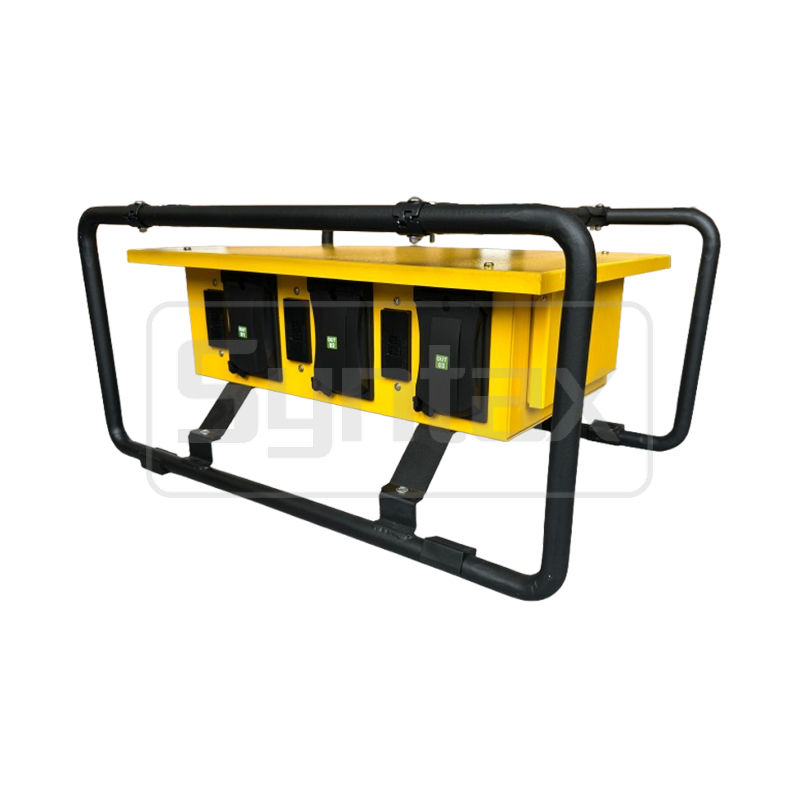

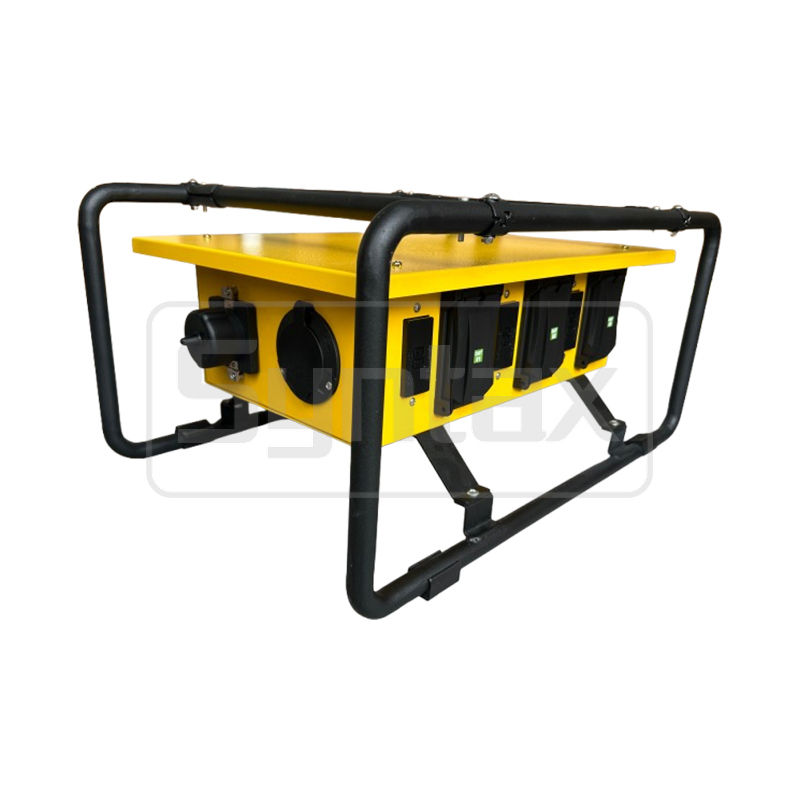

This Unit is in a Powder Coated Metal Enclosure with a Hinged breaker lid, we made a metal frame around it for easy lifting and moving, in order to save the freight charges, the frame can be disassembled.

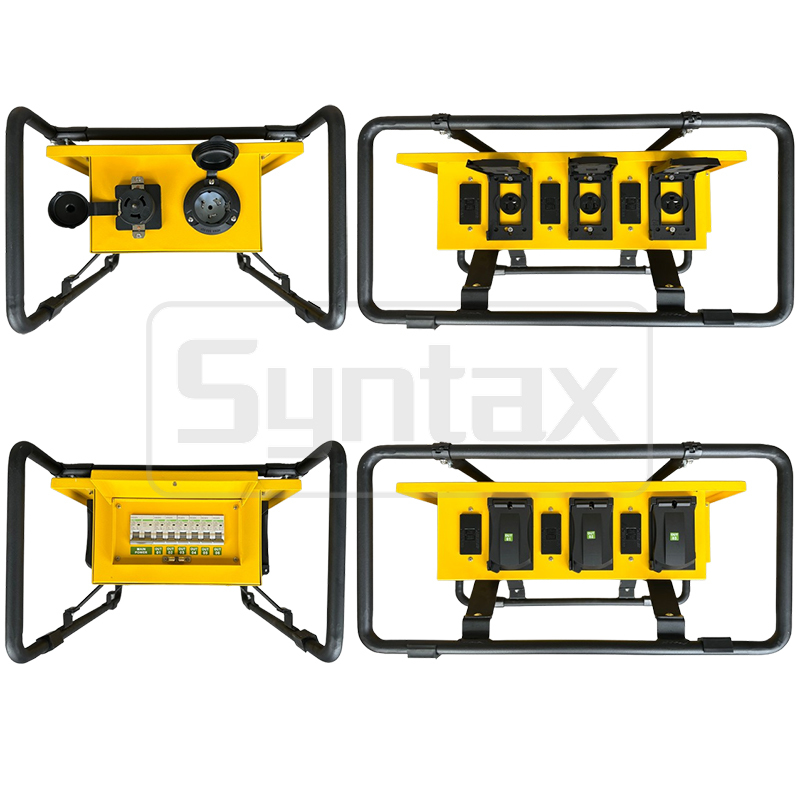

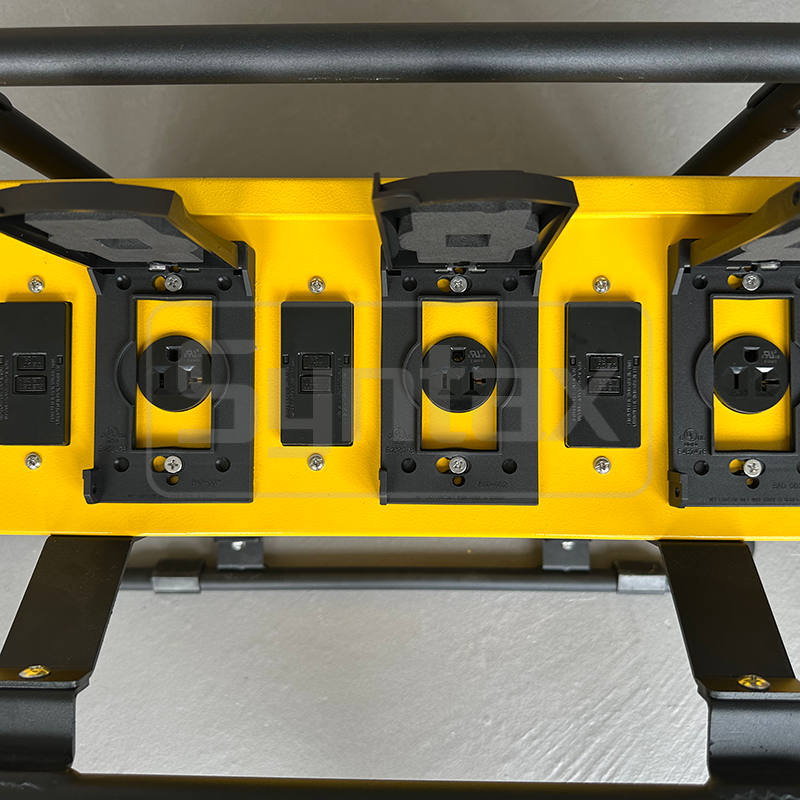

Equipped with (1) UL/ETL listed NEMA SS2-50P 50A 2P+N+G 125/250V Inlet with cap, protected by (1) 2P 50A MCB, a loop through NEMA SS2-50R 50A 2P+N+G 125/250V Receptacle with cap, and (6) UL/ETL listed NEMA 5-20R 20A 2P+G 125V straight blade receptacles with independent GFCI modules, each blade receptacle has a protective cover, protected by (6) 1P 20A MCBs. The board simplifies and enhances safety for temporary power use on construction sites. The box are pre-connected. You only need to connect the connector into the incoming inlet, saving you time and making it more convenient to transport and operate.

The shell of the electrical panel undergoes a complete spraying process and is made from dual rust-resistant materials, providing strong corrosion resistance. It is waterproof, lightning-resistant, fireproof, dustproof, and UV-protected, ensuring a longer lifespan.

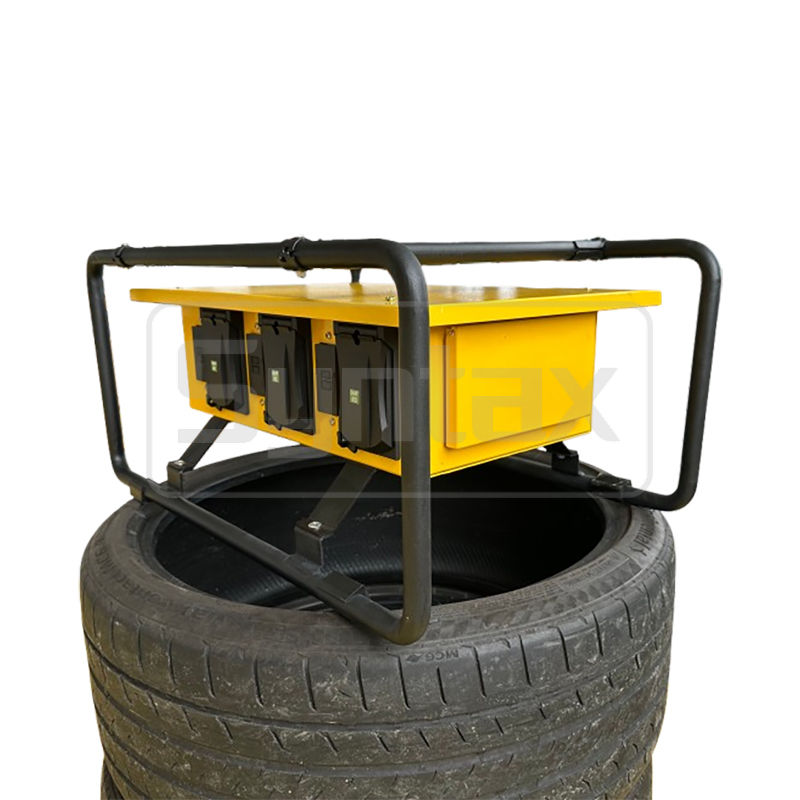

Designed for outdoor use with the tough frame, and wheels are for easy moving.

OEM and ODM services are available.

Durable Material:

The temporary service panel is made of heavy-duty galvanized steel with baked on polyester powder coat finish for durability. NEMA 3R enclosure, weatherproof, rust-proof, dust-proof, sun-proof, anti-corrosion.

Applications:

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.

• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.

• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.

• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.

• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.

• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.

• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
