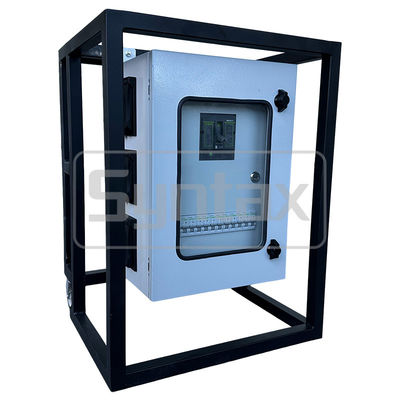

Syntax 100 Amp Portable Distribution Panel UL Listed Outdoor use, 208Y/120 3PH, with waterproof (12) 5-20R GFCI 125v

Syntax 100 Amp Portable Distribution Panel UL Listed Outdoor use, 208Y/120 3PH, with waterproof (12) 5-20R GFCI 125v

Technical Parameters:


Drawing:

Features and Benefits:
• Design based on UL listed NEMA 5-20R Sockets, and UL listed MCCB and MCB.
• Rainproof, rust-proof, dust-proof, sun-proof, anti-corrosion.
• Color: white panel with black frame.
• Material: Alloy Steel.
• Dimension of Panel: 350 x 500 x 270 mm / 13.8”L x 19.7”W x 10.6”H.
• Dimension of Frame: 480 x 700 x 450 mm / 18.9”L x 27.6”W x 17.7”H.

The Advantages of Our Distribution Boxes:
• Quick assembly/dismantling.
• Safe connections.
• Reliable in operation.
• Reusability of all components.
• Suitable for indoor or outdoor use.
• Robust distributor.
• Easy handling of distribution boxes and of the entire system.
• 24 Months Warranty on all Parts and Manufacturing Defects.

Specification:
This temporary power distribution panel provides a safe and reliable way for vendors in show and event settings to tap into and utilize power sources independently of the work area. And the temporary power distribution panels require operators to provide their own line-in cables for use. Knockouts located at the bottom of the unit are provided for convenient installation of operator-provided input and output cables.

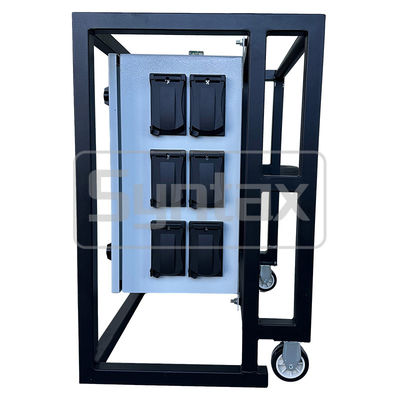

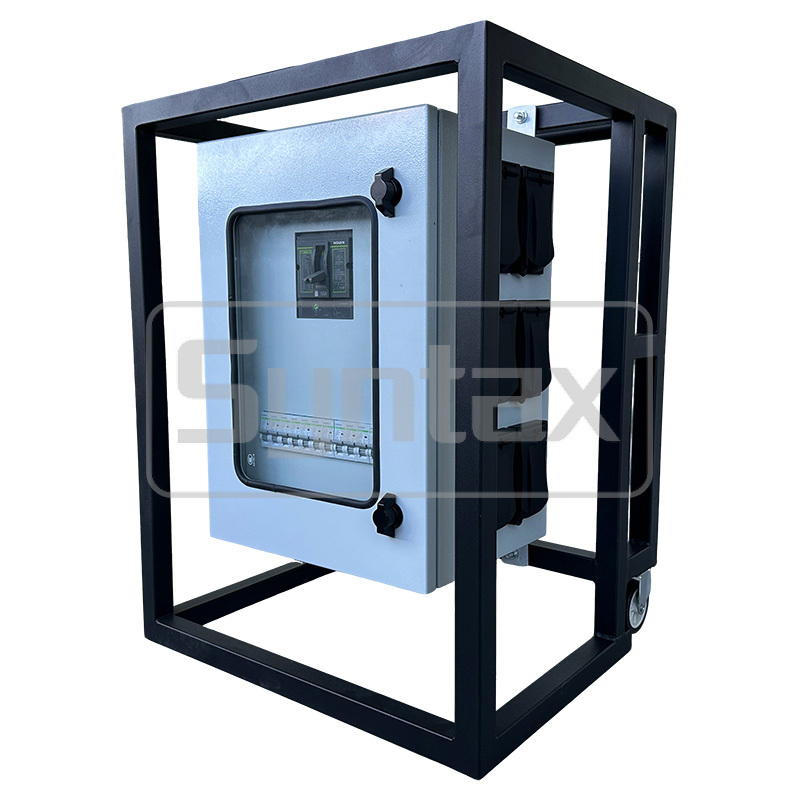

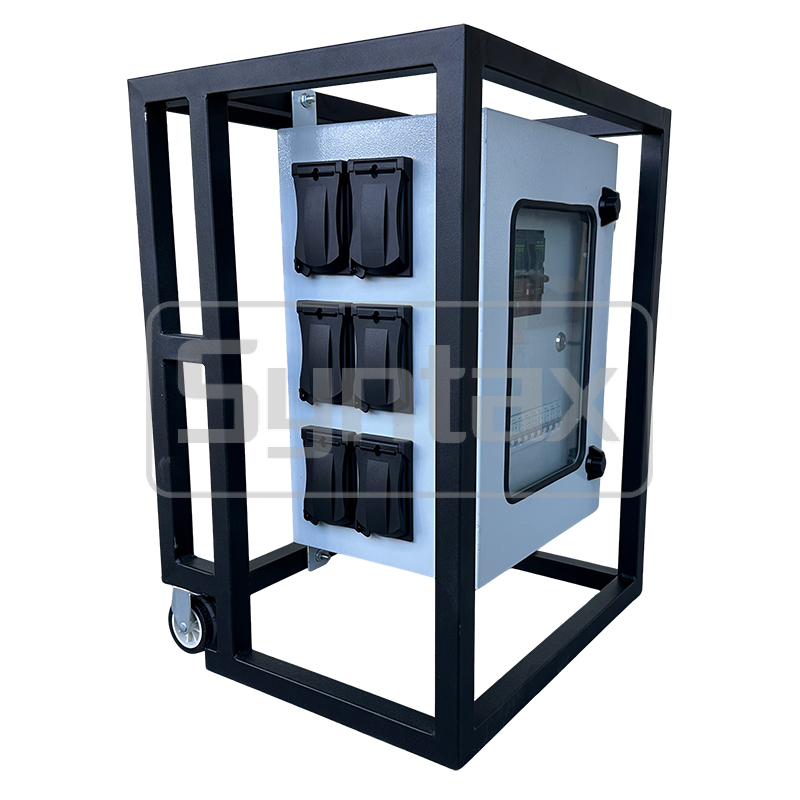

This Unit is in a Powder Coated Metal Enclosure with GFCI on two sides for easier to Access Connections and a Hinged Door to Reset Breakers if Necessary.

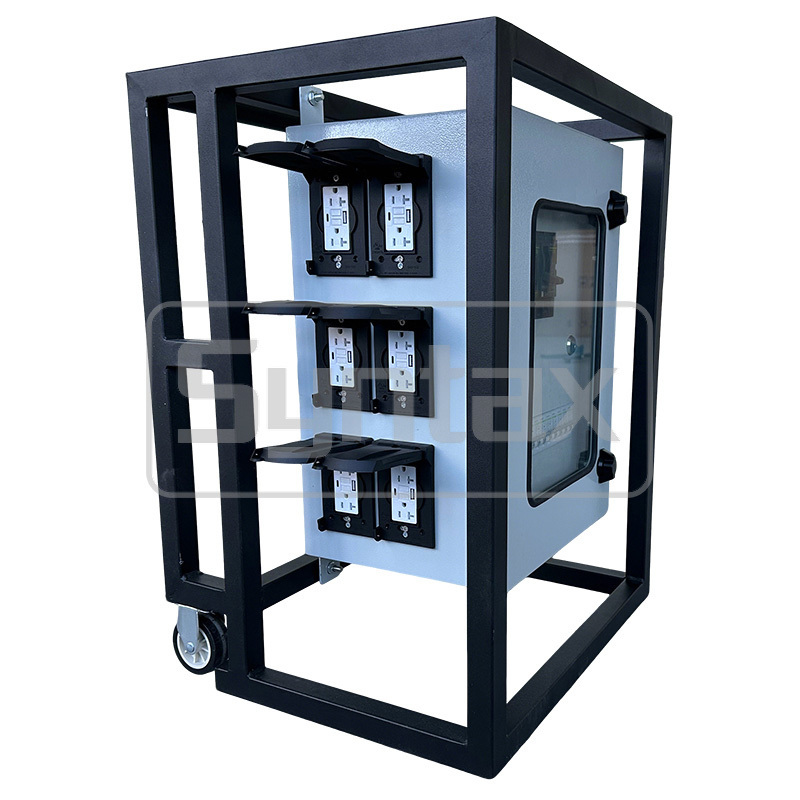

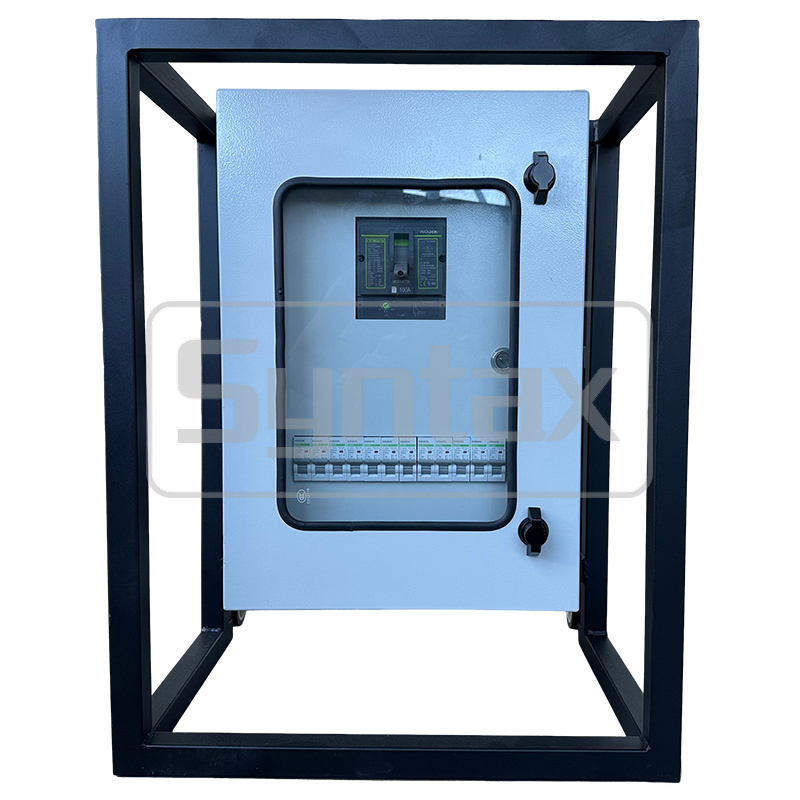

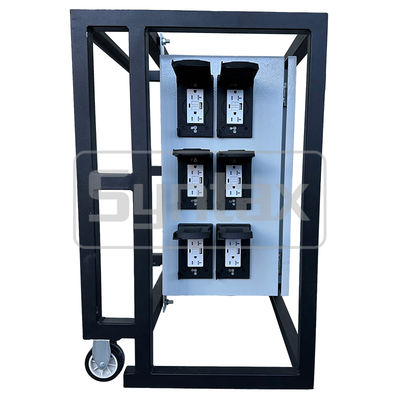

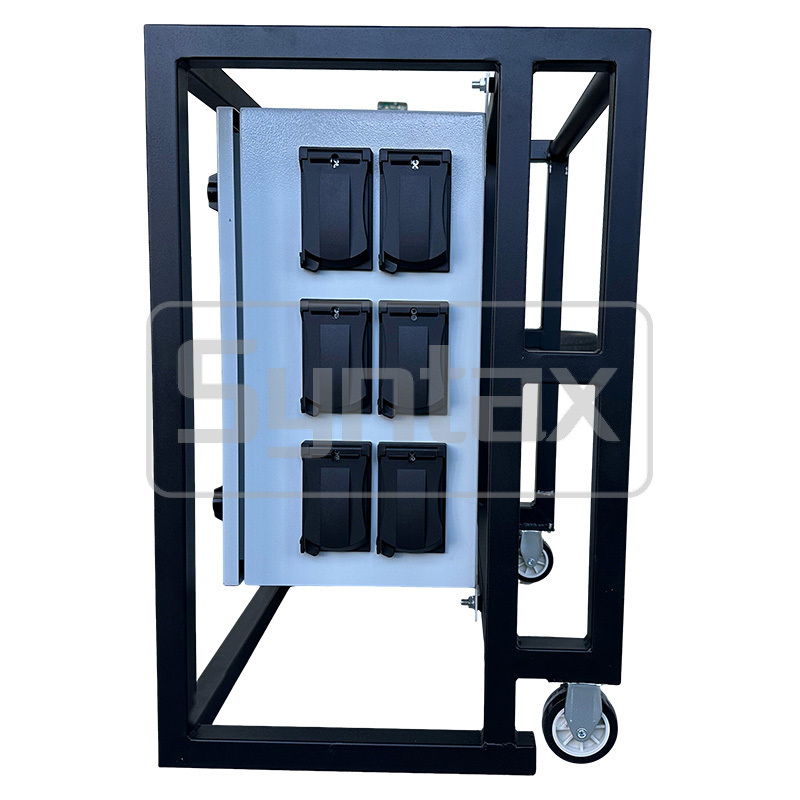

Equipped with (1) 3P 100A MCCB by Noark UL listed as the main switch, and (12) UL/ETL listed NEMA 5-20R 20A 2P+G 125V Duplex GFCI with USB A and Type C, each with an extra Tamper Resistant / Weather Resistant protective cover, protected by (12) 1P 20A MCBs [125V]. The board simplifies and enhances safety for temporary power use on construction sites. The box are pre-connected. You only need to connect the cables into the main switch, saving you time and making it more convenient to transport and operate.

The shell of the electrical panel undergoes a complete spraying process and is made from dual rust-resistant materials, providing strong corrosion resistance. It is waterproof, lightning-resistant, fireproof, dustproof, and UV-protected, ensuring a longer lifespan.

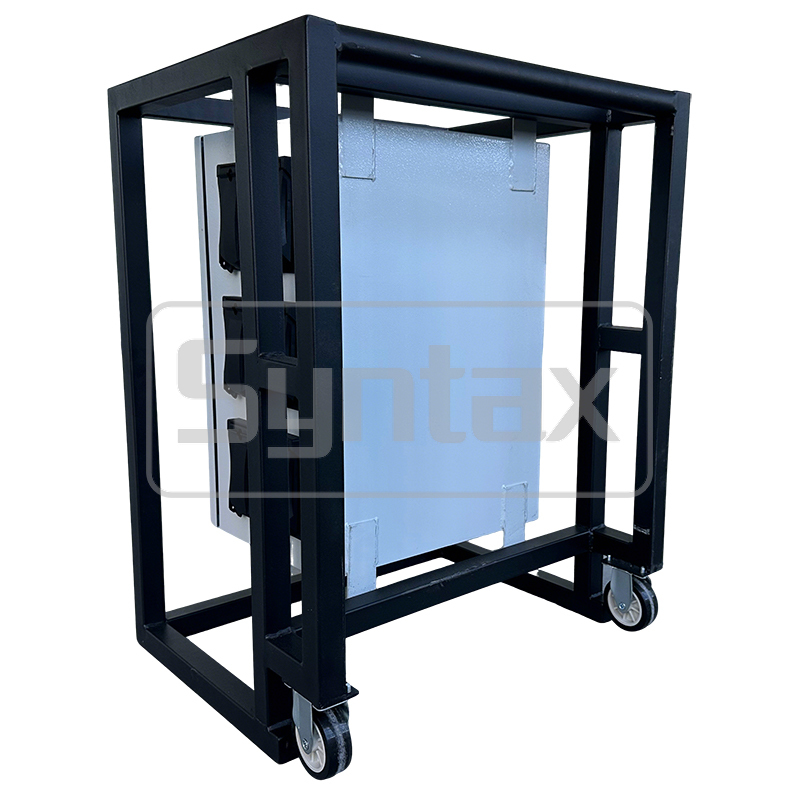

Designed for outdoor use with the tough frame, and wheels are for easy moving.

OEM and ODM services are available.

Durable Material:
The temporary service panel is made of heavy-duty galvanized steel with baked on polyester powder coat finish for durability. NEMA 3R enclosure, weatherproof, rust-proof, dust-proof, sun-proof, anti-corrosion.

Applications:
This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations.

Customized Solutions:
If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request. We also provide replacement, retrofit, and upgrade parts as well as industrial grade power accessories. Our craftsmen can custom build any distribution system and/or accessories to fit the unique demands of your operation. A commitment to honesty, quality, and dependability has made us a leader in the distribution system for many years.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
