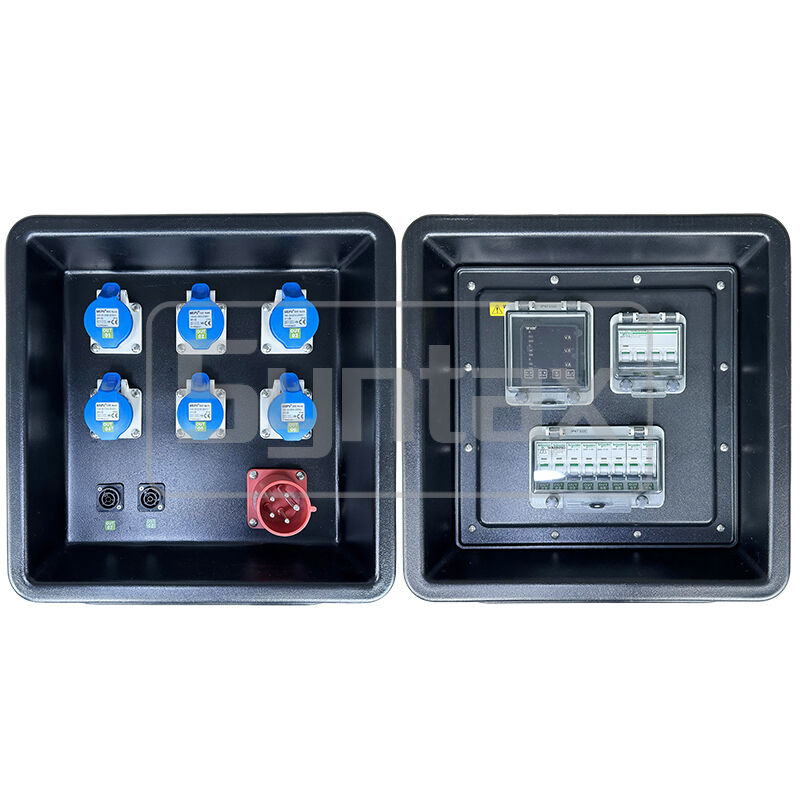

Syntax MD1 Three Phase 5P 32AMP HDPE Portable Distribution Box
IP67 Waterproof temporary power distribution box measuring 430x380x460mm, designed for reliable outdoor and industrial applications.
Technical Specifications
| Attribute |
Value |
| Box Model |
MD1 Portable Distribution Board IP67 |
| Color |
Black |
| Dimensions |
430 × 380 × 460 mm |
| Incoming Main Switch |
1 × 5P 32A 400V IP44 Panel Mounted Inlet, protected by 1 × 4P 32A MCB |
| Outgoing Breaker 1 |
6 × 3P 16A 220V IP44 Panel Mounted Sockets, protected by 6 × 1P 16A MCBs |
| Outgoing Breaker 2 |
2 × 2P+E 16A 220V True 1 Sockets, protected by 2 × 1P 16A MCBs |
| Additional Features |
With a multi-meter |
| Brand Components |
Distribution Box by Syntax; Industrial Plugs & Sockets by Weipu; Breakers by Schneider |
Product Drawings
Key Features & Benefits
- Designed to EN 60439-4 and IEC 60529 standards
- Waterproof and shockproof design with IP67 rating
- Available in Black, Orange, and Yellow colors
- Constructed from durable HDPE/PE polyethylene material

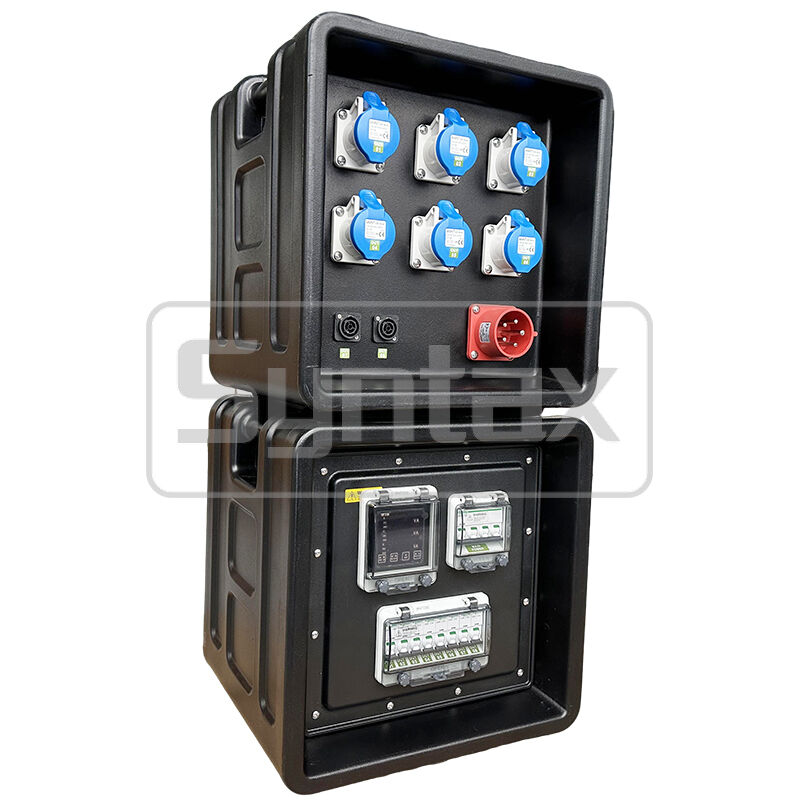

- Stackable design for easy storage and stable positioning
- Operating temperature range: -20℃ to +75℃
- Dimensions: 430mm × 380mm × 460mm
Product Advantages
- Quick assembly and dismantling
- Safe and reliable electrical connections
- Reusable components for cost efficiency
- Suitable for indoor and outdoor applications
- Robust construction for demanding environments
- Easy handling and transportation
- Integrated feet for secure stacking
- 24-month warranty on all parts and manufacturing defects

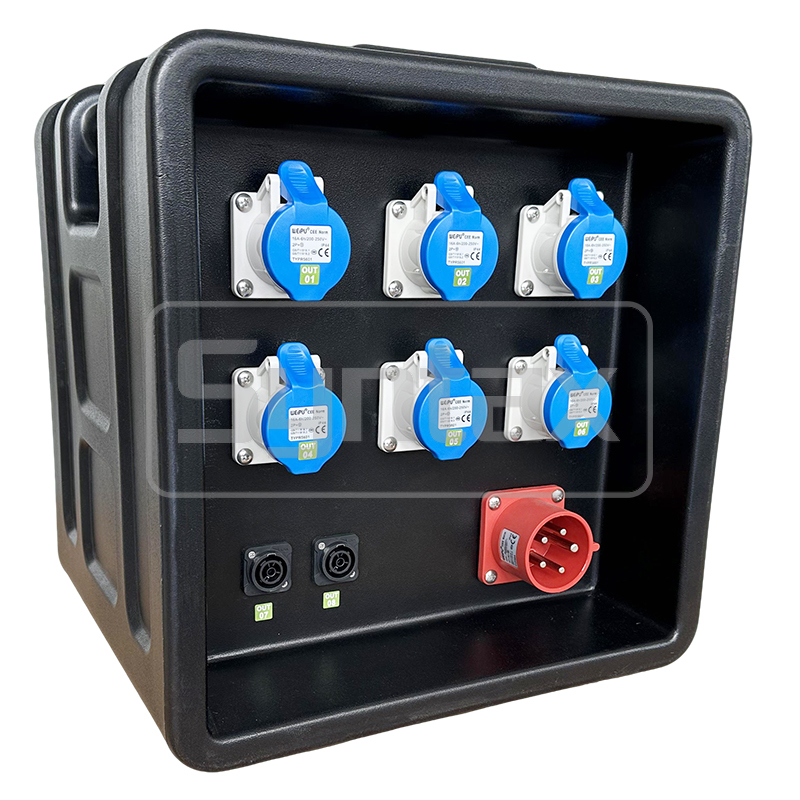

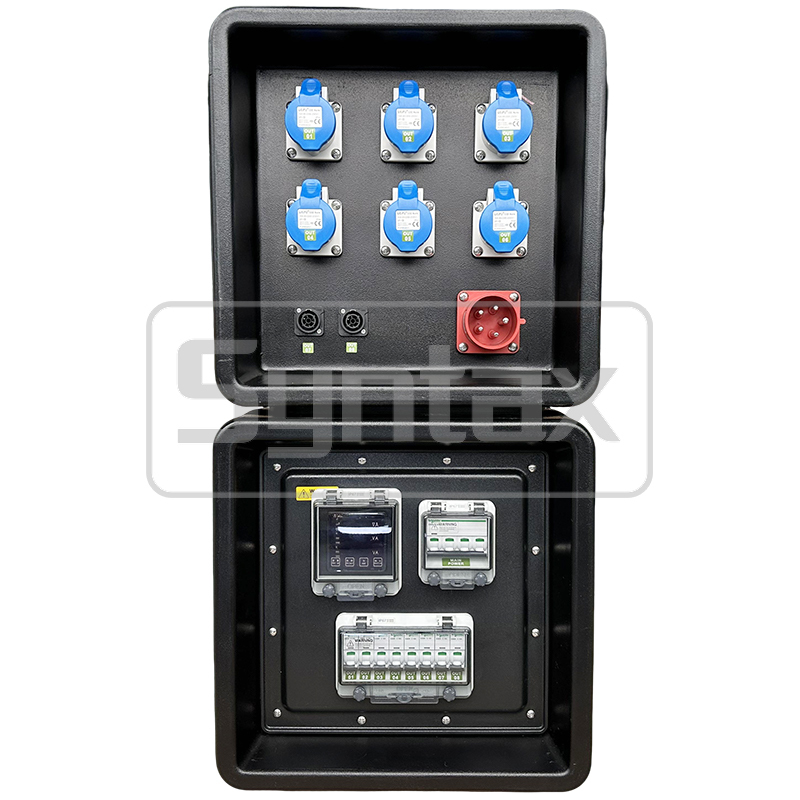

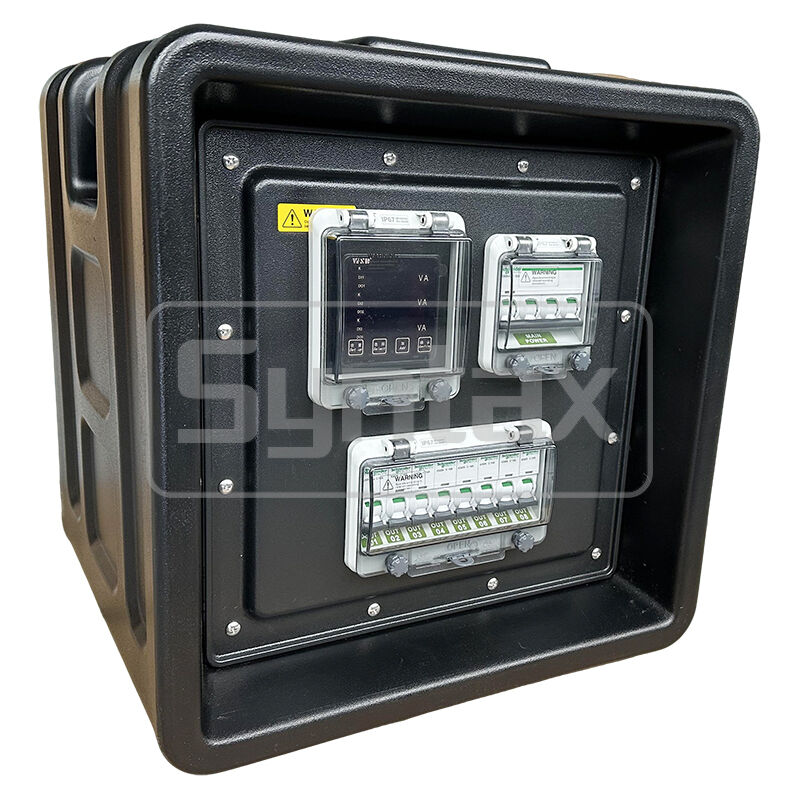

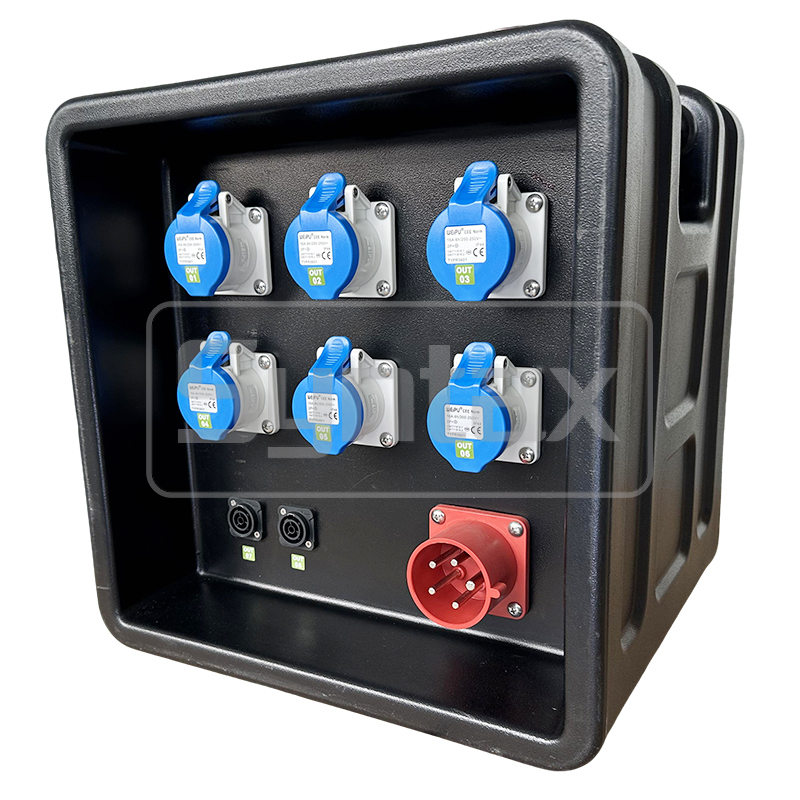

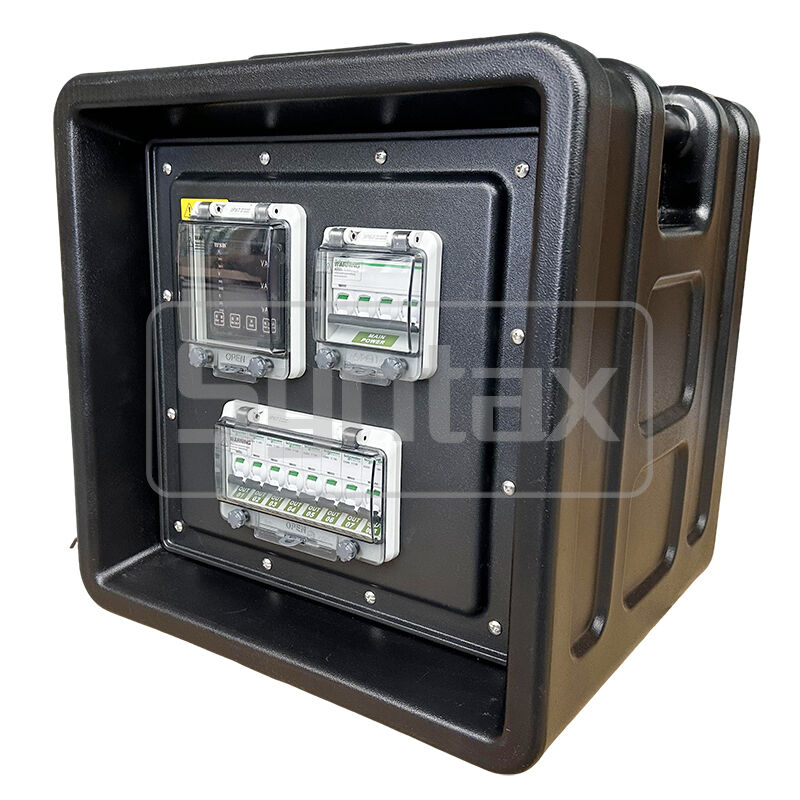

This three-phase temporary distribution board is specifically designed for stage temporary power applications. The incoming 32AMP/5P inlet is protected by a 4P 32A MCB and includes a multi-functional meter. Outgoing circuits feature 6 × 16A/3P 220V sockets and 2 × 16A/2P+E 220V True 1 sockets, each protected by individual 1P 16A MCBs. The PE construction with IP67 waterproof rating makes it ideal for sports events, particularly swimming competitions. Custom power distribution boxes can be built to order.
Manufacturer Information
Zhejiang Hyper Electrical Supplies manufactures a comprehensive range of portable power distribution products under the "Syntax" brand. Our distribution enclosures range from 16 Amp up to 630 Amp, featuring cutting-edge technology and professional manufacturing techniques. The MD series offers excellent circuit protection using MCB, RCD, RCCB, or RCBO breakers to ensure maximum safety for users.
Customization Options

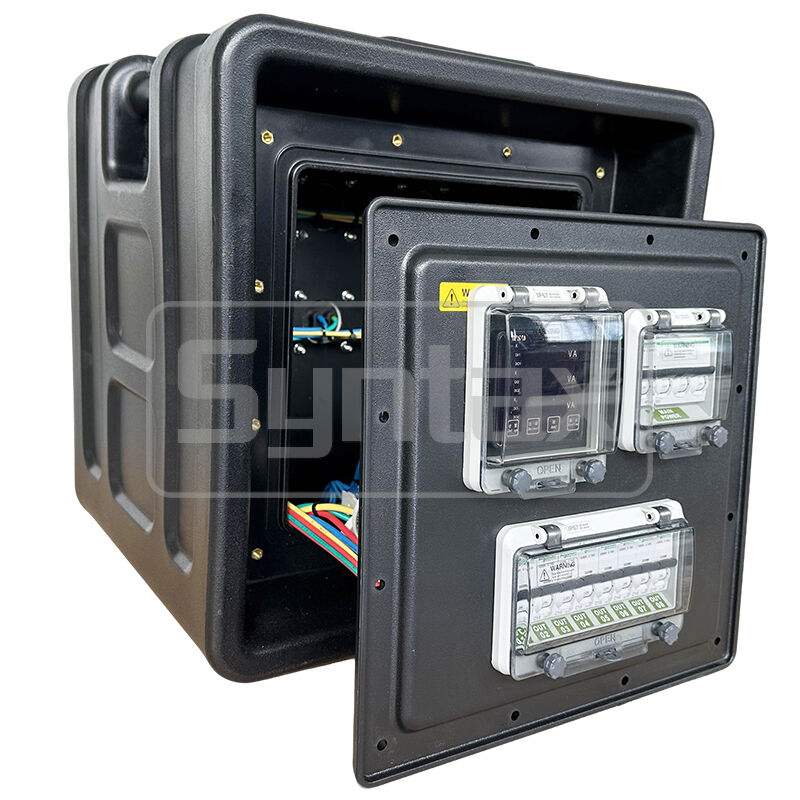

We offer complete customization services including CNC perforating for device installation, pre-wiring of plugs, sockets, and circuit breakers, and IP67 waterproof lockable hinged windows to protect electrical components from environmental factors.
Material Quality
The PE material used in our distribution boxes is heavy-duty, hard, strong, and tough. Resistant to cracking, PE material offers performance characteristics similar to rubber and represents one of the hardest plastic materials available.
Applications
Tunnel construction
Drilling rigs
Gravel pits
Marine applications
Railway systems
Military operations
Industrial facilities
Construction sites
Event technology
Strip mining
Chemical plants
Airports
Quarries
Container terminals
Harbor crane connections
Large-scale events
Market places
Industry Applications
Public Infrastructure: Urban Rail Transit, Nuclear Power Stations, Wind Power Stations, Ports, Docks, Airports, Tunnels, Metro Systems, Bridges, Roads, Construction Sites
Production & Processing: Metal Processing Plants, Paper Mills, Cement Plants, Power Plants, Aluminum Manufacturers, Steel and Iron Works, Automobile Works, Sewage Treatment Plants
Communication: 4G/5G Communication Equipment, GPS Equipment, WIFI Equipment
Electronics & Food: Automated Production Lines for Cellphones, Cars, and Food Processing
Entertainment & Sports: Concerts, Stadiums, Presentations, Meeting Centers, Hotels, Touring and Film Equipment
Civil Applications: Hospitals, Schools, Banks, Public Squares, Shopping Malls, Supermarkets
Electric Vehicles: Electric Car Chargers, Charger Distribution Boxes, Intelligent Charging Systems
Custom Solutions
When standard solutions don't meet your specific requirements, we develop customer-specific solutions upon request to ensure optimal performance for your unique application needs.
