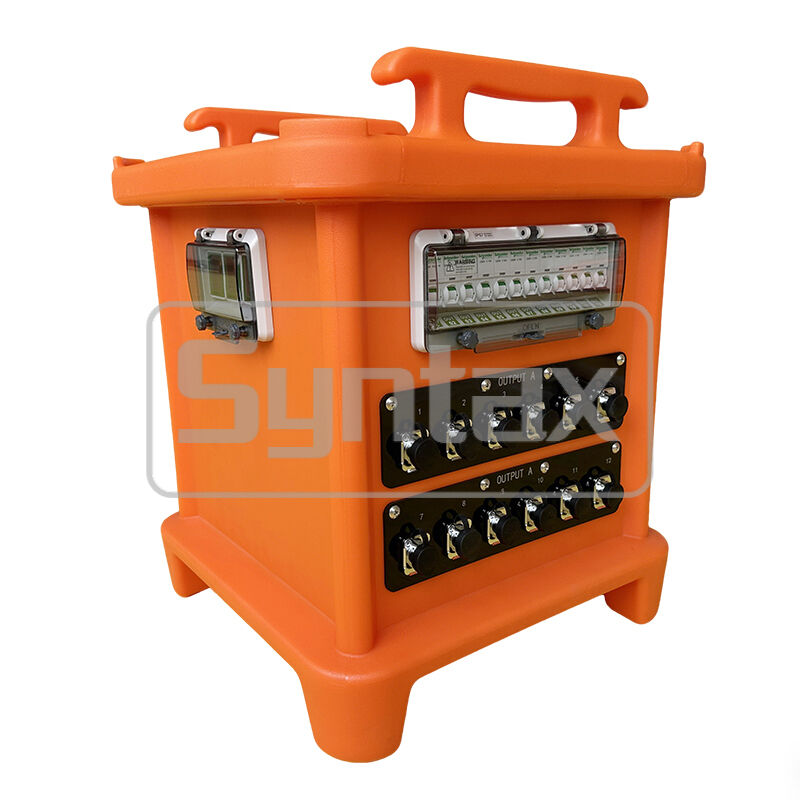

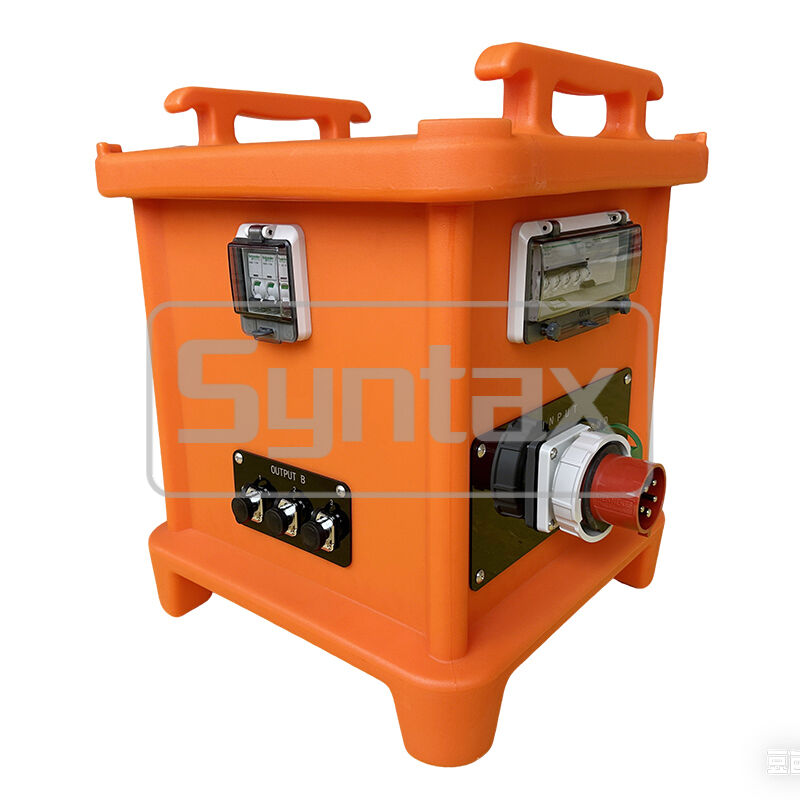

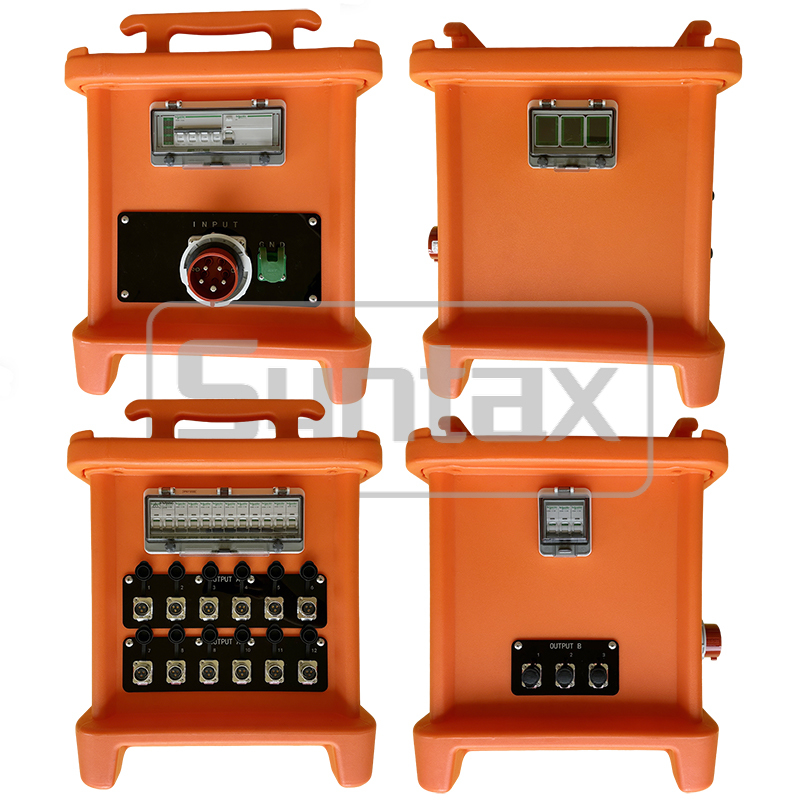

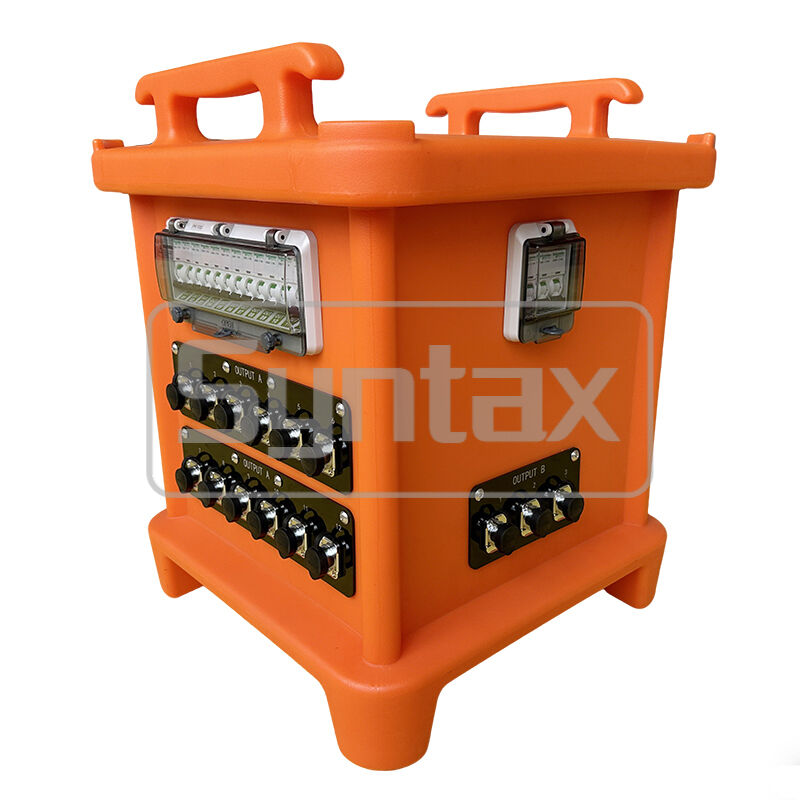

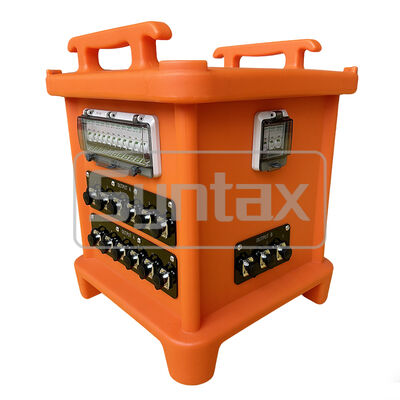

Syntax MK2 Portable Power Distribution Box With 32A/5P 400v IP67 Input Inlet PE Material Fitted With Multi-functional Meter 46*46*55CM

Syntax MK2 Portable Power Distribution Box With 32A/5P 400v IP67 Input Inlet PE Material Fitted With Multi-functional Meter 46*46*55CM

Technical Parameters:

Drawing:

Dimension Drawing of Empty Box:

Features and Benefits:

• Design based on EN 60439-4, IEC 60529.

• Waterproof and Shockproof design, IP rating up to IP67.

• Color: Black, Orange and Yellow are available.

• Material: HDPE / PE (polyethylene, a kind of plastic).

• Stackable Design for easier storage and steady body.

• Operating Temperature:-20℃～+75℃.

• Dimension: 460mm x 460mm x 550mm.

The Advantages of Our Distribution Boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Reusability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• Integrated feet to facilitate stacking.

• 24 Months Warranty on all Parts and Manufacturing Defects.

Specification:

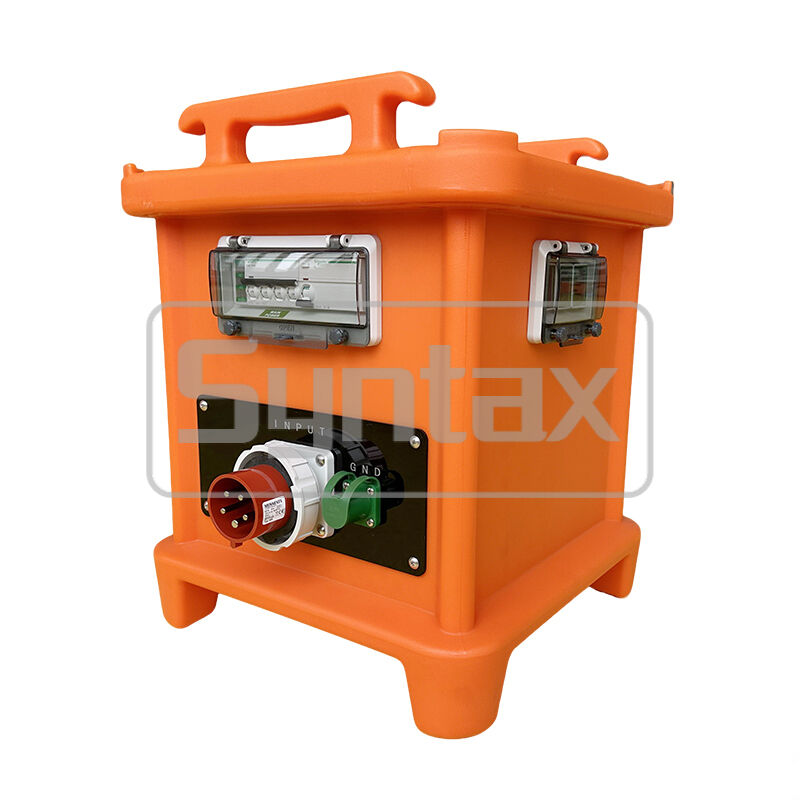

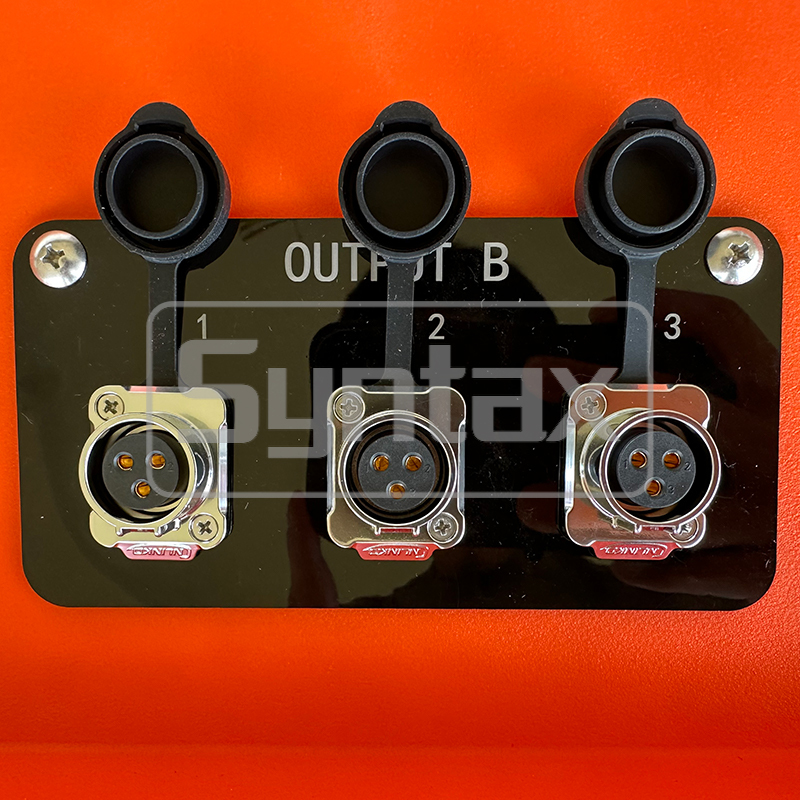

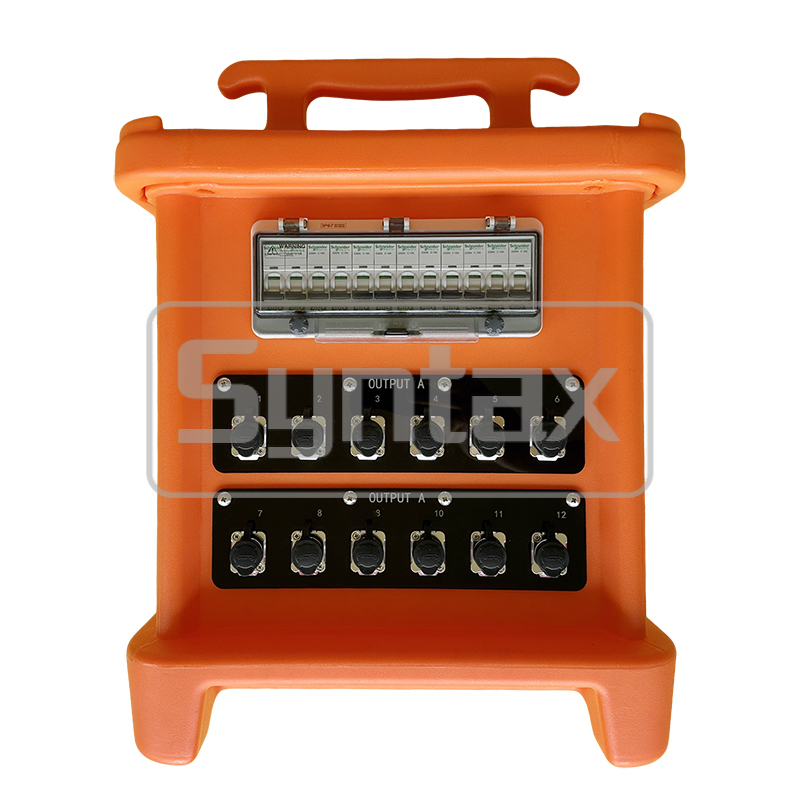

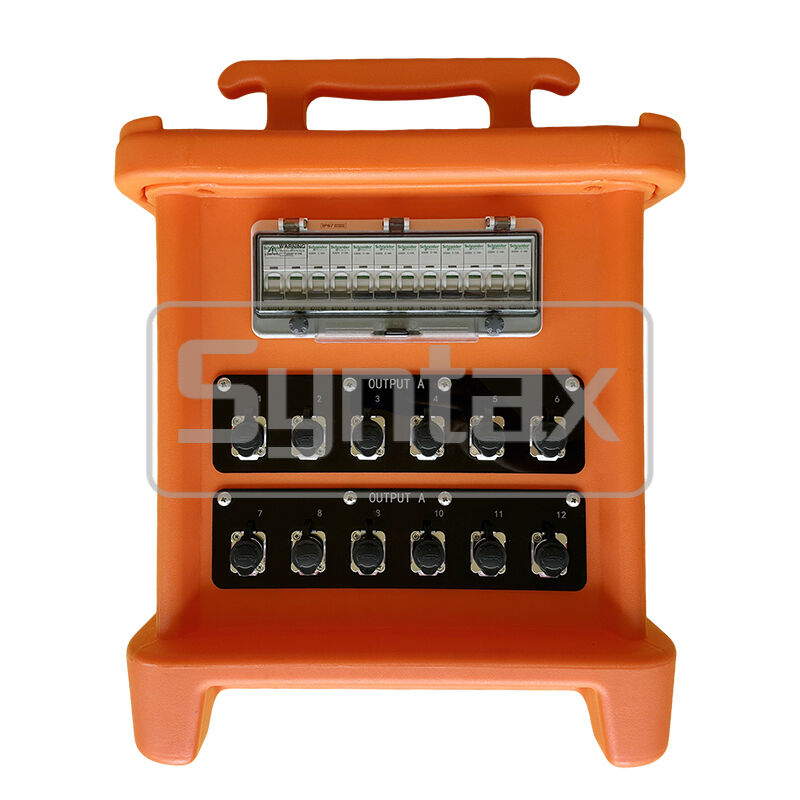

This three phase 32A waterproof power distribution boards for outdoor sound & lighting application are specially customized to have the incoming inlet by 32A/5P 400v IP67 Inlet, protected by 1 nos 4P 32A MCB + 1 nos 4P 40A 30mA RCD, with 3 x 220v multi-functional meters, and there’s a camlock 200A as the earthing ground. The outgoing is 15 nos 20A/3P 500vAC IP65 connectors, protected by 15 nos 1P 16A MCBs by Schneider. We can bespoke power distro boxes built to order.

Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. Syntax offers excellent electric power distributing and safety to work alongside your generator. The best value in market, our distribution boards offer the ultimate in portable power distribution. We provide the portable power distribution solution!

The MK series IP67 Waterproof Power Distribution Boxes are manufactured in China, made from high quality HDPE material. The Power Distribution Boards are portable, lightweight and stackable, which can be used for industrial and construction projects works.

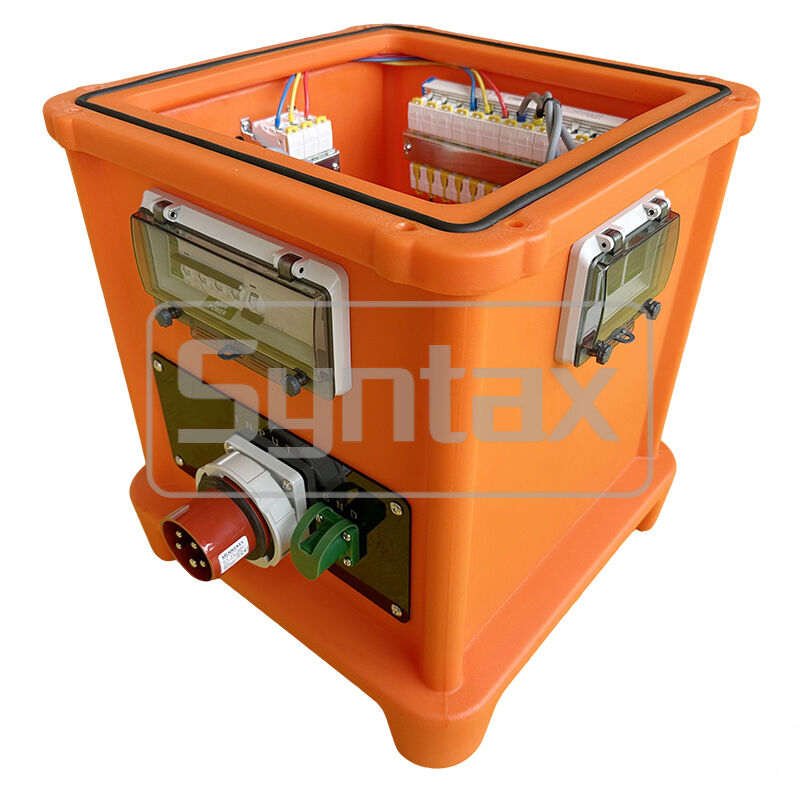

The design of the plastic CEE socket box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.

We can also use our IP67 waterproof lockable hinged windows to prevent the electrical devices like circuit breakers, signal lamps, push buttons and etc. from water, rain, and dust.

Remarks for the PE material: the PE material is heavy duty, hard, strong and tough. The box is hard to be crack, PE material has the closest performance as rubber material. Both of them are the hardest material of plastic.

Applications:

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.

• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.

• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.

• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.

• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.

• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.

• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
