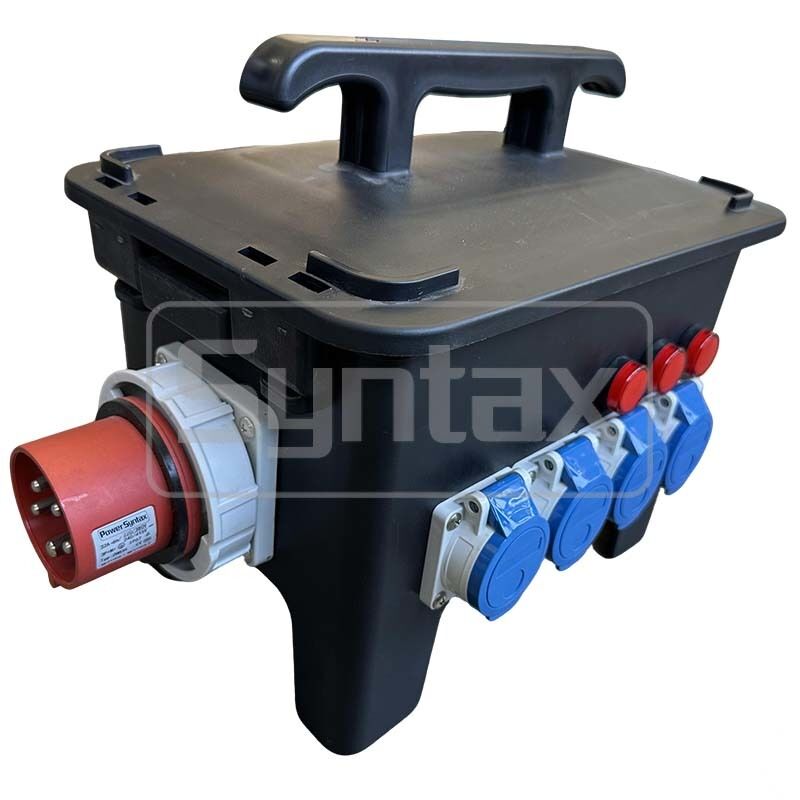

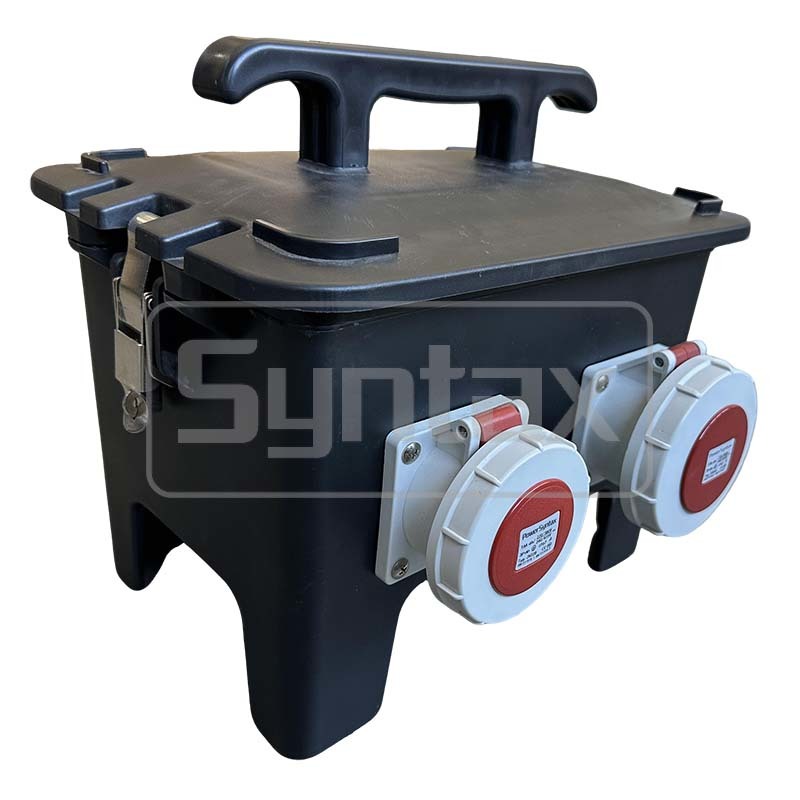

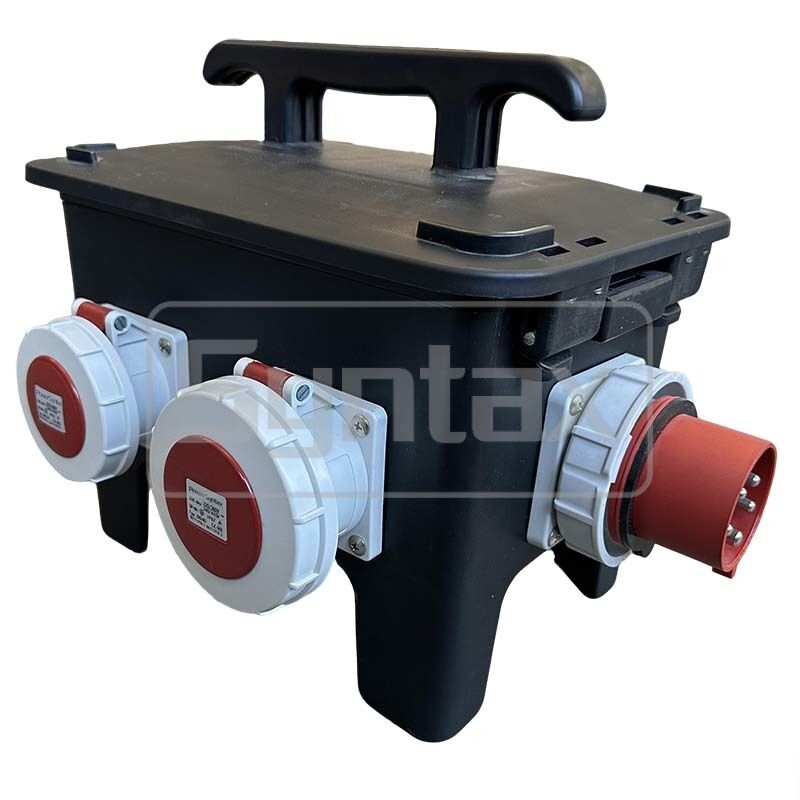

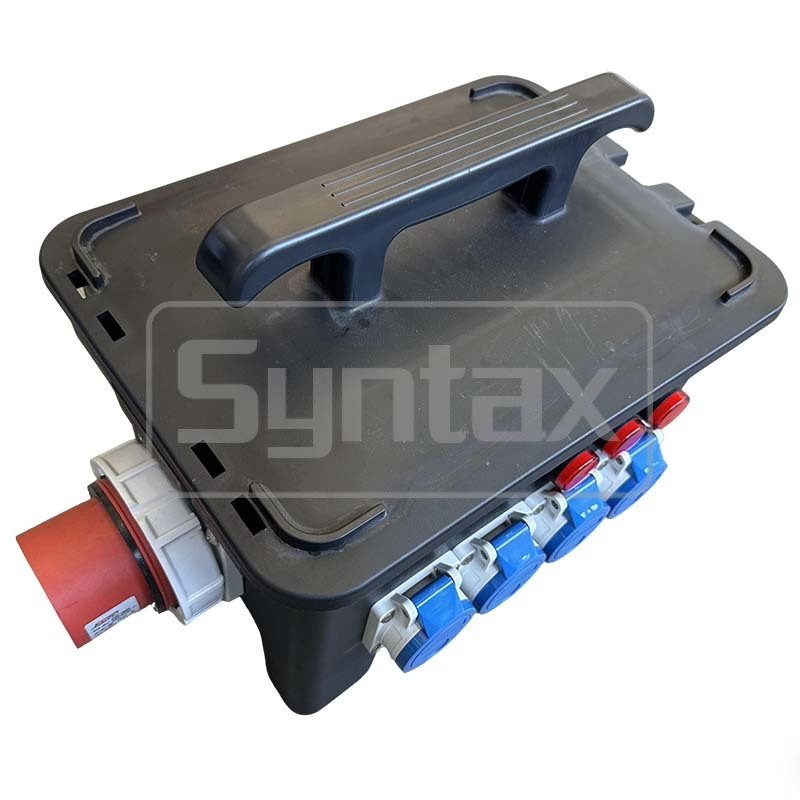

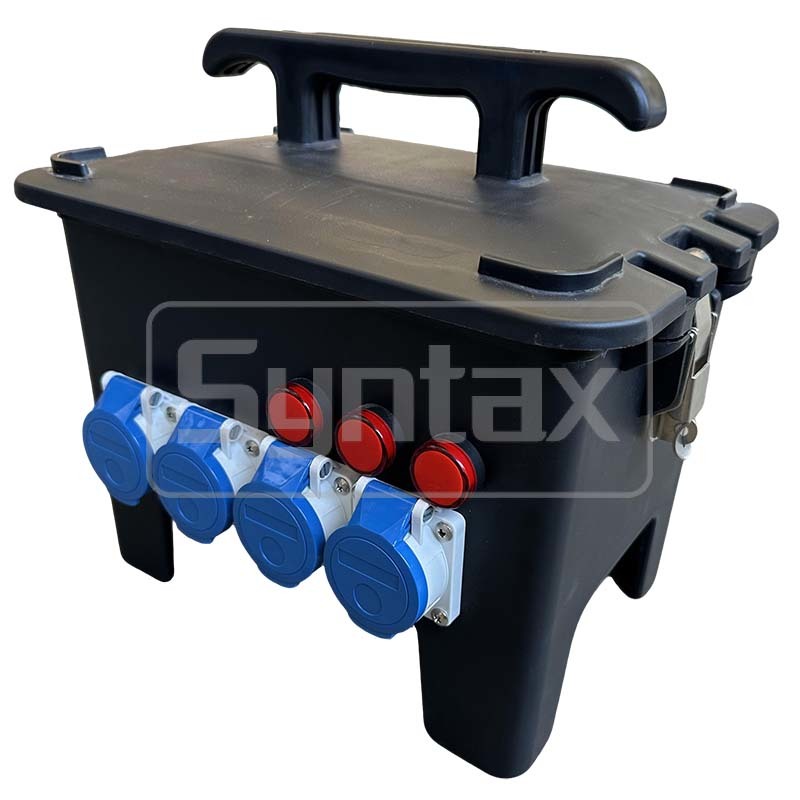

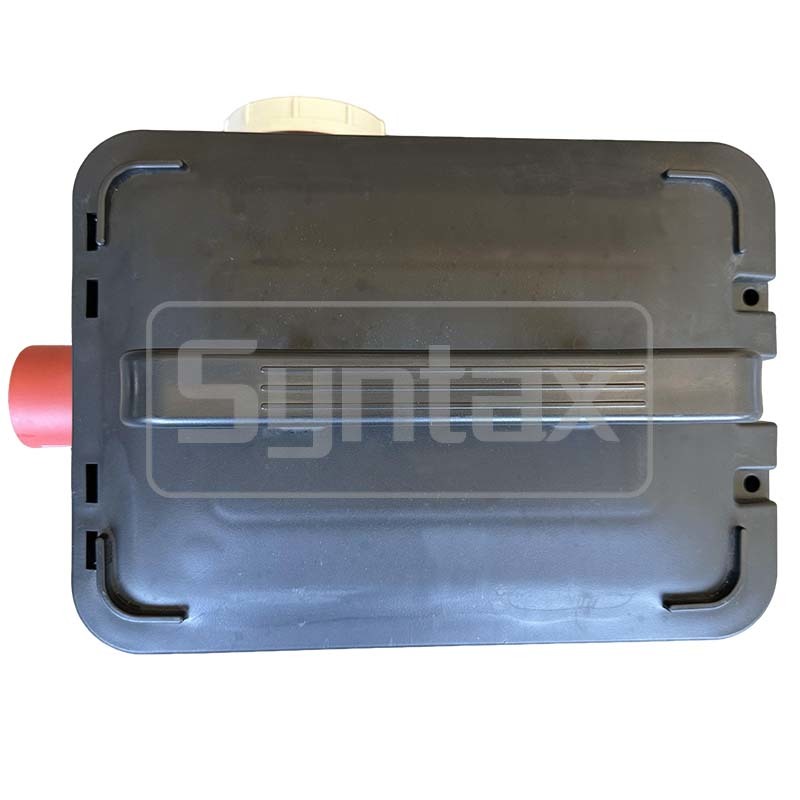

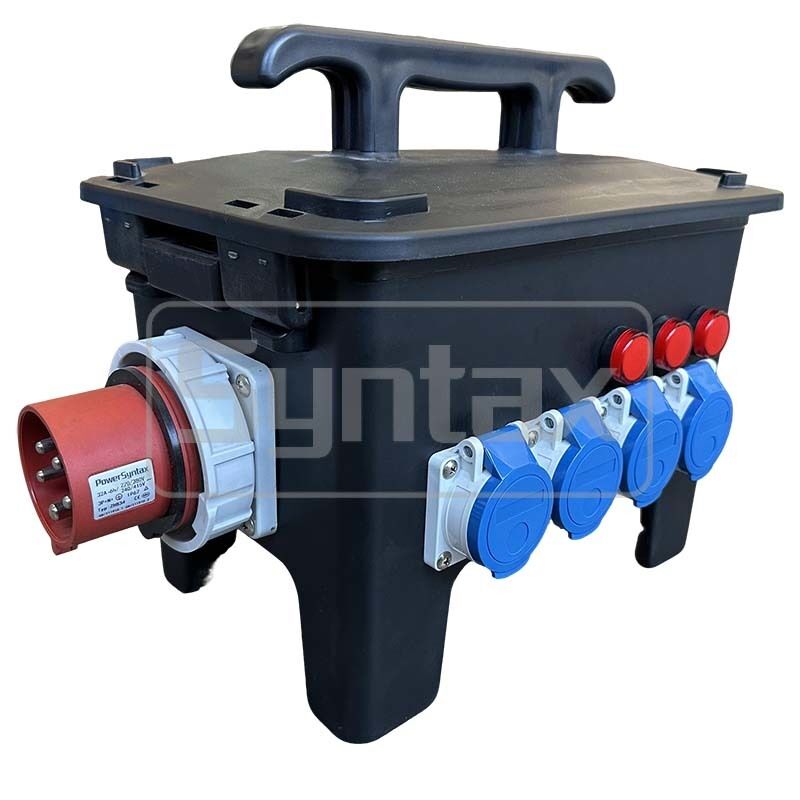

Syntax RB13 Portable Rubber Box 32A Three Phase IP44 Waterproof Outdoor Mains Distro Box For Live Event 345x250x311.5MM

Syntax RB13 Portable Rubber Box 32A Three Phase IP44 Waterproof Outdoor Mains Distro Box For Live Event 345x250x311.5MM

Technical Parameters:

Drawing:

Dimension Drawing of Empty Box:

Features and Benefits:

• Design based on EN 60439-4, IEC 60529.

• Water resistant design, IP rating up to IP67.

• Impact Protection up to IK10.

• UV Resistance: High.

• Enclosure Heat Resistance: 100℃ for 100 Hours.

• Chemical Resistance: Acids, Bases & Salts.

• Color: both Yellow and Black are available.

• Material: High Quality Rubber.

• Stackable Design for easier storage and daisy chaining.

• Dimension: 345.3mm*250.3mm*311.5mm.

THE ADVANTAGES OF OUR DISTRIBUTION BOXES:

• Quick assembly/dismantling.

• Safe connections.

• Re-usability of all components.

• Unbreakable, halogen-free and aging-resistant solid rubber housing.

• Easy handling of distribution boxes and of the entire system.

• 24 Months Warranty on all Parts and Manufacturing Defects.

• Plugs and sockets are fitted with carriage bolts and lock nuts (to prevent violations).

Specification:

This rubber power distribution box rated 32A 415V is ideal for the stage and events environment. The incoming Inlet is 5P 32A 400v three phase IP67, which is protected by a 4P 63A 30mA RCD. The outgoing sockets are 1 nos 5P 32A 400v IP67 Panel Mounted Straight type socket, protected by 1 nos 3P 32A MCB, and 1 nos 5P 16A 400v IP67 Panel Mounted Straight type sockets, protected by 1 nos 3P 16A MCB, and 4 nos 2P+E 220v 16A single phase Schuko Socket (German type), protected by 3 nos 1P 16A MCBs. The boxes is made in PC and IP67 Waterproof, which is perfect for the events especially for stage. We can bespoke power distribution boxes built to order.

Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!

Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.

The RB series handy solid-rubber boxes are made in solid rubber. We have black and yellow colors optional, if you have special color request, we can also do it for you.

Our power distribution units allow you to break up / distribute power safely. We have a lot of experience in this area and have worked on a wide range of events from small exhibitions to large-scale conferences and conventions.

OEM and ODM services are available.

Applications:

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
