Detail Information

Material:

HDPE / PE (polyethylene, A Kind Of Plastic)

Dimension:

430x380x460mm

IP Protection Rate:

IP67 Waterproof

Color:

Black

Highlight:

Hermetic Distribution box

power distribution panel 100A

portable distribution box 100A

Product Description

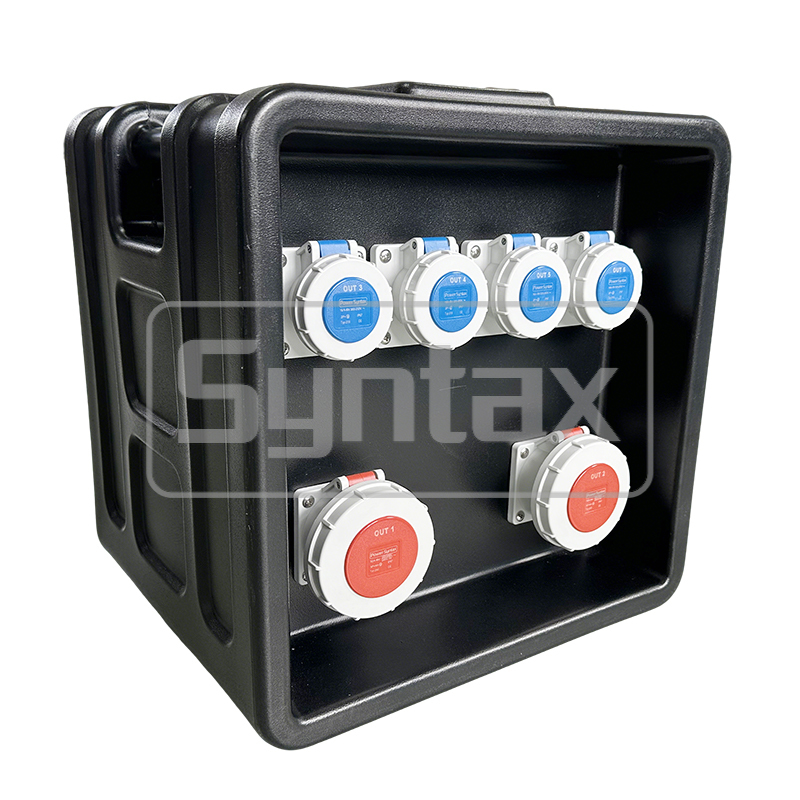

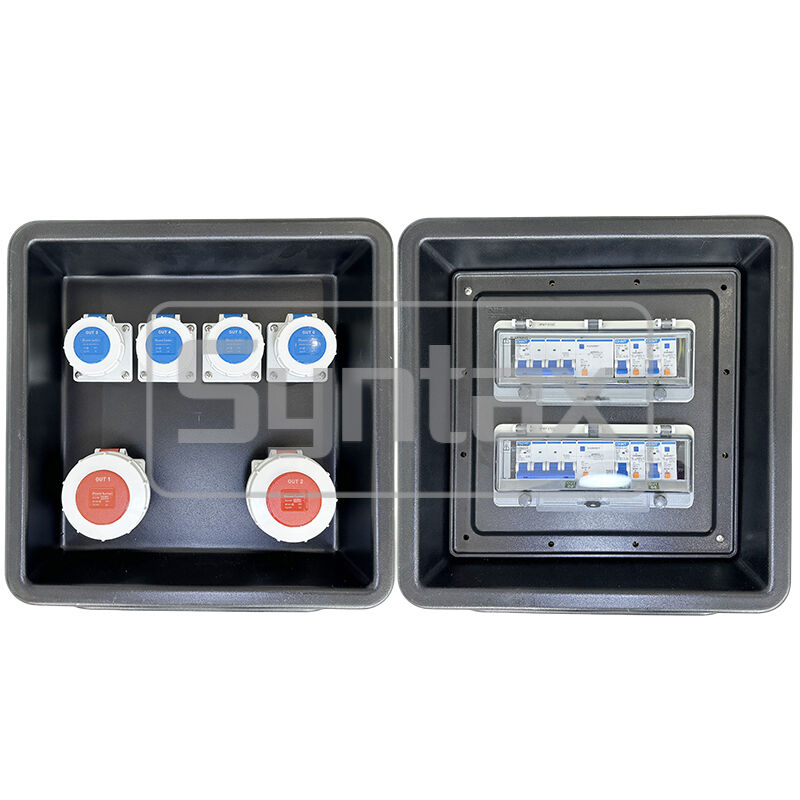

Syntax MD1 Three Phase 100AMP HDPE Portable Distribution Panel

IP67 Waterproof with Differential Protection - 430x380x460mm

Technical Specifications

Attribute	Value
Box Model	MD1 Portable Distribution Board IP67
Color	Black
Dimensions	430 × 380 × 460 mm
Incoming Main Switch	No incoming, no protection

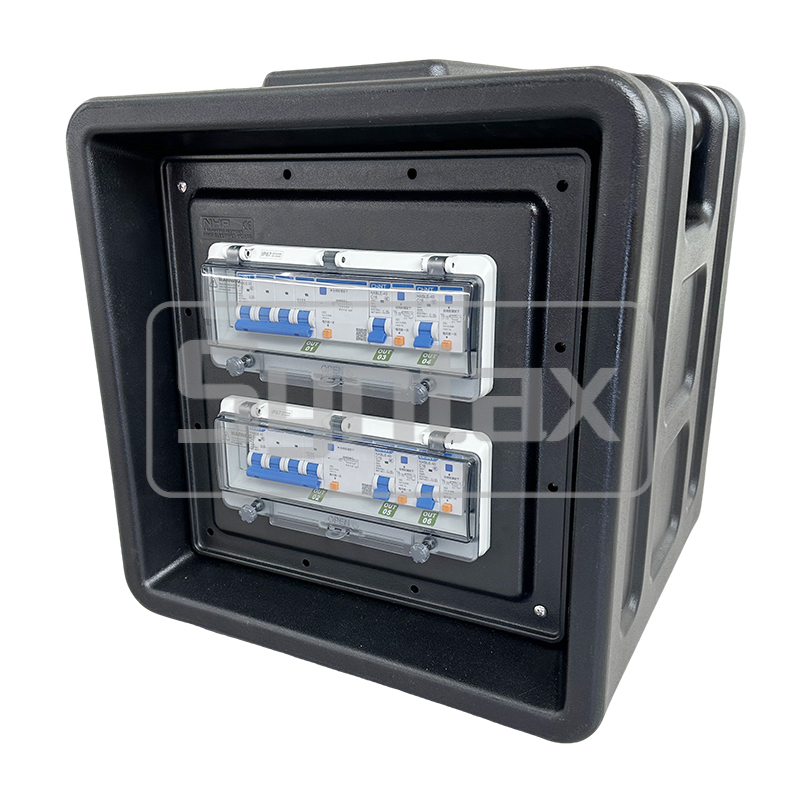

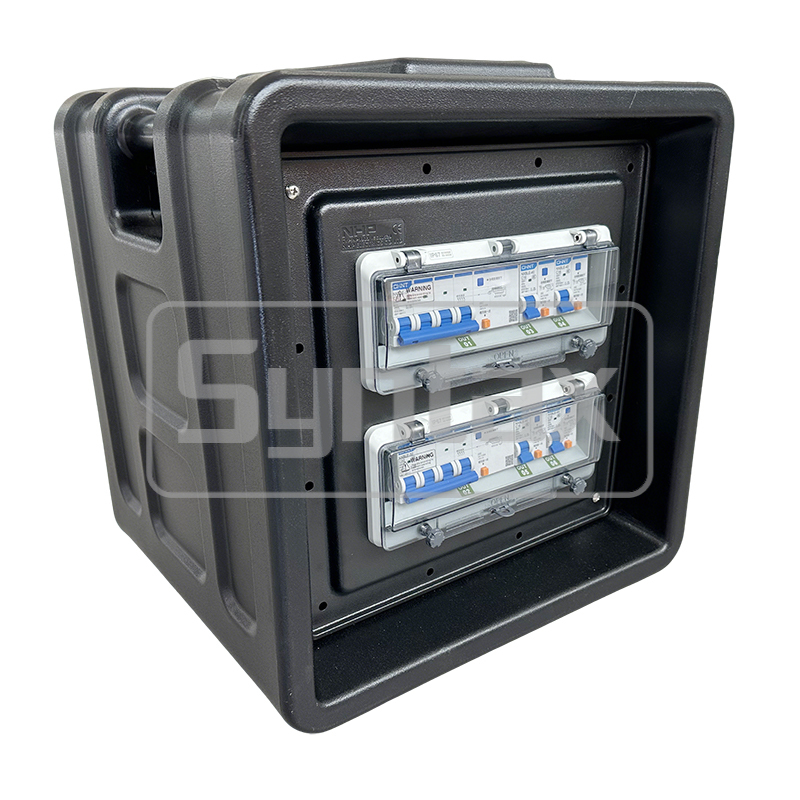

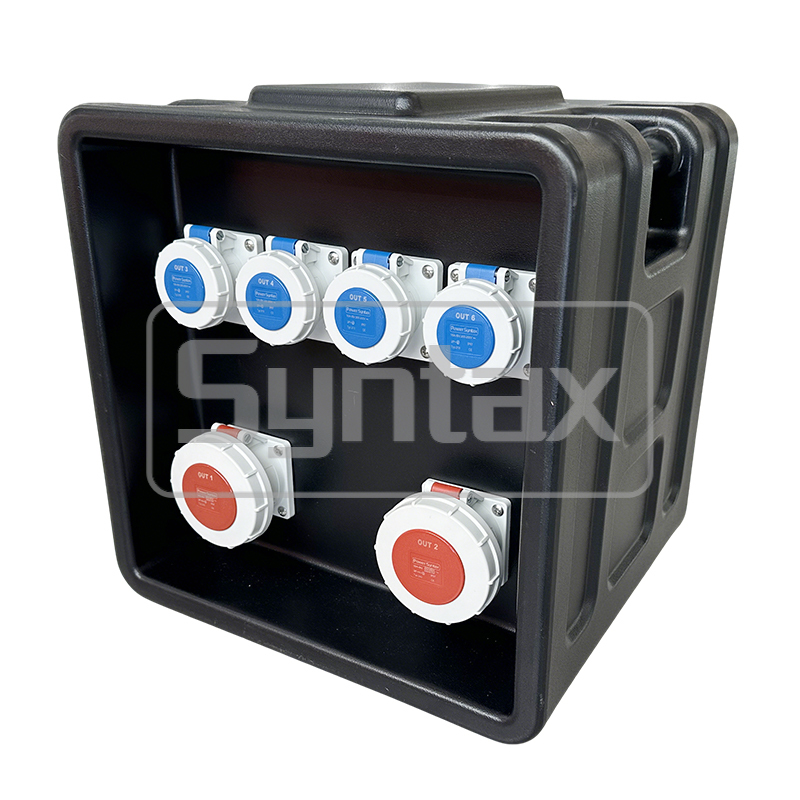

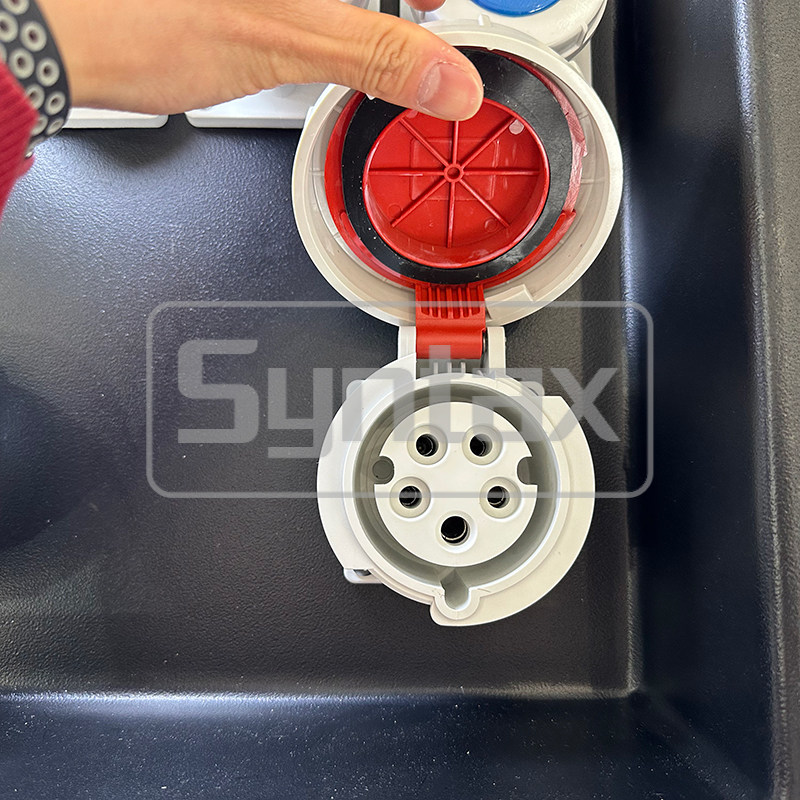

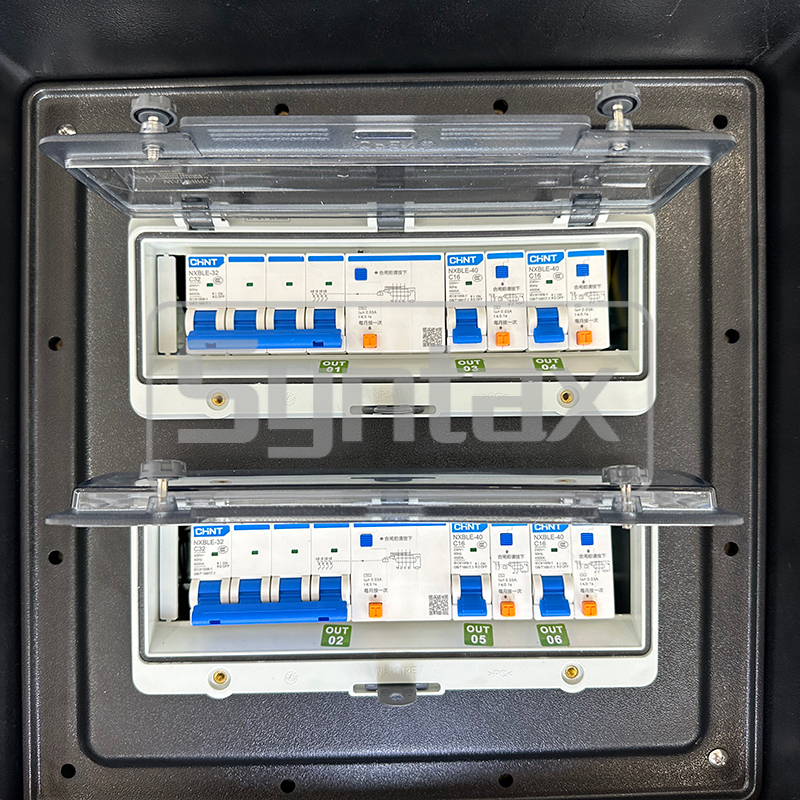

Outgoing Circuit 1	2 × 5P 32A 400V IP67 Panel Mounted Sockets, Protected by 2 × 4P 32A 30mA RCBOs

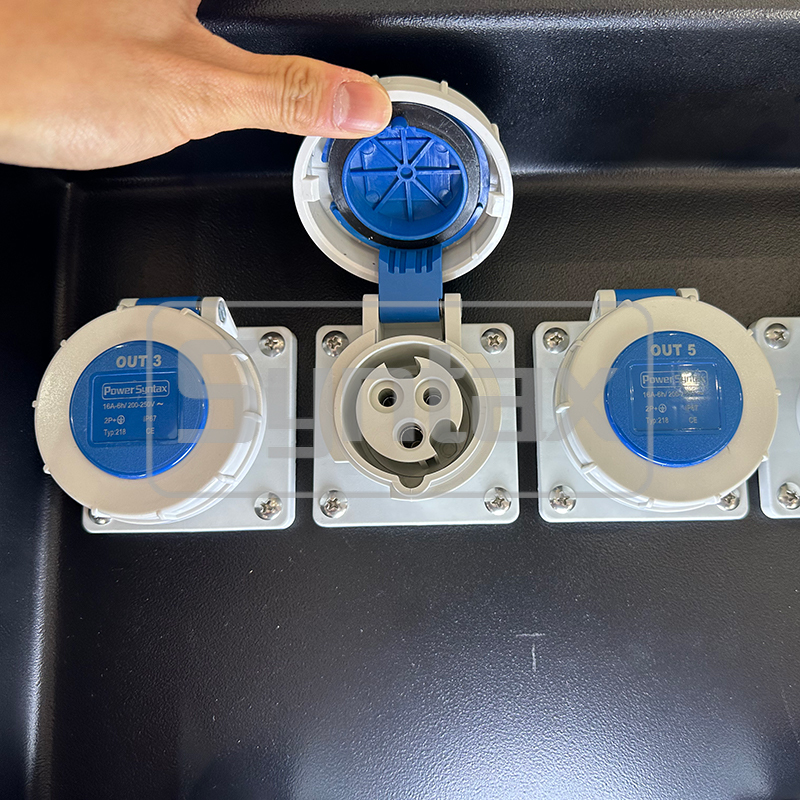

Outgoing Circuit 2	4 × 3P 16A 220V IP44 Panel Mounted Sockets, Protected by 4 × 1P+N 16A 30mA RCBOs
Component Brands	Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT

Product Drawings

Key Features & Benefits

Designed to EN 60439-4 and IEC 60529 standards
Waterproof and shockproof design with IP67 rating
Available in Black, Orange, and Yellow colors
Constructed from durable HDPE/PE polyethylene material
Stackable design for efficient storage and stability
Operating temperature range: -20℃ to +75℃
Compact dimensions: 430mm × 380mm × 460mm

Product Advantages

Quick assembly and dismantling
Safe and reliable electrical connections
Reusable components for cost efficiency
Suitable for indoor and outdoor applications
Robust construction for demanding environments
Easy handling and system management
Integrated feet for secure stacking
24-month warranty on all parts and manufacturing defects

Custom Specification: This three-phase temporary distribution board is specially designed for stage temporary power applications. Featuring no incoming plug or protection, with outgoing circuits including 2 × 32A/5P 400V IP67 sockets protected by 4P 32A 30mA RCBOs and 4 × 16A/3P 220V IP67 sockets protected by 1P+N 16A RCBOs. Constructed from PE material with IP67 waterproof rating, ideal for sports events including swimming competitions.

Industry Applications

Tunnel construction and drilling rigs
Marine, railway, and military operations
Industrial and construction sites
Event technology and large-scale venues
Mining, quarry, and chemical industries
Airports and container terminals
Public infrastructure projects
Communication and electronic industries
Food processing and automotive manufacturing
Music, sports, and entertainment events
Civil infrastructure including hospitals and schools
Electric vehicle charging systems

Customization Options

We offer bespoke power distribution solutions tailored to your specific requirements. Our capabilities include CNC perforation for custom device installation, pre-wiring of components, and IP67 waterproof lockable hinged windows for enhanced protection.

Material Quality

Our distribution boxes utilize heavy-duty PE material known for its strength, toughness, and durability. This material offers performance characteristics similar to rubber while maintaining the structural integrity required for industrial applications.
