Detail Information

Material:

HDPE / PE (polyethylene, A Kind Of Plastic)

Dimension:

430x380x460mm

IP Protection Rate:

IP67 Waterproof

Color:

Black

Highlight:

outdoor event box

portable power distribution units

electrical power box

Product Description

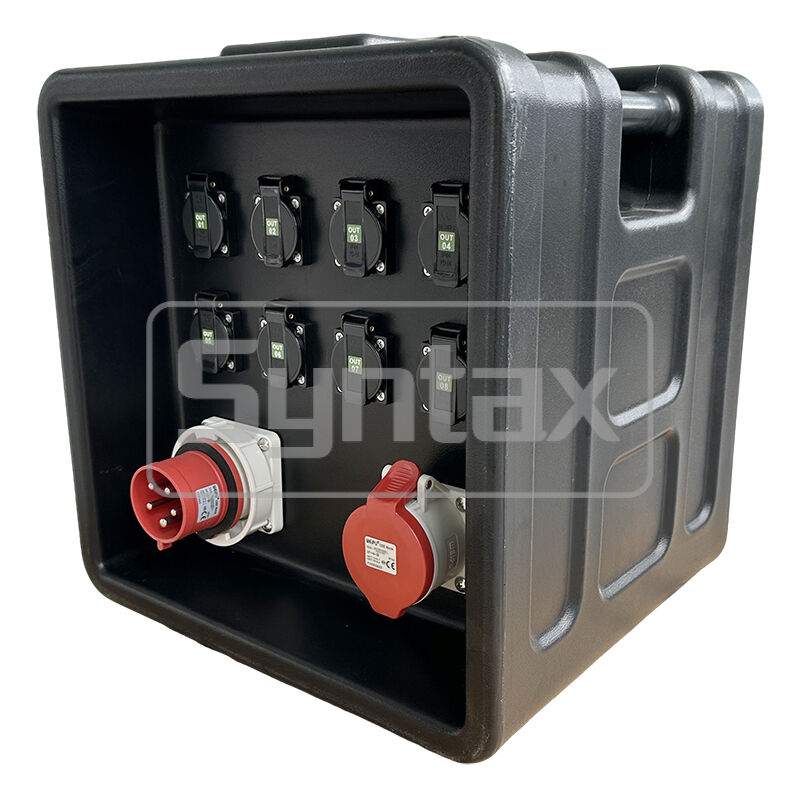

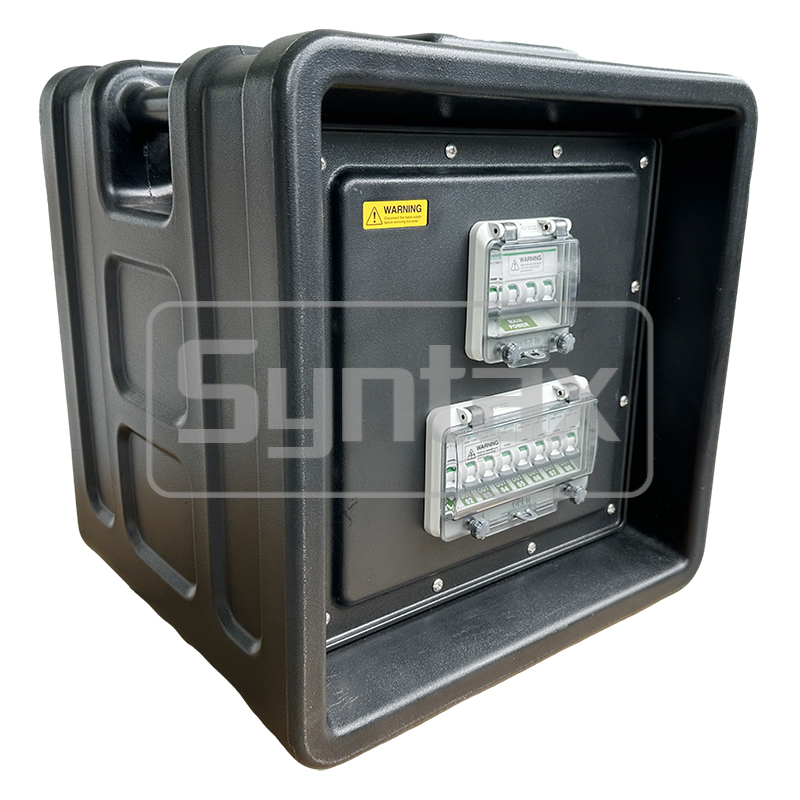

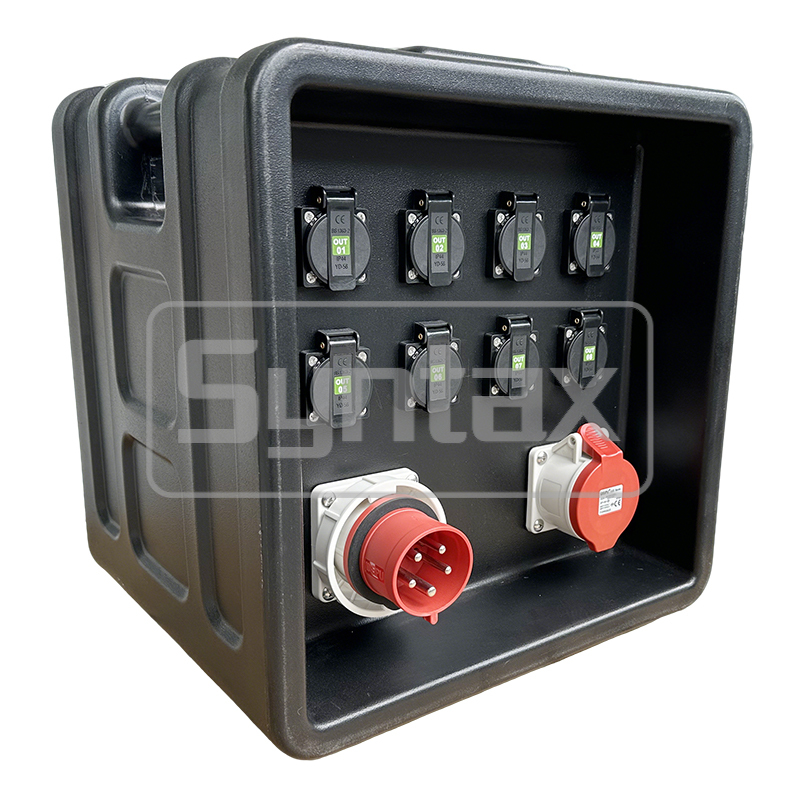

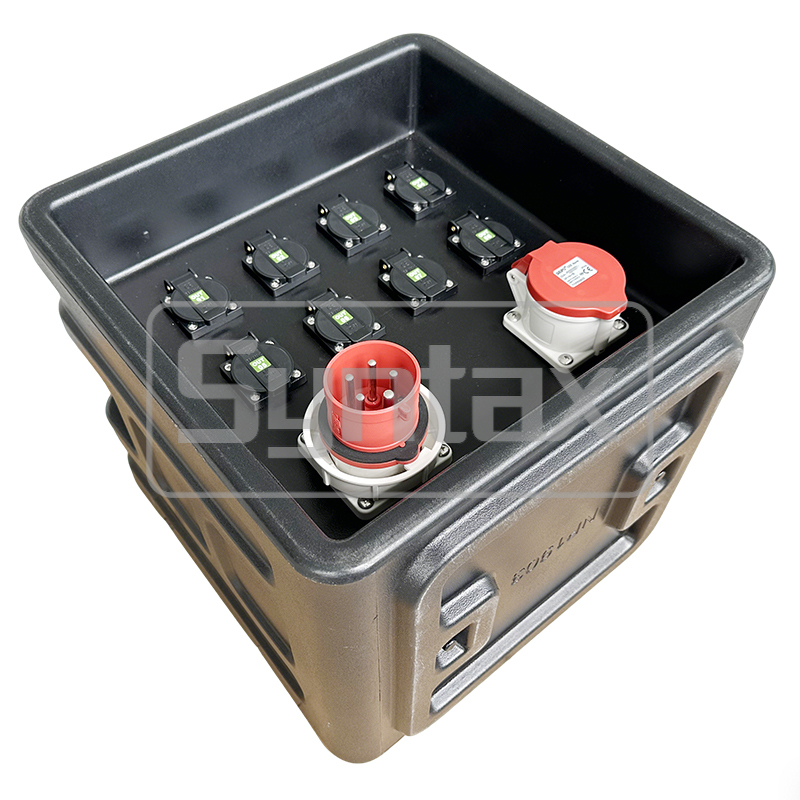

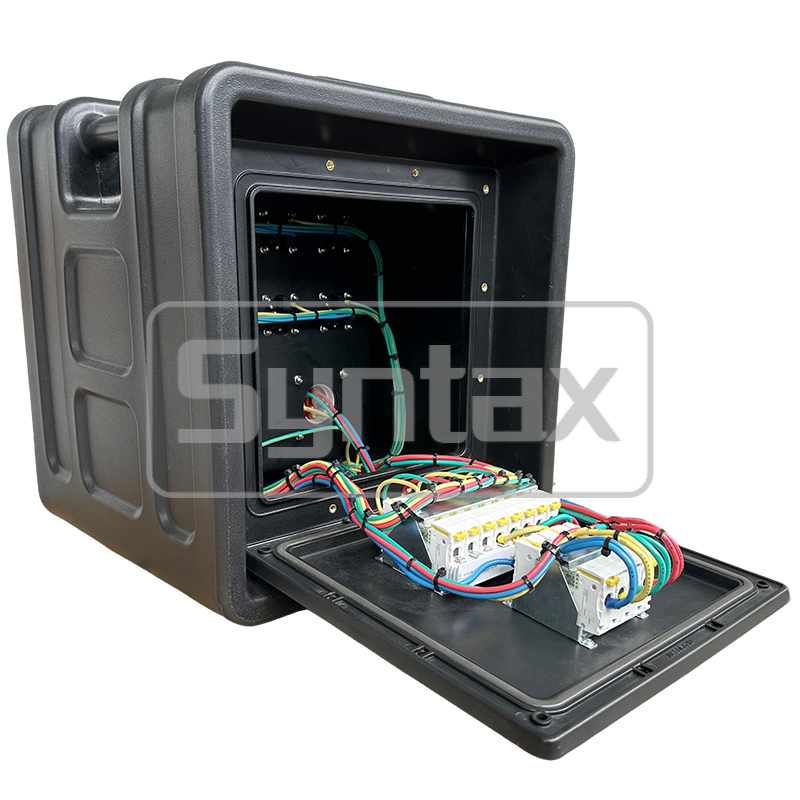

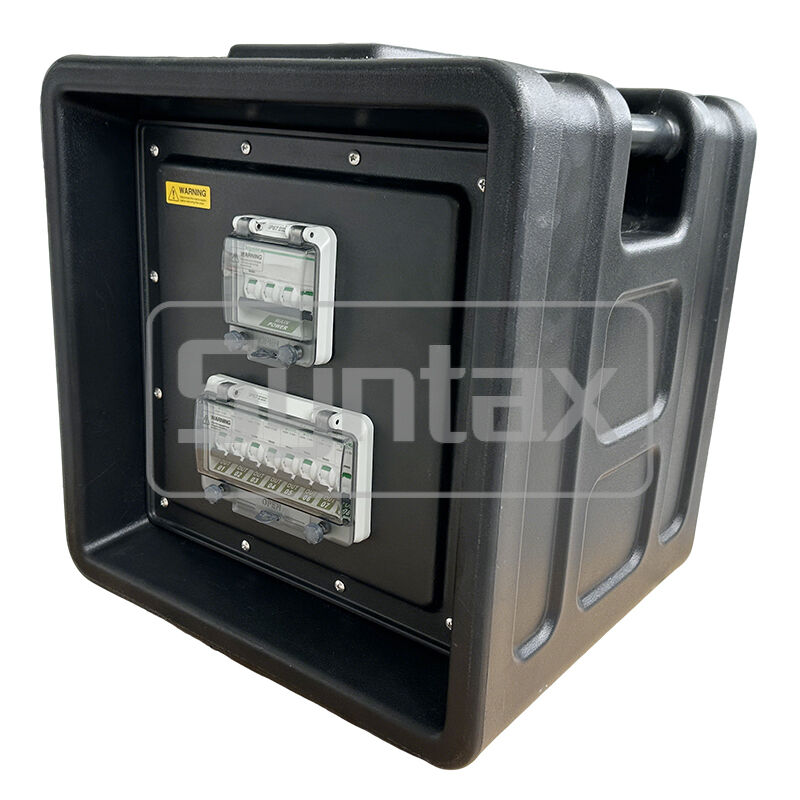

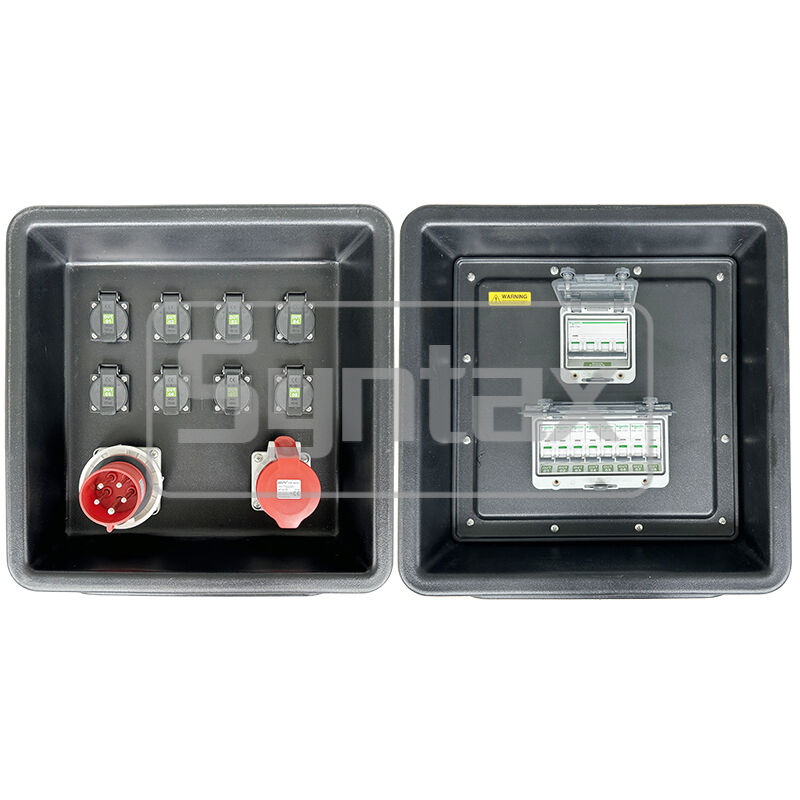

MD1 Three Phase 32A/5P HDPE Power Distribution Box

IP67 Waterproof distribution box designed for event stages and outdoor applications, featuring UK 13A sockets and dimensions of 430×380×460mm.

Technical Specifications

Attribute	Value
Box Model	MD1 Portable Distribution Board IP67
Color	Black
Dimensions	430×380×460mm
Incoming Main Switch	1×5P 32A 400V IP44 Panel Mounted Inlet, protected by 1×4P 32A MCB
Outgoing 1	1×5P 32A 400V IP44 Panel Mounted Sockets, loop through (no protection)

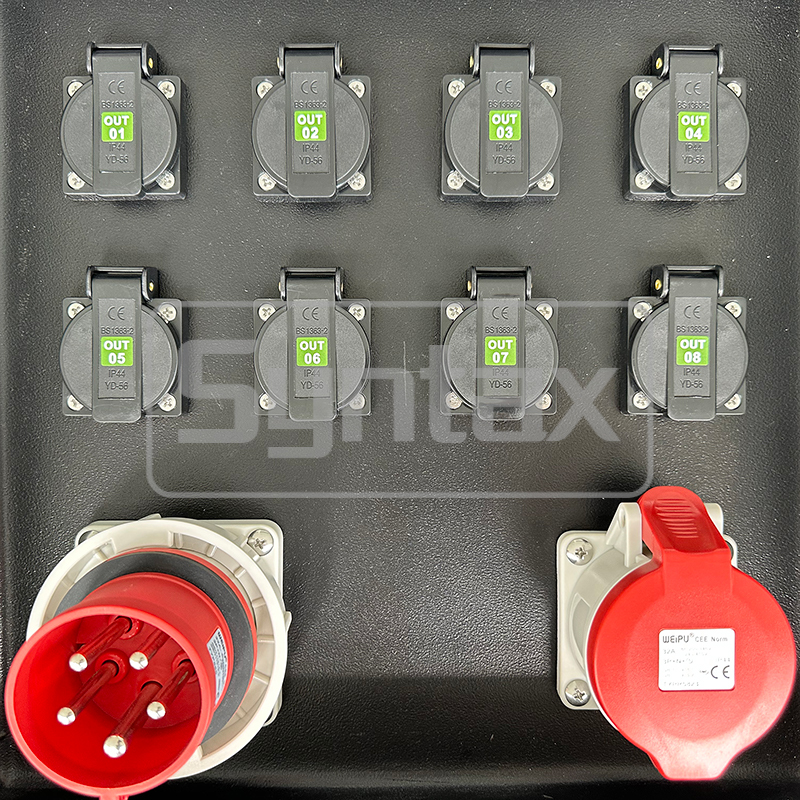

Outgoing 2	8×2P+E 13A 220V UK Sockets, protected by 8×1P 20A MCBs
Component Brands	Distribution Box by Syntax; Industrial Plugs & Sockets by Weipu; Breakers by Schneider

Product Drawings

Key Features

Designed to EN 60439-4, IEC 60529 standards
Waterproof and shockproof design with IP67 rating
Available in Black, Orange, and Yellow colors
Constructed from durable HDPE/PE polyethylene material
Stackable design for efficient storage and stability
Operating temperature range: -20℃ to +75℃

Product Advantages

Quick assembly and dismantling
Safe and reliable connections
Reusable components
Suitable for indoor and outdoor use
Robust construction
Easy handling and system management
Integrated feet for secure stacking
24-month warranty on all parts and manufacturing defects

Premium Construction

This three phase portable distribution board 32 amp outdoors is specially bespoke for stage temporary light box. The incoming is 32AMP/5P 380v IP44 inlet protected by 1 nos 4P 32A MCB, and the outgoing is 1 nos 32A/5P 380v IP44 sockets loop through (no protection) and 8 nos 13A/2P+E 220v UK sockets protected by 8 nos 1P 20A MCBs. The boxes is made in PE and IP67 Waterproof, which is perfect for the sports events especially for swimming match. We can bespoke power distro boxes built to order.

Industry Applications

Tunnel construction

Drilling rigs

Gravel pits

Marine applications

Railway systems

Military operations

Industrial facilities

Construction sites

Event technology

Strip mining

Chemical plants

Airports

Quarries

Container terminals

Large-scale indoor events

Outdoor event power supply

Custom Solutions

We offer customized power distribution solutions tailored to your specific requirements. Our experienced team can pre-wire plugs, sockets, circuit breakers, and other electrical devices before delivery. Custom CNC perforation and IP67 waterproof lockable hinged windows available for specialized applications.

Tag:

Place of Origin:	China
Brand Name:	Syntax
Certification:	EN60439-4, IEC60529, SAA
Model Number:	MD1

Minimum Order Quantity:	1 set
Packaging Details:	Packed by paper carton
Delivery Time:	15 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 sets/month

Syntax MD1 Three Phase 32A/5P HDPE Power Distribution Box IP67 Waterproof for Outdoor Events with UK 13A Sockets
