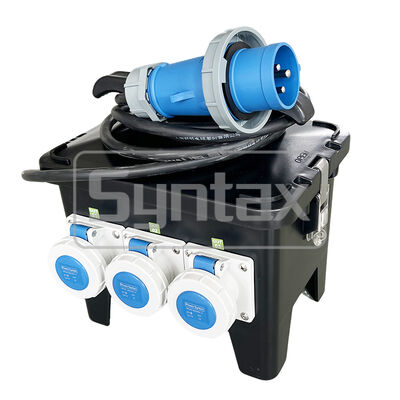

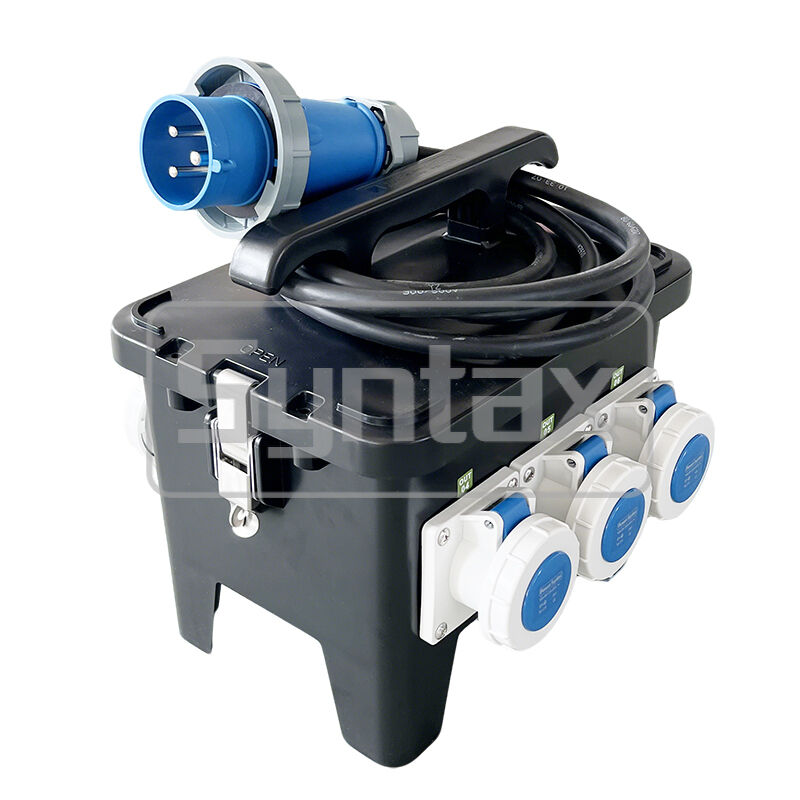

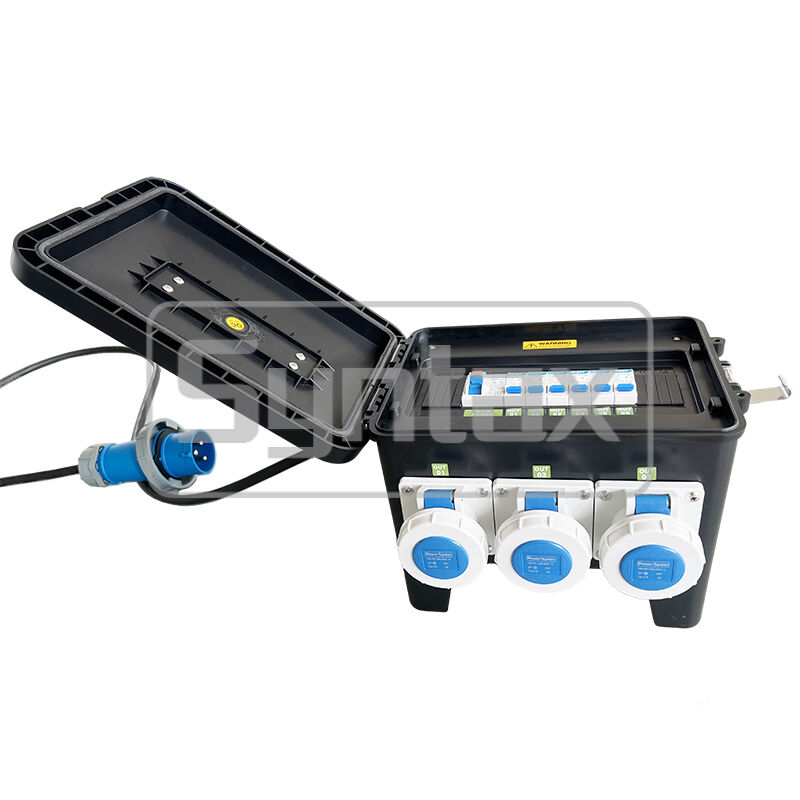

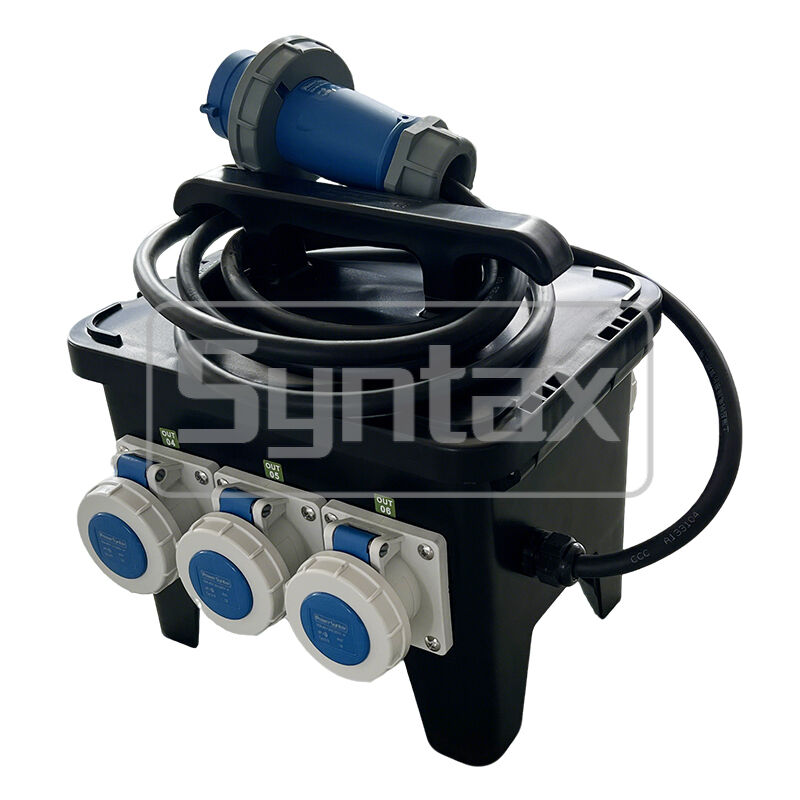

Syntax MP12 Single Phase IP67 Waterproof 32amp Portable Distribution Box with Stackable Design and 3.5m H07RN-F3*6 Extension Cable

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN60439-4, IEC60529, SAA
Model Number: MP12
Minimum Order Quantity: 1 set
Packaging Details: Packed by paper carton
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 3000 sets/month
Detail Information
Material: PC (Polycarbonate Resin, The Best Material Of Plastic) Dimension: 300*230*287mm
IP Protection Rate: IP67 Waterproof Color: Yellow
Highlight:

Portable Power Distribution Spiderbox

,

Power Distribution Board 32 Amp

,

1 phase portable distribution box


Product Description

Syntax MP12 Single Phase 32amp Portable Distribution Box
Syntax MP12 Single Phase 220V Portable Power Distribution Box 32amp with 3.5m H07RN-F3*6 Extension Cable (300×230×287mm)
Technical Specifications
Attribute Value
Box Model MP12 Portable Distribution Board IP67
Color Black
Dimensions 300×230×287mm

Incoming

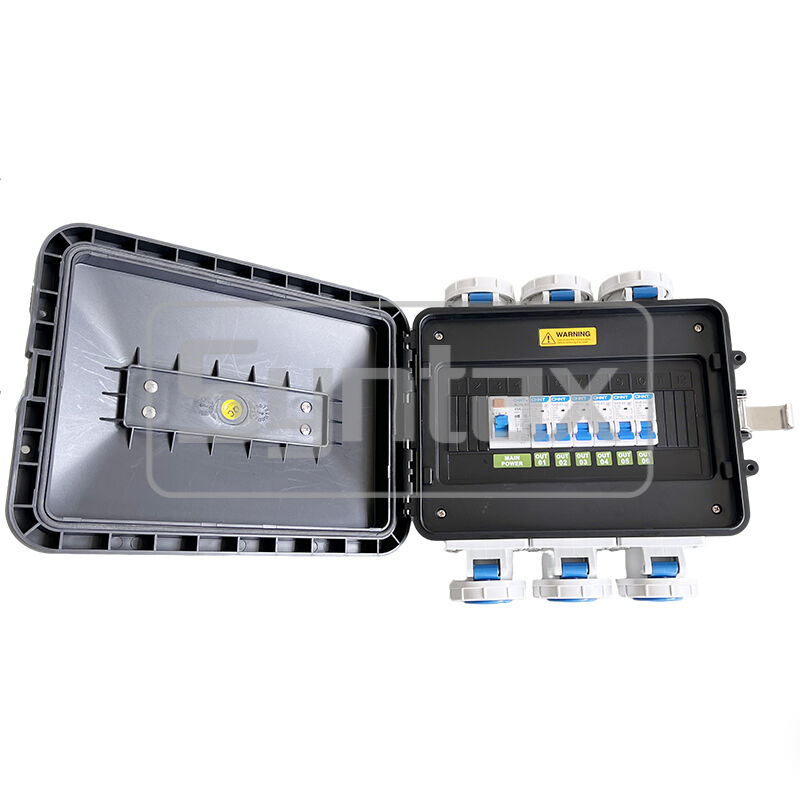

Main Switch

1×3P 32A 220V IP67 Plug with 3.5m H07RN-F3×6 Cable,

protected by 1×2P 40A 30mA RCCB

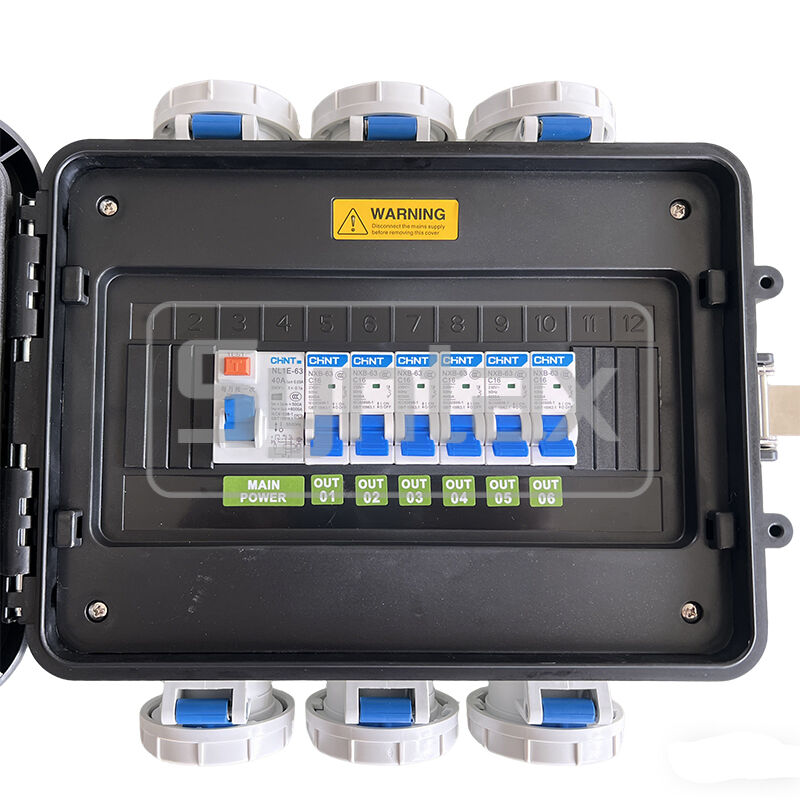

Outgoing 1-6

Breaker

6×3P 16A 220V IP67 Panel Mounted Sockets,

protected by 6×1P 16A MCBs

Brand Components Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by Schneider
Product Drawings
Syntax MP12 Single Phase IP67 Waterproof 32amp Portable Distribution Box with Stackable Design and 3.5m H07RN-F3*6 Extension Cable 0 Syntax MP12 Single Phase IP67 Waterproof 32amp Portable Distribution Box with Stackable Design and 3.5m H07RN-F3*6 Extension Cable 1
Key Features & Benefits
  • Designed to EN 60439-4, IEC 60529 standards
  • Waterproof and shockproof design with IP67 rating
  • Available in Yellow or Black colors
  • Constructed from durable PC (Polycarbonate Resin) material
  • Stackable design for easy storage and daisy chaining
  • Operating temperature range: -20℃ to +75℃
  • Compact dimensions: 300mm×230mm×287mm
Product Advantages
  • Quick assembly and dismantling
  • Safe and reliable connections
  • Reusable components
  • Suitable for indoor and outdoor applications
  • Robust construction for demanding environments
  • Easy handling with integrated stacking feet
  • 24-month warranty on all parts and manufacturing defects
Product Overview
This European standard portable distribution board is rating 32A, single phase 230VAC, 2P+E. The incoming plug is 3P 32A 230v IP67 with 3.5 meters extension cable of H07RN-F3*6, which is protected by a 2P 40A 30mA RCCB. The outgoing sockets are 6 nos 3P 16A 220v IP67 Panel Mounted Straight type sockets, protected by 6 nos 1P 16A MCBs. All the Industrial Plugs and Sockets are made by famous brand PowerSyntax; while the breakers by reputed brand Schneider. The boxes is made in PC and IP67 Waterproof, which is perfect for the events especially for stage. We can bespoke power distribution boxes built to order.
Applications
  • Tunnel construction and drilling rigs
  • Marine, railway, and military applications
  • Industrial and construction sites
  • Event technology and large-scale venues
  • Mining, quarry, and chemical industries
  • Airports and container terminals
  • Public infrastructure projects
  • Automated production lines
  • Electric vehicle charging systems
Custom Solutions
We offer OEM and ODM services for customer-specific solutions when standard products don't meet application requirements. Custom power distribution boxes can be built to order.
