Portable Temporary Power Distribution Center Polyethylene Strong Plastic Housing

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene Strong Plastic Color: Yellow
Dimension: 37*34*33cm Rated Voltage: 415 Volt
IP Grade: IP67 Water Resistance Connection: All Electrical Devices Will Be Installed Inside The Box
High Light:

power distribution box

,

industrial socket box


Product Description

24 poles IP67 Portable Power Distrobox in Orange and PE material with Extension plug



Application



This Terrapin Station Power Distribution Box meets requirements for indoor or outdoor construction site applications where open-neutral ground fault protection and weather resistance is needed. The box deliveres power from electrical panels or portable generators and is ideal for power tools, portable lights, chargers and other equipment.



Features & Benefits



  • Meets the requirements for construction site use
  • Meets the standards for open-neutral socket protection for enhanced safety
  • Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion for years of trouble-free service versus painted metal
  • Thermal magnetic circuit breakers are located under a heavy duty rubber, waterproof, self-closing lid for enhanced breaker protection
  • Weather resistant socket helps to prevent unsafe operating conditions and nuisance tripping
  • Locking receptacles provide secure connections that prevent accidental separation
  • Rainproof for outdoor use
  • Feed thru feature allows multiple boxes to be placed along one feed
  • Spring-loaded covers protect receptacles and inlets from dirt and moisture intrusion
  • Lightweight and compact for easy portability and storage
  • Heavy-duty PE legs position the box at the NEC regulatory while allowing for storage and transport stacking
  • Molded handle enhances portability while improving stackability of multiple units



Markets Served



  • Construction
  • Electrical Distribution
  • Maintenance
  • Shipbuilding
  • Generator Rental and Entertainment



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  2 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
 3 meters 5*10mm2 cable  2 * 32A / 415V 5 pins IP67  CEE panel mounted socket  2 * 3P 32A MCB
   2 * 16A / 415V 5 pins IP67  CEE panel mounted socket  2 * 1P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE panel mounted socket  2 * 3P 16A MCB
     2 * 1P 16A MCB



Product Pictures

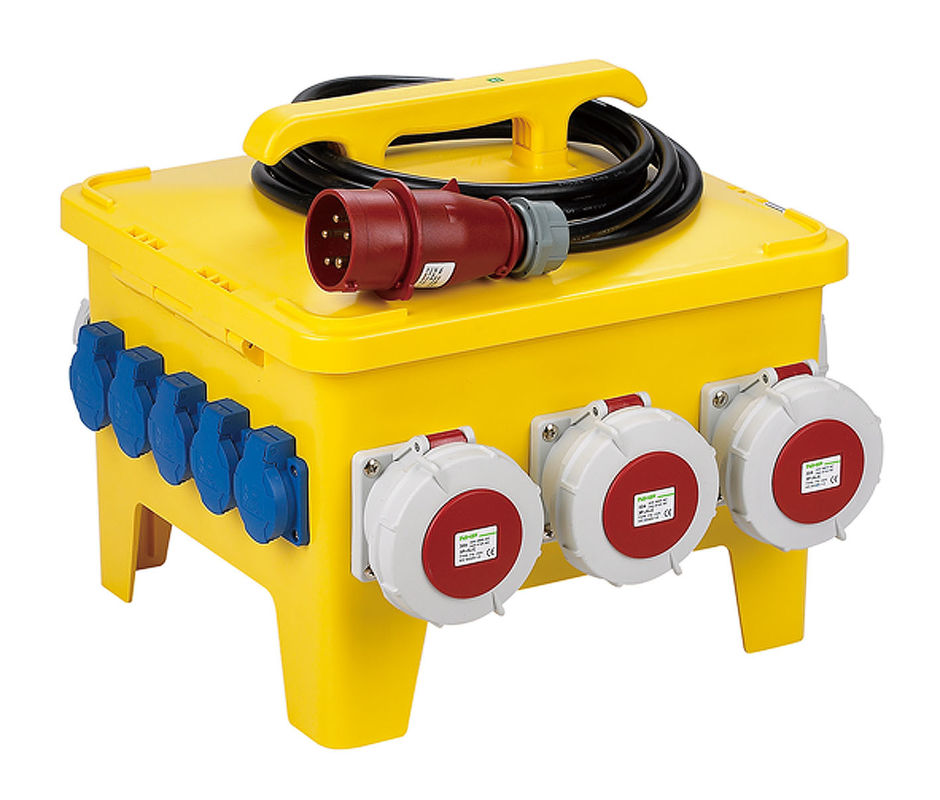

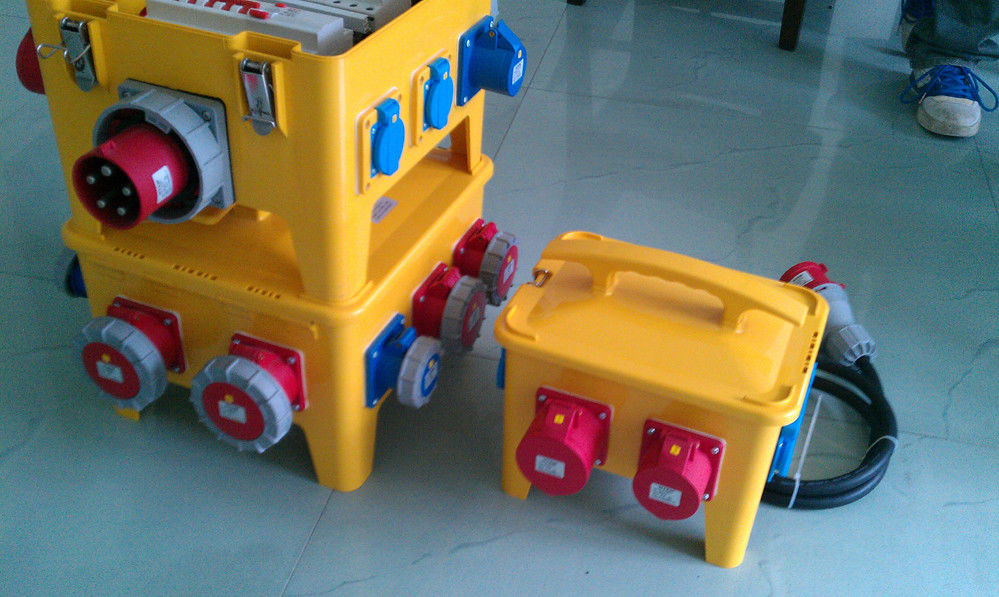

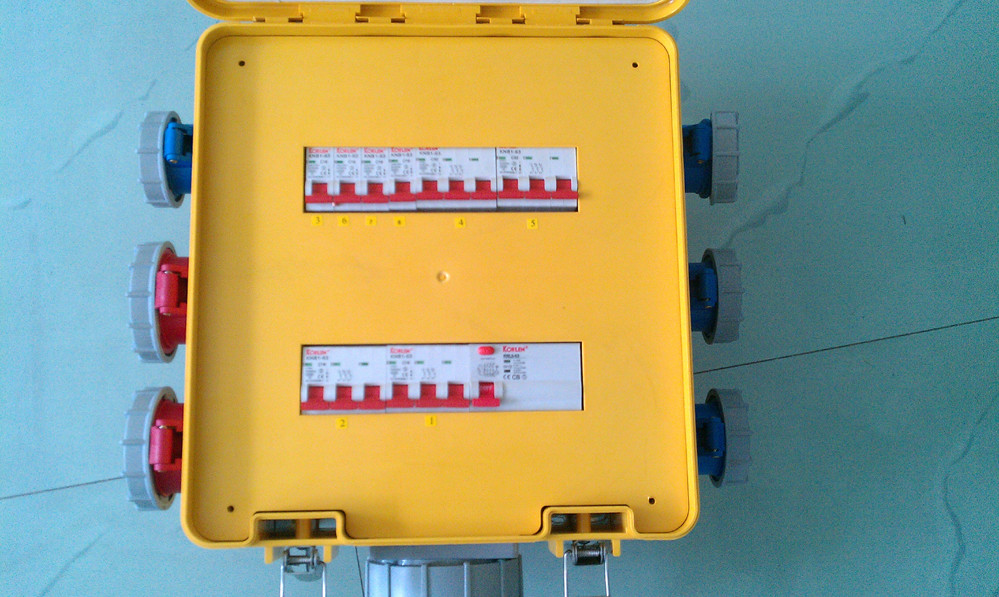

Portable Temporary Power Distribution Center Polyethylene Strong Plastic Housing 0
