SAA Portable Distribution Box 240V Rated Voltage 37 * 34 * 33cm Dimension

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: ABS Rated Voltage: 240 Volts
Dimension: 37*34*33cm Color: Yellow
Protection Grade: IP66 Rainproof Overcurrent Protection: By MCB, RCD, Or RCBO
High Light:

power distribution box

,

temporary power boxes spider


Product Description

Yellow Mobile Power Distribution Box with Overcurrent Protection by MCB and RCD Waterproof with Handle

Application



Rubber power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plugs and sockets. With incoming protection of RCD 63Amp 4p-C 30mA (MAIN Power) and outgoing protection of 2 x MCB 32A 3P-C 6kA, 2 x MCB 32A 1P-C 6kA, 2 x MCB 16A 3P-C 6kA and 2 x MCB 16A 1P-C 6kA on the outgoing sockets.



CE Declaration of Conformity


Low voltage switchgear and control gear assembles in compliance with the standard IEC 61439-1/2 (EN 61439-1/2).



Device Options:



  • Various Receptacles
  • Pin & Sleeve
  • Locking Devices
  • Convenience Outlets
  • Switched & Interlocked Receptacles
  • Overcurrent Protection



Markets Served



  • Shipyards
  • Emergency/Disaster Relief
  • Construction Outdoor Events
  • Concert Touring
  • Entertainment
  • Live Events
  • Convention Centers
  • Industrial



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  2 * 63A / 415V 5 pins IP67  CEE receptacle  1 * 4P 63A 30mA RCD
 3 meters 5*10mm2 cable  2 * 32A / 415V 5 pins IP67  CEE receptacle  2 * 3P 32A MCB
   2 * 16A / 415V 5 pins IP67  CEE receptacle  2 * 1P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE receptacle  2 * 3P 16A MCB
     2 * 1P 16A MCB
  • All electrical components like MCB, RCD, RCBO, industrial plugs, industrial sockets can be customized.



Product Pictures

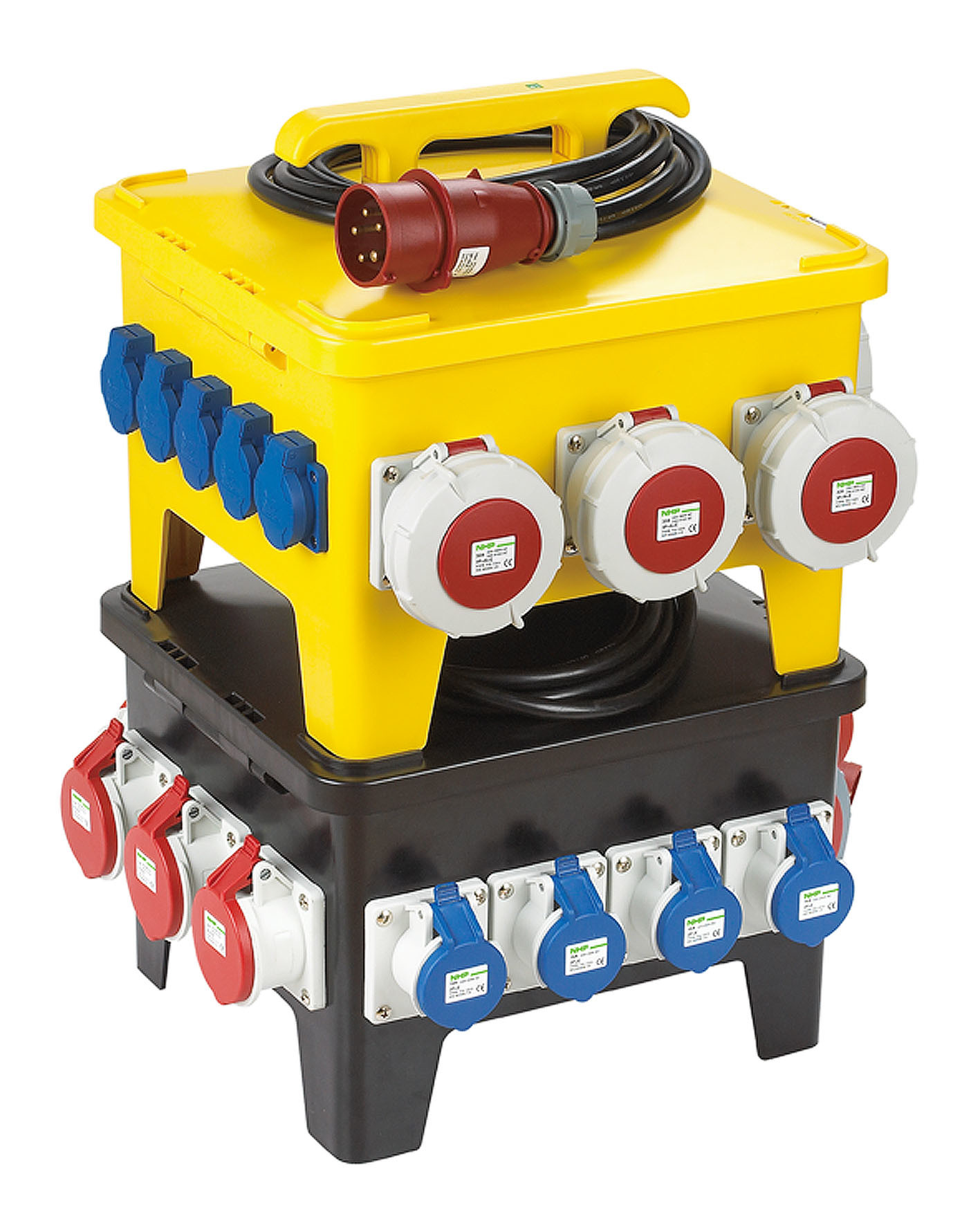

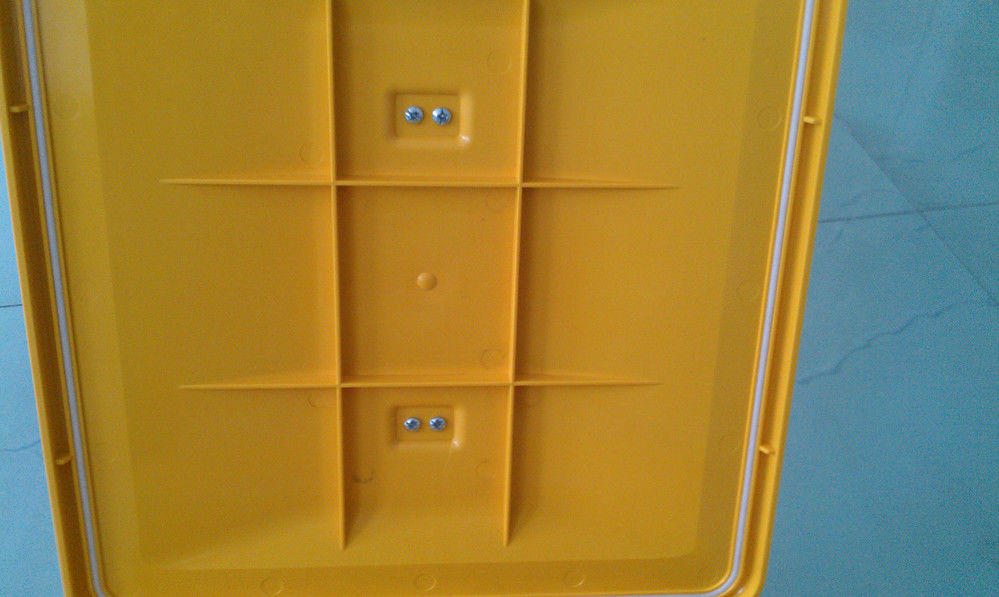

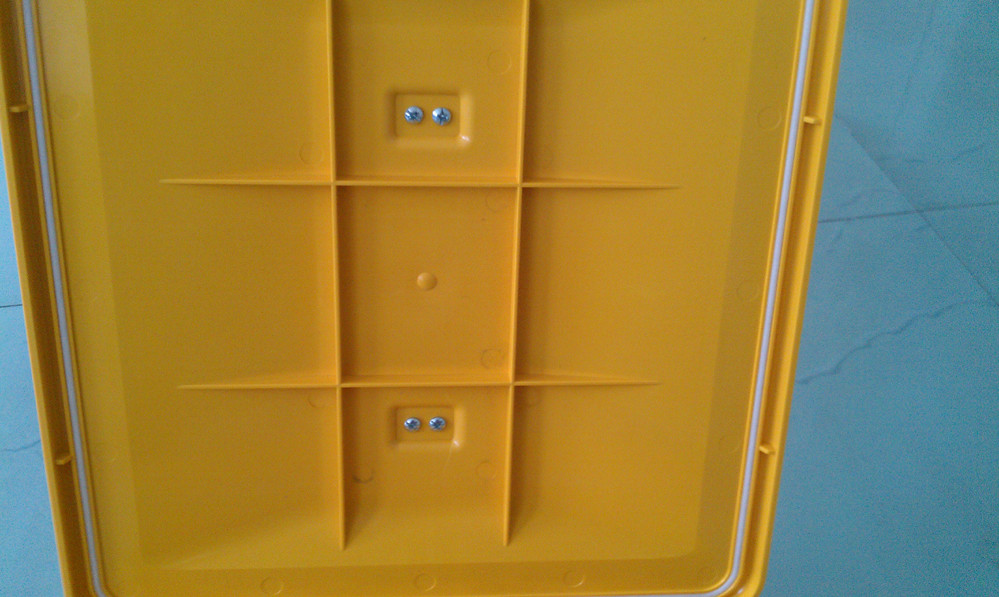

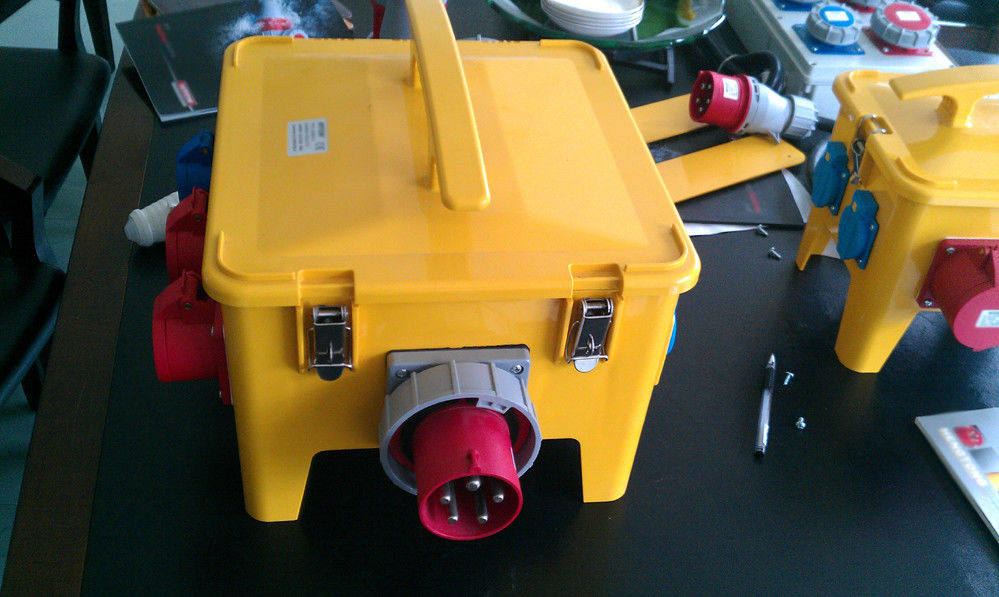

SAA Portable Distribution Box 240V Rated Voltage 37 * 34 * 33cm Dimension 0
